As I could get those for fairly cheap in the EU, can anyone confirm if the driver present in unRAID supports them? Thanks!



https://www.ebay.ie/itm/Ibm-QLE8142-IBMX-Dual-Port-10-Gbit-S-SFP-Sr-Cna-San-Lan-Server-Adapter-42C1802/153604243382

I answered my own question, the device id is 8000, vendor ID is 1077
Source: https://devicehunt.com/view/type/pci/vendor/1077/device/8000



Which is supported by QLogic qlge driver:

PCI
Numeric ID (from LKDDb) and names (from pci.ids) of recognized devices:

vendor: 1077 ("QLogic Corp."), device: 8000 ("10GbE Converged Network Adapter (TCP/IP Networking)")
vendor: 1077 ("QLogic Corp."), device: 8000 ("10GbE Converged Network Adapter (TCP/IP Networking)")
vendor: 1077 ("QLogic Corp."), device: 8000 ("10GbE Converged Network Adapter (TCP/IP Networking)")
vendor: 1077 ("QLogic Corp."), device: 8012
vendor: 1077 ("QLogic Corp."), device: 8012
vendor: 1077 ("QLogic Corp."), device: 8012

LKDDb
Raw data from LKDDb:

lkddb module qlge CONFIG_QLGE : drivers/net/Kconfig : "QLogic QLGE 10Gb Ethernet Driver Support" # in 2.6.28–2.6.39, 3.0–3.1
lkddb module qlge CONFIG_QLGE : drivers/net/ethernet/qlogic/Kconfig : "QLogic QLGE 10Gb Ethernet Driver Support" # in 3.2–3.19, 4.0–4.20, 5.0–5.3, 5.3+HEAD
lkddb module qlge CONFIG_QLGE : drivers/staging/qlge/Kconfig : "QLogic QLGE 10Gb Ethernet Driver Support" # in 5.4, 5.5-rc+HEAD
lkddb pci 1077 8000 .... .... ...... : CONFIG_ETHERNET CONFIG_NET_VENDOR_QLOGIC CONFIG_QLGE : drivers/net/ethernet/qlogic/qlge/qlge_main.c # in 3.17–3.19, 4.0–4.20, 5.0–5.3, 5.3+HEAD
lkddb pci 1077 8000 .... .... ...... : CONFIG_QLGE : drivers/net/qlge/qlge_main.c # in 2.6.28, 2.6.30–2.6.33
lkddb pci 1077 8000 .... .... ...... : CONFIG_QLGE CONFIG_STAGING : drivers/staging/qlge/qlge_main.c # in 5.4, 5.5-rc+HEAD
lkddb pci 1077 8012 .... .... ...... : CONFIG_ETHERNET CONFIG_NET_VENDOR_QLOGIC CONFIG_QLGE : drivers/net/ethernet/qlogic/qlge/qlge_main.c # in 3.17–3.19, 4.0–4.20, 5.0–5.3, 5.3+HEAD
lkddb pci 1077 8012 .... .... ...... : CONFIG_QLGE : drivers/net/qlge/qlge_main.c # in 2.6.28–2.6.33
lkddb pci 1077 8012 .... .... ...... : CONFIG_QLGE CONFIG_STAGING : drivers/staging/qlge/qlge_main.c # in 5.4, 5.5-rc+HEAD

Which looking at the modules of unRAID 6.8.1 kernel is included:

kernel/drivers/net/ethernet/qlogic/qlge/qlge.ko.xz

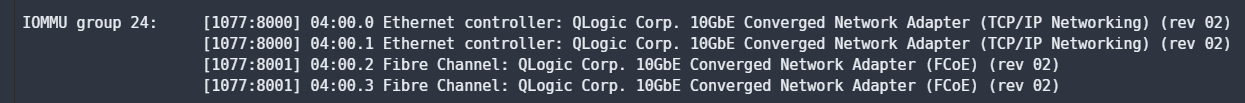

In case someone stumbles here, wanted to report that I am successfully running the card in my NAS with both 10Gbit interfaces in adaptive load balancing and have no issues.

Can you confirm if the device you have has pci product id 0x8000 or 0x8012?

It can be checked with `lspci -vnn`. All such devices I've seen so far have id 0x8012.

Thanks.

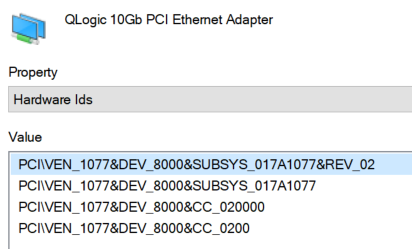

Sorry for being super late here, it's 0x8000, checked both unraid and windows.





No problem, no rush on my part. Thanks a lot for the detailed info. Actually, I doubled-checked and the adapters I worked with in the past were also 1077:8000 (and also subsys 1077:017A), my bad I'm sorry. It's the other way around, I've never seen 0x8012! I thought that the IBM-branded OEM adapters might have a different id. The same driver (qlge) registers support for both ids.

Hi, I am a newbie here,

I have the QLE8142 same card dual 2 X CNA cards. Tried to install one on windows 10 and one on UNRAID. Both of them not taking this cards. Could you please help me out how to make it work. Thanks
