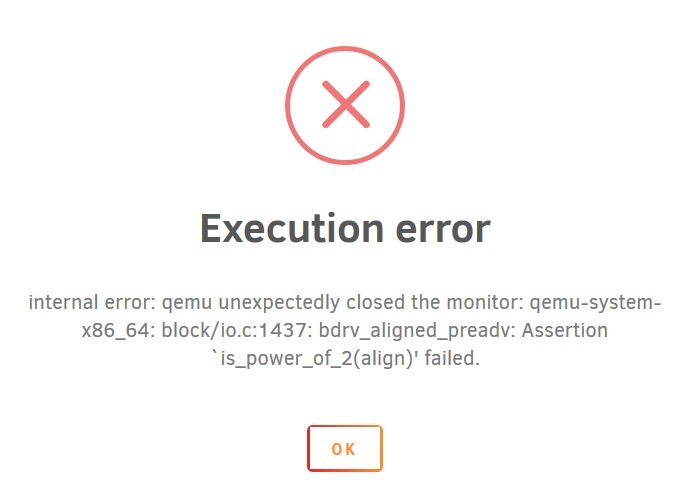

januszwoj Posted January 21, 2020 Share Posted January 21, 2020 (edited) After upgrading from 6.8.0 to 6.8.1 I can't start my Win10 VM. I'm getting error: "internal error: qemu unexpectedly closed the monitor: qemu-system-x86_64: block/io.c:1437: bdrv_aligned_preadv: Assertion `is_power_of_2(align)' failed." like on attached image. All I need to do is restore the previous version 6.8.0 and the virtual machine starts without any problem. There is Nvidia GTX 1660 & one USB port passthrough, so nothing special. For now I have to go back to 6.8.0. I will be grateful for any help. Regards Janusz Log for my GamePC VM -device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \ -device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \ -device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \ -device pcie-pci-bridge,id=pci.7,bus=pci.1,addr=0x0 \ -device pcie-root-port,port=0xe,chassis=8,id=pci.8,bus=pcie.0,addr=0x1.0x6 \ -device pcie-root-port,port=0xf,chassis=9,id=pci.9,bus=pcie.0,addr=0x1.0x7 \ -device pcie-root-port,port=0x10,chassis=10,id=pci.10,bus=pcie.0,addr=0x2 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.3,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/GamePC1/vdisk1.img","aio":"native","node-name":"libvirt-3-storage","cache":{"direct":true,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":true,"no-flush":false},"driver":"qcow2","file":"libvirt-3-storage","backing":null}' \ -device virtio-blk-pci,scsi=off,bus=pci.4,addr=0x0,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=off \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.171-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \ -netdev tap,fd=36,id=hostnet0,vhost=on,vhostfd=37 \ -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:a0:c4:6f,bus=pci.2,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=38,server,nowait \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -device vfio-pci,host=0000:05:00.0,id=hostdev0,bus=pci.5,multifunction=on,addr=0x0 \ -device vfio-pci,host=0000:05:00.1,id=hostdev1,bus=pci.5,addr=0x0.0x1 \ -device vfio-pci,host=0000:05:00.2,id=hostdev2,bus=pci.5,addr=0x0.0x2 \ -device vfio-pci,host=0000:05:00.3,id=hostdev3,bus=pci.5,addr=0x0.0x3 \ -device vfio-pci,host=0000:00:1d.0,id=hostdev4,bus=pci.7,addr=0x1 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2020-01-21 08:52:52.624+0000: Domain id=2 is tainted: high-privileges 2020-01-21 08:52:52.624+0000: Domain id=2 is tainted: host-cpu char device redirected to /dev/pts/2 (label charserial0) qemu-system-x86_64: block/io.c:1437: bdrv_aligned_preadv: Assertion `is_power_of_2(align)' failed. 2020-01-21 08:52:52.983+0000: shutting down, reason=failed 2020-01-21 09:11:57.477+0000: starting up libvirt version: 5.10.0, qemu version: 4.2.0, kernel: 4.19.94-Unraid, hostname: unRAID1 LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME=/var/lib/libvirt/qemu/domain-3-GamePC1 \ XDG_DATA_HOME=/var/lib/libvirt/qemu/domain-3-GamePC1/.local/share \ XDG_CACHE_HOME=/var/lib/libvirt/qemu/domain-3-GamePC1/.cache \ XDG_CONFIG_HOME=/var/lib/libvirt/qemu/domain-3-GamePC1/.config \ QEMU_AUDIO_DRV=none \ /usr/local/sbin/qemu \ -name guest=GamePC1,debug-threads=on \ -S \ -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-3-GamePC1/master-key.aes \ -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \ -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/0e7ad63e-d19c-c291-06bf-7b7ae4511f55_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \ -machine pc-q35-4.1,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format \ -cpu host \ -m 8192 \ -overcommit mem-lock=off \ -smp 10,sockets=1,cores=5,threads=2 \ -uuid 0e7ad63e-d19c-c291-06bf-7b7ae4511f55 \ -display none \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=34,server,nowait \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime,driftfix=slew \ -global kvm-pit.lost_tick_policy=delay \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=0x8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \ -device pcie-root-port,port=0x9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \ -device pcie-root-port,port=0xa,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \ -device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \ -device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \ -device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \ -device pcie-pci-bridge,id=pci.7,bus=pci.1,addr=0x0 \ -device pcie-root-port,port=0xe,chassis=8,id=pci.8,bus=pcie.0,addr=0x1.0x6 \ -device pcie-root-port,port=0xf,chassis=9,id=pci.9,bus=pcie.0,addr=0x1.0x7 \ -device pcie-root-port,port=0x10,chassis=10,id=pci.10,bus=pcie.0,addr=0x2 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.3,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/GamePC1/vdisk1.img","aio":"native","node-name":"libvirt-3-storage","cache":{"direct":true,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":true,"no-flush":false},"driver":"qcow2","file":"libvirt-3-storage","backing":null}' \ -device virtio-blk-pci,scsi=off,bus=pci.4,addr=0x0,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=off \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/Windows.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.171-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \ -netdev tap,fd=36,id=hostnet0,vhost=on,vhostfd=37 \ -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:a0:c4:6f,bus=pci.2,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=38,server,nowait \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -device vfio-pci,host=0000:05:00.0,id=hostdev0,bus=pci.5,multifunction=on,addr=0x0 \ -device vfio-pci,host=0000:05:00.1,id=hostdev1,bus=pci.5,addr=0x0.0x1 \ -device vfio-pci,host=0000:05:00.2,id=hostdev2,bus=pci.5,addr=0x0.0x2 \ -device vfio-pci,host=0000:05:00.3,id=hostdev3,bus=pci.5,addr=0x0.0x3 \ -device vfio-pci,host=0000:00:1d.0,id=hostdev4,bus=pci.7,addr=0x1 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2020-01-21 09:11:57.477+0000: Domain id=3 is tainted: high-privileges 2020-01-21 09:11:57.477+0000: Domain id=3 is tainted: host-cpu char device redirected to /dev/pts/1 (label charserial0) qemu-system-x86_64: block/io.c:1437: bdrv_aligned_preadv: Assertion `is_power_of_2(align)' failed. 2020-01-21 09:11:57.596+0000: shutting down, reason=failed GamePC XML <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>GamePC1</name> <uuid>0e7ad63e-d19c-c291-06bf-7b7ae4511f55</uuid> <description>Game PC 1 - Windows 10</description> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>10</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> <vcpupin vcpu='1' cpuset='11'/> <vcpupin vcpu='2' cpuset='4'/> <vcpupin vcpu='3' cpuset='12'/> <vcpupin vcpu='4' cpuset='5'/> <vcpupin vcpu='5' cpuset='13'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='14'/> <vcpupin vcpu='8' cpuset='7'/> <vcpupin vcpu='9' cpuset='15'/> <emulatorpin cpuset='1,9'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-4.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/0e7ad63e-d19c-c291-06bf-7b7ae4511f55_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='5' threads='2'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2' cache='directsync' io='native'/> <source file='/mnt/user/domains/GamePC1/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Windows.iso'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.171-1.iso'/> <target dev='hdb' bus='sata'/> <readonly/> <address type='drive' controller='0' bus='0' target='0' unit='1'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-to-pci-bridge'> <model name='pcie-pci-bridge'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xe'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0xf'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0x10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:a0:c4:6f'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x3'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x00' slot='0x1d' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x07' slot='0x01' function='0x0'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'/> </domain> unraid1-diagnostics-20200121-1034.zip Edited February 9, 2020 by januszwoj Quote Link to comment
januszwoj Posted February 8, 2020 Author Share Posted February 8, 2020 I had a few days off and could experiment a little. In the meantime a newer version of unRaid 6.8.2 has been released. Unfortunately, attempting to run my VM with Win10 caused the same error. I tried to create a new Windows VM with succes. Then I tried to replace the vdisk file and it worked. I tried to compare xml files and it looks like there are additional lines in the newer version of unRaid (6.8.1 up) that there wasn't before. Anyway, I was able to update unRaid to the latest version and my Win10 GamePC VM works again. You can close this topic. Quote Link to comment
testdasi Posted February 10, 2020 Share Posted February 10, 2020 On 2/8/2020 at 4:12 PM, januszwoj said: I tried to compare xml files and it looks like there are additional lines in the newer version of unRaid (6.8.1 up) that there wasn't before. What are the additional lines? I have not noticed this at all. Quote Link to comment
januszwoj Posted February 12, 2020 Author Share Posted February 12, 2020 HI testdasi. Beginning of my old XML. <domain type='kvm'> <name>GamePC1</name> <uuid>xxxxxxxxxxxxxxxxxxxxxxxxxxxxx</uuid> <description>Game PC 1 - Windows 10</description> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>10</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> <vcpupin vcpu='1' cpuset='11'/> <vcpupin vcpu='2' cpuset='4'/> <vcpupin vcpu='3' cpuset='12'/> <vcpupin vcpu='4' cpuset='5'/> <vcpupin vcpu='5' cpuset='13'/> <vcpupin vcpu='6' cpuset='6'/> <vcpupin vcpu='7' cpuset='14'/> <vcpupin vcpu='8' cpuset='7'/> <vcpupin vcpu='9' cpuset='15'/> <emulatorpin cpuset='1,9'/> <----------- </cputune> <resource> <partition>/machine</partition> <----------- </resource> <os> <type arch='x86_64' machine='pc-q35-4.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/0e7ad63e-d19c-c291-06bf-7b7ae4511f55_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='5' threads='2'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <----------- <timer name='pit' tickpolicy='delay'/> <----------- <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> My new XML file. <domain type='kvm'> <name>Windows 10 - GamePC1</name> <uuid>xxxxxxxxxxxxxxxxxxxxxxxxxxxx</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='4'/> <vcpupin vcpu='1' cpuset='12'/> <vcpupin vcpu='2' cpuset='5'/> <vcpupin vcpu='3' cpuset='13'/> <vcpupin vcpu='4' cpuset='6'/> <vcpupin vcpu='5' cpuset='14'/> <vcpupin vcpu='6' cpuset='7'/> <vcpupin vcpu='7' cpuset='15'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-4.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/03000200-0400-0500-0006-000700080009_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <-------- <relaxed state='on'/> <-------- <vapic state='on'/> <-------- <spinlocks state='on' retries='8191'/> <-------- <vendor_id state='on' value='none'/> <-------- </hyperv> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='4' threads='2'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <--------- <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> There are small changes between the files. I guess because of them, my VM didn't want to work. After creating the new XML and as it worked, I didn't test the old file anymore. Regards Janusz Quote Link to comment
