I just noticed that my unraid is not connecting to the internet. Not sure what screwed up but may be the router got reset itself is what i have observed so far.

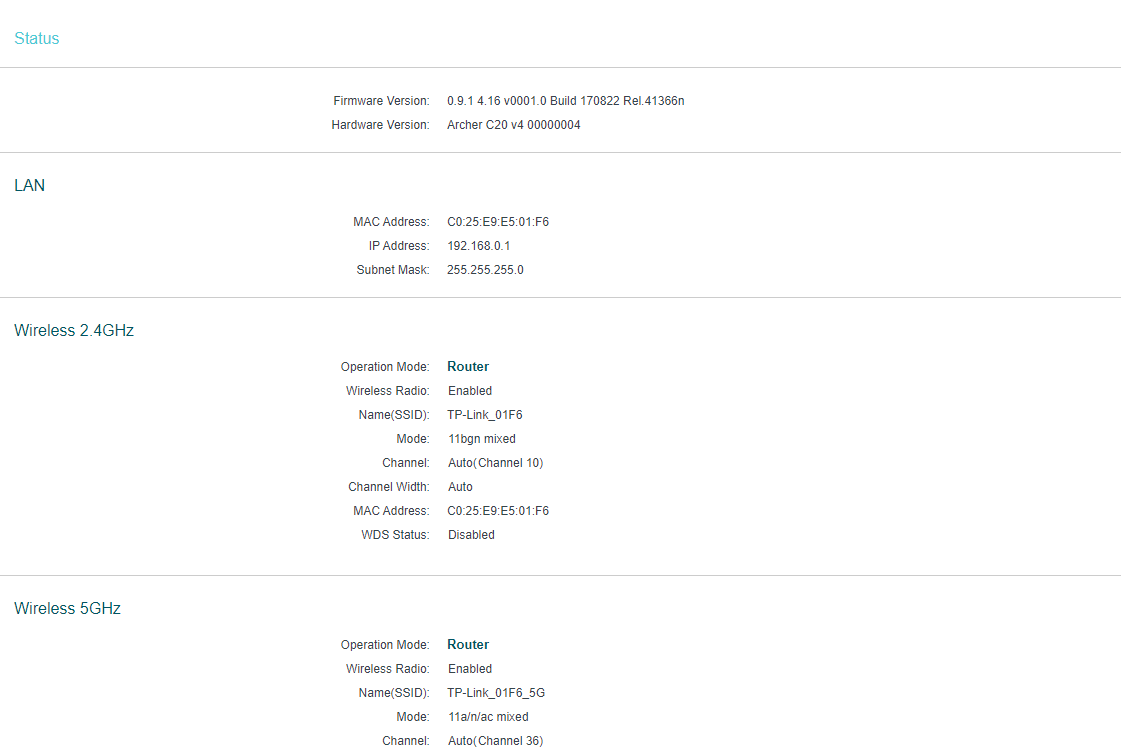

Is there a proper way to check why this is not working and where to correct it. Adding the diagnostics data and the router status as well hope that helps.

tower-diagnostics-20200122-1253.zip

6 minutes ago, ThePhotraveller said:

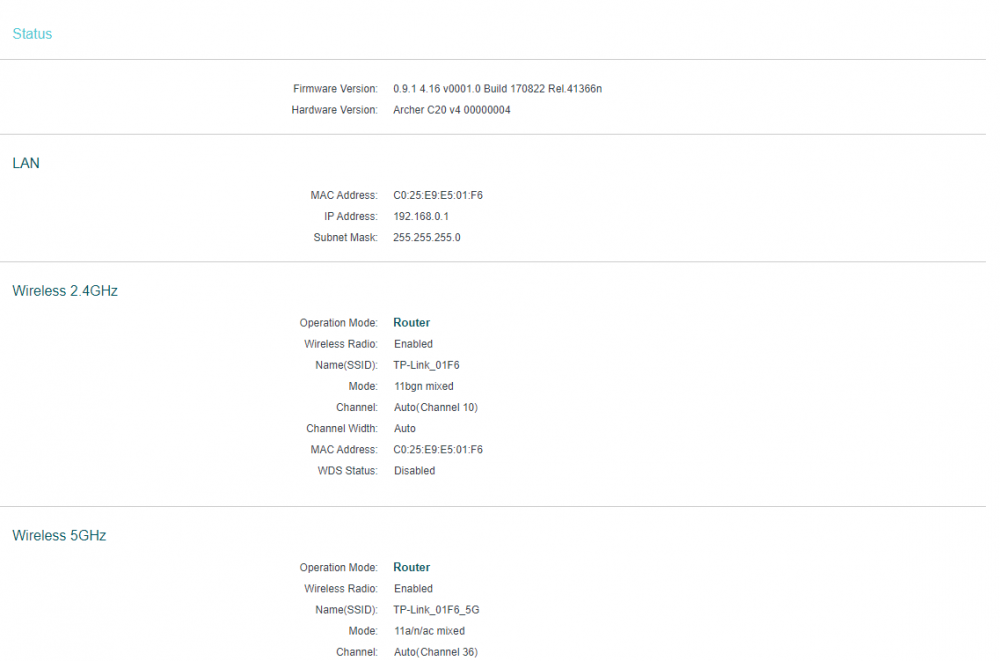

Am facing issues over getting connected to internet as well. Posting the diagnostics and the router screen here.

Please don't double post, you already posted a new thread, I'm merging the posts.

6 minutes ago, johnnie.black said:

Please don't double post, you already posted a new thread, I'm merging the posts.

sorry man. Just in need of urgent help.

It's not clear to me if you don't have internet for anything or is just the Unraid server?

Its just unraid not having access.

Delete or rename network.cfg and network-rules.cfg (if exists) on the flash's config folder and reboot, this will reset Unriad network settings and try to get a DHCP IP address from your router, if that doesn't work post new diags.

31 minutes ago, johnnie.black said:

Delete or rename network.cfg and network-rules.cfg (if exists) on the flash's config folder and reboot, this will reset Unriad network settings and try to get a DHCP IP address from your router, if that doesn't work post new diags.

Oh thanks man. Just got to know there were some ip gateway clash between the router and my network switch both being under the same name. Changed it, now working.

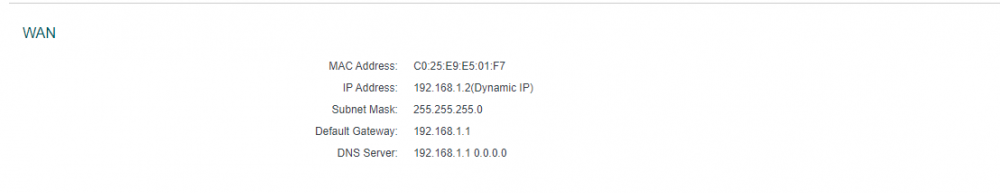

Another common thing, is the router DNS server safe ? I have set it as 8.8.8.8 and 8.8.4.4 under dhcp ip but in the above screenshot it still shows local ip!! is it fine?

2 hours ago, ThePhotraveller said:

Another common thing, is the router DNS server safe ? I have set it as 8.8.8.8 and 8.8.4.4 under dhcp ip but in the above screenshot it still shows local ip!! is it fine?

As I understand, if you have set your server's DNS addresses to 8.8.8.8  and 8.8.4.4 (in the Unraid setup menu), the server will use those DNS servers for DNS address conversion.  Anything else will use the DNS server(s) that your router is set to.  Most of the time, that will be your IPS's choice.  They will probably have their own servers.   (The debate of whether this is a good idea (or not) is far beyond what I want to get into!!!)
