Ryzen 9 3900x gigabyte x570 no CPU/MOBO temp shown still...


28 posts in this topic Last Reply

Recommended Posts

Hey guys was just wondering if there’ll be a fix for this soon? I can’t get my temp to show at all it’s abit worrying to say the least I like to be able to monitor the temps? I thought it would be sorted in 6.8.2 but no luck 😞

Edited by Dava2k7
Link to post
  • 4 weeks later...
  • 1 month later...
On 2/21/2020 at 5:46 PM, sdamaged said:

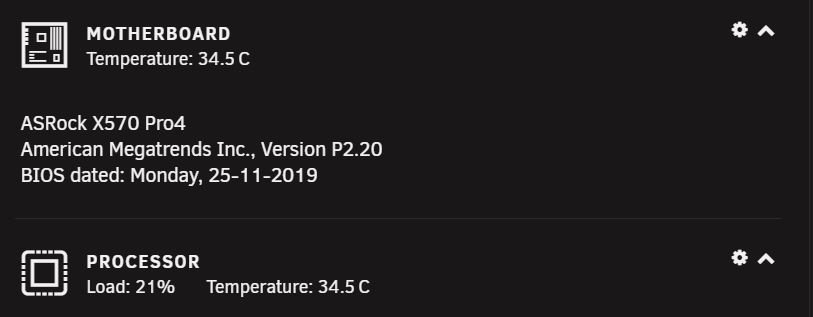

Working fine here?


Quick question, kind off topic but I just bought a x570 pro4 but can't get the ethernet to work on the board. Looking online this looks to be a common issue so I was wondering, how did you get your onboard LAN to be recognized?

Link to post
  • 2 weeks later...

So i cant get my temps to show up in unraid Version: 6.8.3 3900x CPU with a ASUS PRO WS x570 ACE mobo. I tried the it87 hack and inserted the code in the boot/config/go file and still nothing. If I run sensors in the terminal I get:

No sensors found!
Make sure you loaded all the kernel drivers you need.
Try sensors-detect to find out which these are.

if I run sensors-detect i get:

root@UNRAIDstorage:~# sensors-detect
# sensors-detect version 3.6.0
# Board: ASUSTeK COMPUTER INC. Pro WS X570-ACE
# Kernel: 4.19.107-Unraid x86_64
# Processor: AMD Ryzen 9 3900X 12-Core Processor (23/113/0)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): yes
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           Success!
    (driver `k10temp')
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Hygon Family 18h thermal sensors...                         No
Intel digital thermal sensor...                             No
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): yes
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               Yes
Found `Nuvoton NCT6798D Super IO Sensors'                   Success!
    (address 0x290, driver `nct6775')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

If look in system temp plugin I do see the available drivers "k10temp nct6775" but no sensors will load.



Thanks for any help!

Link to post
  • 4 weeks later...
On 4/10/2020 at 4:19 PM, savage302 said:

So i cant get my temps to show up in unraid Version: 6.8.3 3900x CPU with a ASUS PRO WS x570 ACE mobo. I tried the it87 hack and inserted the code in the boot/config/go file and still nothing. If I run sensors in the terminal I get:


No sensors found!
Make sure you loaded all the kernel drivers you need.
Try sensors-detect to find out which these are.

if I run sensors-detect i get:


root@UNRAIDstorage:~# sensors-detect
# sensors-detect version 3.6.0
# Board: ASUSTeK COMPUTER INC. Pro WS X570-ACE
# Kernel: 4.19.107-Unraid x86_64
# Processor: AMD Ryzen 9 3900X 12-Core Processor (23/113/0)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): yes
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           Success!
    (driver `k10temp')
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Hygon Family 18h thermal sensors...                         No
Intel digital thermal sensor...                             No
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): yes
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               Yes
Found `Nuvoton NCT6798D Super IO Sensors'                   Success!
    (address 0x290, driver `nct6775')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

If look in system temp plugin I do see the available drivers "k10temp nct6775" but no sensors will load.



Thanks for any help!

I get the same on Asus X570 Plus  with A Ryzen 3600. Everything is up to date. I can even ad the k10temp nct6775 sensor and load the driver over the GUI.... but I cant select it under "Processor temperature:". I can only chose not used.



Is there any trick?

Link to post
33 minutes ago, pepsidrinker916 said:

@Pascal51882 Just curious... Any reason Asus includes video out on that motherboard? I've seen this on some other higher end boards, and I have always wondered why they bother since only APU's can use this.

I dont know why they do this. To use this expensive X570 Motherboard would be wasted money for an APU

Link to post
  • 3 weeks later...
On 2/20/2020 at 7:52 AM, Harmani said:

I have pretty much the same hardware and can't find a way either. Did you (or anybody) found a solution yet?

I’ve recently upgraded to 6.9.0 beta 1 With newest kernel and I now have cpu temp but still lacking motherboard temp this worked for me but it might not work for you hope this helps

Link to post
  • 2 weeks later...
  • 2 weeks later...
On 5/25/2020 at 11:31 PM, Dava2k7 said:

I’ve recently upgraded to 6.9.0 beta 1 With newest kernel and I now have cpu temp but still lacking motherboard temp this worked for me but it might not work for you hope this helps

Hey all Upgraded to 6.9.0 beta 22 and it turns out we now have motherboard temps aswell only problem is if you have a Vm you might run into some problems so unless you really need mobo temps due to certain living circumstances id probably wait abit longer. I've tried and looked for various solutions with no luck so far getting any to work other than that tho alot of cool new features to look forward to once stable release comes thanks Unraid Team. Another thing to bare in mind is if you do update to new beta 22 it changes a few things so if planning to downgrade back to 6.9.0 beta 1 your cache drives wont be mounted and youll have no containers or anything ect there is a fix for the downgrade on release page but if your like me and dont wanna fiddle with things to the point your whole system fails id suggest going back to beta 22 and calmly waiting for the Unraid Team to fix

Edited by Dava2k7
Link to post
  • 4 months later...
On 10/28/2020 at 10:41 AM, MrE Rocker said:

hello jaseNZ



what is the name of this plugin on this picture for cpu an motherboard temps??? would love to have it..

thank you

scott

Sorry for the delayed response

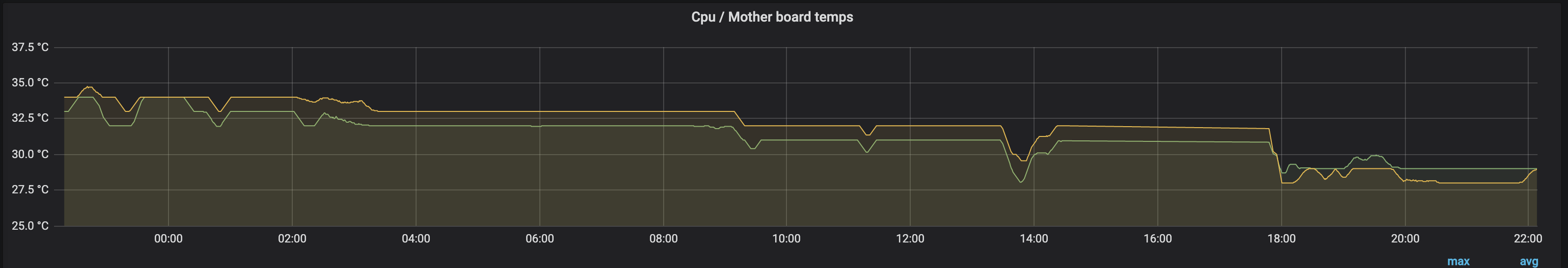

Its just one of the graphs that is part of my Grafana docker.

Link to post
