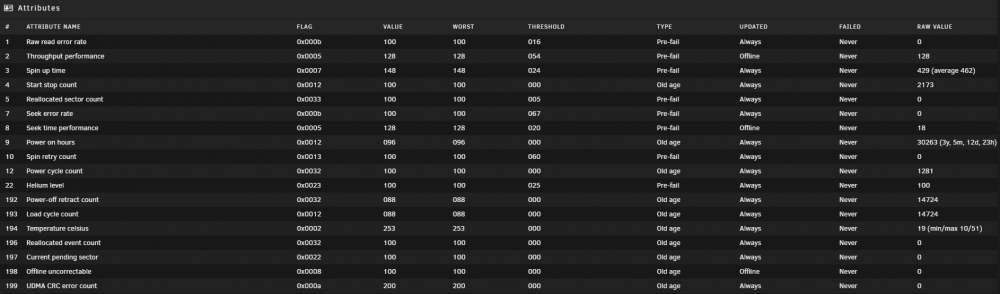

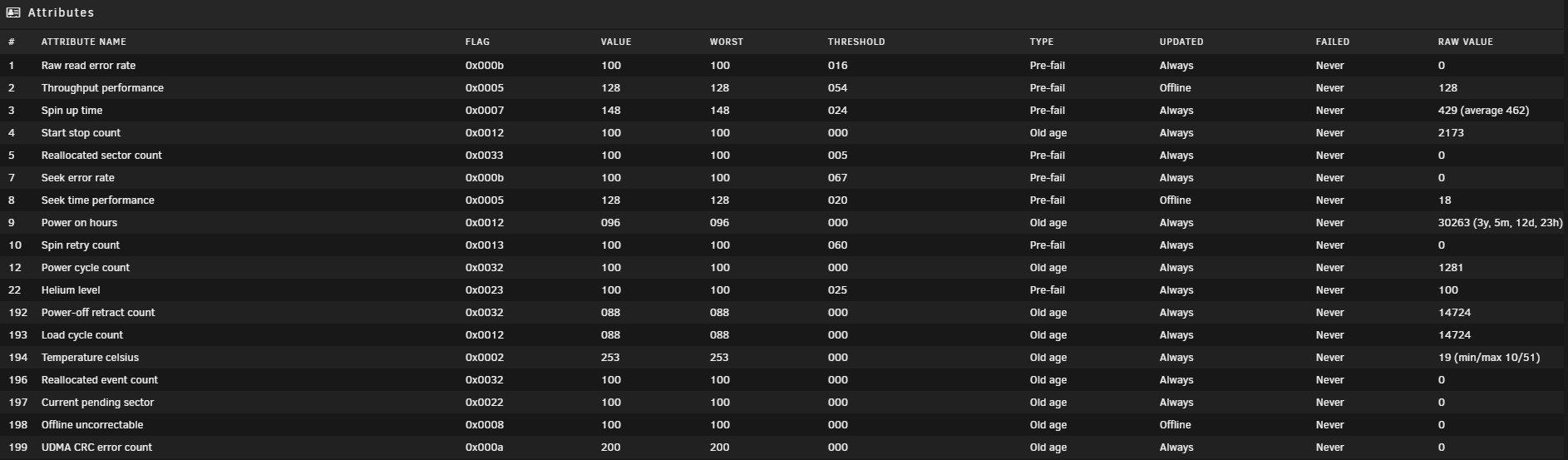

January 30, 20206 yr Hi All I got a PAS email on all drives today, but after logging into the UI I got this pop-up Unraid Disk 10 SMART health [22]: 30-01-2020 01:25 Warning [TOWER] - helium level (failing now) is 23 WDC_WD80EFZX-68UW8N0_VKHR62YX (sdt) Looking at the smart data: and on the overall status page: Do I need to change some settings, since I didn't get a FAIL in the daily report? Or maybe a Warning email? Disk 10 - WDC_WD80EFZX-68UW8N0_VKHR62YX (sdt) - active 22 C [OK]
January 30, 20206 yr Community Expert Please post a full smart report of disk10, according to the screenshot helium level attribute is not and never was failing.

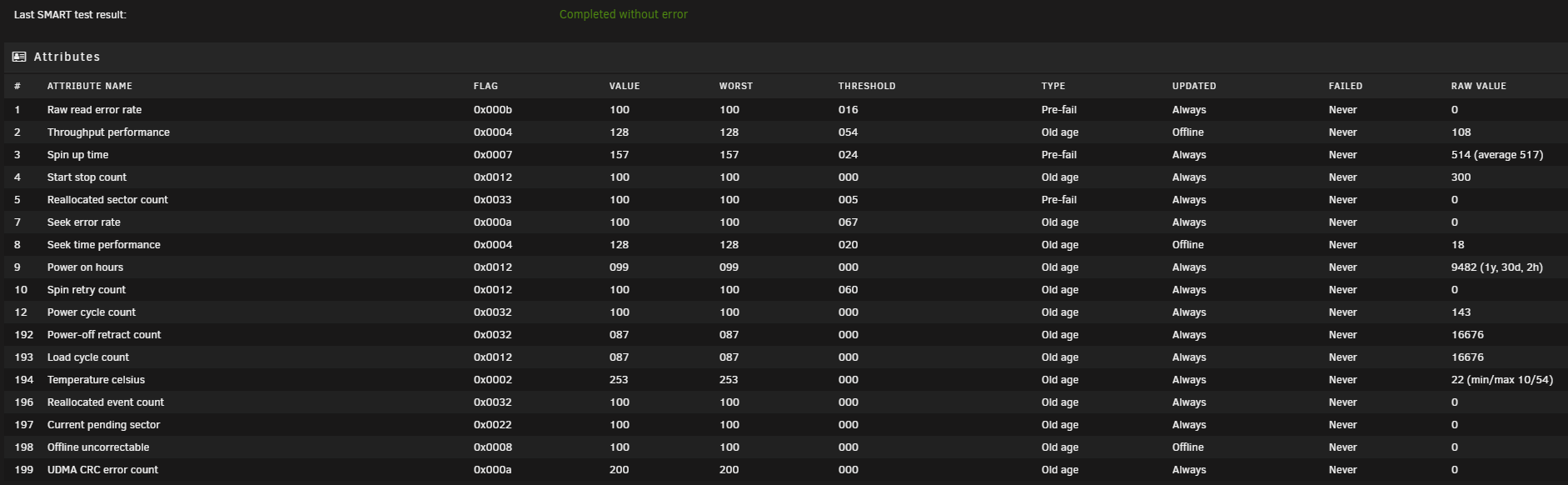

January 30, 20206 yr Author Yes it's very strange? Here is the downloaded file, could the notification be a old one? I have swapped and added drives during the last 4 days? I just noticed that one of the WD drives same model does not show any Helium status on the SMART status? I am currently moving all data away from drive 10 but that might be a mistake! Thanks @johnnie.black for helping me making sence of the SMART info WDC_WD80EFZX-68UW8N0_VKHR62YX-20200130-1153.txt
January 30, 20206 yr Community Expert 16 minutes ago, casperse said: I just noticed that one of the WD drives same model does not show any Helium status on the SMART status? It's not the same model: WD80EFZX-68UW8N0 - 1st gen helium filled model WD80EFAX-68LHPN0 - 2nd gen helium filled model WD80EFAX-68KNBN0 - newer air filled model 17 minutes ago, casperse said: could the notification be a old one? I have swapped and added drives during the last 4 days? Most likely, that disk look fine, unless there's a firmware bug which I find very unlikely.
January 30, 20206 yr Author 1 minute ago, johnnie.black said: It's not the same model: WD80EFZX-68UW8N0 - 1st gen helium filled model WD80EFAX-68LHPN0 - 2nd gen helium filled model WD80EFAX-68KNBN0 - newer air filled model Most likely, that disk look fine, unless there's a firmware bug which I find very unlikely. Right! Same size not same model! - Should I be concerned about the type: Old Age? I have looked and all drives show "Green thumb" so I don't know what drive this Helium warning could be for? Guess I just have to complete my data migration from my Synology and start Parity 1+2 for the array, and see if the error re-surfaces?
January 30, 20206 yr Community Expert 8 minutes ago, casperse said: Should I be concerned about the type: Old Age? No, what matters is if the attribute is failing on not, now or in the past, the "failed" column. 28 minutes ago, casperse said: and see if the error re-surfaces? Yep
February 1, 20206 yr On 1/30/2020 at 6:24 AM, johnnie.black said: It's not the same model: WD80EFZX-68UW8N0 - 1st gen helium filled model WD80EFAX-68LHPN0 - 2nd gen helium filled model WD80EFAX-68KNBN0 - newer air filled model Most likely, that disk look fine, unless there's a firmware bug which I find very unlikely. I just purchased two WD80's. To my surprise, what arrived were WDC_WD80EFAX-68LHPN0's. I thought all new stock was air filled. Helium is a plus for me, they run a few degrees cooler.
