February 24, 20215 yr Hi Guys, I need some recommendations before buying my first Unraid server in order to replace some old synology devices. Im planning to buy a ASRock Rack E3C246D4U2-2L2T with an Intel Xeon E-2288G. Does anybody can confirm if that motherboard have the same issues with iGPU and IPMI as the ASRock Rack E3C246D4U2? Or is everything fine with this motherboard? I already contacted the ASRock Support in order to get some informations about known issues with iGPU and IMPI also because the motherbaord have still its first BIOS, but the ASRock Support just answered some crap. Thanks in advance, d1ck13
February 24, 20215 yr 30 minutes ago, d1ck13 said: Hi Guys, I need some recommendations before buying my first Unraid server in order to replace some old synology devices. Im planning to buy a ASRock Rack E3C246D4U2-2L2T with an Intel Xeon E-2288G. Does anybody can confirm if that motherboard have the same issues with iGPU and IPMI as the ASRock Rack E3C246D4U2? Or is everything fine with this motherboard? I already contacted the ASRock Support in order to get some informations about known issues with iGPU and IMPI also because the motherbaord have still its first BIOS, but the ASRock Support just answered some crap. Thanks in advance, d1ck13 This newer board looks great! I like the extra network adapter and hdmi. I just have the E3C246D4U2. Who did you talk with at ASRock? Maybe you can entice @Hoopster to upgrade his board and let you know if it works? LOL.
February 24, 20215 yr Hi, I contacted them via this website: http://event.asrockrack.com/tsd.asp Some supporter-guys from the ASRock Rack Netherlands team answered me. Best regards, d1ck13
February 24, 20215 yr 5 minutes ago, d1ck13 said: Hi, I contacted them via this website: http://event.asrockrack.com/tsd.asp Some supporter-guys from the ASRock Rack Netherlands team answered me. Best regards, d1ck13 I'm guessing that you are not from the United States?
February 24, 20215 yr Author 15 minutes ago, digidep said: I'm guessing that you are not from the United States? @d1ck13 I sent you a message with the contact email address at ASRock. He has helped forum members from the UK so I am sure he will not mind helping someone from Germany even though he is in the U.S.
February 24, 20215 yr 5 hours ago, d1ck13 said: ... I already contacted the ASRock Support in order to get some informations about known issues with iGPU and IMPI also because the motherbaord have still its first BIOS, but the ASRock Support just answered some crap. Thanks in advance, d1ck13 I'm in Germany and spoke with the same folks the people here have spoken with. Super helpful. Just know that they may not be able to answer at Asrock because this may just be an issue with Unraid. In my tests which I posted about a few pages back the IPMI works just fine at the same time the iGPU is active in Proxmox. Edited February 24, 20215 yr by Plaidy
March 3, 20215 yr 6 minutes ago, parisv said: anyone upgraded unraid to 6.9 yet? I'm taking the plunge now..... I did on March 1. Everything seems to be okay, but haven't really checked it all out yet, other than the web UI coming up 🤣
March 3, 20215 yr Jus upgraded, all looking good so far. Just reading this: https://wiki.unraid.net/Unraid_OS_6.9.0#GPU_Driver_Integration now I remember I had to follow this to get h/w transcoding done on plex. Not sure if I should undo this an enable the gpu driver in the first link?
March 3, 20215 yr I upgraded 2 hours ago and didn't' have to change anything for Plex to keep using the GPU for transcode.
March 3, 20215 yr 24 minutes ago, parisv said: Not sure if I should undo this an enable the gpu driver in the first link? I went ahead and removed the items from my "go" file after performing the "touch" command to enable the driver. All working fine. Anecdotally, hardware transcoding seems to be using more CPU than I remember, but I think I could easily just not be remembering correctly 😂
March 3, 20215 yr 1 hour ago, kaiguy said: I went ahead and removed the items from my "go" file after performing the "touch" command to enable the driver. All working fine. Anecdotally, hardware transcoding seems to be using more CPU than I remember, but I think I could easily just not be remembering correctly 😂 It should be using the gpu though?
March 4, 20215 yr 6 hours ago, parisv said: It should be using the gpu though? Yeah, the onboard GPU for Intel QuickSync.
March 5, 20215 yr After not encountering it since pretty much the first few weeks of building this new server, I got the IPMI motherboard temp warning tonight. I didn't realize this was still a thing. Running the latest L2.34 BIOS. Are others still getting this from time to time?
March 5, 20215 yr I've gotten it once so far. I'm still on L2.32 BIOS getting ready to update. I ended up shutting the server down, power cycling and it seemed to go away after that. Have not hit it since but I'm pretty sure it will happen again sometime in the future.
March 7, 20215 yr Well, at 4:11am this morning my server had its first hard lockup. I am not home but VPN'd in via my router and saw that IPMI logged a Run-time Critical Stop. Nothing has changed with my hardware setup, so I have to assume something has changed with 6.9.0 that has exposed some instabilities with my system. So strange. Hopefully no one else starts experiencing issues.
March 7, 20215 yr Author On 3/5/2021 at 12:50 AM, kaiguy said: Are others still getting this from time to time? Since updating to 6.9.0 and the accompanying reboot 5 1/2 days ago, the unRAID WebGUI via the System Temp plugin has been reporting proper MB temps in the 26-31 C range, but IPMI continues to report MB temps from 83-88C. Who knows how long it will be until the System Temp plugin decides to once again join the madness. No lockups though so there is that.
March 8, 20215 yr 3 hours ago, Hoopster said: No lockups though so there is that. Are you still running with Turbo Boost disabled, @Hoopster? I never had to disable it before, but I wonder if I'm not being plagued with that system lock. Running a grep MHz /proc/cpuinfo while the system is running a parity check from the system lock results in cpu MHz : 3500.338 cpu MHz : 3500.505 cpu MHz : 3500.004 cpu MHz : 3500.169 cpu MHz : 3500.220 cpu MHz : 3500.430 cpu MHz : 3500.135 cpu MHz : 3499.397 cpu MHz : 3499.443 cpu MHz : 3500.380 cpu MHz : 3500.302 cpu MHz : 3502.510 cpu MHz : 3500.185 cpu MHz : 3500.332 cpu MHz : 3500.376 cpu MHz : 3500.164 but as I recall it was showing similar frequencies when idle... not sure if its normal for it to be at such a high freq all the time. Hoping for no more locks, but I'm not confident.
March 8, 20215 yr Author 45 minutes ago, kaiguy said: Are you still running with Turbo Boost disabled No, I enabled Turbo Boost a few months ago. Through the Tips and Tweaks Plugin I had the CPU Scaling Governor set to Power Save and on this setting, the CPU would throttle down when idle; sometimes as low as 800 MHz. I decided to install a Windows 10 VM yesterday and read that there were many performance issues with VMs with the Scaling Governor in Power Save mode. Performance mode is recommended (or On Demand if CPU uses cpufreq driver rather that Pstate). I now have it on Performance with Turbo Boost enabled and I see very high CPU frequencies. Here is Power Save with Turbo Boost disabled. And here it is after sitting idle for about 20 minutes with Power Save and Turbo Boost enabled, but I suspect I caught it before Turbo Boost kicked back in after being enabled. In all cases, the VM is running. Edited March 8, 20215 yr by Hoopster
March 8, 20215 yr @Hoopster I have a few VMs but by default they aren't running. I have had my system on Power Save and Turbo Boost since I started using this mobo. I also think the lock happened during the mover process, and the only change is I started using an nvme for my cache instead of one of my SSDs when I switched to 6.9.0, so in retrospect perhaps that's the culprit. In Performance, the CPU is at max freq the whole time, right? Think that's a material increase in power consumption? Heat?
March 8, 20215 yr Author 3 minutes ago, kaiguy said: Think that's a material increase in power consumption? Heat? Not that I have seen. The CPU temps look roughly the same in Performance mode as they did in Power Save mode. I'm not sure Power Save really buys you much other than it taking longer to ramp up CPU speeds. I suppose power consumption might depend on if you were doing any heavy in either unRAID or a VM. At idle/low usage, I see no difference.
March 8, 20215 yr Hey @Hoopster I was curious since you've setup a VM are you passing any USB controllers through on the E3C246D4U? I'm trying to learn this currently and I think I'm coming to the conclusion that there is only one controller on the board. This is an issue since the unraid usb key is on this controller. Am I mistaken here or are am I understanding pass-through wrong.

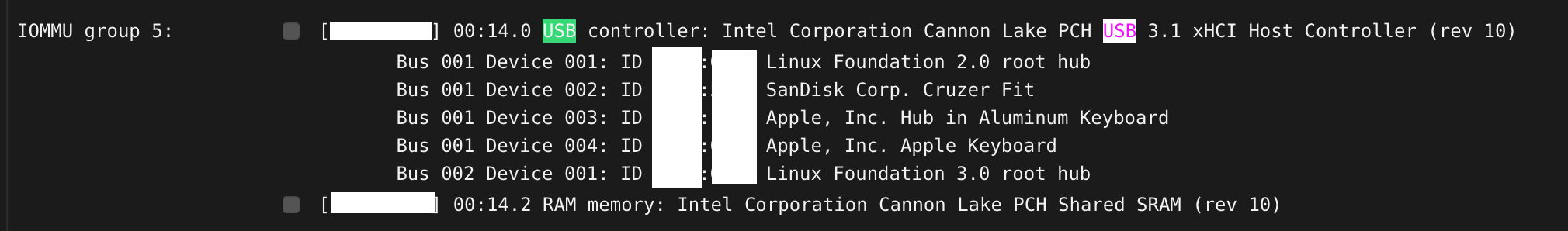

March 8, 20215 yr Author 12 hours ago, JimmyGerms said: I'm coming to the conclusion that there is only one controller on the board. This is an issue since the unraid usb key is on this controller. Am I mistaken here or are am I understanding pass-through wrong. You are correct. The IOMMU groups on this board do not separate out the USB controllers as there appears to be only one. If you want to pass through a USB controller, you will need to install a PCIe USB controller that should then be in a separate group. I even installed a USB 2.0 card in the server connected to a motherboard USB 2.0 header for making sure I was booting unRAID from USB 2.0. However, that is not a separate controller as all USB ports from the PCH are tied to the same controller. Of course you could also try the acs override method to try and breakout a usb hub from the controller. Edited March 8, 20215 yr by Hoopster
March 8, 20215 yr Author 10 hours ago, digidep said: are you using a graphic card for your Windows VM? Not currently. The VM is more for experimental purposes and right now I am just connecting via VNC.
