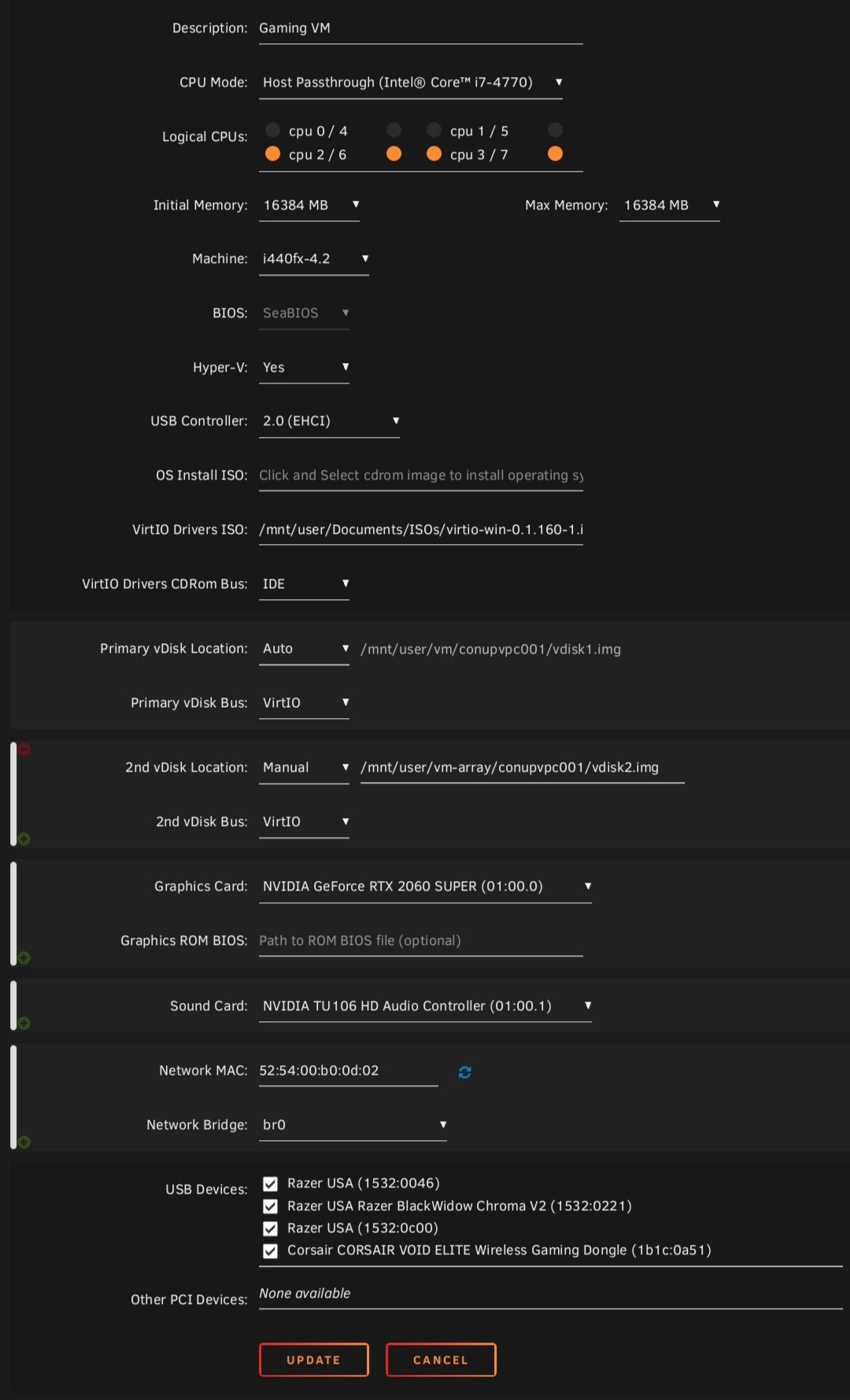

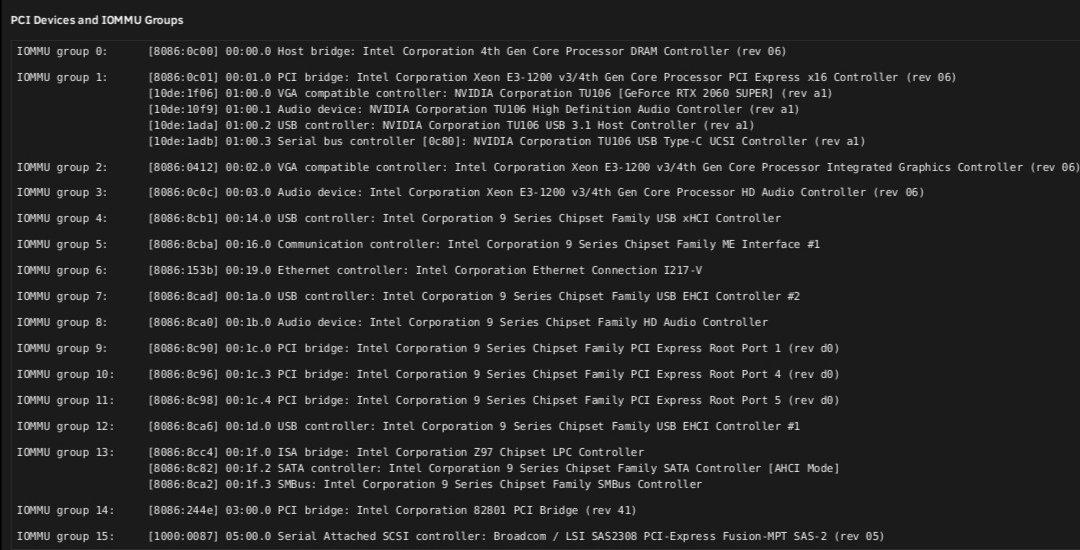

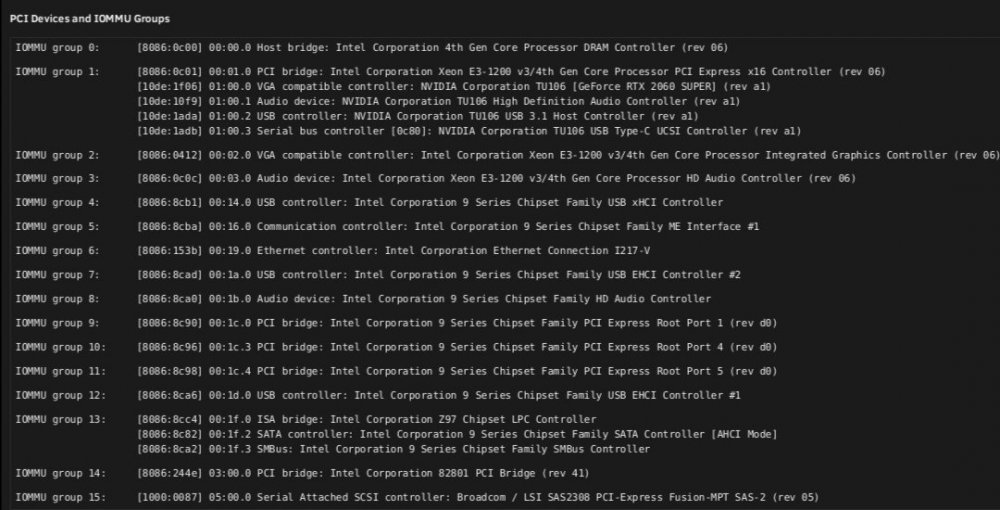

February 1, 20206 yr Hello, I am getting the following error when trying to pass through my RTX 2060 Super to my virtual machine: "internal error: qemu unexpectedly closed the monitor: 2020-02-01T14:27:59.749795Z qemu-system-x86_64: -device vfio-pci,host=0000:01:00.0,id=hostdev0,x-vga=on,bus=pci.0,addr=0x6: vfio 0000:01:00.0: group 1 is not viable Please ensure all devices within the iommu_group are bound to their vfio bus driver." Please see image of my iommu groups: Virtual Machine configuration: Looking on some other posts it seems to suggest that I will need to turn on PCIe ACS. Wanted to see if anyone had any other suggestions as currently I'm running a part sync as I'm adding a second parity drive. So can't reboot at the moment. Edited February 2, 20206 yr by Conmyster
February 1, 20206 yr Doubt if ACS override will help here, but it won't hurt. The problem is that your video card also includes a USB controller which must also be passed through to the VM.
February 1, 20206 yr Author Just now, Squid said: Doubt if ACS override will help here, but it won't hurt. The problem is that your video card also includes a USB controller which must also be passed through to the VM. Hmm and how would I go about passing the USB Controller of the GPU to the VM as that doesn't look to be an option within the GUI. I'm guessing I will need to switch to XML view and add it?
February 1, 20206 yr If you use the VFIO-bind method to block out the other devices from the OS, then they will probably appear in "Other Devices" Quote New vfio-bind method. Since it appears that the xen-pciback/pciback kernel options no longer work, we introduced an alternate method of binding, by ID, selected PCI devices to the vfio-pci driver. This is accomplished by specifying the PCI ID(s) of devices to bind to vfio-pci in the file 'config/vfio-pci.cfg' on the USB flash boot device. This file should contain a single line that defines the devices: BIND=<device> <device> ... Where <device> is a Domain:Bus:Device.Function string, for example, BIND=02:00.0 Multiple device should be separated with spaces.
February 1, 20206 yr Author 12 minutes ago, Squid said: If you use the VFIO-bind method to block out the other devices from the OS, then they will probably appear in "Other Devices" Okay, I'm assuming that will also need a reboot?
February 2, 20206 yr Author On 2/1/2020 at 3:48 PM, Squid said: Yes Thanks Squid the VFIO Bind option has worked and the VM now boots without any issues.
