February 6, 20206 yr Community Expert I know there are other posts on this topic, but none of them appear to solve or document the solution. My situation is this: I have a dual stack IPv4/IPv6 Internet connection My ISP issues me a /56 IPv6 prefix I use a Mikrotik router, which notifies hosts in the network about IPv6 via SLAAC, *not* DHCPv6 Every host in the network, including unRAID on br0 is getting an IPv6 address The result of "docker inspect br0" has IPv6 set to disabled (and I can't see how to change that in the GUI) Here's the result of ifconfig: Quote root@unraid:~# ifconfig br0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.0.198 netmask 255.255.255.0 broadcast 0.0.0.0 inet6 fe80::425b:7f54:2795:fb89 prefixlen 64 scopeid 0x20<link> inet6 2403:XXXX:XXXX:7201:5199:c28e:f3ef:9e25 prefixlen 64 scopeid 0x0<global> ether a8:5e:45:65:fb:c3 txqueuelen 1000 (Ethernet) RX packets 9116 bytes 3870455 (3.6 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 6042 bytes 4043727 (3.8 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255 inet6 fe80::42:7aff:fe79:21a0 prefixlen 64 scopeid 0x20<link> ether 02:42:7a:79:21:a0 txqueuelen 0 (Ethernet) RX packets 2013 bytes 216701 (211.6 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 2048 bytes 714495 (697.7 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 eth0: flags=4419<UP,BROADCAST,RUNNING,PROMISC,MULTICAST> mtu 1500 inet6 fe80::aa5e:45ff:fe65:fbc3 prefixlen 64 scopeid 0x20<link> ether a8:5e:45:65:fb:c3 txqueuelen 1000 (Ethernet) RX packets 183023 bytes 257593567 (245.6 MiB) RX errors 0 dropped 13 overruns 0 frame 0 TX packets 97885 bytes 10572730 (10.0 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 2537 bytes 479911 (468.6 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 2537 bytes 479911 (468.6 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth341da62: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::4883:e1ff:fe7d:af5b prefixlen 64 scopeid 0x20<link> ether 4a:83:e1:7d:af:5b txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 140 bytes 20456 (19.9 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth465a813: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::dc1c:feff:fe04:f0c5 prefixlen 64 scopeid 0x20<link> ether de:1c:fe:04:f0:c5 txqueuelen 0 (Ethernet) RX packets 1069 bytes 121540 (118.6 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 1149 bytes 541070 (528.3 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth4ec4d1d: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::28ac:38ff:fe0c:9adf prefixlen 64 scopeid 0x20<link> ether 2a:ac:38:0c:9a:df txqueuelen 0 (Ethernet) RX packets 229 bytes 38976 (38.0 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 332 bytes 39109 (38.1 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth6d2cc1c: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::1487:f5ff:fe8e:3161 prefixlen 64 scopeid 0x20<link> ether 16:87:f5:8e:31:61 txqueuelen 0 (Ethernet) RX packets 230 bytes 28039 (27.3 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 343 bytes 87549 (85.4 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vethb4f5512: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::200c:78ff:fe2c:a76c prefixlen 64 scopeid 0x20<link> ether 22:0c:78:2c:a7:6c txqueuelen 0 (Ethernet) RX packets 186 bytes 22583 (22.0 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 297 bytes 46245 (45.1 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vethef2cc2d: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::14ff:15ff:fe16:7e71 prefixlen 64 scopeid 0x20<link> ether 16:ff:15:16:7e:71 txqueuelen 0 (Ethernet) RX packets 283 bytes 32593 (31.8 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 352 bytes 52767 (51.5 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vethf625ce5: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::58f9:aaff:fe50:dbc0 prefixlen 64 scopeid 0x20<link> ether 5a:f9:aa:50:db:c0 txqueuelen 0 (Ethernet) RX packets 16 bytes 1152 (1.1 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 135 bytes 19783 (19.3 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 virbr0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255 ether 52:54:00:5b:48:00 txqueuelen 1000 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vnet0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::fc54:ff:fef0:d107 prefixlen 64 scopeid 0x20<link> ether fe:54:00:f0:d1:07 txqueuelen 1000 (Ethernet) RX packets 89832 bytes 6015852 (5.7 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 174719 bytes 253201377 (241.4 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 Here's a result of a ping: Quote root@unraid:~# ping www.google.com PING www.google.com(syd09s06-in-x04.1e100.net (2404:6800:4006:802::2004)) 56 data bytes 64 bytes from syd15s02-in-x04.1e100.net (2404:6800:4006:802::2004): icmp_seq=1 ttl=55 time=20.8 ms 64 bytes from syd15s02-in-x04.1e100.net (2404:6800:4006:802::2004): icmp_seq=2 ttl=55 time=20.9 ms 64 bytes from syd15s02-in-x04.1e100.net (2404:6800:4006:802::2004): icmp_seq=3 ttl=55 time=21.1 ms 64 bytes from syd15s02-in-x04.1e100.net (2404:6800:4006:802::2004): icmp_seq=4 ttl=55 time=21.1 ms Here's my network settings: Here's the docker settings: Here's the result of "docker inspect br0": Quote root@unraid:~# docker inspect br0 [ { "Name": "br0", "Id": "82314ae8e1a1bf9d0c844675445561bf686927ff31456cc55603b7f02fbc10f1", "Created": "2020-02-06T10:43:45.700585676+11:00", "Scope": "local", "Driver": "macvlan", "EnableIPv6": false, "IPAM": { "Driver": "default", "Options": {}, "Config": [ { "Subnet": "192.168.0.0/24", "Gateway": "192.168.0.254", "AuxiliaryAddresses": { "server": "192.168.0.198" } } ] }, "Internal": false, "Attachable": false, "Ingress": false, "ConfigFrom": { "Network": "" }, "ConfigOnly": false, "Containers": {}, "Options": { "parent": "br0" }, "Labels": {} } ] Edited February 6, 20206 yr by Kaldek
March 4, 20206 yr Please, can some one help with enabling ipv6? I am trying find this in the forum, without luke
March 4, 20206 yr Docker doesn't like a link local address as gateway address. Configure your router with an IPv6 address in the same subnet as the hosts, which can act as the gateway, e.g. 2403:XXXX:XXXX:7201::1/64

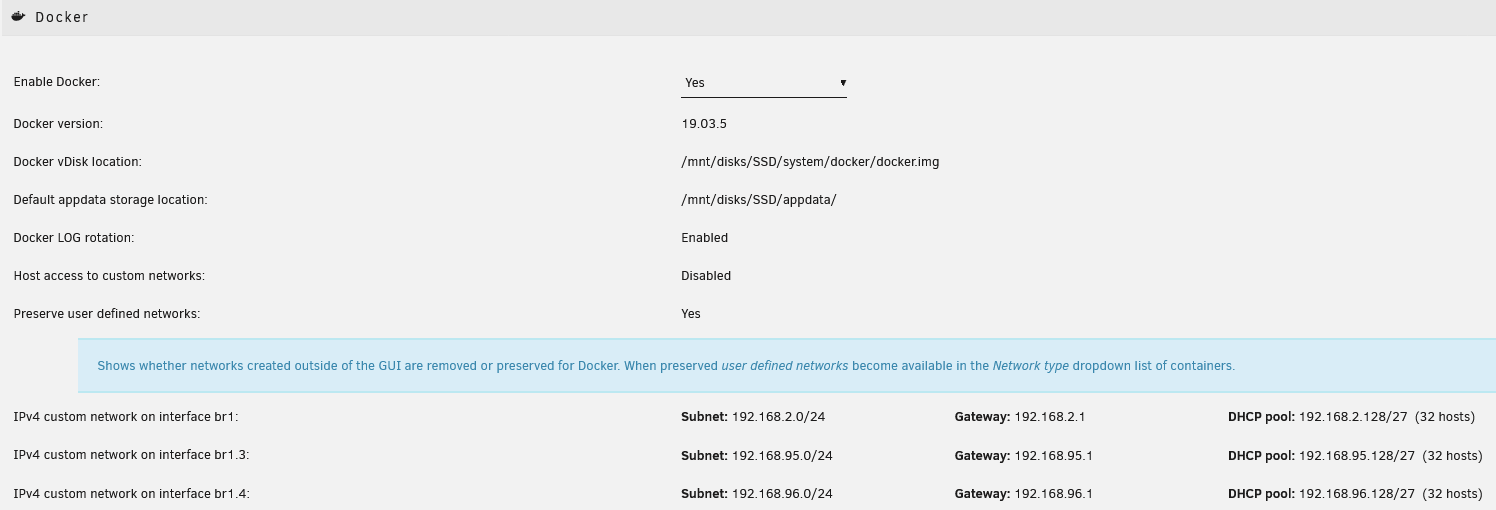

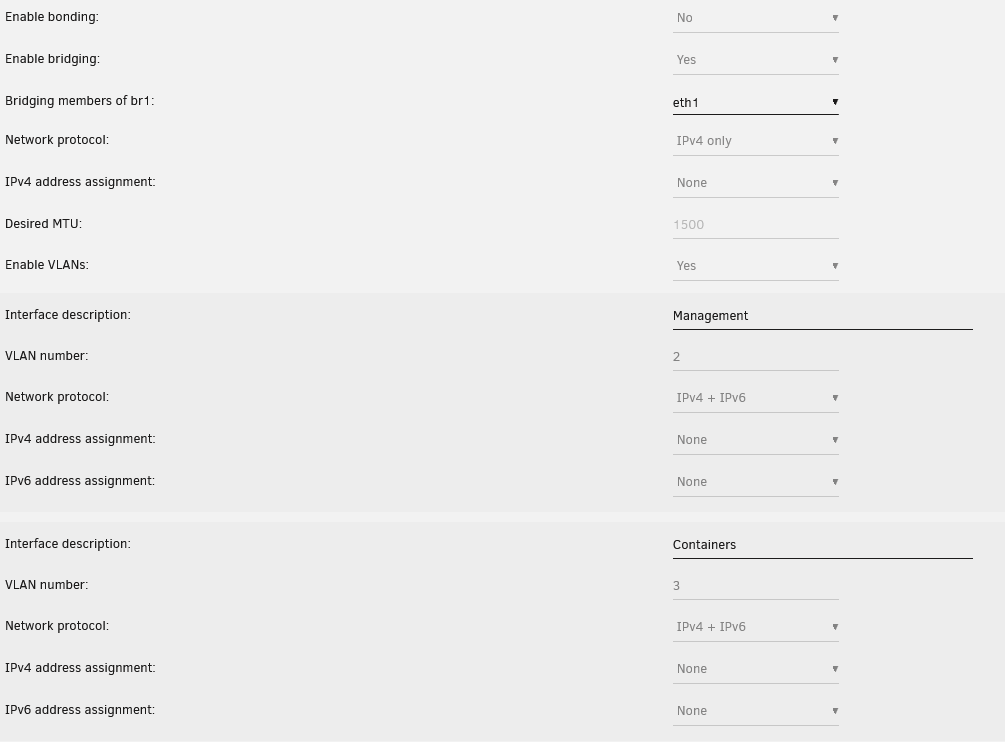

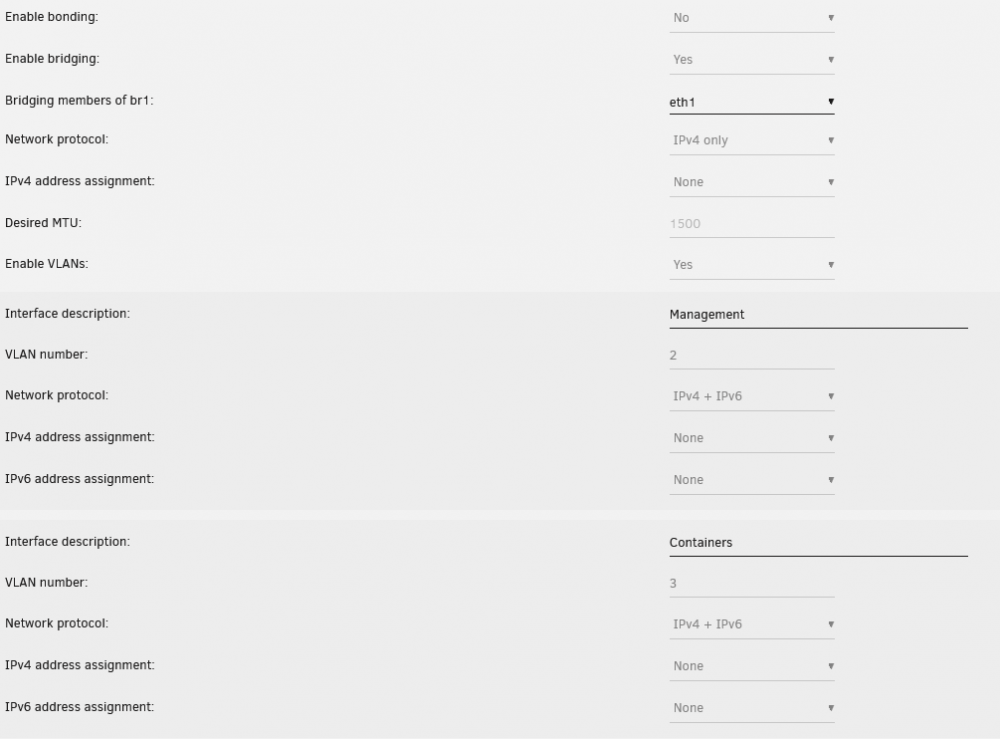

March 5, 20206 yr hmm. have the same network setup as @Kaldek But I use a secondary NIC and configure it for no IP4 assigned. no IPv6 assigned either. (Turned on IPv6 but did not assign one) - the Containers VLAN and only IPv4 on the docker networks Then I add this to all my containers <ExtraParams>--sysctl net.ipv6.conf.all.disable_ipv6=0 --sysctl net.ipv6.conf.eth0.use_tempaddr=2</ExtraParams> This then makes them have get SLAAC IPV6 addresses (disabling the privacy extension - temporary IPv6 address) I suppose I can make them better but havent had time to tweak the network stack as I'm doing all this remotely. EDIT just realized it might not even be necessary to enable IPv6 on this secondary NIC as the base eth1 is IPv4 only but a container there does get IPv6 address anyway Edited March 5, 20206 yr by ken-ji
March 5, 20206 yr 3 minutes ago, ken-ji said: EDIT just realized it might not even be necessary to enable IPv6 on this secondary NIC as the base eth1 is IPv4 only but a container there does get IPv6 address anyway With Unraid 6.8 IPv6 will be disabled on the interface when it is configured as IPv4 only.
March 5, 20206 yr 6.8 (but it could be one of the point releases, I can't remember exactly when I added this)
March 8, 20206 yr I turned IPv6 on on all pertinent interfaces just as I updated to 6.8.3 - and I don:t see any adverse effect, other than Unraid trying to assign it self a bunch of IPv6 addresses. I:ll see what happens if they are disabled at a later date. However, the Docker extra params I:m using is still ok for my needs as the container still gets a class one IPv6 address that participates on the LAN without interference from Docker (or network config for that matter)
