6.8.1 - Constant Lockup - Call Trace Errors - General Despair

[Andyman]

Hello,



Longtime lurker first, time asking for assistance.  My system is constantly crashing hard and I am running out of steps to troubleshoot by myself



Gigabyte UD3 / 4970 / 32GB

500W psu

LSI 9200-8i

2x 4TB + 2x 2TB drives in xfs on array (off mobo)

8x 250GB ssd in RAID10 btfrs on cache (off hba)

1x 500GB ssd (off mobo)

*4TB parity disk (currently removed from array)

*Radeon 7870 (currently physically removed)



It started with errors off disk1 (xfs corruption) which was a 1yr 4TB drive.  Attempts to rebuild resulted in the system locking up and I was becoming unsure of the integrity of the parity disk as well.  I removed the parity disk from array and ran an xfs repair on disk1 which came up ok



Various errors made me doubt the integrity of sata cables so these were changed.  I also moved all the cache ssd to the hba instead of mobo (was a 6/2 mix prior)



Other changes/tests to try and isolate

    -Removed graphics card

    -Moved HBA to different slot (was on pcie2.0x4 slot, moved to pcie3.0x8)

    -Ran memtest - full test 1pass - all ok

    -Diskcheck in maintainance mode - all ok

    -VMs and Docker turned off

    -Leaving idle in maintainance mode

    -Ran extended smart test on a few drives - all ok



While idling in maintanence mode it might run for up to 4-8 hours before locking up.  I've been observing this all week from work.  I am currently trying to preclear the parity disk to use again, however running the preclear seems to bring an error about much earlier.  I managed to pull a diagnostic very close to most recent crash



Any help greatly appreciated



Cheers,

Andy







ap-ur01-diagnostics-20200208-1413.zip syslog.txt

Edited February 9, 2020 by Andyman
added version

[Andyman]

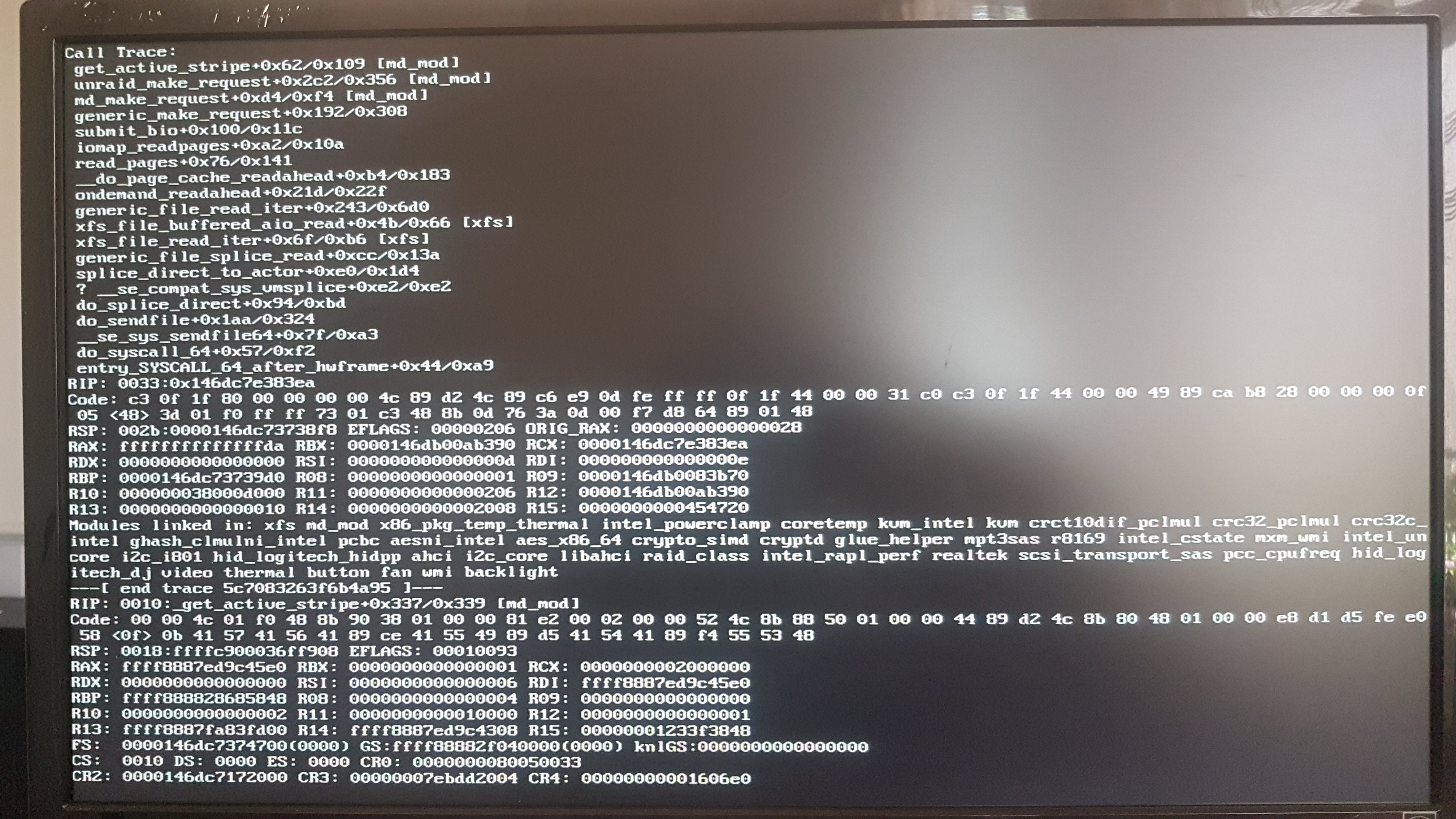

Attached is a photo of console monitor attached to server during one crash last week.  When it happens ts unresponsive to direct attached keyboard.  Requires hard reset



[JorgeB]

Try running in safe mode for a few hours with dockers/VMs stopped, if it crashes like that it's likely a hardware problem, if it doesn't start enabling the plugins, dockers and VMs a few at a time.

[Andyman]

44 minutes ago, johnnie.black said:

Try running in safe mode for a few hours with dockers/VMs stopped, if it crashes like that it's likely a hardware problem, if it doesn't start enabling the plugins, dockers and VMs a few at a time.



Cool thankyou will try.  I have had docker and vm service turned off for this whole week while watching this.  Is there any particular plugins that are common culprits?  Would like to try turning on the ones most likely to error out first



ca.backup2.plg - 2019.10.27
ca.cfg.editor.plg - 2019.07.07
ca.mover.tuning.plg - 2019.08.23
ca.turbo.plg - 2020.01.26
ca.update.applications.plg - 2019.10.13
community.applications.plg - 2020.02.01
dynamix.active.streams.plg - 2019.01.03
dynamix.cache.dirs.plg - 2018.11.18
dynamix.file.integrity.plg - 2018.04.20
dynamix.local.master.plg - 2016.09.13a
dynamix.s3.sleep.plg - 2018.02.04
dynamix.ssd.trim.plg - 2017.04.23a
dynamix.system.stats.plg - 2019.01.31c
dynamix.wireguard.plg - 2020.01.27
file.activity.plg - 2019.02.10a
fix.common.problems.plg - 2019.12.29
NerdPack.plg - 2019.12.31
preclear.disk.plg - 2020.01.17b
tips.and.tweaks.plg - 2019.10.17
unassigned.devices.plg - 2020.02.02
unbalance.plg - v2019.10.26
unRAIDServer.plg - 6.8.1
user.scripts.plg - 2019.08.17
wakeonlan.plg - 2019.12.30

[JorgeB]

Running is safe mode will disable them all.

[Andyman]

6 minutes ago, johnnie.black said:

Running is safe mode will disable them all.

Yes I am aware of that. I meant for when turning them back on

[itimpi]

13 minutes ago, Andyman said:

Yes I am aware of that. I meant for when turning them back on

I would think that the one most likely to cause problem is NerdPack



[JorgeB]

Don't worry about that for now, first see if running is safe mode helps, if it doesn't it's not a plugin.
