SAS HDD not being recognized properly


Recommended Posts

Hello,



Server specs

CPU: 2x Xeon E5-2670

PCI-E: 2x LSI 6Gbps SAS HBA LSI 9200-8i

RAM: 32GB

Mobo: Super micro x9dri-f

OS: unraid

HDDs

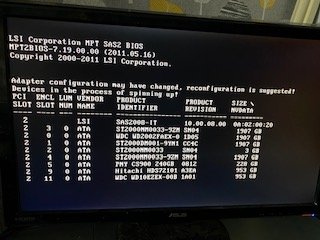

I recently purchased a SAS HDD and it is not being recognized, pretty much all of the drives in the server are sata, except for this drive I am trying to add, there are 9 drives in total as you can see from the image above the SAS drive isn't being recognized, which is very weird as when I go into the LSI configurator I am able to see my 3 TB SAS drive.

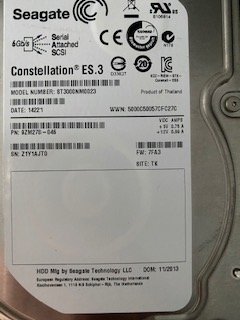

Image of the problem drive below




Thanks, if you require any more information please let me know

Steven



Edited by StevenRafferty
Link to comment

10 to 1, it's formatted 520 block size instead of 512.

Let me go find mine recent posts.



eta:



Go search your syslog for:

Unsupported sector size 520.



If you see that, you'll need to reformat the disk(s).

And, welcome to the club. :D

Edited by sota
  • Thanks 1
Link to comment
