b3rs3rk Posted June 14, 2022 Author Share Posted June 14, 2022 On 5/11/2022 at 2:41 PM, BreakfastPurrito said: I have the exact same problem. Unfortunately the solution that worked for you -toggling between vendors- doesn't work for me. I checked the config file and it looks similar to yours. Did your issue get resolved? Quote Link to comment
BreakfastPurrito Posted June 20, 2022 Share Posted June 20, 2022 On 6/14/2022 at 1:55 PM, b3rs3rk said: Did your issue get resolved? No I did not. Quote Link to comment

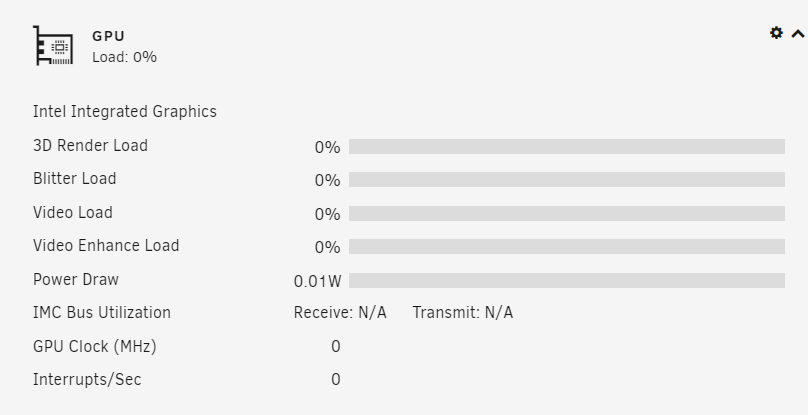

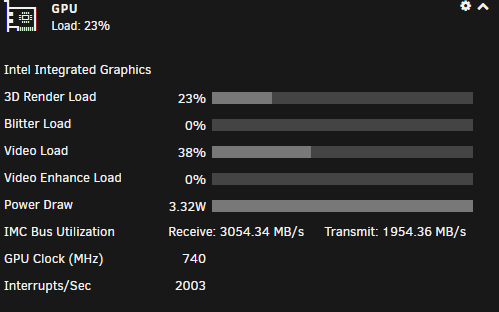

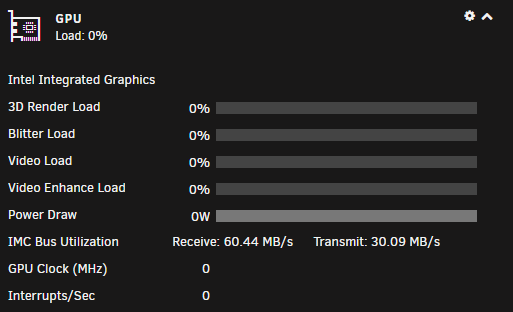

CiscoCoreX Posted June 30, 2022 Share Posted June 30, 2022 (edited) Hi, Is it normal that the Power Draw has another color when is not in use, as you can see. It's more light grey color then the others. and here it's how it looks in action Edited June 30, 2022 by CiscoCoreX Quote Link to comment
ich777 Posted June 30, 2022 Share Posted June 30, 2022 1 minute ago, CiscoCoreX said: Is it normal that the Power Draw has another color when is not in use, as you can see. This is actually a bug in intel_gpu_top because it got reported wrong and nothing I or @b3rs3rk can do about. I have already reported it on their GitLab Issue tracker but no real solution to this... 1 Quote Link to comment
dailou Posted July 3, 2022 Share Posted July 3, 2022 Question, why I cannot see any GPU stat via the dashboard? I am using the onboard GPU as below: Quote Maxsun MS-Terminator B660M , Version VER:H3.3G(2022/03/23) American Megatrends International, LLC., Version H3.3G BIOS dated: Wednesday, 2022-03-23 # timeout -k .500 .400 intel_gpu_top -J -s 250 Quote { "period": { "duration": 0.004857, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "power": { "GPU": 0.000000, "Package": 0.000000, "unit": "W" }, "engines": { "Render/3D/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } } }, { "period": { "duration": 250.316217, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "power": { "GPU": 0.005364, "Package": 7.368609, "unit": "W" }, "engines": { "Render/3D/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } } cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php Quote {"clock":0,"fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"0W","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"0%","vendor":"Intel","name":"Integrated Graphics","3drender":"0%","blitter":"0%","interrupts":0,"powerutil":"0%","video":"0%","videnh":"0%"} Quote Link to comment
unraiduser22 Posted July 11, 2022 Share Posted July 11, 2022 (edited) I'm currently using an Intel Alder Lake CPU (i7-12700k) and the GPU Statistics window is not passing any data. 1a) { "period": { "duration": 0.006336, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 0.000000, "unit": "%" }, "power": { "GPU": 0.000000, "Package": 0.000000, "unit": "W" }, "engines": { "Render/3D/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/1": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } } }, { "period": { "duration": 250.146744, "unit": "ms" }, "frequency": { "requested": 299.824011, "actual": 299.824011, "unit": "MHz" }, "interrupts": { "count": 3.997653, "unit": "irq/s" }, "rc6": { "value": 0.000000, "unit": "%" }, "power": { "GPU": 0.000000, "Package": 33.403733, "unit": "W" }, "engines": { "Render/3D/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/1": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } } } 2) {"clock":300,"fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"0W","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"0%","vendor":"Intel","name":"Integrated Graphics","3drender":"0%","blitter":"0%","interrupts":4,"powerutil":"100%","video":"0%","videnh":"0%"} 3) Additionally under Runtime in GPU Statistics settings it's showing 99: AlderLake-S GT1 - 0000-00-000-000000 for Unit ID for Dashboard. Edited July 11, 2022 by unraiduser22 Quote Link to comment
ich777 Posted July 11, 2022 Share Posted July 11, 2022 35 minutes ago, unraiduser22 said: I'm currently using an Intel Alder Lake CPU (i7-12700k) and the GPU Statistics window is not passing any data. I think this is more of an issue with Intel-GPU-TOP or the driver itself that is currently implemented in Unraid 6.10.3, so this question would be better suited in the Intel-GPU-TOP thread. But I have to say, I've compiled the latest Intel-GPU-TOP version about 2 weeks ago from the latest available Intel-GPU-Tools and there is not much I can do about that if nothing is displayed. Bleeding edge hardware on Linux is never a good idea since it takes (most of the times) some time so that the software/drivers are updated to support the hardware. Quote Link to comment
DonaldDuck Posted July 14, 2022 Share Posted July 14, 2022 (edited) I've started getting these errors today whenever I refresh the Dashboard. The plugin is working fine but Index.html is missing from that folder. I tried removing and reinstalling the plugin but it made no difference. Quote Jul 14 13:30:26 Tower nginx: 2022/07/14 13:30:26 [error] 32346#32346: *5560 "/usr/local/emhttp/url("/plugins/gpustat/index.html" is not found (2: No such file or directory) while sending to client, client: MyIP, server: , request: "GET /url(%22/plugins/gpustat/ HTTP/1.1", host: "tower", referrer: "http://tower/Dashboard" Edit: Stopped happening after a few hours. Didn't reboot or do anything Edited July 14, 2022 by DonaldDuck Quote Link to comment

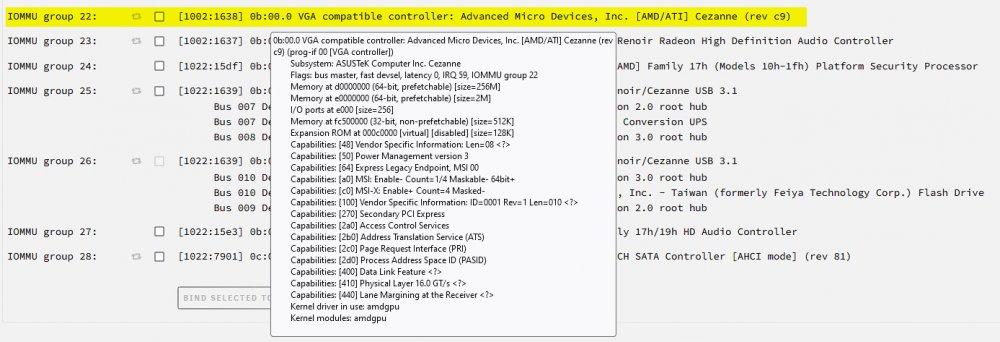

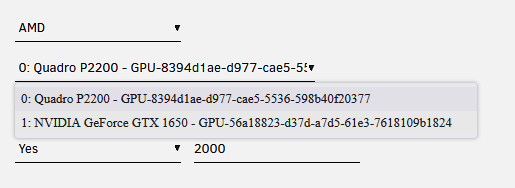

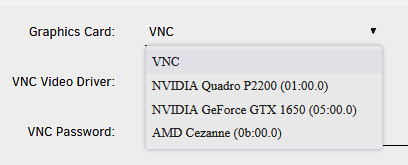

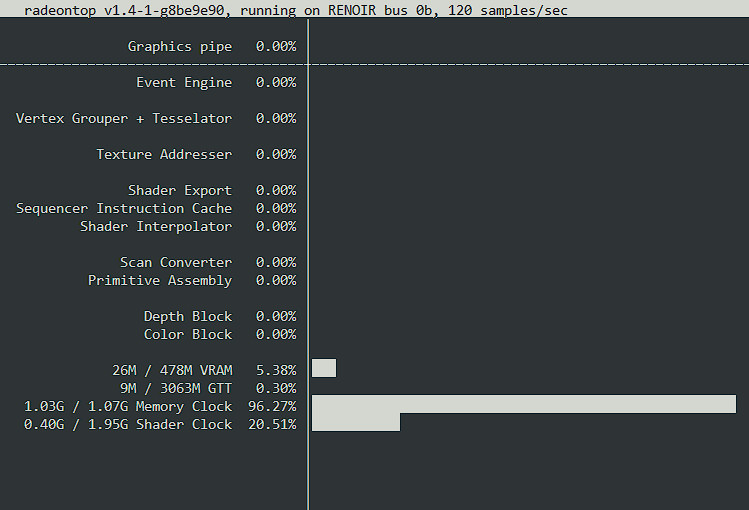

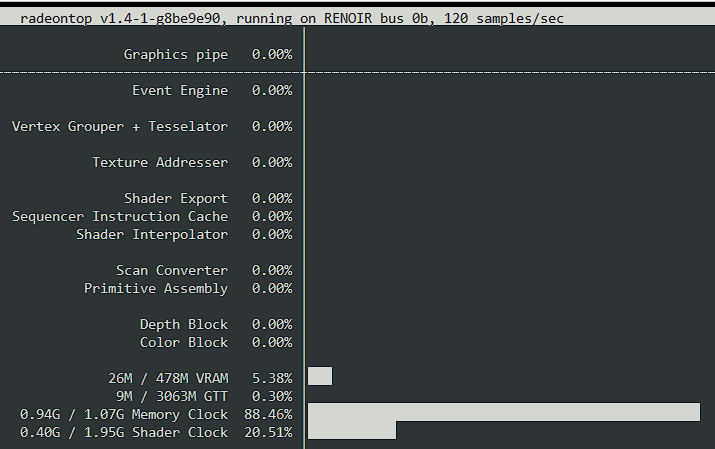

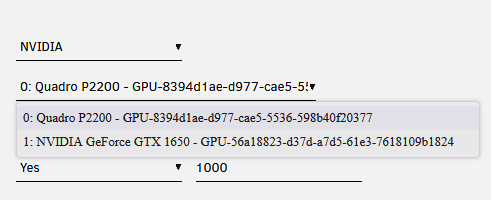

fk_muck1 Posted July 22, 2022 Share Posted July 22, 2022 (edited) Hi b3rs3rk Hope you can help me. My server has 3 GPU´s. 2x Nvidia discrete graphics cards, 1x AMD Ryzen 5 5600G iGPU Both Nvida cards are visible in GPU Statistics, but i am unable to see the AMD igpu. Changing the Vendor has no effect. unraid 6.10.3 Radeon-TOP is installed. In radeontop i can see the iGPU also. Already removed and reinstalled GPU Statistics without success. I've searched the forum for 1 hour but couldn't find a solution. Hope you can help me. Diagnostics are attached. Thanks in advance Not showing in GPU Statistics I can see the iGPU in System Devices I could choose it as a GPU in a VM lspci | grep VGA shows the iGPU radeontop diagnostics.zip Edited July 22, 2022 by fk_muck1 Quote Link to comment
boruchi Posted July 28, 2022 Share Posted July 28, 2022 anyone seen the modified version by thor2002ro 😮 https://github.com/thor2002ro/gpustat-unraid it has support for multiple gpu's 😮 Quote Link to comment

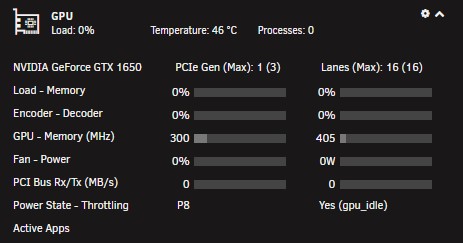

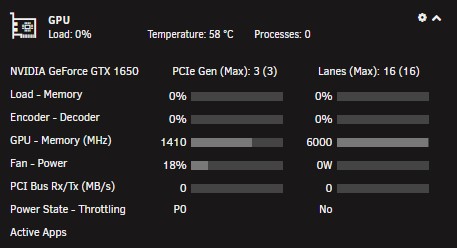

CiscoCoreX Posted July 30, 2022 Share Posted July 30, 2022 Hi, I'm not sure if this is the right place for my specific "issue". I have notice that my GPU (GTX 1650) not go to gpu_idle after a reboot of my unraid or when i'm running schedule backup everyday. My GPU are only dedicated to Plex transcoding. Nothing else are using this card. When I just start a move from plex, just to start transcoding and stop the movie. Then I can see my GPU goes to gpu_idle and the temperature goes down. If i then go to docker and restarte my plex server, then is back to not idle. After unraid reboot or restart plex server: (no idle) After starting a plex movie to transcode and stop it: (gpu_idle) on: I'm running Plex Server from binhex-plexpass. Quote Link to comment
ich777 Posted July 30, 2022 Share Posted July 30, 2022 17 minutes ago, CiscoCoreX said: I'm not sure if this is the right place for my specific "issue". Nope, this would be an issue for the Nvidia Driver itself but it's not really an issue. Please put this in your go file at the end: nvidia-persistenced and your GPU should go to idle after a reboot. 1 Quote Link to comment
ich777 Posted July 30, 2022 Share Posted July 30, 2022 On 7/28/2022 at 2:51 PM, boruchi said: it has support for multiple gpu's 😮 The better question would be, why doesn't he create a PR on the repository from @b3rs3rk so that everyone benefits? @b3rs3rk can you take a look at this maybe if you got some spare time? Quote Link to comment
b3rs3rk Posted August 5, 2022 Author Share Posted August 5, 2022 On 7/30/2022 at 2:53 AM, ich777 said: The better question would be, why doesn't he create a PR on the repository from @b3rs3rk so that everyone benefits? @b3rs3rk can you take a look at this maybe if you got some spare time? I commend their effort, but I wouldn't accept a PR if they opened it in its current state. Plainly put, there's a big difference between doing it right and what they did. 1) They triplicated the page content that is embedded into the dashboard. Not sure why considering they could have just looped the GPUStatus page for each GPU present. 2) They did not address the single largest issue, which is having individual settings for each card. Instead, all cards have to use the same settings. So if you had two NVIDIA cards that had different metrics available, you'd be stuck with a bunch of N/As on one or both of them. Would probably work fine for an Intel iGPU and NVIDIA dGPU user, but inevitably someone would ask why they can't select individual settings and I'm not about to tempt them with a less than half working product. The reason this is so difficult is because the config file needs to change completely to support multiple GPUs along with the Settings page to correctly populate it. Then you have to consider the upgrade path for everyone to move from a single GPU config to a multi GPU config without 5K forum posts asking why it is broken. 1 Quote Link to comment
b3rs3rk Posted August 5, 2022 Author Share Posted August 5, 2022 (edited) On 7/22/2022 at 2:23 PM, fk_muck1 said: Hi b3rs3rk Hope you can help me. My server has 3 GPU´s. 2x Nvidia discrete graphics cards, 1x AMD Ryzen 5 5600G iGPU Both Nvida cards are visible in GPU Statistics, but i am unable to see the AMD igpu. Changing the Vendor has no effect. unraid 6.10.3 Radeon-TOP is installed. In radeontop i can see the iGPU also. Already removed and reinstalled GPU Statistics without success. I've searched the forum for 1 hour but couldn't find a solution. Hope you can help me. Diagnostics are attached. Thanks in advance Not showing in GPU Statistics I can see the iGPU in System Devices I could choose it as a GPU in a VM lspci | grep VGA shows the iGPU radeontop diagnostics.zip 141.43 kB · 0 downloads Sorry for the delay, for some reason I stopped getting notifications of posts for the thread. Are you still having this issue? My guess is your GPU isn't being caught be the regex for inventory. Should be a simple fix if we can narrow it down to that. Edited August 5, 2022 by b3rs3rk typo Quote Link to comment
fk_muck1 Posted August 7, 2022 Share Posted August 7, 2022 On 8/5/2022 at 7:49 PM, b3rs3rk said: Sorry for the delay, for some reason I stopped getting notifications of posts for the thread. Are you still having this issue? My guess is your GPU isn't being caught be the regex for inventory. Should be a simple fix if we can narrow it down to that. No apologies please. It's holiday season The AMD iGPU is currently still not displayed. Is there more information I can provide? 1 Quote Link to comment
SimonF Posted August 7, 2022 Share Posted August 7, 2022 24 minutes ago, fk_muck1 said: No apologies please. It's holiday season The AMD iGPU is currently still not displayed. Is there more information I can provide? Have you installed the radiontop plugin? 1 Quote Link to comment
fk_muck1 Posted August 7, 2022 Share Posted August 7, 2022 47 minutes ago, SimonF said: Have you installed the radiontop plugin? Yes, I have. Maybe I made a wrong setting somewhere. But I just don't know where it could be. Quote Link to comment
b3rs3rk Posted August 10, 2022 Author Share Posted August 10, 2022 (edited) On 8/7/2022 at 2:42 AM, fk_muck1 said: No apologies please. It's holiday season The AMD iGPU is currently still not displayed. Is there more information I can provide? Run lspci | grep VGA and paste the result. Edited August 10, 2022 by b3rs3rk code block Quote Link to comment

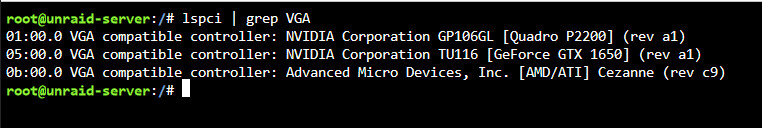

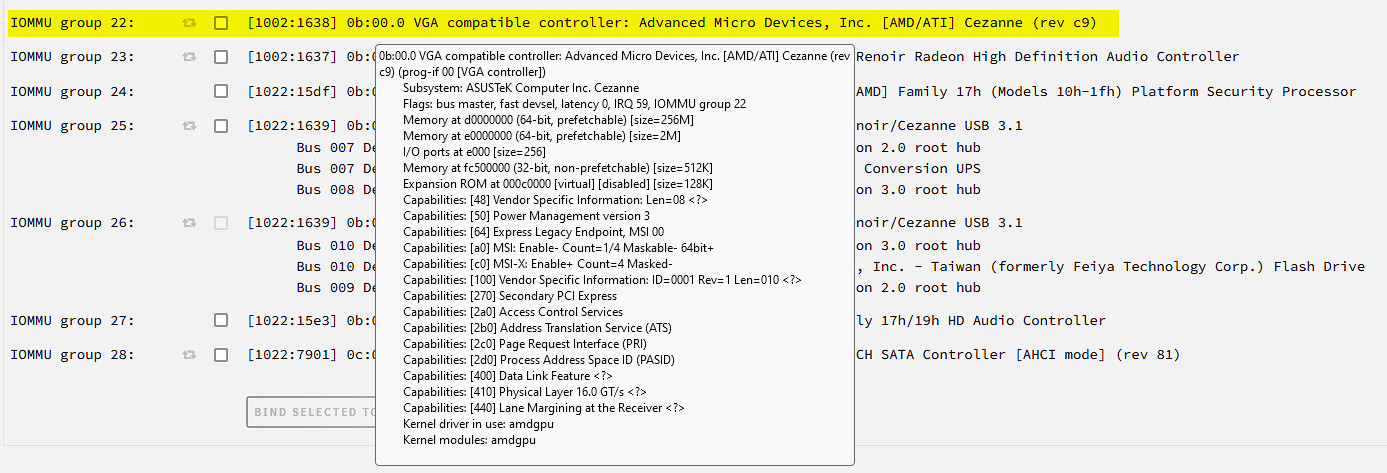

fk_muck1 Posted August 11, 2022 Share Posted August 11, 2022 12 hours ago, b3rs3rk said: Run lspci | grep VGA I think you won't like the result... ^^ If it's too much work I'll wait for 6.11 Maybe the problem isn't there. Quote Link to comment
1HP Posted August 20, 2022 Share Posted August 20, 2022 On 7/28/2022 at 2:51 PM, boruchi said: anyone seen the modified version by thor2002ro 😮 https://github.com/thor2002ro/gpustat-unraid it has support for multiple gpu's 😮 hi, did you installed it ? after manual installations, the gpu statistics plugin stops working - even if during the installation, the thor's pluging finds my nvidia gpu top. Quote Link to comment
b3rs3rk Posted August 28, 2022 Author Share Posted August 28, 2022 On 8/11/2022 at 6:52 AM, fk_muck1 said: I think you won't like the result... ^^ If it's too much work I'll wait for 6.11 Maybe the problem isn't there. Hmm, the regex to capture AMD devices matches on that output, which means it should be sending it to inventory. I'd have to do some debug tests to figure out why it isn't making it to the combined inventory used to display the choices in the Settings page. 1 Quote Link to comment
WooyMooy Posted September 14, 2022 Share Posted September 14, 2022 (edited) EDIT: Looks like I resolved it by switching the vendor in Settings > GPU statistics > Vendor to intel and then back to NVIDIA and hitting save. Thank you awesome utilitie. I'm having an issue with the GPU statistics not showing anything. It does transcode though through Plex but again it doesn't show anything on the GPU statistics. nvidia-smi -q -x -i 0 Quote nvidia-smi -q -x -i 0 <?xml version="1.0" ?> <!DOCTYPE nvidia_smi_log SYSTEM "nvsmi_device_v11.dtd"> <nvidia_smi_log> <timestamp>Tue Sep 13 16:51:30 2022</timestamp> <driver_version>515.65.01</driver_version> <cuda_version>11.7</cuda_version> <attached_gpus>1</attached_gpus> <gpu id="00000000:01:00.0"> <product_name>Quadro P400</product_name> <product_brand>Quadro</product_brand> <product_architecture>Pascal</product_architecture> <display_mode>Disabled</display_mode> <display_active>Disabled</display_active> <persistence_mode>Disabled</persistence_mode> <mig_mode> <current_mig>N/A</current_mig> <pending_mig>N/A</pending_mig> </mig_mode> <mig_devices> None </mig_devices> <accounting_mode>Disabled</accounting_mode> <accounting_mode_buffer_size>4000</accounting_mode_buffer_size> <driver_model> <current_dm>N/A</current_dm> <pending_dm>N/A</pending_dm> </driver_model> <serial>0424318039114</serial> <uuid>GPU-067ae312-92fd-f030-372a-c21eb0247104</uuid> <minor_number>0</minor_number> <vbios_version>86.07.3B.00.47</vbios_version> <multigpu_board>No</multigpu_board> <board_id>0x100</board_id> <gpu_part_number>900-5G212-0300-001</gpu_part_number> <gpu_module_id>0</gpu_module_id> <inforom_version> <img_version>G212.0500.00.01</img_version> <oem_object>1.1</oem_object> <ecc_object>N/A</ecc_object> <pwr_object>N/A</pwr_object> </inforom_version> <gpu_operation_mode> <current_gom>N/A</current_gom> <pending_gom>N/A</pending_gom> </gpu_operation_mode> <gsp_firmware_version>N/A</gsp_firmware_version> <gpu_virtualization_mode> <virtualization_mode>None</virtualization_mode> <host_vgpu_mode>N/A</host_vgpu_mode> </gpu_virtualization_mode> <ibmnpu> <relaxed_ordering_mode>N/A</relaxed_ordering_mode> </ibmnpu> <pci> <pci_bus>01</pci_bus> <pci_device>00</pci_device> <pci_domain>0000</pci_domain> <pci_device_id>1CB310DE</pci_device_id> <pci_bus_id>00000000:01:00.0</pci_bus_id> <pci_sub_system_id>11BE103C</pci_sub_system_id> <pci_gpu_link_info> <pcie_gen> <max_link_gen>3</max_link_gen> <current_link_gen>1</current_link_gen> </pcie_gen> <link_widths> <max_link_width>16x</max_link_width> <current_link_width>16x</current_link_width> </link_widths> </pci_gpu_link_info> <pci_bridge_chip> <bridge_chip_type>N/A</bridge_chip_type> <bridge_chip_fw>N/A</bridge_chip_fw> </pci_bridge_chip> <replay_counter>0</replay_counter> <replay_rollover_counter>0</replay_rollover_counter> <tx_util>0 KB/s</tx_util> <rx_util>0 KB/s</rx_util> </pci> <fan_speed>34 %</fan_speed> <performance_state>P8</performance_state> <clocks_throttle_reasons> <clocks_throttle_reason_gpu_idle>Active</clocks_throttle_reason_gpu_idle> <clocks_throttle_reason_applications_clocks_setting>Not Active</clocks_throttle_reason_applications_clocks_setting> <clocks_throttle_reason_sw_power_cap>Not Active</clocks_throttle_reason_sw_power_cap> <clocks_throttle_reason_hw_slowdown>Not Active</clocks_throttle_reason_hw_slowdown> <clocks_throttle_reason_hw_thermal_slowdown>Not Active</clocks_throttle_reason_hw_thermal_slowdown> <clocks_throttle_reason_hw_power_brake_slowdown>Not Active</clocks_throttle_reason_hw_power_brake_slowdown> <clocks_throttle_reason_sync_boost>Not Active</clocks_throttle_reason_sync_boost> <clocks_throttle_reason_sw_thermal_slowdown>Not Active</clocks_throttle_reason_sw_thermal_slowdown> <clocks_throttle_reason_display_clocks_setting>Not Active</clocks_throttle_reason_display_clocks_setting> </clocks_throttle_reasons> <fb_memory_usage> <total>2048 MiB</total> <reserved>47 MiB</reserved> <used>2 MiB</used> <free>1997 MiB</free> </fb_memory_usage> <bar1_memory_usage> <total>256 MiB</total> <used>2 MiB</used> <free>254 MiB</free> </bar1_memory_usage> <compute_mode>Default</compute_mode> <utilization> <gpu_util>0 %</gpu_util> <memory_util>0 %</memory_util> <encoder_util>0 %</encoder_util> <decoder_util>0 %</decoder_util> </utilization> <encoder_stats> <session_count>0</session_count> <average_fps>0</average_fps> <average_latency>0</average_latency> </encoder_stats> <fbc_stats> <session_count>0</session_count> <average_fps>0</average_fps> <average_latency>0</average_latency> </fbc_stats> <ecc_mode> <current_ecc>N/A</current_ecc> <pending_ecc>N/A</pending_ecc> </ecc_mode> <ecc_errors> <volatile> <single_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </single_bit> <double_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </double_bit> </volatile> <aggregate> <single_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </single_bit> <double_bit> <device_memory>N/A</device_memory> <register_file>N/A</register_file> <l1_cache>N/A</l1_cache> <l2_cache>N/A</l2_cache> <texture_memory>N/A</texture_memory> <texture_shm>N/A</texture_shm> <cbu>N/A</cbu> <total>N/A</total> </double_bit> </aggregate> </ecc_errors> <retired_pages> <multiple_single_bit_retirement> <retired_count>N/A</retired_count> <retired_pagelist>N/A</retired_pagelist> </multiple_single_bit_retirement> <double_bit_retirement> <retired_count>N/A</retired_count> <retired_pagelist>N/A</retired_pagelist> </double_bit_retirement> <pending_blacklist>N/A</pending_blacklist> <pending_retirement>N/A</pending_retirement> </retired_pages> <remapped_rows>N/A</remapped_rows> <temperature> <gpu_temp>40 C</gpu_temp> <gpu_temp_max_threshold>103 C</gpu_temp_max_threshold> <gpu_temp_slow_threshold>100 C</gpu_temp_slow_threshold> <gpu_temp_max_gpu_threshold>N/A</gpu_temp_max_gpu_threshold> <gpu_target_temperature>83 C</gpu_target_temperature> <memory_temp>N/A</memory_temp> <gpu_temp_max_mem_threshold>N/A</gpu_temp_max_mem_threshold> </temperature> <supported_gpu_target_temp> <gpu_target_temp_min>65 C</gpu_target_temp_min> <gpu_target_temp_max>97 C</gpu_target_temp_max> </supported_gpu_target_temp> <power_readings> <power_state>P8</power_state> <power_management>N/A</power_management> <power_draw>N/A</power_draw> <power_limit>N/A</power_limit> <default_power_limit>N/A</default_power_limit> <enforced_power_limit>N/A</enforced_power_limit> <min_power_limit>N/A</min_power_limit> <max_power_limit>N/A</max_power_limit> </power_readings> <clocks> <graphics_clock>139 MHz</graphics_clock> <sm_clock>139 MHz</sm_clock> <mem_clock>405 MHz</mem_clock> <video_clock>544 MHz</video_clock> </clocks> <applications_clocks> <graphics_clock>1227 MHz</graphics_clock> <mem_clock>2005 MHz</mem_clock> </applications_clocks> <default_applications_clocks> <graphics_clock>1227 MHz</graphics_clock> <mem_clock>2005 MHz</mem_clock> </default_applications_clocks> <max_clocks> <graphics_clock>1252 MHz</graphics_clock> <sm_clock>1252 MHz</sm_clock> <mem_clock>2005 MHz</mem_clock> <video_clock>1126 MHz</video_clock> </max_clocks> <max_customer_boost_clocks> <graphics_clock>1252 MHz</graphics_clock> </max_customer_boost_clocks> <clock_policy> <auto_boost>N/A</auto_boost> <auto_boost_default>N/A</auto_boost_default> </clock_policy> <voltage> <graphics_volt>N/A</graphics_volt> </voltage> <supported_clocks> <supported_mem_clock> <value>2005 MHz</value> <supported_graphics_clock>1252 MHz</supported_graphics_clock> <supported_graphics_clock>1240 MHz</supported_graphics_clock> <supported_graphics_clock>1227 MHz</supported_graphics_clock> <supported_graphics_clock>1215 MHz</supported_graphics_clock> <supported_graphics_clock>1202 MHz</supported_graphics_clock> <supported_graphics_clock>1189 MHz</supported_graphics_clock> <supported_graphics_clock>1177 MHz</supported_graphics_clock> <supported_graphics_clock>1164 MHz</supported_graphics_clock> <supported_graphics_clock>1151 MHz</supported_graphics_clock> <supported_graphics_clock>1139 MHz</supported_graphics_clock> <supported_graphics_clock>1126 MHz</supported_graphics_clock> <supported_graphics_clock>1113 MHz</supported_graphics_clock> <supported_graphics_clock>1101 MHz</supported_graphics_clock> <supported_graphics_clock>1088 MHz</supported_graphics_clock> <supported_graphics_clock>1075 MHz</supported_graphics_clock> <supported_graphics_clock>1063 MHz</supported_graphics_clock> <supported_graphics_clock>1050 MHz</supported_graphics_clock> <supported_graphics_clock>1037 MHz</supported_graphics_clock> <supported_graphics_clock>1025 MHz</supported_graphics_clock> <supported_graphics_clock>1012 MHz</supported_graphics_clock> <supported_graphics_clock>999 MHz</supported_graphics_clock> <supported_graphics_clock>987 MHz</supported_graphics_clock> <supported_graphics_clock>974 MHz</supported_graphics_clock> <supported_graphics_clock>961 MHz</supported_graphics_clock> <supported_graphics_clock>949 MHz</supported_graphics_clock> <supported_graphics_clock>936 MHz</supported_graphics_clock> <supported_graphics_clock>923 MHz</supported_graphics_clock> <supported_graphics_clock>911 MHz</supported_graphics_clock> <supported_graphics_clock>898 MHz</supported_graphics_clock> <supported_graphics_clock>885 MHz</supported_graphics_clock> <supported_graphics_clock>873 MHz</supported_graphics_clock> <supported_graphics_clock>860 MHz</supported_graphics_clock> <supported_graphics_clock>847 MHz</supported_graphics_clock> <supported_graphics_clock>835 MHz</supported_graphics_clock> <supported_graphics_clock>822 MHz</supported_graphics_clock> <supported_graphics_clock>810 MHz</supported_graphics_clock> <supported_graphics_clock>797 MHz</supported_graphics_clock> <supported_graphics_clock>784 MHz</supported_graphics_clock> <supported_graphics_clock>772 MHz</supported_graphics_clock> <supported_graphics_clock>759 MHz</supported_graphics_clock> <supported_graphics_clock>746 MHz</supported_graphics_clock> <supported_graphics_clock>734 MHz</supported_graphics_clock> <supported_graphics_clock>721 MHz</supported_graphics_clock> <supported_graphics_clock>708 MHz</supported_graphics_clock> <supported_graphics_clock>696 MHz</supported_graphics_clock> <supported_graphics_clock>683 MHz</supported_graphics_clock> <supported_graphics_clock>670 MHz</supported_graphics_clock> <supported_graphics_clock>658 MHz</supported_graphics_clock> <supported_graphics_clock>645 MHz</supported_graphics_clock> <supported_graphics_clock>632 MHz</supported_graphics_clock> <supported_graphics_clock>620 MHz</supported_graphics_clock> <supported_graphics_clock>607 MHz</supported_graphics_clock> <supported_graphics_clock>594 MHz</supported_graphics_clock> <supported_graphics_clock>582 MHz</supported_graphics_clock> <supported_graphics_clock>569 MHz</supported_graphics_clock> <supported_graphics_clock>556 MHz</supported_graphics_clock> <supported_graphics_clock>544 MHz</supported_graphics_clock> <supported_graphics_clock>531 MHz</supported_graphics_clock> <supported_graphics_clock>518 MHz</supported_graphics_clock> <supported_graphics_clock>506 MHz</supported_graphics_clock> <supported_graphics_clock>493 MHz</supported_graphics_clock> <supported_graphics_clock>480 MHz</supported_graphics_clock> <supported_graphics_clock>468 MHz</supported_graphics_clock> <supported_graphics_clock>455 MHz</supported_graphics_clock> <supported_graphics_clock>442 MHz</supported_graphics_clock> <supported_graphics_clock>430 MHz</supported_graphics_clock> <supported_graphics_clock>417 MHz</supported_graphics_clock> <supported_graphics_clock>405 MHz</supported_graphics_clock> <supported_graphics_clock>392 MHz</supported_graphics_clock> <supported_graphics_clock>379 MHz</supported_graphics_clock> <supported_graphics_clock>367 MHz</supported_graphics_clock> <supported_graphics_clock>354 MHz</supported_graphics_clock> <supported_graphics_clock>341 MHz</supported_graphics_clock> <supported_graphics_clock>329 MHz</supported_graphics_clock> <supported_graphics_clock>316 MHz</supported_graphics_clock> <supported_graphics_clock>303 MHz</supported_graphics_clock> <supported_graphics_clock>291 MHz</supported_graphics_clock> <supported_graphics_clock>278 MHz</supported_graphics_clock> <supported_graphics_clock>265 MHz</supported_graphics_clock> <supported_graphics_clock>253 MHz</supported_graphics_clock> <supported_graphics_clock>240 MHz</supported_graphics_clock> <supported_graphics_clock>227 MHz</supported_graphics_clock> <supported_graphics_clock>215 MHz</supported_graphics_clock> <supported_graphics_clock>202 MHz</supported_graphics_clock> <supported_graphics_clock>189 MHz</supported_graphics_clock> <supported_graphics_clock>177 MHz</supported_graphics_clock> <supported_graphics_clock>164 MHz</supported_graphics_clock> <supported_graphics_clock>151 MHz</supported_graphics_clock> <supported_graphics_clock>139 MHz</supported_graphics_clock> </supported_mem_clock> <supported_mem_clock> <value>810 MHz</value> <supported_graphics_clock>1252 MHz</supported_graphics_clock> <supported_graphics_clock>1240 MHz</supported_graphics_clock> <supported_graphics_clock>1227 MHz</supported_graphics_clock> <supported_graphics_clock>1215 MHz</supported_graphics_clock> <supported_graphics_clock>1202 MHz</supported_graphics_clock> <supported_graphics_clock>1189 MHz</supported_graphics_clock> <supported_graphics_clock>1177 MHz</supported_graphics_clock> <supported_graphics_clock>1164 MHz</supported_graphics_clock> <supported_graphics_clock>1151 MHz</supported_graphics_clock> <supported_graphics_clock>1139 MHz</supported_graphics_clock> <supported_graphics_clock>1126 MHz</supported_graphics_clock> <supported_graphics_clock>1113 MHz</supported_graphics_clock> <supported_graphics_clock>1101 MHz</supported_graphics_clock> <supported_graphics_clock>1088 MHz</supported_graphics_clock> <supported_graphics_clock>1075 MHz</supported_graphics_clock> <supported_graphics_clock>1063 MHz</supported_graphics_clock> <supported_graphics_clock>1050 MHz</supported_graphics_clock> <supported_graphics_clock>1037 MHz</supported_graphics_clock> <supported_graphics_clock>1025 MHz</supported_graphics_clock> <supported_graphics_clock>1012 MHz</supported_graphics_clock> <supported_graphics_clock>999 MHz</supported_graphics_clock> <supported_graphics_clock>987 MHz</supported_graphics_clock> <supported_graphics_clock>974 MHz</supported_graphics_clock> <supported_graphics_clock>961 MHz</supported_graphics_clock> <supported_graphics_clock>949 MHz</supported_graphics_clock> <supported_graphics_clock>936 MHz</supported_graphics_clock> <supported_graphics_clock>923 MHz</supported_graphics_clock> <supported_graphics_clock>911 MHz</supported_graphics_clock> <supported_graphics_clock>898 MHz</supported_graphics_clock> <supported_graphics_clock>885 MHz</supported_graphics_clock> <supported_graphics_clock>873 MHz</supported_graphics_clock> <supported_graphics_clock>860 MHz</supported_graphics_clock> <supported_graphics_clock>847 MHz</supported_graphics_clock> <supported_graphics_clock>835 MHz</supported_graphics_clock> <supported_graphics_clock>822 MHz</supported_graphics_clock> <supported_graphics_clock>810 MHz</supported_graphics_clock> <supported_graphics_clock>797 MHz</supported_graphics_clock> <supported_graphics_clock>784 MHz</supported_graphics_clock> <supported_graphics_clock>772 MHz</supported_graphics_clock> <supported_graphics_clock>759 MHz</supported_graphics_clock> <supported_graphics_clock>746 MHz</supported_graphics_clock> <supported_graphics_clock>734 MHz</supported_graphics_clock> <supported_graphics_clock>721 MHz</supported_graphics_clock> <supported_graphics_clock>708 MHz</supported_graphics_clock> <supported_graphics_clock>696 MHz</supported_graphics_clock> <supported_graphics_clock>683 MHz</supported_graphics_clock> <supported_graphics_clock>670 MHz</supported_graphics_clock> <supported_graphics_clock>658 MHz</supported_graphics_clock> <supported_graphics_clock>645 MHz</supported_graphics_clock> <supported_graphics_clock>632 MHz</supported_graphics_clock> <supported_graphics_clock>620 MHz</supported_graphics_clock> <supported_graphics_clock>607 MHz</supported_graphics_clock> <supported_graphics_clock>594 MHz</supported_graphics_clock> <supported_graphics_clock>582 MHz</supported_graphics_clock> <supported_graphics_clock>569 MHz</supported_graphics_clock> <supported_graphics_clock>556 MHz</supported_graphics_clock> <supported_graphics_clock>544 MHz</supported_graphics_clock> <supported_graphics_clock>531 MHz</supported_graphics_clock> <supported_graphics_clock>518 MHz</supported_graphics_clock> <supported_graphics_clock>506 MHz</supported_graphics_clock> <supported_graphics_clock>493 MHz</supported_graphics_clock> <supported_graphics_clock>480 MHz</supported_graphics_clock> <supported_graphics_clock>468 MHz</supported_graphics_clock> <supported_graphics_clock>455 MHz</supported_graphics_clock> <supported_graphics_clock>442 MHz</supported_graphics_clock> <supported_graphics_clock>430 MHz</supported_graphics_clock> <supported_graphics_clock>417 MHz</supported_graphics_clock> <supported_graphics_clock>405 MHz</supported_graphics_clock> <supported_graphics_clock>392 MHz</supported_graphics_clock> <supported_graphics_clock>379 MHz</supported_graphics_clock> <supported_graphics_clock>367 MHz</supported_graphics_clock> <supported_graphics_clock>354 MHz</supported_graphics_clock> <supported_graphics_clock>341 MHz</supported_graphics_clock> <supported_graphics_clock>329 MHz</supported_graphics_clock> <supported_graphics_clock>316 MHz</supported_graphics_clock> <supported_graphics_clock>303 MHz</supported_graphics_clock> <supported_graphics_clock>291 MHz</supported_graphics_clock> <supported_graphics_clock>278 MHz</supported_graphics_clock> <supported_graphics_clock>265 MHz</supported_graphics_clock> <supported_graphics_clock>253 MHz</supported_graphics_clock> <supported_graphics_clock>240 MHz</supported_graphics_clock> <supported_graphics_clock>227 MHz</supported_graphics_clock> <supported_graphics_clock>215 MHz</supported_graphics_clock> <supported_graphics_clock>202 MHz</supported_graphics_clock> <supported_graphics_clock>189 MHz</supported_graphics_clock> <supported_graphics_clock>177 MHz</supported_graphics_clock> <supported_graphics_clock>164 MHz</supported_graphics_clock> <supported_graphics_clock>151 MHz</supported_graphics_clock> <supported_graphics_clock>139 MHz</supported_graphics_clock> </supported_mem_clock> <supported_mem_clock> <value>405 MHz</value> <supported_graphics_clock>607 MHz</supported_graphics_clock> <supported_graphics_clock>594 MHz</supported_graphics_clock> <supported_graphics_clock>582 MHz</supported_graphics_clock> <supported_graphics_clock>569 MHz</supported_graphics_clock> <supported_graphics_clock>556 MHz</supported_graphics_clock> <supported_graphics_clock>544 MHz</supported_graphics_clock> <supported_graphics_clock>531 MHz</supported_graphics_clock> <supported_graphics_clock>518 MHz</supported_graphics_clock> <supported_graphics_clock>506 MHz</supported_graphics_clock> <supported_graphics_clock>493 MHz</supported_graphics_clock> <supported_graphics_clock>480 MHz</supported_graphics_clock> <supported_graphics_clock>468 MHz</supported_graphics_clock> <supported_graphics_clock>455 MHz</supported_graphics_clock> <supported_graphics_clock>442 MHz</supported_graphics_clock> <supported_graphics_clock>430 MHz</supported_graphics_clock> <supported_graphics_clock>417 MHz</supported_graphics_clock> <supported_graphics_clock>405 MHz</supported_graphics_clock> <supported_graphics_clock>392 MHz</supported_graphics_clock> <supported_graphics_clock>379 MHz</supported_graphics_clock> <supported_graphics_clock>367 MHz</supported_graphics_clock> <supported_graphics_clock>354 MHz</supported_graphics_clock> <supported_graphics_clock>341 MHz</supported_graphics_clock> <supported_graphics_clock>329 MHz</supported_graphics_clock> <supported_graphics_clock>316 MHz</supported_graphics_clock> <supported_graphics_clock>303 MHz</supported_graphics_clock> <supported_graphics_clock>291 MHz</supported_graphics_clock> <supported_graphics_clock>278 MHz</supported_graphics_clock> <supported_graphics_clock>265 MHz</supported_graphics_clock> <supported_graphics_clock>253 MHz</supported_graphics_clock> <supported_graphics_clock>240 MHz</supported_graphics_clock> <supported_graphics_clock>227 MHz</supported_graphics_clock> <supported_graphics_clock>215 MHz</supported_graphics_clock> <supported_graphics_clock>202 MHz</supported_graphics_clock> <supported_graphics_clock>189 MHz</supported_graphics_clock> <supported_graphics_clock>177 MHz</supported_graphics_clock> <supported_graphics_clock>164 MHz</supported_graphics_clock> <supported_graphics_clock>151 MHz</supported_graphics_clock> <supported_graphics_clock>139 MHz</supported_graphics_clock> </supported_mem_clock> </supported_clocks> <processes> </processes> <accounted_processes> </accounted_processes> </gpu> </nvidia_smi_log> cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php Quote cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php {"clock":"N\/A","fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"N\/A","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"N\/A","error":[{"code":302,"message":"Vendor command returned unparseable data.","extra":""}]} Edited September 14, 2022 by WooyMooy Quote Link to comment
sersh Posted September 26, 2022 Share Posted September 26, 2022 After update 6.11 won't work. 1. the result of 'timeout -k .500 .400 intel_gpu_top -J -s 250': Spoiler { "period": { "duration": 175.421201, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 17.101696, "unit": "irq/s" }, "rc6": { "value": 0.000000, "unit": "%" }, "power": { "GPU": 0.002436, "Package": 4.836991, "unit": "W" }, "engines": { "Render/3D/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance/0": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } 2. the result of 'cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php': Spoiler #cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.phpp {"clock":"N\/A","fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"N\/A","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"N\/A","error":[{"code":303,"message":"Vendor data valid, but not enough received.","extra":"Count: 1"},{"code":302,"message":"Vendor command returned unparseable data.","extra":""}]}root@NaS-UnRaiD:/usr/local/emhttp/plugins/gpustat# 3. 4. But 'intel_gpu_top' work intel-gpu-top: Intel Geminilake (Gen9) @ /dev/dri/card0 - 647/ 802 MHz; 0% RC6; 9.45/ 9.33 W; 670 irqs/s ENGINES BUSY MI_SEMA MI_WAIT Render/3D 97.78% |████████████████████████████████████████████████████████████████████████████████▎ | 0% 0% Blitter 0.00% | | 0% 0% Video 69.87% |█████████████████████████████████████████████████████████▍ | 0% 0% VideoEnhance 95.99% |██████████████████████████████████████████████████████████████████████████████▊ | 73% 0% PID NAME Render/3D Blitter Video VideoEnhance 25747 ffmpeg |███████████████████████|| ||███████████████████▋ ||███████████████████████| Quote Link to comment
Ulrar Posted September 30, 2022 Share Posted September 30, 2022 Same issue as @sersh this morning for intel, the intel_gpu_top command works fine but the php file says `Vendor data valid, but not enough received.` and `Vendor command returned unparseable data.`, then just returns N/A for everything. I did see the plugin auto-update just before it broke so presumably it's a bug in the latest version ? I'm fairly sure it was working yesterday, but I could be wrong. Quote Link to comment
