7 hours ago, jeffreywhunter said:

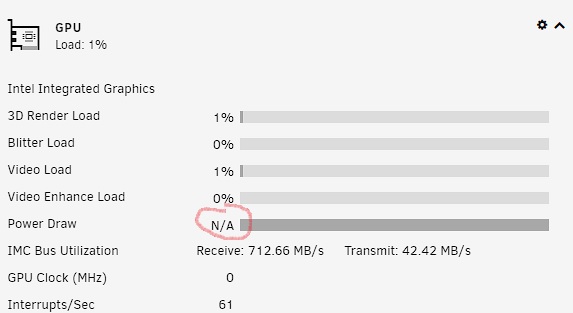

That made a difference, I was able to load the drivers and then update the plugin.  Unfortunately, I'm seeing N/A on all the various display items.





are you using a nvidia GPU? Did you select the GPU under the type selection in settings?

how can i fix this error lastest version



00:02.0 VGA compatible controller: Intel Corporation RocketLake-S GT1 [UHD Graphics 730] (rev 04)



powerdraw.txt

Edited February 15, 20233 yr by jaybigman77
more info

1 hour ago, jaybigman77 said:

how can i fix this error lastest version

You provide very little information, can you please post your Diagnostics?

What iGPU are you using, it is possible that your iGPU doesn't output the power draw.

12 minutes ago, ich777 said:

You provide very little information, can you please post your Diagnostics?

What iGPU are you using, it is possible that your iGPU doesn't output the power draw.

What info do i need to include

4 minutes ago, jaybigman77 said:

What info do i need to include

As mentioned above the Diagnostics.

10 hours ago, SimonF said:

are you using a nvidia GPU? Did you select the GPU under the type selection in settings?

I have an ASUS P8P67 Deluxe Mobo with onboard graphics which I believe is Intel based.  I've tried all three options, no response from any of them.  Perhaps it does not support onboard graphics?

5 minutes ago, jeffreywhunter said:

ASUS P8P67

This is SandyBridge...

SandyBridge wont do much nowadays in terms of transcoding, see the transcoding matrix here, so to speak only h264 (AVC), h265 (HEVC) isn't even supported.

Have the issue of some others with an AMD APU not showing up on the current build.  Running on a beelink SER5 with 5600H.



04:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Cezanne [Radeon Vega Series / Radeon Vega Mobile Series] (rev c6)



1676484803.315975: bus 04, gpu 0.00%, ee 0.00%, vgt 0.00%, ta 0.00%, sx 0.00%, sh 0.00%, spi 0.00%, sc 0.00%, pa 0.00%, db 0.00%, cb 0.00%, vram 0.85% 25.93mb, gtt 0.07% 10.20mb, mclk 100.00% 1.600ghz, sclk 22.87% 0.412ghz



VENDOR="amd"
GPUID="04"
TEMPFORMAT="C"
DISPCLOCKS="1"
DISPENCDEC="1"
DISPPCIUTIL="1"
DISPTEMP="1"
DISPFAN="1"
DISPPWRDRAW="1"
DISPPWRSTATE="1"
DISPTHROTTLE="1"
DISPSESSIONS="1"
UIREFRESH="1"
UIREFRESHINT="1000"
DISPMEMUTIL="1"
DISP3DRENDER="1"
DISPBLITTER="1"
DISPVIDEO="1"
DISPVIDENH="1"
DISPINTERRUPT="1"
DISPEVENT="1"
DISPVERTEX="1"
DISPTEXTURE="1"
DISPSHADEREXP="1"
DISPSEQUENCER="1"
DISPSHADERINTER="1"
DISPSCANCON="1"
DISPPRIMASSEM="1"
DISPDEPTHBLK="1"
DISPCOLORBLK="1"
DISPGFXTRANS="1"



But does work on - https://raw.githubusercontent.com/b3rs3rk/gpustat-unraid/6cf1b1e96bc8cd5c1cf7ac8fefea1271d8891e26/gpustat.plg

Edited February 15, 20233 yr by smdion

2 hours ago, jeffreywhunter said:

I have an ASUS P8P67 Deluxe Mobo with onboard graphics which I believe is Intel based.  I've tried all three options, no response from any of them.  Perhaps it does not support onboard graphics?

if you run intel_gpu_top from cmdline what do you get.

20 minutes ago, SimonF said:

if you run intel_gpu_top from cmdline what do you get.

root@HunterNAS:~# intel_gpu_top
bash: intel_gpu_top: command not found

Appears I'm missing something...

Just now, jeffreywhunter said:

root@HunterNAS:~# intel_gpu_top
bash: intel_gpu_top: command not found

Appears I'm missing something...

you n4ed to install intel gpu top from ca for intel igpu.

1 hour ago, SimonF said:

you n4ed to install intel gpu top from ca for intel igpu.

Thanks!  Appears that's the issue.  Although it also appears that not all the trackable features show up...



Here's what intel_top_gpu displays



Edited February 15, 20233 yr by jeffreywhunter

9 minutes ago, jeffreywhunter said:

Appears that's the issue.  Although it also appears that not all the trackable features show up...

does it match intel_gpu_top?

Is it possible for the plugin to show more than 1 GPU on the dashboard?

1 minute ago, mikeyosm said:

Is it possible for the plugin to show more than 1 GPU on the dashboard?

No it only does one.

48 minutes ago, SimonF said:

does it match intel_gpu_top?

Apparently.  Several of the sensors don't display.  Not unexpected since this is a mobo driven GPU.  Consider it good enough for now.  Thanks!

8 hours ago, jeffreywhunter said:

Not unexpected since this is a mobo driven GPU.

No, this is a iGPU from the CPU, these are two different things.



8 hours ago, jeffreywhunter said:

Apparently.  Several of the sensors don't display.

As said above, your CPU is simply too old to display Video Enhance, you need a CPU that is at least capable of transcoding h265 (HEVC) to have that displayed.



If you have a newer CPU it would display everything just fine and would be as capable as a GTX1050Ti for transcoding.

I had to roll back gpu stat plugin to 2022.02.22 so that both (igpu and dgpu) AMD gpus are detected.

The latest version (2022.11.30a) of the plugin breaks this, when will this be fixed please?

19 hours ago, ich777 said:

No, this is a iGPU from the CPU, these are two different things.



As said above, your CPU is simply too old to display Video Enhance, you need a CPU that is at least capable of transcoding h265 (HEVC) to have that displayed.



If you have a newer CPU it would display everything just fine and would be as capable as a GTX1050Ti for transcoding.

For anyone that is interested, I searched on what is the minimum hardware requirement for Video Enhance AI?  A DirectX12 compatible GPU (NVidia or AMD). An Intel CPU from 2015 onwards or an AMD CPU from 2016 onwards are apparently the minimum requirements for the CPU.



Thanks ich777!

Edited February 17, 20233 yr by jeffreywhunter

Did the fix for AMD GPUs not showing up in the dropdown ever get updated?

On 2/17/2023 at 11:00 PM, Robert_Chandra said:

Did the fix for AMD GPUs not showing up in the dropdown ever get updated?

Nope.  I had to uninstall the latest version and reinstall an older version to get the AMD iGPU to show up.

Also have a broken GPU stat on AMD dedicated GPU 6600xt.

I have created a PR for b3rs3rk's plugin to add MultiGPU support for 6.12 as Dashboard panels are different in 6.12. The PR works on pre realeases but does not provide Multi support. There are some other enhancements like being able to select Intel iGPU or ARC cards. Adding the correct model on the screen. Selection for Intel to select the GPU/Package or Max of the them for Powerdraw as the driver doesn't always report GPU.



You can review the PR here: https://github.com/b3rs3rk/gpustat-unraid/pull/52

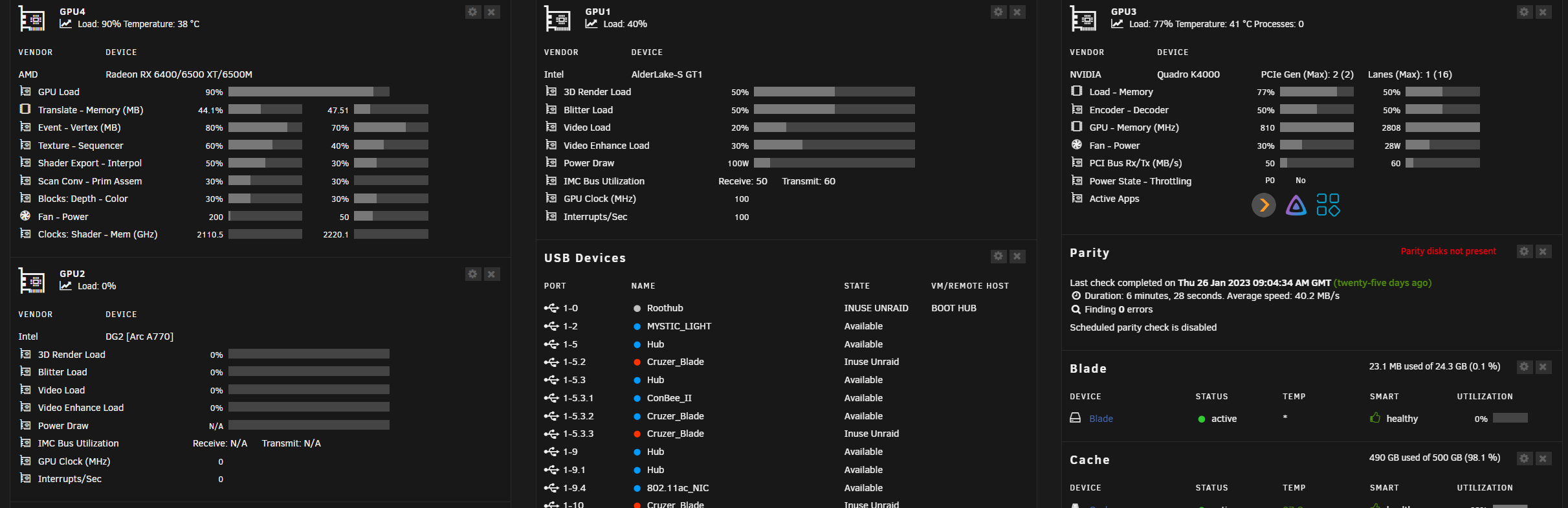

b3rs3rk's is currently reviewing the PR. Note the image is with test data, but there are other images on the PR.



Not running for my iGPU (5700G):

30:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Cezanne [Radeon Vega Series / Radeon Vega Mobile Series] (rev c8)

1677445836.606015: bus 30, gpu 0.00%, ee 0.00%, vgt 0.00%, ta 0.00%, sx 0.00%, sh 0.00%, spi 0.00%, sc 0.00%, pa 0.00%, db 0.00%, cb 0.00%, vram 0.30% 24.84mb, gtt 0.09% 10.20mb, mclk 100.00% 1.600ghz, sclk 20.67% 0.413ghz



"cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php" gives nothing to me.

bash: /boot/config/plugins/gpustat/gpustat.cfg: Permission denied



And I can't choose the controller:





Do you need some more information?

16 minutes ago, Cicatrix said:

Not running for my iGPU (5700G):

30:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Cezanne [Radeon Vega Series / Radeon Vega Mobile Series] (rev c8)

1677445836.606015: bus 30, gpu 0.00%, ee 0.00%, vgt 0.00%, ta 0.00%, sx 0.00%, sh 0.00%, spi 0.00%, sc 0.00%, pa 0.00%, db 0.00%, cb 0.00%, vram 0.30% 24.84mb, gtt 0.09% 10.20mb, mclk 100.00% 1.600ghz, sclk 20.67% 0.413ghz



"cd /usr/local/emhttp/plugins/gpustat/ && php ./gpustatus.php" gives nothing to me.

bash: /boot/config/plugins/gpustat/gpustat.cfg: Permission denied



And I can't choose the controller:





Do you need some more information?

There is a test load on my pr above that may allow you to select amd until the author releases a new package.
