insomnia417 Posted March 26, 2023 Share Posted March 26, 2023 2 hours ago, shinzi said: try to set the system language to English. thank u ! it amazing.... just change to english , it works.... Quote Link to comment
SimonF Posted March 27, 2023 Share Posted March 27, 2023 On 3/26/2023 at 11:20 AM, insomnia417 said: yes , i means i have saved , but it still show null Should work with different languages, could you test with the latest version? Quote Link to comment
insomnia417 Posted March 27, 2023 Share Posted March 27, 2023 1 minute ago, SimonF said: Should work with different languages, could you test with the latest version? Yes , i change to EN , now it works ! Quote Link to comment
SimonF Posted March 27, 2023 Share Posted March 27, 2023 (edited) 2 minutes ago, insomnia417 said: Yes , i change to EN , now it works ! does it work now with your other lqnuage set. I have fixed apply button in 2023.03.27 Edited March 27, 2023 by SimonF Quote Link to comment
insomnia417 Posted March 27, 2023 Share Posted March 27, 2023 (edited) 1 hour ago, SimonF said: does it work now with your other lqnuage set. I have fixed apply button in 2023.03.27 Yes, I just deleted the plugin and reinstalled it all. I can now work well without switching languages. Thank you for your efforts! Edited March 27, 2023 by insomnia417 1 Quote Link to comment
SimonF Posted March 27, 2023 Share Posted March 27, 2023 12 minutes ago, insomnia417 said: Yes, I just deleted the plugin and reinstalled it all. I can now work well without switching languages. Thank you for your efforts! there is a new option for power draw Quote Link to comment
insomnia417 Posted March 27, 2023 Share Posted March 27, 2023 19 minutes ago, SimonF said: there is a new option for power draw Currently, everything is normal in the test Quote Link to comment
SimonF Posted March 27, 2023 Share Posted March 27, 2023 On 2/28/2023 at 7:50 AM, Cicatrix said: I can change it, but after hitting apply evertything has the value from before hitting apply. Not just for vendor, it is for every value. And CPU usage was pretty high. Deinstalled it for now. Edit: Tried it again, still can't save any changes. After saving every single value jumps back to the standard value (that you've got after installation). There was an issue if using a different language to English should be fixed now. Quote Link to comment

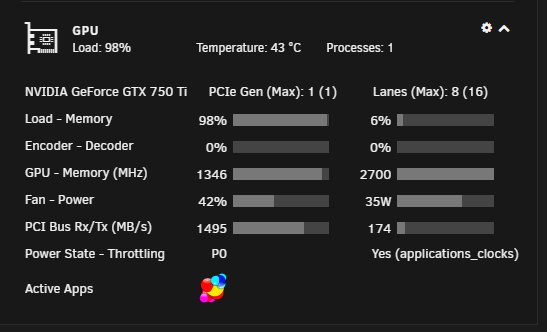

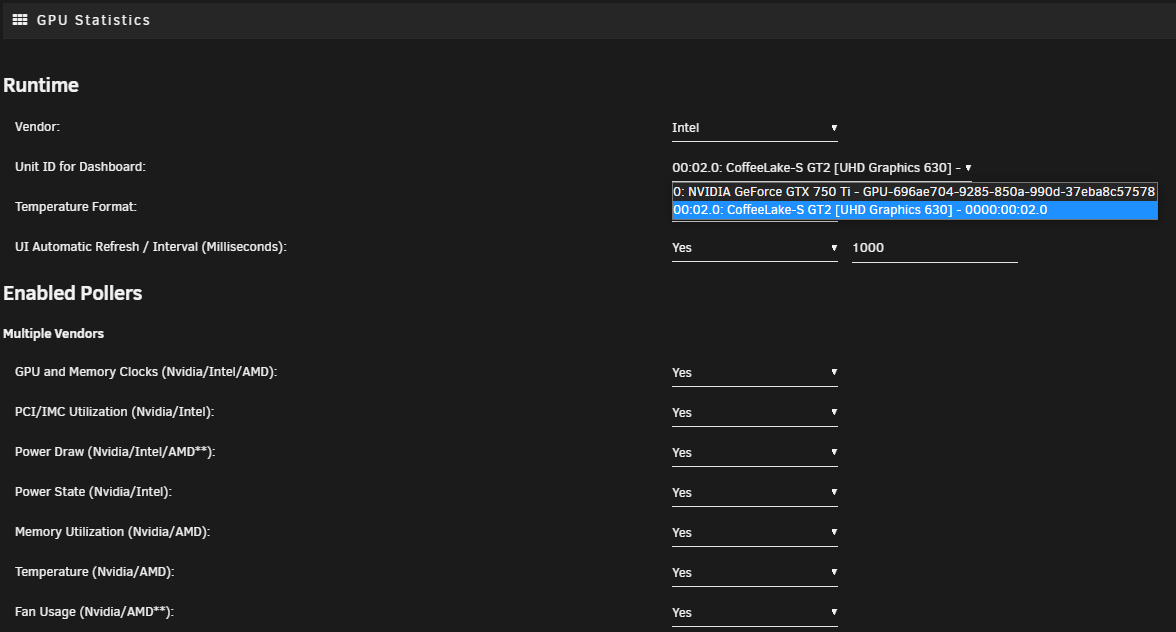

axipher Posted March 27, 2023 Share Posted March 27, 2023 I'm using SimonF's version of the GPU Stats plugin, but for some reason can't get Multi-GPU to work. Does it support showing the stats for noth an Nvidia 750 Ti and Intel iGPU UDH 630? I'm on Unraid 6.11.5 and have the Intel GPU TOP and the Nvidia Driver plug-ins installed. Not sure if I'm missing something here, or it's not supported on 6.11.5 or this combination of GPU's. I can configure the GPU Stats plug-in for either Intel or Nvidia and they will both work for single GPU stats display on the Dashboard, just doesn't show the Multi-GPU checkboxes for me. Quote Link to comment
SimonF Posted March 27, 2023 Share Posted March 27, 2023 14 minutes ago, axipher said: I'm using SimonF's version of the GPU Stats plugin, but for some reason can't get Multi-GPU to work. Does it support showing the stats for noth an Nvidia 750 Ti and Intel iGPU UDH 630? I'm on Unraid 6.11.5 and have the Intel GPU TOP and the Nvidia Driver plug-ins installed. Not sure if I'm missing something here, or it's not supported on 6.11.5 or this combination of GPU's. I can configure the GPU Stats plug-in for either Intel or Nvidia and they will both work for single GPU stats display on the Dashboard, just doesn't show the Multi-GPU checkboxes for me. You need 6.12 for multigpu. 6.11 qnd below only supports single gpu. 1 Quote Link to comment
axipher Posted March 27, 2023 Share Posted March 27, 2023 1 minute ago, SimonF said: You need 6.12 for multigpu. 6.11 qnd below only supports single gpu. Ah, okay, thanks for the clarification, at least I have the new plug-in (along with your NUT) for now in case I forget to update before 6.12 official drops. 1 Quote Link to comment

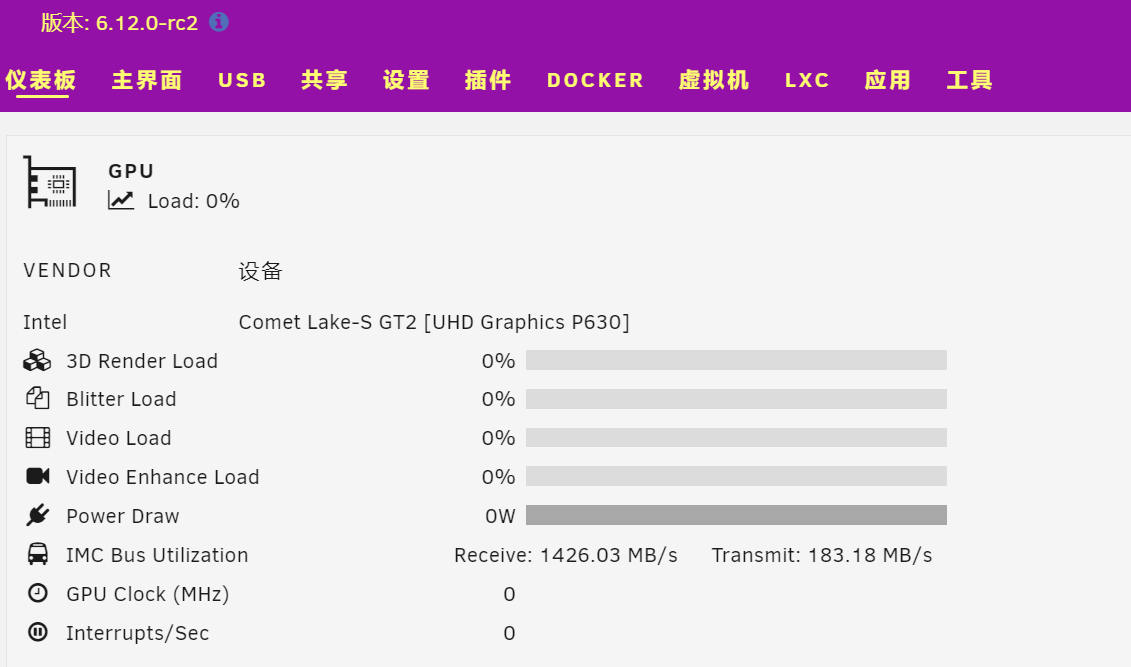

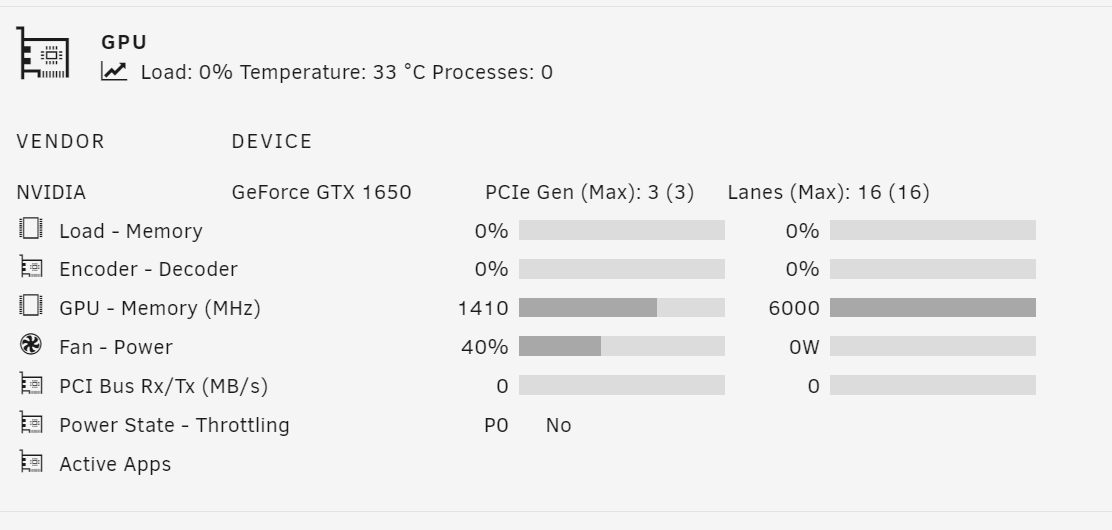

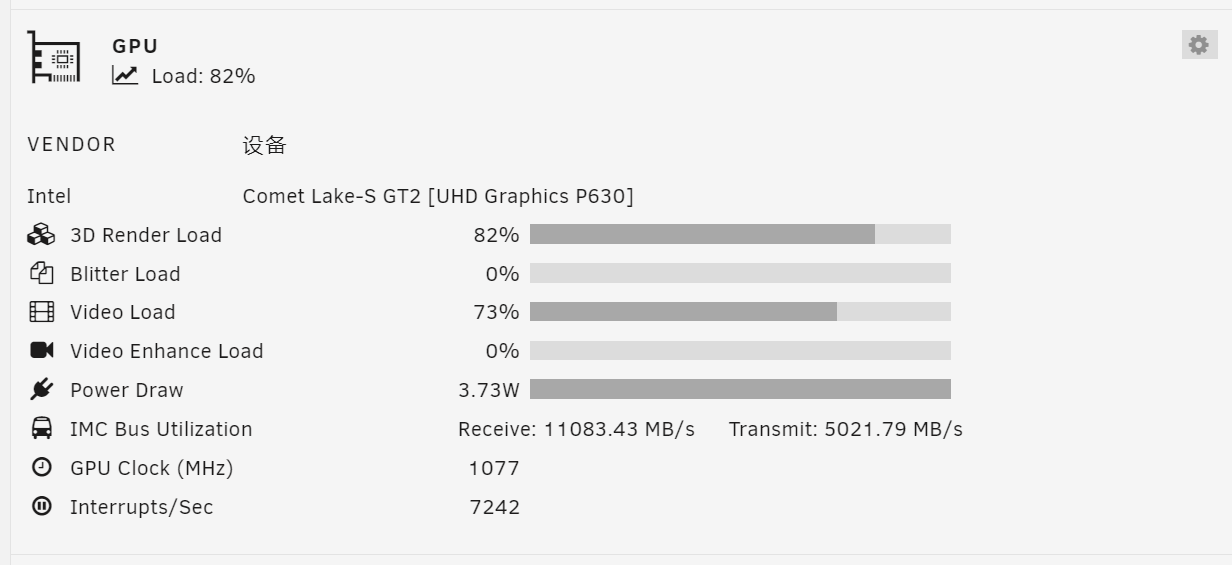

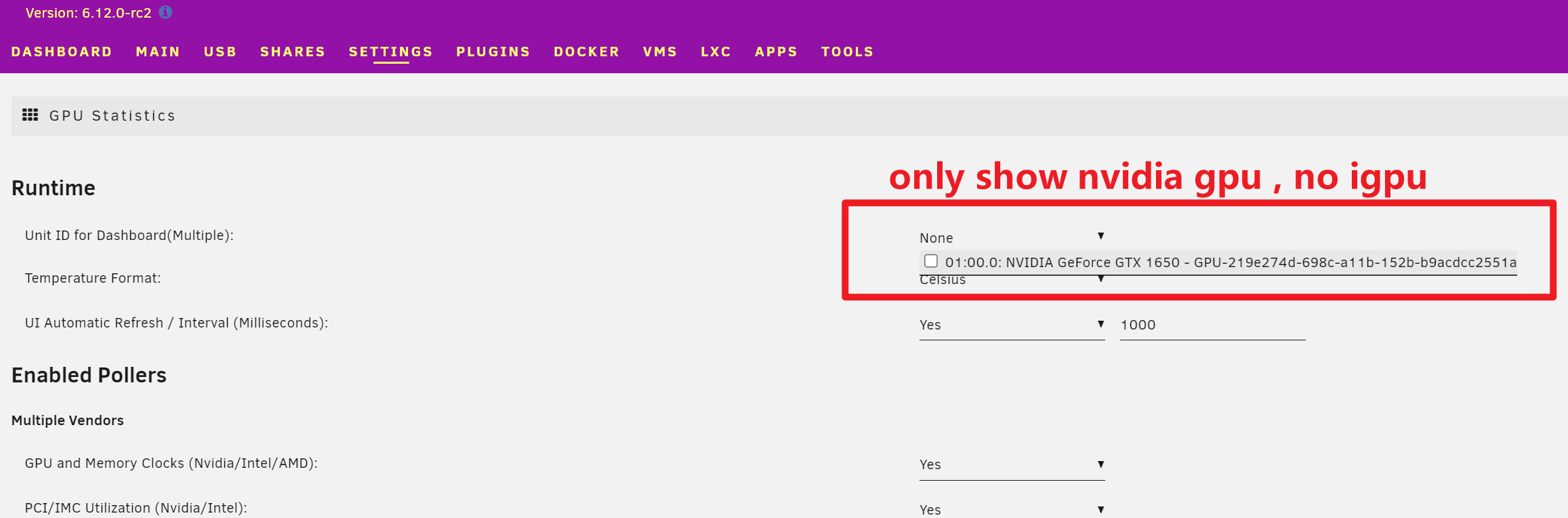

insomnia417 Posted March 28, 2023 Share Posted March 28, 2023 (edited) New issues: I have now added a new NVIDIA graphics card. If I connect this card directly, the" Unit ID for Dashboard (Multiple): "in the gpustat setting will not display anything, which will cause the igpu to not display either (clicking the mouse has no response, but intel_gpu_top can recognize it). So I made a new attempt. I canceled the passthrough for this standalone graphics card, and then it could display my Nvidia GPU normally, but still not display the iGPU option, intel_ gpu_ Top still works normally, unraid-diagnostics-20230328-2143.zip So I wonder if the multi gpu functionality is still not very complete? Edited March 28, 2023 by insomnia417 Quote Link to comment
SimonF Posted March 28, 2023 Share Posted March 28, 2023 (edited) 1 hour ago, insomnia417 said: New issues: I have now added a new NVIDIA graphics card. If I connect this card directly, the" Unit ID for Dashboard (Multiple): "in the gpustat setting will not display anything, which will cause the igpu to not display either (clicking the mouse has no response, but intel_gpu_top can recognize it). So I made a new attempt. I canceled the passthrough for this standalone graphics card, and then it could display my Nvidia GPU normally, but still not display the iGPU option, intel_ gpu_ Top still works normally, unraid-diagnostics-20230328-2143.zip 166.04 kB · 1 download So I wonder if the multi gpu functionality is still not very complete? Something else has changed on your system to find the GPUs the following command is run lspci -Dnnmm | grep VGA. 00:02.0 Does not contain VGA Have you loaded the gvt-g plugin recently could you try removing? Edited March 28, 2023 by SimonF Quote Link to comment

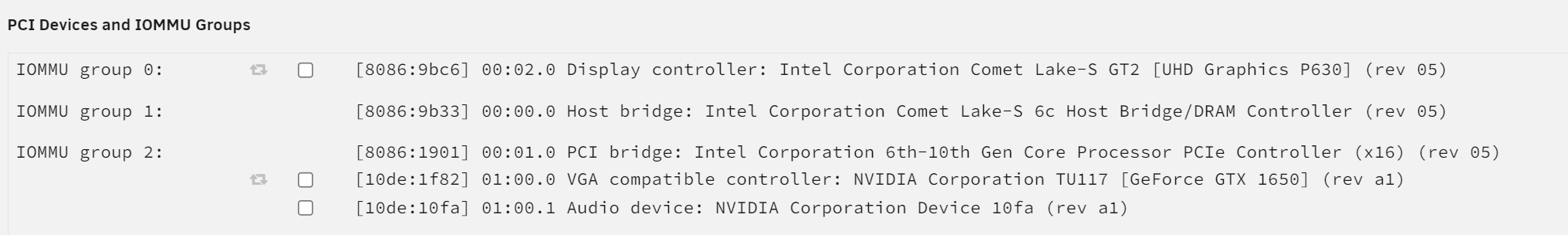

insomnia417 Posted March 28, 2023 Share Posted March 28, 2023 2 hours ago, SimonF said: Something else has changed on your system to find the GPUs the following command is run lspci -Dnnmm | grep VGA. lspci checked , show two GPU well. 2 hours ago, SimonF said: Have you loaded the gvt-g plugin recently could you try removing? Yes , i loaded gvt-g , but it have not useing . I'll try again tomorrow Quote Link to comment
SimonF Posted March 28, 2023 Share Posted March 28, 2023 1 minute ago, insomnia417 said: lspci checked , show two GPU well. Yes , i loaded gvt-g , but it have not useing . I'll try again tomorrow But do both gpus have vga in text was not there on screen print for igpu Quote Link to comment
IllMethods Posted April 7, 2023 Share Posted April 7, 2023 Is there a way to have this show the stats for all of you system gpus/igpus? That would be a nice feature to have. Quote Link to comment
WingmanNZ Posted April 11, 2023 Share Posted April 11, 2023 On 3/29/2023 at 5:42 AM, SimonF said: But do both gpus have vga in text was not there on screen print for igpu My UHD 770 does not have VGA in the name... It has Display controller 00:02.0 Display controller: Intel Corporation Raptor Lake-S GT1 [UHD Graphics 770] (rev 04) Quote Link to comment

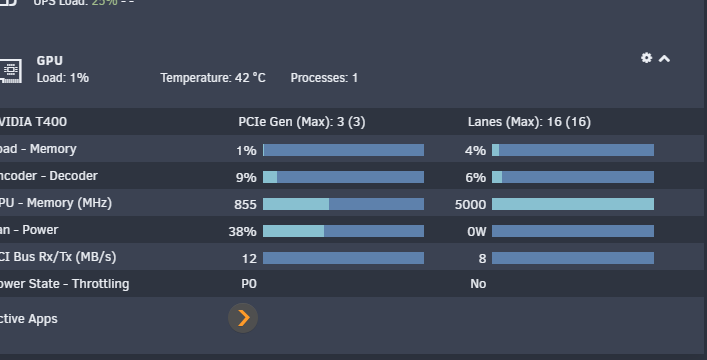

Lordbye Posted April 11, 2023 Share Posted April 11, 2023 Hi, i have a problem with nvidia powerdraw . i had install a - nvidia t400 gpu - unraid Version: 6.11.5 - Nvidia Driver Version:530.41.03 - NVTOP From Nvidia Driver i see:; Installed GPU(s):0: NVIDIA T400 03:00.0 GPU-xxxxxxxxxxxxxxxxxxxxxxxxex and plex use it for decoding but - i can't see any power draw always 0W or N/A - fan is always 38% root@MyNas:~# nvidia-smi --format=csv,noheader --query-gpu=power.draw [N/A] --- here Nvidia-smi log nvidia-smi.txt (screenshot during plex use) Thanks Quote Link to comment
ich777 Posted April 11, 2023 Share Posted April 11, 2023 4 minutes ago, Lordbye said: - i can't see any power draw always 0W or N/A Because this card doesn't report the power draw on Linux. 4 minutes ago, Lordbye said: - fan is always 38% This is the default fan speed and if there is enough thermal head room it won't change much. Quote Link to comment
SimonF Posted April 11, 2023 Share Posted April 11, 2023 13 hours ago, WingmanNZ said: My UHD 770 does not have VGA in the name... It has Display controller 00:02.0 Display controller: Intel Corporation Raptor Lake-S GT1 [UHD Graphics 770] (rev 04) do you have the gvt-g plugin installed? can you provide lspci -nnmm Quote Link to comment
WingmanNZ Posted April 11, 2023 Share Posted April 11, 2023 33 minutes ago, SimonF said: do you have the gvt-g plugin installed? can you provide lspci -nnmm No I don't have the plug-in installed. here is the output you requested; note: I have the ASPEED VGA adaptor as my primary to allow HTML5 KVM access to the machine, and the Intel UHD GPU is enabled in the bios so that I can use it in docker for HW transcoding. root@NAS:~# lspci -nnmm 00:00.0 "Host bridge [0600]" "Intel Corporation [8086]" "Device [a703]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:01.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a70d]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:02.0 "Display controller [0380]" "Intel Corporation [8086]" "Raptor Lake-S GT1 [UHD Graphics 770] [a780]" -r04 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:06.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a74d]" -r01 -p00 "" "" 00:0a.0 "Signal processing controller [1180]" "Intel Corporation [8086]" "Device [a77d]" -r01 -p00 "" "" 00:14.0 "USB controller [0c03]" "Intel Corporation [8086]" "Alder Lake-S PCH USB 3.2 Gen 2x2 XHCI Controller [7ae0]" -r11 -p30 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:14.2 "RAM memory [0500]" "Intel Corporation [8086]" "Alder Lake-S PCH Shared SRAM [7aa7]" -r11 -p00 "" "" 00:15.0 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #0 [7acc]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:15.1 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #1 [7acd]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.0 "Communication controller [0780]" "Intel Corporation [8086]" "Alder Lake-S PCH HECI Controller #1 [7ae8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.3 "Serial controller [0700]" "Intel Corporation [8086]" "Device [7aeb]" -r11 -p02 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:17.0 "SATA controller [0106]" "Intel Corporation [8086]" "Alder Lake-S PCH SATA Controller [AHCI Mode] [7ae2]" -r11 -p01 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #1 [7ab8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.1 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #2 [7ab9]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.3 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7abb]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.0 "ISA bridge [0601]" "Intel Corporation [8086]" "Device [7a88]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.3 "Audio device [0403]" "Intel Corporation [8086]" "Alder Lake-S HD Audio Controller [7ad0]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.4 "SMBus [0c05]" "Intel Corporation [8086]" "Alder Lake-S PCH SMBus Controller [7aa3]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.5 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH SPI Controller [7aa4]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.6 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Connection (17) I219-LM [1a1c]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Connection (17) I219-LM [1a1c]" 01:00.0 "Serial Attached SCSI controller [0107]" "Broadcom / LSI [1000]" "SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [0072]" -r03 -p00 "Broadcom / LSI [1000]" "9211-8i [3020]" 02:00.0 "Non-Volatile memory controller [0108]" "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" -r03 -p02 "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" 03:00.0 "PCI bridge [0604]" "Integrated Technology Express, Inc. [1283]" "IT8893E PCIe to PCI Bridge [8893]" -r41 -p01 "" "" 05:00.0 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Controller I225-LM [15f2]" -r03 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Controller I225-LM [15f2]" 06:00.0 "PCI bridge [0604]" "ASPEED Technology, Inc. [1a03]" "AST1150 PCI-to-PCI Bridge [1150]" -r06 -p00 "Super Micro Computer Inc [15d9]" "AST1150 PCI-to-PCI Bridge [1c48]" 07:00.0 "VGA compatible controller [0300]" "ASPEED Technology, Inc. [1a03]" "ASPEED Graphics Family [2000]" -r52 -p00 "Super Micro Computer Inc [15d9]" "ASPEED Graphics Family [1c48]" root@NAS:~# I ended up changing `VGA` in the grep search to `lspci -Dmm | grep -E 'Display|VGA'` in /usr/local/emhttp/plugins/gpustat/lib/Intel.php and the plug-in now works for me. Quote Link to comment
SimonF Posted April 11, 2023 Share Posted April 11, 2023 32 minutes ago, WingmanNZ said: No I don't have the plug-in installed. here is the output you requested; note: I have the ASPEED VGA adaptor as my primary to allow HTML5 KVM access to the machine, and the Intel UHD GPU is enabled in the bios so that I can use it in docker for HW transcoding. root@NAS:~# lspci -nnmm 00:00.0 "Host bridge [0600]" "Intel Corporation [8086]" "Device [a703]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:01.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a70d]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:02.0 "Display controller [0380]" "Intel Corporation [8086]" "Raptor Lake-S GT1 [UHD Graphics 770] [a780]" -r04 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:06.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a74d]" -r01 -p00 "" "" 00:0a.0 "Signal processing controller [1180]" "Intel Corporation [8086]" "Device [a77d]" -r01 -p00 "" "" 00:14.0 "USB controller [0c03]" "Intel Corporation [8086]" "Alder Lake-S PCH USB 3.2 Gen 2x2 XHCI Controller [7ae0]" -r11 -p30 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:14.2 "RAM memory [0500]" "Intel Corporation [8086]" "Alder Lake-S PCH Shared SRAM [7aa7]" -r11 -p00 "" "" 00:15.0 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #0 [7acc]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:15.1 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #1 [7acd]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.0 "Communication controller [0780]" "Intel Corporation [8086]" "Alder Lake-S PCH HECI Controller #1 [7ae8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.3 "Serial controller [0700]" "Intel Corporation [8086]" "Device [7aeb]" -r11 -p02 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:17.0 "SATA controller [0106]" "Intel Corporation [8086]" "Alder Lake-S PCH SATA Controller [AHCI Mode] [7ae2]" -r11 -p01 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #1 [7ab8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.1 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #2 [7ab9]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.3 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7abb]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.0 "ISA bridge [0601]" "Intel Corporation [8086]" "Device [7a88]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.3 "Audio device [0403]" "Intel Corporation [8086]" "Alder Lake-S HD Audio Controller [7ad0]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.4 "SMBus [0c05]" "Intel Corporation [8086]" "Alder Lake-S PCH SMBus Controller [7aa3]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.5 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH SPI Controller [7aa4]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.6 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Connection (17) I219-LM [1a1c]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Connection (17) I219-LM [1a1c]" 01:00.0 "Serial Attached SCSI controller [0107]" "Broadcom / LSI [1000]" "SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [0072]" -r03 -p00 "Broadcom / LSI [1000]" "9211-8i [3020]" 02:00.0 "Non-Volatile memory controller [0108]" "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" -r03 -p02 "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" 03:00.0 "PCI bridge [0604]" "Integrated Technology Express, Inc. [1283]" "IT8893E PCIe to PCI Bridge [8893]" -r41 -p01 "" "" 05:00.0 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Controller I225-LM [15f2]" -r03 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Controller I225-LM [15f2]" 06:00.0 "PCI bridge [0604]" "ASPEED Technology, Inc. [1a03]" "AST1150 PCI-to-PCI Bridge [1150]" -r06 -p00 "Super Micro Computer Inc [15d9]" "AST1150 PCI-to-PCI Bridge [1c48]" 07:00.0 "VGA compatible controller [0300]" "ASPEED Technology, Inc. [1a03]" "ASPEED Graphics Family [2000]" -r52 -p00 "Super Micro Computer Inc [15d9]" "ASPEED Graphics Family [1c48]" root@NAS:~# I ended up changing `VGA` in the grep search to `lspci -Dmm | grep -E 'Display|VGA'` in /usr/local/emhttp/plugins/gpustat/lib/Intel.php and the plug-in now works for me. Thanks will look into it Quote Link to comment
SimonF Posted April 11, 2023 Share Posted April 11, 2023 56 minutes ago, WingmanNZ said: No I don't have the plug-in installed. here is the output you requested; note: I have the ASPEED VGA adaptor as my primary to allow HTML5 KVM access to the machine, and the Intel UHD GPU is enabled in the bios so that I can use it in docker for HW transcoding. root@NAS:~# lspci -nnmm 00:00.0 "Host bridge [0600]" "Intel Corporation [8086]" "Device [a703]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:01.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a70d]" -r01 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:02.0 "Display controller [0380]" "Intel Corporation [8086]" "Raptor Lake-S GT1 [UHD Graphics 770] [a780]" -r04 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:06.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [a74d]" -r01 -p00 "" "" 00:0a.0 "Signal processing controller [1180]" "Intel Corporation [8086]" "Device [a77d]" -r01 -p00 "" "" 00:14.0 "USB controller [0c03]" "Intel Corporation [8086]" "Alder Lake-S PCH USB 3.2 Gen 2x2 XHCI Controller [7ae0]" -r11 -p30 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:14.2 "RAM memory [0500]" "Intel Corporation [8086]" "Alder Lake-S PCH Shared SRAM [7aa7]" -r11 -p00 "" "" 00:15.0 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #0 [7acc]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:15.1 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH Serial IO I2C Controller #1 [7acd]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.0 "Communication controller [0780]" "Intel Corporation [8086]" "Alder Lake-S PCH HECI Controller #1 [7ae8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:16.3 "Serial controller [0700]" "Intel Corporation [8086]" "Device [7aeb]" -r11 -p02 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:17.0 "SATA controller [0106]" "Intel Corporation [8086]" "Alder Lake-S PCH SATA Controller [AHCI Mode] [7ae2]" -r11 -p01 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.0 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #1 [7ab8]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.1 "PCI bridge [0604]" "Intel Corporation [8086]" "Alder Lake-S PCH PCI Express Root Port #2 [7ab9]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1c.3 "PCI bridge [0604]" "Intel Corporation [8086]" "Device [7abb]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.0 "ISA bridge [0601]" "Intel Corporation [8086]" "Device [7a88]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.3 "Audio device [0403]" "Intel Corporation [8086]" "Alder Lake-S HD Audio Controller [7ad0]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.4 "SMBus [0c05]" "Intel Corporation [8086]" "Alder Lake-S PCH SMBus Controller [7aa3]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.5 "Serial bus controller [0c80]" "Intel Corporation [8086]" "Alder Lake-S PCH SPI Controller [7aa4]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Device [1c48]" 00:1f.6 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Connection (17) I219-LM [1a1c]" -r11 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Connection (17) I219-LM [1a1c]" 01:00.0 "Serial Attached SCSI controller [0107]" "Broadcom / LSI [1000]" "SAS2008 PCI-Express Fusion-MPT SAS-2 [Falcon] [0072]" -r03 -p00 "Broadcom / LSI [1000]" "9211-8i [3020]" 02:00.0 "Non-Volatile memory controller [0108]" "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" -r03 -p02 "ADATA Technology Co., Ltd. [1cc1]" "XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [8201]" 03:00.0 "PCI bridge [0604]" "Integrated Technology Express, Inc. [1283]" "IT8893E PCIe to PCI Bridge [8893]" -r41 -p01 "" "" 05:00.0 "Ethernet controller [0200]" "Intel Corporation [8086]" "Ethernet Controller I225-LM [15f2]" -r03 -p00 "Super Micro Computer Inc [15d9]" "Ethernet Controller I225-LM [15f2]" 06:00.0 "PCI bridge [0604]" "ASPEED Technology, Inc. [1a03]" "AST1150 PCI-to-PCI Bridge [1150]" -r06 -p00 "Super Micro Computer Inc [15d9]" "AST1150 PCI-to-PCI Bridge [1c48]" 07:00.0 "VGA compatible controller [0300]" "ASPEED Technology, Inc. [1a03]" "ASPEED Graphics Family [2000]" -r52 -p00 "Super Micro Computer Inc [15d9]" "ASPEED Graphics Family [1c48]" root@NAS:~# I ended up changing `VGA` in the grep search to `lspci -Dmm | grep -E 'Display|VGA'` in /usr/local/emhttp/plugins/gpustat/lib/Intel.php and the plug-in now works for me. Can you confirm which version of the plugin you are using and unraid os vers? Quote Link to comment
WingmanNZ Posted April 11, 2023 Share Posted April 11, 2023 12 minutes ago, SimonF said: Can you confirm which version of the plugin you are using and unraid os vers? Unraid Version: 6.12.0-rc2.9 Plugin Version: 2023.03.27 Quote Link to comment
