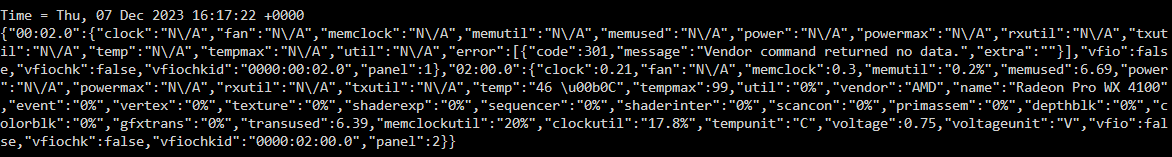

SimonF Posted December 6, 2023 Share Posted December 6, 2023 12 minutes ago, mikeyosm said: Sure - cat /tmp/gpujson Time = Wed, 06 Dec 2023 19:16:50 +0000 {"00:02.0":{"clock":"N\/A","fan":"N\/A","memclock":"N\/A","memutil":"N\/A","memused":"N\/A","power":"N\/A","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"N\/A","tempmax":"N\/A","util":"N\/A","error":[{"code":301,"message":"Vendor command returned no data.","extra":""}],"vfio":false,"vfiochk":false,"vfiochkid":"0000:00:02.0","panel":1},"02:00.0":{"clock":0.21,"fan":"N\/A","memclock":0.3,"memutil":"0.1%","memused":5.69,"power":"N\/A","powermax":"N\/A","rxutil":"N\/A","txutil":"N\/A","temp":"32 \u00b0C","tempmax":99,"util":"0%","vendor":"AMD","name":"Radeon Pro WX 4100","event":"0%","vertex":"0%","texture":"0%","shaderexp":"0%","sequencer":"0%","shaderinter":"0%","scancon":"0%","primassem":"0%","depthblk":"0%","colorblk":"0%","gfxtrans":"0%","transused":6.39,"memclockutil":"20%","clockutil":"17.8%","tempunit":"C","voltage":0.72,"voltageunit":"V","vfio":false,"vfiochk":false,"vfiochkid":"0000:02:00.0","panel":2}} diagnostics-20231206-1917.zip 91.76 kB · 0 downloads Does this provide output? timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 Also do you have a screen or dummy plug connected to iGPU? Quote Link to comment
mikeyosm Posted December 6, 2023 Share Posted December 6, 2023 1 hour ago, SimonF said: Does this provide output? timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 Also do you have a screen or dummy plug connected to iGPU? Nope, no output. I tried with a dummy plug and without and the same issue both times. Quote Link to comment
ich777 Posted December 6, 2023 Share Posted December 6, 2023 37 minutes ago, mikeyosm said: Nope, no output. Please try to disable you onboard GPU (Aspeed) and see if you get a output. Usually you have to Shutdown the server and set a physical jumper on the motherboard to disable it. Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 12 hours ago, ich777 said: Please try to disable you onboard GPU (Aspeed) and see if you get a output. Usually you have to Shutdown the server and set a physical jumper on the motherboard to disable it. Disabling the IPMI VGA is not an option for me but I guess you might be on the right track here. ASPEED, Intel iGPU and dGPU all enabled must be causing some issue here. Quote Link to comment
ich777 Posted December 7, 2023 Share Posted December 7, 2023 18 minutes ago, mikeyosm said: Disabling the IPMI VGA is not an option for me but I guess you might be on the right track here. ASPEED, Intel iGPU and dGPU all enabled must be causing some issue here. Is it possible for you to try and disable your onboard graphics for testing purposes? I'm really interested if that fixes the issue. What is the output from: intel_gpu_top when the onboard graphics is enabled? Quote Link to comment

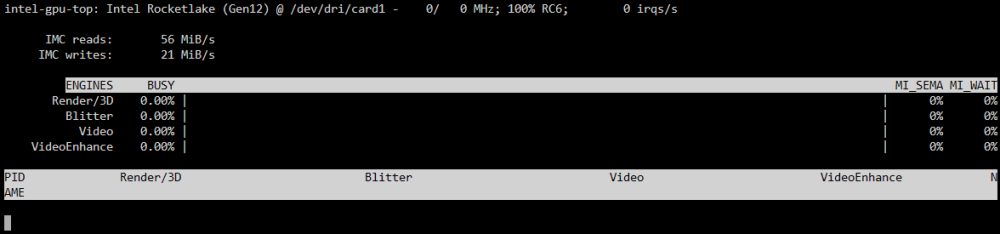

mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 2 hours ago, ich777 said: Is it possible for you to try and disable your onboard graphics for testing purposes? I'm really interested if that fixes the issue. What is the output from: intel_gpu_top when the onboard graphics is enabled? Here you go. This ASPEED, iGPU and dGPU enabled. I will try ASPEED disabled in a bit. Quote Link to comment
ich777 Posted December 7, 2023 Share Posted December 7, 2023 9 minutes ago, mikeyosm said: Here you go. This ASPEED, iGPU and dGPU enabled. I will try ASPEED disabled in a bit. If intel_gpu_top lists the values properly then I'm assuming it's not different with the onboard GPU disabled. Quote Link to comment

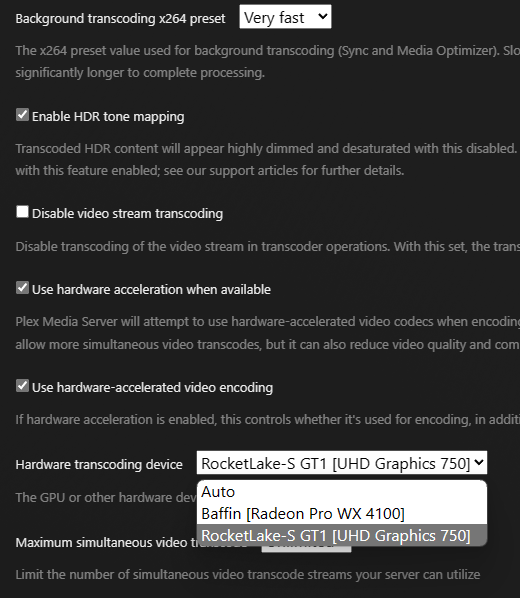

mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 (edited) 46 minutes ago, ich777 said: If intel_gpu_top lists the values properly then I'm assuming it's not different with the onboard GPU disabled. OK, so do you think this is a plugin issue and do you need anything else from, logs etc? Also, FWIF, plex transcoding still works so no issue with the igpu and aspeed, dgpu all running together... Edited December 7, 2023 by mikeyosm Quote Link to comment
ich777 Posted December 7, 2023 Share Posted December 7, 2023 24 minutes ago, mikeyosm said: OK, so do you think this is a plugin issue and do you need anything else from, logs etc? It would be super helpful if you can test with the onboard GPU disabled if that changes anything. AFAIK GPU Statistics it should work fine with the onboard GPU enabled. If you issue this command from the terminal you get no output correct: intel_gpu_top -J -d pci:slot=0000:00:02.0 If you get no output from the command from above, what happens when you issue that command: intel_gpu_top -J What about that command: intel_gpu_top -J -d drm:/dev/dri/card1 Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 9 minutes ago, ich777 said: It would be super helpful if you can test with the onboard GPU disabled if that changes anything. AFAIK GPU Statistics it should work fine with the onboard GPU enabled. If you issue this command from the terminal you get no output correct: intel_gpu_top -J -d pci:slot=0000:00:02.0 If you get no output from the command from above, what happens when you issue that command: intel_gpu_top -J What about that command: intel_gpu_top -J -d drm:/dev/dri/card1 I do get an output - intel_gpu_top -J -d pci:slot=0000:00:02.0 ------------------------------------------------------------------------ intel_gpu_top -J -d pci:slot=0000:00:02.0 [ { "period": { "duration": 3.639946, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 2306.961916, "writes": 501.233505, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1003.168491, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 29.497723, "writes": 8.517324, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1008.166540, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999978, "unit": "%" }, "imc-bandwidth": { "reads": 68.689714, "writes": 37.401953, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1008.071789, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999983, "unit": "%" }, "imc-bandwidth": { "reads": 83.367965, "writes": 25.758816, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1014.561755, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 38.500642, "writes": 10.935787, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1014.818142, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 29.870004, "writes": 7.557627, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1014.599652, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 203.035749, "unit": "irq/s" }, "rc6": { "value": 99.999768, "unit": "%" }, "imc-bandwidth": { "reads": 41.674345, "writes": 14.012765, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1004.554945, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 113.483091, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 35.241333, "writes": 12.719711, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1007.577359, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999731, "unit": "%" }, "imc-bandwidth": { "reads": 63.254160, "writes": 15.997434, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1003.349107, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 46.965754, "writes": 13.309490, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1007.667228, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999984, "unit": "%" }, "imc-bandwidth": { "reads": 30.378531, "writes": 8.538416, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1007.809198, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 28.474839, "writes": 7.123994, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1015.070029, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 47.433972, "writes": 16.001652, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1014.853005, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999953, "unit": "%" }, "imc-bandwidth": { "reads": 36.504731, "writes": 10.683241, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1015.438518, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 60.308850, "writes": 11.866963, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 1007.742907, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 88.157311, "writes": 38.984826, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } }^C] Quote Link to comment

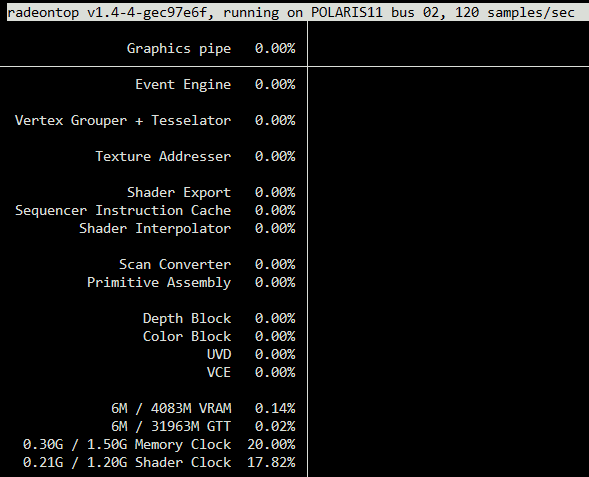

ich777 Posted December 7, 2023 Share Posted December 7, 2023 4 minutes ago, mikeyosm said: I do get an output - Thanks, does GPU Statistsc show the Intel card correctly with it's values? What is the output from: radeontop Quote Link to comment

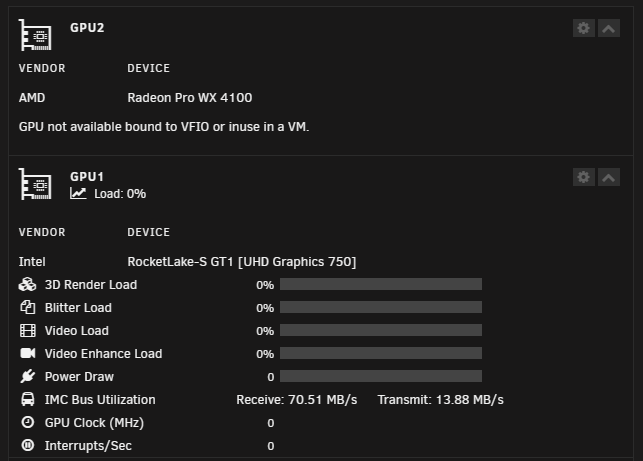

mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 2 minutes ago, ich777 said: Thanks, does GPU Statistsc show the Intel card correctly with it's values? What is the output from: radeontop GPU stats does not show the Intel correcty BTW this and the previous output from intel_gpu_top -J -d drm:/dev/dri/card1 is with the ASPEED enabled. 1 Quote Link to comment

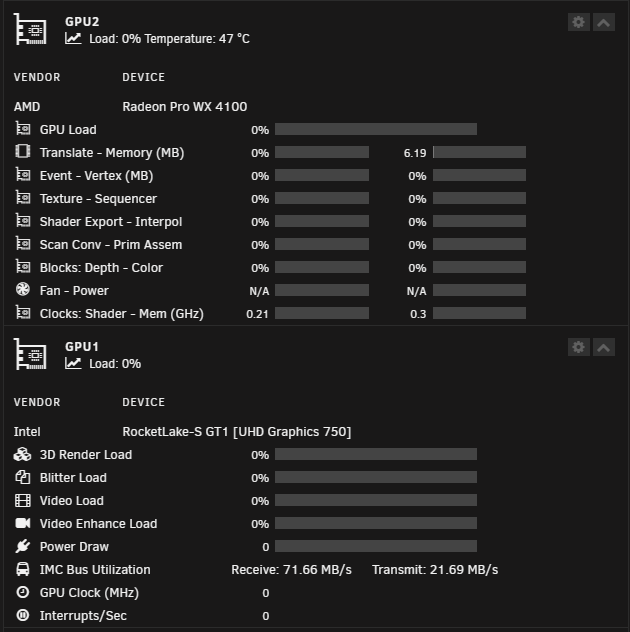

mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 9 minutes ago, mikeyosm said: GPU stats does not show the Intel correcty BTW this and the previous output from intel_gpu_top -J -d drm:/dev/dri/card1 is with the ASPEED enabled. Not sure if this helps but when i bind the WX4100 to a VM, the Intel GPU stats springs to life. 1 Quote Link to comment
SimonF Posted December 7, 2023 Share Posted December 7, 2023 32 minutes ago, mikeyosm said: Not sure if this helps but when i bind the WX4100 to a VM, the Intel GPU stats springs to life. Can you provide cat /boot/config/plugins/gpustat/gpustat.cfg Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 20 minutes ago, SimonF said: Can you provide cat /boot/config/plugins/gpustat/gpustat.cfg Sure - ~# cat /boot/config/plugins/gpustat/gpustat.cfg MULTIGPU = "00:02.0,02:00.0" TEMPFORMAT = "C" UIREFRESH = 1 UIREFRESHINT = 1000 DISPCLOCKS = 1 DISPPCIUTIL = 1 DISPPWRDRAW = 1 DISPPWRSTATE = 1 DISPMEMUTIL = 1 DISPTEMP = 1 DISPFAN = 1 DISPENCDEC = 1 DISPTHROTTLE = 1 DISPSESSIONS = 1 DISP3DRENDER = 1 DISPBLITTER = 1 DISPVIDEO = 1 DISPVIDENH = 1 DISPINTERRUPT = 1 DISPPWRDRWSEL = "GPU" DISPEVENT = 1 DISPVERTEX = 1 DISPTEXTURE = 1 DISPSHADEREXP = 1 DISPSEQUENCER = 1 DISPSHADERINTER = 1 DISPSCANCON = 1 DISPPRIMASSEM = 1 DISPDEPTHBLK = 1 DISPCOLORBLK = 1 DISPGFXTRANS = 1 MULTIGPUJSON = "%7B%2200%3A02.0%22%3A%7B%22id%22%3A%2200%3A02.0%22%2C%22model%22%3A%22RocketLake-S+GT1+%5BUHD+Graphics+750%5D%22%2C%22vendor%22%3A%22intel%22%2C%22guid%22%3A%220000%3A00%3A02.0%22%7D%2C%2202%3A00.0%22%3A%7B%22id%22%3A%2202%3A00.0%22%2C%22model%22%3A%22Baffin+%5BRadeon+Pro+WX+4100%5D%22%2C%22vendor%22%3A%22amd%22%2C%22guid%22%3A%2202%22%7D%7D" Quote Link to comment
SimonF Posted December 7, 2023 Share Posted December 7, 2023 24 minutes ago, mikeyosm said: Sure - ~# cat /boot/config/plugins/gpustat/gpustat.cfg MULTIGPU = "00:02.0,02:00.0" TEMPFORMAT = "C" UIREFRESH = 1 UIREFRESHINT = 1000 DISPCLOCKS = 1 DISPPCIUTIL = 1 DISPPWRDRAW = 1 DISPPWRSTATE = 1 DISPMEMUTIL = 1 DISPTEMP = 1 DISPFAN = 1 DISPENCDEC = 1 DISPTHROTTLE = 1 DISPSESSIONS = 1 DISP3DRENDER = 1 DISPBLITTER = 1 DISPVIDEO = 1 DISPVIDENH = 1 DISPINTERRUPT = 1 DISPPWRDRWSEL = "GPU" DISPEVENT = 1 DISPVERTEX = 1 DISPTEXTURE = 1 DISPSHADEREXP = 1 DISPSEQUENCER = 1 DISPSHADERINTER = 1 DISPSCANCON = 1 DISPPRIMASSEM = 1 DISPDEPTHBLK = 1 DISPCOLORBLK = 1 DISPGFXTRANS = 1 MULTIGPUJSON = "%7B%2200%3A02.0%22%3A%7B%22id%22%3A%2200%3A02.0%22%2C%22model%22%3A%22RocketLake-S+GT1+%5BUHD+Graphics+750%5D%22%2C%22vendor%22%3A%22intel%22%2C%22guid%22%3A%220000%3A00%3A02.0%22%7D%2C%2202%3A00.0%22%3A%7B%22id%22%3A%2202%3A00.0%22%2C%22model%22%3A%22Baffin+%5BRadeon+Pro+WX+4100%5D%22%2C%22vendor%22%3A%22amd%22%2C%22guid%22%3A%2202%22%7D%7D" so intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 produces output, but timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 does not? Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 6 minutes ago, SimonF said: so intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 produces output, but timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 does not? Correct ~# timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 ~# intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 [ { "period": { "duration": 3.895288, "unit": "ms" Quote Link to comment
SimonF Posted December 7, 2023 Share Posted December 7, 2023 15 minutes ago, mikeyosm said: Correct ~# timeout -k .500 .600 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 ~# intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 [ { "period": { "duration": 3.895288, "unit": "ms" Can you try a longer values in timeout and run a different command? like timeout -k 2 2 watch cat /tmp/gpujson Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 (edited) 5 minutes ago, SimonF said: Can you try a longer values in timeout and run a different command? like timeout -k 2 2 watch cat /tmp/gpujson I ran that command, the terminal window showed information as per the screenshot but then clears itself. Also00 running timout tihe longer values produces output..... ~# timeout -k 2 2 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 [ { "period": { "duration": 3.415733, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.783736, "unit": "%" }, "imc-bandwidth": { "reads": 2223.097022, "writes": 428.065719, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 253.163464, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 22.638583, "writes": 4.282721, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 263.521650, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 126.327066, "writes": 41.667721, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 257.942399, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999289, "unit": "%" }, "imc-bandwidth": { "reads": 169.002916, "writes": 34.752376, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } Edited December 7, 2023 by mikeyosm Quote Link to comment
SimonF Posted December 7, 2023 Share Posted December 7, 2023 39 minutes ago, mikeyosm said: I ran that command, the terminal window showed information as per the screenshot but then clears itself. Also00 running timout tihe longer values produces output..... ~# timeout -k 2 2 intel_gpu_top -J -s 250 -d pci:slot=0000:00:02.0 [ { "period": { "duration": 3.415733, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.783736, "unit": "%" }, "imc-bandwidth": { "reads": 2223.097022, "writes": 428.065719, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 253.163464, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 22.638583, "writes": 4.282721, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 263.521650, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 100.000000, "unit": "%" }, "imc-bandwidth": { "reads": 126.327066, "writes": 41.667721, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } } { "period": { "duration": 257.942399, "unit": "ms" }, "frequency": { "requested": 0.000000, "actual": 0.000000, "unit": "MHz" }, "interrupts": { "count": 0.000000, "unit": "irq/s" }, "rc6": { "value": 99.999289, "unit": "%" }, "imc-bandwidth": { "reads": 169.002916, "writes": 34.752376, "unit": "MiB/s" }, "engines": { "Render/3D": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Blitter": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "Video": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" }, "VideoEnhance": { "busy": 0.000000, "sema": 0.000000, "wait": 0.000000, "unit": "%" } }, "clients": { } Can you maybe try to see what the lowest value works for timeout and then change the value in the file and let me know what works. nano /usr/local/emhttp/plugins/gpustat/lib/Intel.php Quote Link to comment
mikeyosm Posted December 7, 2023 Share Posted December 7, 2023 (edited) 28 minutes ago, SimonF said: Can you maybe try to see what the lowest value works for timeout and then change the value in the file and let me know what works. nano /usr/local/emhttp/plugins/gpustat/lib/Intel.php 1.4 works Edited December 7, 2023 by mikeyosm Quote Link to comment
SimonF Posted December 7, 2023 Share Posted December 7, 2023 1 hour ago, mikeyosm said: 1.4 works Added option to override defaults for timers 1 1 Quote Link to comment
mikeyosm Posted December 8, 2023 Share Posted December 8, 2023 14 hours ago, SimonF said: Added option to override defaults for timers Awesome, thanks for implementing this so quickly! Quote Link to comment
sersh Posted December 9, 2023 Share Posted December 9, 2023 (edited) On 12/7/2023 at 9:06 PM, SimonF said: Added option to override defaults for timers This partially solves my problem described above. If I change the settings from .500 .600 to 2 2, the information starts to be displayed. It appears and then disappears. If I change the settings to 6 6, it no longer disappears. But the load on the processor increases from 50-60% to 70-100%. Edited December 9, 2023 by sersh Quote Link to comment
SimonF Posted December 9, 2023 Share Posted December 9, 2023 5 minutes ago, sersh said: This partially solves my problem described above. If I change the settings from .500 .600 to 2 2, the information starts to be displayed. It appears and then disappears. If I change the settings to 6 6, it no longer disappears. But the load on the processor increases from 50-60% to 70-100%. What do you have the main refresh timer set to? 1 second = 1000 I use 10, but try setting to higher i.e. 30000 Quote Link to comment
