Hello



First, I would like to greet everyone, as this is my first post, but I have read a lot here and it was very helpful until now.

I am building my first unraid server and it's almost done (currently third week of experiments )



I have issues with internet download speed, on my windows 10 vm. It has very limited internet download connection.

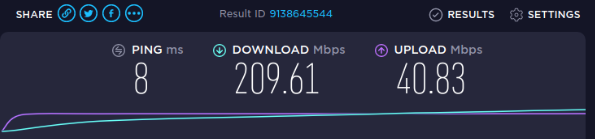

This is the speed I get from independent machine (the same internet connection) :

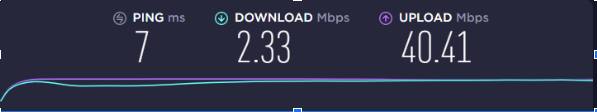

and this is what happens when I do this test on my Windows VM:

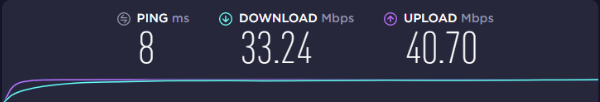

and this is linux (manjaro) VM, with the same networking setup (br0) and on the same host: (it's even faster then external machine)

First, i tried to change virt-io win drivers with versions: 1.160-1, 1.173-2 and 1.173-8. None of those made any difference.



Then I tried disabling windows QoS service (found somewhere on the forum), but it didn’t help either.

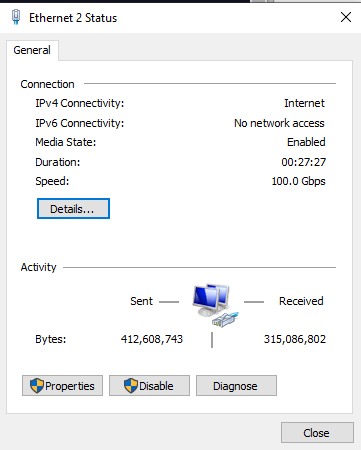

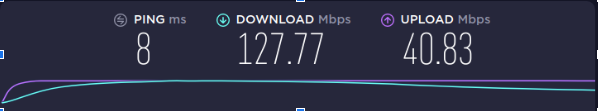

After a while, i tried connecting second Ethernet cable (my board has 2 Ethernet ports), disabled bonding and assigned newly created br1 to the windows 10 vm. The result is here:

Here is my current windows vm xml:

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='14'>
  <name>Gaming</name>
  <uuid>42d7c6f8-1206-90fa-ac5a-446acb11eb21</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>17301504</memory>
  <currentMemory unit='KiB'>17301504</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>20</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='1'/>
    <vcpupin vcpu='1' cpuset='17'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='18'/>
    <vcpupin vcpu='4' cpuset='3'/>
    <vcpupin vcpu='5' cpuset='19'/>
    <vcpupin vcpu='6' cpuset='4'/>
    <vcpupin vcpu='7' cpuset='20'/>
    <vcpupin vcpu='8' cpuset='5'/>
    <vcpupin vcpu='9' cpuset='21'/>
    <vcpupin vcpu='10' cpuset='6'/>
    <vcpupin vcpu='11' cpuset='22'/>
    <vcpupin vcpu='12' cpuset='7'/>
    <vcpupin vcpu='13' cpuset='23'/>
    <vcpupin vcpu='14' cpuset='8'/>
    <vcpupin vcpu='15' cpuset='24'/>
    <vcpupin vcpu='16' cpuset='9'/>
    <vcpupin vcpu='17' cpuset='25'/>
    <vcpupin vcpu='18' cpuset='10'/>
    <vcpupin vcpu='19' cpuset='26'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-4.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/42d7c6f8-1206-90fa-ac5a-446acb11eb21_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='10' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Gaming/vdisk1.img' index='3'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Win10_1909_EnglishInternational_x64.iso' index='2'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.173-2.iso' index='1'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0xb'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0xc'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>
    </controller>
    <controller type='pci' index='6' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='6' port='0xd'/>
      <alias name='pci.6'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>
    </controller>
    <controller type='pci' index='7' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='7' port='0xe'/>
      <alias name='pci.7'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/>
    </controller>
    <controller type='pci' index='8' model='pcie-to-pci-bridge'>
      <model name='pcie-pci-bridge'/>
      <alias name='pci.8'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </controller>
    <controller type='pci' index='9' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='9' port='0xf'/>
      <alias name='pci.9'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/>
    </controller>
    <controller type='pci' index='10' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='10' port='0x10'/>
      <alias name='pci.10'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='11' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='11' port='0x11'/>
      <alias name='pci.11'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
    </controller>
    <controller type='pci' index='12' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='12' port='0x12'/>
      <alias name='pci.12'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
    </controller>
    <controller type='pci' index='13' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='13' port='0x13'/>
      <alias name='pci.13'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='14' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='14' port='0x14'/>
      <alias name='pci.14'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='pci' index='15' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='15' port='0x15'/>
      <alias name='pci.15'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x5'/>
    </controller>
    <controller type='pci' index='16' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='16' port='0x16'/>
      <alias name='pci.16'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x6'/>
    </controller>
    <controller type='pci' index='17' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='17' port='0x17'/>
      <alias name='pci.17'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x7'/>
    </controller>
    <controller type='pci' index='18' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='18' port='0x18'/>
      <alias name='pci.18'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='19' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='19' port='0x19'/>
      <alias name='pci.19'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x1'/>
    </controller>
    <controller type='pci' index='20' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='20' port='0x1a'/>
      <alias name='pci.20'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x2'/>
    </controller>
    <controller type='pci' index='21' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='21' port='0x1b'/>
      <alias name='pci.21'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x3'/>
    </controller>
    <controller type='pci' index='22' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='22' port='0x1c'/>
      <alias name='pci.22'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x4'/>
    </controller>
    <controller type='pci' index='23' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='23' port='0x1d'/>
      <alias name='pci.23'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x5'/>
    </controller>
    <controller type='pci' index='24' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='24' port='0x1e'/>
      <alias name='pci.24'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x6'/>
    </controller>
    <controller type='pci' index='25' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='25' port='0x1f'/>
      <alias name='pci.25'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x7'/>
    </controller>
    <controller type='pci' index='26' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='26' port='0x20'/>
      <alias name='pci.26'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:7d:06:fc'/>
      <source bridge='br1'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-14-Gaming/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='6'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x2f' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/isos/gtx2070super-rom.rom'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x2f' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x2f' slot='0x00' function='0x2'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x2f' slot='0x00' function='0x3'/>
      </source>
      <alias name='hostdev3'/>
      <address type='pci' domain='0x0000' bus='0x09' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x30' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev4'/>
      <address type='pci' domain='0x0000' bus='0x0a' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1462'/>
        <product id='0x7c34'/>
        <address bus='5' device='2'/>
      </source>
      <alias name='hostdev5'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1b1c'/>
        <product id='0x0c12'/>
        <address bus='3' device='4'/>
      </source>
      <alias name='hostdev6'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>

and this is network Ethernet status from windows:

What I concluded so far is that:

1.  For some reason it doesn’t affect the linux vm at all. Even assigning br1 (separate connection), didn't change anything there. It just works.

2. Somehow, it does depend both on the host and vm. Linux vm is untouched, while Windows has very slow connection, but changing host networking setup (additional connection) did improve situation a bit, but still isn't quite there.

3. Limitation applies only to download speed, upload is stable everywhere.

4. Outside of the test, Windows VM Ethernet monitor (within task manager) doesn't show any activity, so the test shouldn't be affected (or maybe something is not included there)







I don't know what else should i check / do, so if anybody can help, then I would be very grateful, anyway - thanks in advance



Edited March 17, 20206 yr by dunioo

I have finally found the culprit, it was Windows's "cFosSpeed for faster Internet connections (NDIS 6)". Disabling this allowed my VM to get almost full internet download speed.
