Fantec Backplane src-3168x07 and HDD non-recognized even in BIOS

[Kevinduring]

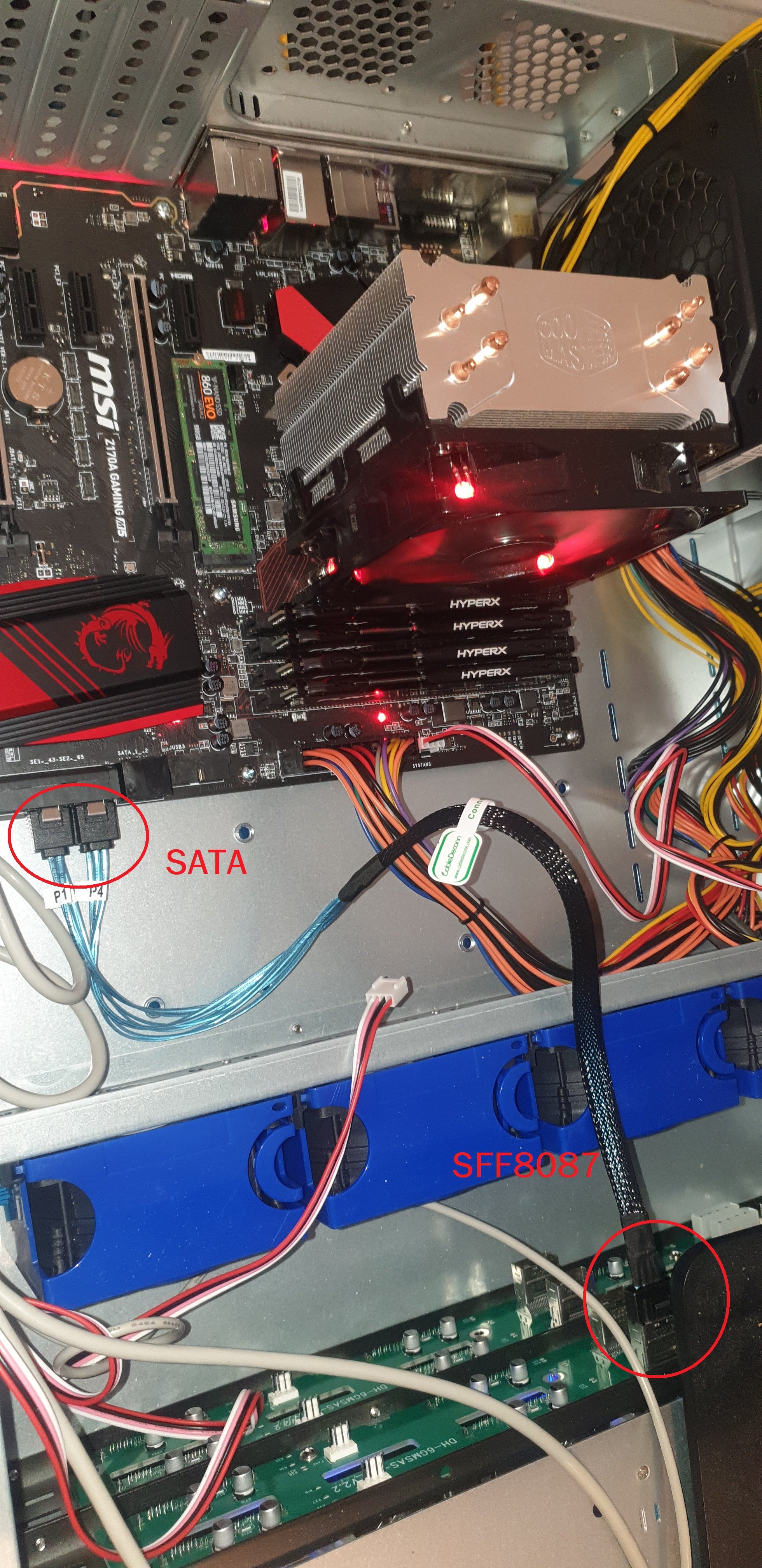

Hello, I have bought a fantec src-3168x07, im using a MSI Z170a M5 motherboard, and its unable to see the disk under Unraid, even in Bios. When everything was installed in a simple PC, it worked great. Whats new in the back plane, i just used a SAS (8087) to SATA Cable  and plugged from the backplane to the motherboard. No way unable to see a HDD... I tried to use Raid Mode instead of AHCI in the Bios and no changes. Any ideas ? See attached picture

Thanks for your help

[Squid]

You probably bought forward breakout cabling.  You need reverse breakout.  They look the same, but are wired differently

[Kevinduring]

Hum, Im gonna try to buy a forward one on amazon and test again. Thanks. Will let you know.

[Squid]

1 minute ago, Kevinduring said:

Hum, Im gonna try to buy a forward one on amazon and test again. Thanks. Will let you know.

No...  You need reverse



[Kevinduring]

How to do ? sorry i dont get it



Edit : I will buy  a reverse. I read so fast. sorry

Edited May 2, 2020 by Kevinduring

[trurl]

What don't you get? Did you click on the arrow to follow the link he gave?

[Kevinduring]

4 minutes ago, trurl said:

What don't you get? Did you click on the arrow to follow the link he gave?

Yeah yeah , sorry i read so fast. I will buy the reverse cable, and yes i ve just read the the topic about cables. Thank you.I hope it will work



I Just checked what i have bought : CABLEDECONN 0.5 m Internal Mini SAS 36pin Male w/Latch to SATA 7pin Female (x4) Forward Breakout Cable

Edited May 2, 2020 by Kevinduring
