[SOLVED] Wrong UPS status on UNRAID

[BraveRu]

Hello everyone ,

unraid keep showing "On battery" status but actually my UPS is online ,

this casue unraid always shut-down .



I put my UPS on the windows , it's working fine , but just has this problem on unraid , and i cannot found any solution on google and unraid forums .

hope i can get help here and thank you very much .



below is the detial for my system and UPS data :



I am using  Unraid Version: 6.8.3.

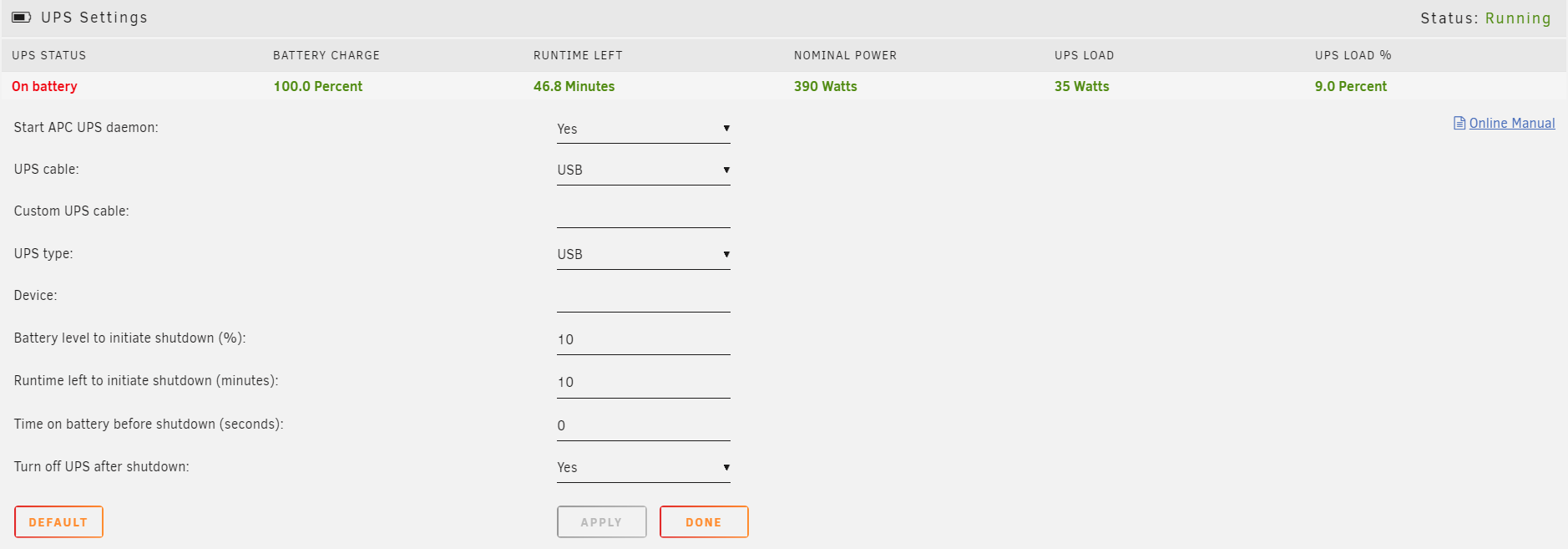

below is the UPS settings page :



below is the apcaccess info :

Quote

APC      : 001,036,0872
DATE     : 2020-05-08 16:03:05 +0800
HOSTNAME : Tower
VERSION  : 3.14.14 (31 May 2016) slackware
UPSNAME  : Tower
CABLE    : USB Cable
DRIVER   : USB UPS Driver
UPSMODE  : Stand Alone
STARTTIME: 2020-05-08 15:54:09 +0800
MODEL    : BK650M2-CH
STATUS   : ONBATT
LINEV    : 216.0 Volts
LOADPCT  : 9.0 Percent
BCHARGE  : 100.0 Percent
TIMELEFT : 47.1 Minutes
MBATTCHG : 10 Percent
MINTIMEL : 10 Minutes
MAXTIME  : 0 Seconds
SENSE    : Low
LOTRANS  : 160.0 Volts
HITRANS  : 278.0 Volts
ALARMDEL : 30 Seconds
BATTV    : 13.6 Volts
LASTXFER : Automatic or explicit self test
NUMXFERS : 1
XONBATT  : 2020-05-08 15:54:11 +0800
TONBATT  : 535 Seconds
CUMONBATT: 535 Seconds
XOFFBATT : N/A
SELFTEST : OK
STATFLAG : 0x05060010
SERIALNO : 9B2015A10471
BATTDATE : 2001-01-01
NOMINV   : 220 Volts
NOMBATTV : 12.0 Volts
NOMPOWER : 390 Watts
END APC  : 2020-05-08 16:03:06 +0800



Edited May 11, 2020 by BraveRu
solved

[JorgeB]

2 hours ago, BraveRu said:

STATUS   : ONBATT

UPS is reporting it's on battery, AFAIK nothing you can do on the Unraid side.

[BraveRu]

1 hour ago, johnnie.black said:

UPS is reporting it's on battery, AFAIK nothing you can do on the Unraid side.

but when i use windows 10 and Synology system , UPS report online as normal , just report on battery on unraid .



and I found something news , when the battery is 100% charge , UPS status show "on battery ", but below 100% charge , UPS status show "online" ,

i am so confuse about it .

[Squid]

Try playing with the UPS type / cable type.

[BraveRu]

35 minutes ago, Squid said:

Try playing with the UPS type / cable type.

Yes,I have try each options,just usb type is work,but still show on battery status

[BraveRu]

I found when the BCHARGE reach 100% , the UPS status wil change to "ON Battery".

I turn off the power , and wait the BCHARGE down to 99% , then turn on the power .

the UPS status will become "ONLINE" again , but will change back to "ON battery" status once the BCHARGE reach 100% ..



oh my god , it's very strange things ....

[Vr2Io]

You may try perform battery capacity calibration may fix this false fault at UPS side.



If battery capacity have reduce to an abnormal level, this will cause strange problem. I notice the record battery date was 2001-01-01, this impossible that battery can last that long. Few days ago, I replace the fault battery which serve me since 2015.



Besides, 13.6v battery may not the design full charge voltage but it exceed the design charge timer, so UPS wrongly think it is ONBAT.

Edited May 9, 2020 by Benson

[BraveRu]

On 5/9/2020 at 9:02 AM, Benson said:

You may try perform battery capacity calibration may fix this false fault at UPS side.



If battery capacity have reduce to an abnormal level, this will cause strange problem. I notice the record battery date was 2001-01-01, this impossible that battery can last that long. Few days ago, I replace the fault battery which serve me since 2015.



Besides, 13.6v battery may not the design full charge voltage but it exceed the design charge timer, so UPS wrongly think it is ONBAT.



thank you very much , Benson .

but just buy this UPS day before yesterday , the battery should be good .

and now i have reached APC engineers ， sent the details to them , and waitting for their replys . .





[JonathanM]

7 hours ago, BraveRu said:

i have reached APC engineers ， sent the details to them , and waitting for their replys . .

I can pretty much guarantee they are going to say use Windows, we don't support 3rd party software monitoring solutions. (apcupsd)



I suggest to try using NUT instead of apcupsd and see if that works any better.



[BraveRu]

23 hours ago, jonathanm said:

I can pretty much guarantee they are going to say use Windows, we don't support 3rd party software monitoring solutions. (apcupsd)



I suggest to try using NUT instead of apcupsd and see if that works any better.



Woo. Wonderful NUT , i installed this plugin , it discern the UPS status correctly .

all my problem is solved .



thank you very much ,  jonathanm .

thank you .

[Blanker]

On 5/11/2020 at 9:21 PM, BraveRu said:

Woo. Wonderful NUT , i installed this plugin , it discern the UPS status correctly .

all my problem is solved .



thank you very much ,  jonathanm .

thank you .

Hello, I am using the same type of UPS (BK650M2-CH) and cannot use the inner-built UPS Setting, can you share the setting of the NUT because I am quite a newbie and do not know how to fill in all these values...



Update:

Sorry for the bothering, initially the NUT could not auto detect my UPS. I reinstalled the plugin and I could directly auto detect all the settings. Everything works like a charm! Thank for this powerful plugin.

Edited September 8, 2020 by Blanker
Update for latest situation
