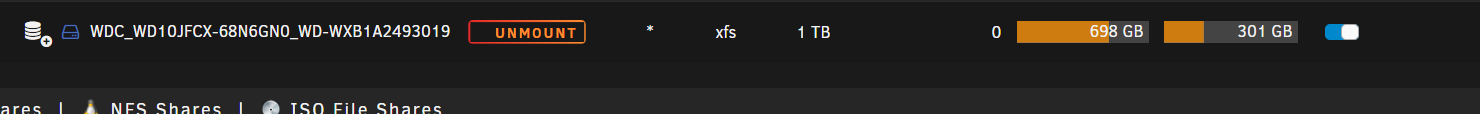

27 minutes ago, cpshoemake said:

Mine looks just like that on 2019.01.22.

Works for me.

33 minutes ago, cpshoemake said:

Mine looks just like that on 2019.01.22

So does mine. I'm on 2019.01.22 with the Black theme enabled as well



15 minutes ago, rragu said:

So does mine. I'm on 2019.01.22 with the Black theme enabled as well



What browser are you using?

1 minute ago, dlandon said:

What browser are you using?

That screenshot was Chrome (v. 71.0.3578.98). I also just checked on Firefox (v. 64.0.2). It looks the same as in Chrome

1 minute ago, rragu said:

That screenshot was Chrome (v. 71.0.3578.98). I also just checked on Firefox (v. 64.0.2). It looks the same as in Chrome

I also use Chrome of that version works fine for me.  I can't reproduce it.  Do the disks and cache in the array show correctly?  It's pretty much the same code used for all used/free displays.

experiencing same issue on edge/chrome w/ 2019.01.22

previous version had both usage columns skewed

2 minutes ago, therapist said:

experiencing same issue on edge/chrome w/ 2019.01.22

previous version had both usage columns skewed

What version of Unraid?

3 minutes ago, dlandon said:

What version of Unraid?

6.6.6



edit:

array drives are displaying fine

Edited January 23, 20197 yr by therapist

2 minutes ago, dlandon said:

I also use Chrome of that version works fine for me.  I can't reproduce it.  Do the disks and cache in the array show correctly?  It's pretty much the same code used for all used/free displays.

Yeah, the other displays for array, cache, and boot are showing properly. I'm fairly certain the 2019.01.21a version of UD was also showing properly



PS. I'm on Unraid 6.6.6 if that helps

1 minute ago, rragu said:

Yeah, the other displays for array, cache, and boot are showing properly. I'm fairly certain the 2019.01.21a version of UD was also showing properly



PS. I'm on Unraid 6.6.6 if that helps

There was apparently a change in the 6.6.6 and 6.7 versions related to the drive used/free.  I'm testing on 6.7.

Just noticed this issue of the columns messed up(black theme on chrome as well) on one of my servers, waiting on further updates before I pull this one.

12 hours ago, dlandon said:

Make sure you have the latest version of UD.  Changes have been made to the used/free graphs.

Nice one - looks better now. Thanks @dlandon

18 hours ago, dlandon said:

There was apparently a change in the 6.6.6 and 6.7 versions related to the drive used/free.  I'm testing on 6.7.

6.6.6 back to normal with 2019.01.22a

Thank you!

Not sure if this is a unraid or Unassigned Devices problem, but I just tried to browse a hdd mounted by UD, from the main page in unraid 6.7.0-rc1, I found the folders I expected, text files, when clicking the files it allowed me to download them, then I found a php file and clicked it, but instead of downloading or showing me the content, it got executed.



Could that not lead to some problems, if an unexpected file got executed inside unraid?

1 hour ago, mikeydk said:

Not sure if this is a unraid or Unassigned Devices problem, but I just tried to browse a hdd mounted by UD, from the main page in unraid 6.7.0-rc1, I found the folders I expected, text files, when clicking the files it allowed me to download them, then I found a php file and clicked it, but instead of downloading or showing me the content, it got executed.



Could that not lead to some problems, if an unexpected file got executed inside unraid?

The folder browser is built into Unraid and is not a UD function.  You should file a bug report if you feel that it is a concern.

I may be missing the point here, but is there any way to create a \\tower\disk share for the unassigned device that I can access via SMB?

Edited January 24, 20197 yr by Spies

Go to Settings->Unassigned Devices and set up SMB Security and then turn on the share switch on the UD page and the device will be shared at //tower/.  When on the UD page, click help and read about changing the mount point (share).

17 minutes ago, dlandon said:

Go to Settings->Unassigned Devices and set up SMB Security and then turn on the share switch on the UD page and the device will be shared at //tower/.  When on the UD page, click help and read about changing the mount point (share).

HDD appears but I get a username and password box, it won't accept the root username and password and denies access.

Edited January 24, 20197 yr by Spies

You cannot use the root user and password for SMB access.  Set up an Unraid user and login with that user.

Edited January 24, 20197 yr by dlandon

1 hour ago, dlandon said:

Go to Settings->Unassigned Devices and set up SMB Security and then turn on the share switch on the UD page and the device will be shared at //tower/.  When on the UD page, click help and read about changing the mount point (share).

Or just leave SMB Security to No for Public access (turn on Help will explain this) and turn on the share switch for the drive on the UD page.

Mount and Unmount buttons aren't centered.





Very minor, but some people have OCD ?

2 hours ago, Dazog said:

Mount and Unmount buttons aren't centered.





Very minor, but some people have OCD ?

There are two groupings in UD.  The upper grouping is physical devices.  The lower grouping is SMB, NFS, and ISO mounted devices.  Each grouping has different information and different operation.  For example an iso mounted file won't have a temperature.  Just look at the table headings for the two groups.  They don't line up because the information is different.



There is no way for the Mount and Unmount buttons to align in the different groupings.  People will just have to ignore their OCD.

11 hours ago, Dazog said:

Mount and Unmount buttons aren't centered.





Very minor, but some people have OCD ?

That is not OCD. OCD is a completely different beast.

My original post:

On 1/7/2019 at 12:31 AM, wsume99 said:

I am using UD to mount and share a 4TB external drive on my server. I am trying to rsync files from my array to the drive. Here is the command to initiate the transfer:

rsync -av /mnt/user/Photography/2005/ /mnt/disks/EasyStore_4/2005/



When the rsync finishes it displays the following message:

rsync error: some files/attrs were not transferred (see previous errors) (code 23) at main.c(1189) [sender=3.1.3]

The all are of the following type:

rsync: chown "/mnt/disks/EasyStore_4/2005/12-25-2005/.12-25-05(2).JPG.nkTWa8" failed: Operation not permitted (1)



I compared the source and destination paths after the operation and it looks like all the files were transferred - the count of files and folders along with total size are all equal. I searched and found a post where the discussion was about how the volume being written to was mounted and the root user wouldn't have permission to set ownership on a that volume. The suggested remedy was to run rsync -rltgoDv instead of the -a option. Would this correct my issue or is there a better way to correct this so I can run rsync without any errors. Having any error at the end of an rsync is not what I'd prefer to have.



And the original reply:

On 1/7/2019 at 2:40 AM, johnnie.black said:

That's likely the best way, you can also keep -a and just add the --no-perms flag, e.g.: rsync -av --no-perms etc



Resurrecting this problem. I've been fighting issues with some new hardware and after a lot of work I'm back to my old MB/CPU to try this again. I have tried both remedies (rsync -rltgoDv and rsync -av --no-perms) and neither prevent the errors I outlined above. Any more suggestions?

New Unraid user here. For some reason my 3TB ST33000650SS Seagate SAS drives (paired up with my LSI 9212-4i HBA in IT mode) aren't showing up in Unassigned Devices. My SATA drives show up just fine on the HBA in Unassigned Devices. The SAS drives preclear and add to my array flawlessly. Anyone run into this before?
