Unassigned Devices - Managing Disk Drives and Remote Shares Outside of The Unraid Array


dlandon

Recommended Posts

5 minutes ago, derpuma said:

access to /mnt/shares

There is no /mnt/shares. There is /mnt/user where the user shares are accessed, but those don't have anything to do with UD.



You need to enable SMB for the Unassigned Device

Link to comment
1 hour ago, itimpi said:

Check under Settings->Unassigned Devices that you actually have it set to make SMB shares from UD visible on the network.


I did not set the 'No' to 'Public' as I thought 'No' ment no security and public access which is oviously not the case.
Switching to public did it! Thanks a lot for guiding me through this!

Bildschirmfoto 2022-07-03 um 20.37.13.jpg

Link to comment
2 minutes ago, comet424 said:

how is it possible  1 drive can be in a cache pool  and in unassigned drives at the same time?    shouldnt it be hiding from it as my other cache pools dont show up


It looks as if it temporarily dropped offline and then came back online.  The device Id changed and Unraid does not handle this.

Link to comment

ah ok  ya thanks...    i  when i re booted it fixed itself  i not 100%  sure if its back plain or power supply .. told my sister when i see her to just give me the computer  since shes a few hours away   i cant just fix it easily... may just find a computer case and skip the hot swap.. and go straight to just mount the hard drives in the case..  no need for 4 bay hot swap



Link to comment

I am trying to install the Unassigned Drives Plus addon and I keep getting this error. I must be missing something somewhere.



plugin: installing: https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg
plugin: downloading https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg
plugin: downloading: https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg ... done

Warning: mkdir(): Not a directory in /usr/local/emhttp/plugins/dynamix.plugin.manager/scripts/plugin on line 270
plugin: unable to create parent directory for /boot/config/plugins/unassigned.devices-plus/packages/parted-3.3-x86_64-1.txz

Link to comment
1 hour ago, timkwillson said:

unable to create parent directory for /boot/config/plugins/unassigned.devices-plus/packages/parted-3.3-x86_64-1.txz

Maybe a problem with your Unraid flash drive.



What do you get from command line with this?

df -h



Link to comment
8 minutes ago, trurl said:

Maybe a problem with your Unraid flash drive.



What do you get from command line with this?

df -h




Filesystem      Size  Used Avail Use% Mounted on
rootfs          7.3G  1.5G  5.8G  20% /
tmpfs            32M  768K   32M   3% /run
/dev/sda1       7.7G  900M  6.8G  12% /boot
overlay         7.3G  1.5G  5.8G  20% /lib/firmware
overlay         7.3G  1.5G  5.8G  20% /lib/modules
devtmpfs        8.0M     0  8.0M   0% /dev
tmpfs           7.4G     0  7.4G   0% /dev/shm
cgroup_root     8.0M     0  8.0M   0% /sys/fs/cgroup
tmpfs           128M  292K  128M   1% /var/log
tmpfs           1.0M     0  1.0M   0% /mnt/disks
tmpfs           1.0M     0  1.0M   0% /mnt/remotes
tmpfs           1.0M     0  1.0M   0% /mnt/rootshare

Link to comment

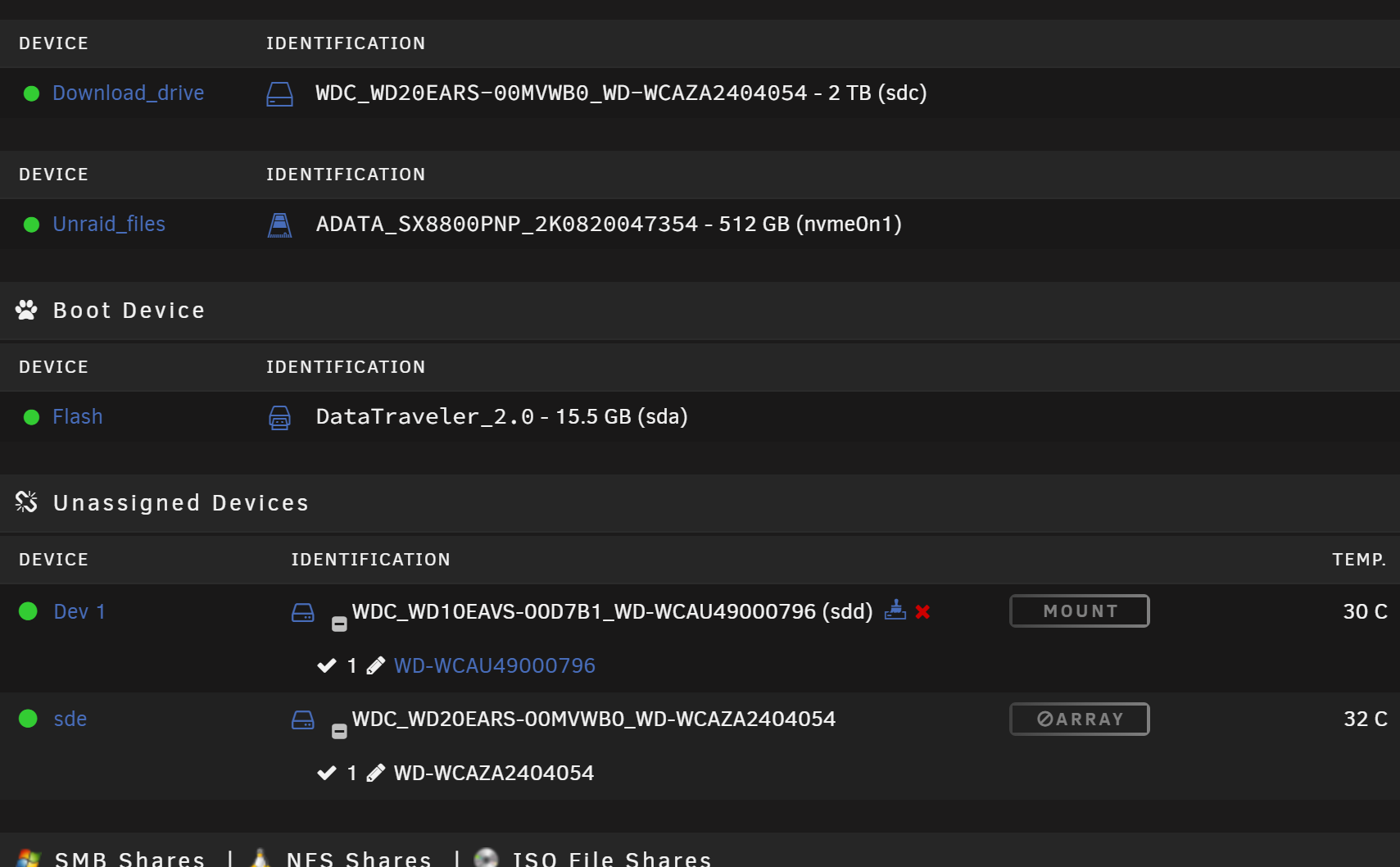

I am attempting to reformat an UD with partitions using this tutorial from Spaceinvader One. However, I'm running into an issue where I can't write to the UD after partitioning the drive.



I've tried clearing the disk, removing the disk, and deleting it from the historical devices to no avail. I can't write to either partition via Krusader.



Appreciate any assistance here!

Screen Shot 2022-07-06 at 3.44.06 PM.png

Link to comment
13 hours ago, timkwillson said:

I am trying to install the Unassigned Drives Plus addon and I keep getting this error. I must be missing something somewhere.



plugin: installing: https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg
plugin: downloading https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg
plugin: downloading: https://github.com/dlandon/unassigned.devices/raw/master/unassigned.devices-plus.plg ... done

Warning: mkdir(): Not a directory in /usr/local/emhttp/plugins/dynamix.plugin.manager/scripts/plugin on line 270
plugin: unable to create parent directory for /boot/config/plugins/unassigned.devices-plus/packages/parted-3.3-x86_64-1.txz

Try deleting the /flash/config/plugins/unassigned.devoces-plus/ folder and try to install again.

Link to comment
4 hours ago, damnshaneisthatu said:

I've tried clearing the disk, removing the disk, and deleting it from the historical devices to no avail. I can't write to either partition via Krusader.

Does it work if you format it with UD?

Link to comment
31 minutes ago, J05u said:

How i can enable password protection to the share which i create on unassigned drive?

And is it anyway have also that share hidden?

You set user permissionn in UD Settings.  You can also select share 'Yes (hidden)'.

  • Thanks 1
Link to comment
Posted (edited)
22 hours ago, damnshaneisthatu said:

I am attempting to reformat an UD with partitions using this tutorial from Spaceinvader One. However, I'm running into an issue where I can't write to the UD after partitioning the drive.



I've tried clearing the disk, removing the disk, and deleting it from the historical devices to no avail. I can't write to either partition via Krusader.



Appreciate any assistance here!

Screen Shot 2022-07-06 at 3.44.06 PM.png



I was having a similar issue. Was a permissions issue in a place I least expected. Check the permission on the device disk itself. For some odd reason, mine were reset back to only root having access and Group and Other were set to NO ACCESS, instead of read-write.





Edited by SonicHeresy
Found root cause and solution.
Link to comment
On 7/6/2022 at 7:22 PM, J05u said:

How i can enable password protection to the share which i create on unassigned drive?

And is it anyway have also that share hidden?

Mount the UD disk and give me the output of 'mount' command from a command line.



You are mounting the disk with the 'discard' option set.  It would be better to not do that and install the "Dynamix SSD Trim" plugin and trim on a schedule.

Link to comment
