Unassigned Devices - Managing Disk Drives and Remote Shares Outside of The Unraid Array


dlandon

Recommended Posts

On 5/31/2018 at 12:13 PM, aptalca said:

I have some nfs mounts and on the dashboard, only some of them show the used space correctly. I have a suspicion it might have to do with spaces in mount names. Notice how in the attached screenshot, the ones without spaces show correctly and the ones with spaces don't?



Thanks

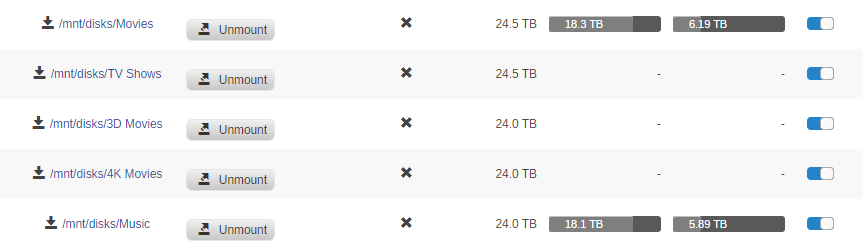

Capture81.PNG'

It's possible that the spaces are causing an issue.  I thought the naming of mount points did not allow spaces.  For the moment, don't use spaces in the mount point name.  When I get some time I can look into it further.

Link to comment
6 hours ago, Quiks said:

Hi, I recently changed the security on my windows shares. Previously everyone had read/write/etc access and I was able to mount my shares in unraid without issue using this plugin



I've created a single user that has write access to these shares now.



domain\user



I cannot mount my share using the following info



IP/Host: 192.168.1.60

Username: domain\user

Password : password

Share: R



I ran into a similar issue using cifs in ubuntu and I had to specify domain=domain in the command or credentials file.

Is there a way to do a domain=xxx in this plugin without using the command line?






clicking mount on the R share refreshes the page, but yields the same results

logs:


Jun 1 10:29:23 Tower unassigned.devices: Mount of '//192.168.1.60/R' failed. Error message: mount error(13): Permission denied Refer to the mount.cifs(8) manual page (e.g. man mount.cifs)
Jun 1 10:34:40 Tower unassigned.devices: Mount SMB share '//192.168.1.60/R' using SMB1 protocol.



Thanks!

I might be able to provide some assistance if you posted diagnostics.  As I've said many times, a log snippet is fairly useless.

Link to comment
On 5/31/2018 at 12:13 PM, aptalca said:

I have some nfs mounts and on the dashboard, only some of them show the used space correctly. I have a suspicion it might have to do with spaces in mount names. Notice how in the attached screenshot, the ones without spaces show correctly and the ones with spaces don't?



Thanks


Fixed in the next release.  This same issue also showed up on samba and iso shares.

Link to comment
  • 3 weeks later...

I cant see anything but I wanted to check to make sure since this is such a  long thread. I am in the process of migrating to XFS and I have found that one RFS disk that will mount happily with unraid wont mount at all with UD.



dmesg shows



[Tue Jun 19 15:40:36 2018] REISERFS warning (device sdc1): sh-2021 reiserfs_fill_super: can not find reiserfs on sdc1



so before I get into this are there any know relevant issues?



Update: well it turns out its pretty obvious why UD cant mount this reiser disk.... thats because it is xfs.



# file -sL /dev/sdc*
/dev/sdc:  DOS/MBR boot sector; partition 1 : ID=0xee, start-CHS (0x0,0,2), end-CHS (0x3ff,255,63), startsector 1, 4294967295 sectors, extended partition table (last)
/dev/sdc1: SGI XFS filesystem data (blksz 4096, inosz 512, v2 dirs)



any ideas why UD is trying to mount a XFS disks as ResierFS?





Link to comment

Hi All,



Really sorry if this has been covered but there is just so much about this plugin that i'm struggling to find what i need



I'm testing something for backups so i have attached an old usb cradle to my machine. This cradle accepts 2 HDD's and shows them as a JBOD to the host.

Unassigned devices detects them as in the attached screen shot.



Problem is, if i try and change the mount point names (as right now it would try and mount them both in the same place), it changes the path of both devices.



Checking the config is adds this:

[ICY_BOX_IB-3620_PROLIFICMP000000B86]
mountpoint.1 = "/mnt/disks/ICY_BOX_ICY_BOX_IB-362"

So i can't actually give them separate names as its linking to the main device names. Does anyone know how to fix this issue or work around it?



I'm trying to use rsync and want to keep the permissions hence using xfs



Regards,

Jamie


Link to comment

Hi All,



I have an issue wuth this plugin



I have 2 UNRaid servers



(SA) - i use for my VM And Docker



ASUSTeK COMPUTER INC. - RAMPAGE V EXTREME

Intel® Core™ i7-5960X CPU @ 3.00GHz

64 GB (max. installable capacity 512 GB)



(SB) I use for media storage



HP ProLiant DL320s

intel xeon

4GB Ram





I can mount a shares from (SB) to (SA) Without any issues, but if i go to click on the mounted share all i get is a loading icon and unassigned drives hangs ...  if i do this in reverse it works ok



any ideas ?





Link to comment
1 hour ago, mbezzo said:

Anybody able to point me to some tips for mounting an SMB volume shared by a Mac with UD?  I'm not having much luck and must be missing something silly...



Thanks!

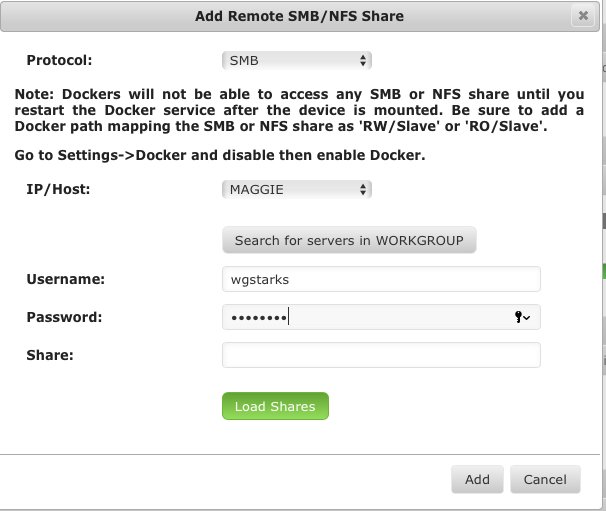

Shouldn't be too hard. I just Select the protocol and use the Search Workgroup button, but entering the IP of the Mac also works.






Then enter your username and password. Clicking Load Shares will give you a pull down list of shares available.

Link to comment

Thanks wgstarks - I'm doing all that, but when I click load shares nothing happens - the button clicks and does something really quick, then returns to normal and there's no list of shares. I've tried manually entering the share name in the share: field, but that doesn't seem to work either.  Is there a specific syntax I need to be following or is the only way this works if it shows a list of shares?



Is there a way to see the logs for UD for when I try to add a remote share? (sorry very new to unRAID and just starting to get everything figured out!)


Thanks!


Link to comment

Hello there

i have a seagate 4 Tb disk i want to use with UD, i formated it through USB on my windows laptop with EXT4  with partition wizard 10

device is not showing in UD when being plugged.

any advise there on below error msg please?



"

Jul 5 07:46:01 Tower kernel: scsi 9:0:0:0: Direct-Access ST4000DM 004-2CV104 PQ: 0 ANSI: 2 CCS
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: Attached scsi generic sg15 type 0
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] 7814037168 512-byte logical blocks: (4.00 TB/3.64 TiB)
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Write Protect is off
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Mode Sense: 28 00 00 00
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] No Caching mode page found
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Assuming drive cache: write through
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 5 07:46:01 Tower kernel: sdp: sdp1
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 5 07:46:01 Tower kernel: sd 9:0:0:0: [sdp] Attached SCSI disk
Jul 5 07:46:01 Tower unassigned.devices: Adding disk '/dev/sdp1'...
Jul 5 07:46:01 Tower unassigned.devices: No filesystem detected on '/dev/sdp1'.
Jul 5 07:46:01 Tower unassigned.devices: Partition 'ST4000DM004-2CV104_ZFN15573' could not be mounted...
Jul 5 07:46:36 Tower kernel: usb 1-1.1: reset high-speed USB device number 14 using ehci-pci
Jul 5 07:46:36 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:36 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:37 Tower kernel: usb 1-1.1: reset high-speed USB device number 14 using ehci-pci
Jul 5 07:46:37 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:37 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:37 Tower kernel: usb 1-1.1: reset high-speed USB device number 14 using ehci-pci
Jul 5 07:46:37 Tower kernel: usb 1-1.1: device not accepting address 14, error -71
Jul 5 07:46:37 Tower kernel: usb 1-1.1: reset high-speed USB device number 14 using ehci-pci
Jul 5 07:46:38 Tower kernel: usb 1-1.1: device not accepting address 14, error -71
Jul 5 07:46:38 Tower kernel: usb 1-1.1: USB disconnect, device number 14
Jul 5 07:46:38 Tower kernel: usb 1-1.1: new high-speed USB device number 15 using ehci-pci
Jul 5 07:46:38 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:38 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:38 Tower kernel: usb 1-1.1: new high-speed USB device number 16 using ehci-pci
Jul 5 07:46:38 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:39 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 5 07:46:39 Tower kernel: usb 1-1-port1: attempt power cycle
Jul 5 07:46:39 Tower kernel: usb 1-1.1: new high-speed USB device number 17 using ehci-pci
Jul 5 07:46:40 Tower kernel: usb 1-1.1: device not accepting address 17, error -71
Jul 5 07:46:40 Tower kernel: usb 1-1.1: new high-speed USB device number 18 using ehci-pci
Jul 5 07:46:40 Tower kernel: usb 1-1.1: device not accepting address 18, error -71
Jul 5 07:46:40 Tower kernel: usb 1-1-port1: unable to enumerate USB device

"



Link to comment

I for the life of me can't get UD to mount or connect to a SMB network share on my network, I hit "Search servers in WORKGROUP" select the system the share is on, go down and put in the username and password and hit "Load Share" but nothing ever happens.

I can access the share on other systems in the house, Any Ideas?



So update.....



I made a new user account on the system I'm working with and gave it admin rights, went to the folder I was wanting to share in Windows and added that new user, gave it full read write access to said folder and now it works..... the button still doesn't show the folders on the system tho.

server-diagnostics-20180705-1900.zip

Edited by AnnabellaRenee87
Link to comment



hello

i have tried to powerdown USB enclosure with seagate in it

UNRAID sees the drive a very short time, even the partition in the UD interface, but strangely disappears few seconds later...



"

Jul 6 23:12:33 Tower kernel: usb 1-1.1: new high-speed USB device number 24 using ehci-pci
Jul 6 23:12:33 Tower kernel: usb-storage 1-1.1:1.0: USB Mass Storage device detected
Jul 6 23:12:33 Tower kernel: usb-storage 1-1.1:1.0: Quirks match for vid 152d pid 2329: 8020
Jul 6 23:12:33 Tower kernel: scsi host9: usb-storage 1-1.1:1.0
Jul 6 23:12:34 Tower kernel: scsi 9:0:0:0: Direct-Access ST4000DM 004-2CV104 PQ: 0 ANSI: 2 CCS
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: Attached scsi generic sg15 type 0
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] 7814037168 512-byte logical blocks: (4.00 TB/3.64 TiB)
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Write Protect is off
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Mode Sense: 28 00 00 00
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] No Caching mode page found
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Assuming drive cache: write through
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 6 23:12:34 Tower kernel: sdp: sdp1
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Very big device. Trying to use READ CAPACITY(16).
Jul 6 23:12:34 Tower kernel: sd 9:0:0:0: [sdp] Attached SCSI disk
Jul 6 23:12:34 Tower unassigned.devices: Adding disk '/dev/sdp1'...
Jul 6 23:12:34 Tower unassigned.devices: No filesystem detected on '/dev/sdp1'.
Jul 6 23:12:34 Tower unassigned.devices: Partition 'ST4000DM004-2CV104_ZFN15573' could not be mounted...
Jul 6 23:13:08 Tower kernel: usb 1-1.1: reset high-speed USB device number 24 using ehci-pci
Jul 6 23:13:08 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:08 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:08 Tower kernel: usb 1-1.1: reset high-speed USB device number 24 using ehci-pci
Jul 6 23:13:08 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:08 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:08 Tower kernel: usb 1-1.1: reset high-speed USB device number 24 using ehci-pci
Jul 6 23:13:09 Tower kernel: usb 1-1.1: device not accepting address 24, error -71
Jul 6 23:13:09 Tower kernel: usb 1-1.1: reset high-speed USB device number 24 using ehci-pci
Jul 6 23:13:09 Tower kernel: usb 1-1.1: device not accepting address 24, error -71
Jul 6 23:13:09 Tower kernel: usb 1-1.1: USB disconnect, device number 24
Jul 6 23:13:09 Tower kernel: usb 1-1.1: new high-speed USB device number 25 using ehci-pci
Jul 6 23:13:09 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:10 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:10 Tower kernel: usb 1-1.1: new high-speed USB device number 26 using ehci-pci
Jul 6 23:13:10 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:10 Tower unassigned.devices: Removing partition '1' from disk '/dev/sdp'.
Jul 6 23:13:10 Tower kernel: usb 1-1.1: device descriptor read/64, error -71
Jul 6 23:13:10 Tower kernel: usb 1-1-port1: attempt power cycle
Jul 6 23:13:11 Tower kernel: usb 1-1.1: new high-speed USB device number 27 using ehci-pci
Jul 6 23:13:11 Tower kernel: usb 1-1.1: device not accepting address 27, error -71
Jul 6 23:13:11 Tower kernel: usb 1-1.1: new high-speed USB device number 28 using ehci-pci
Jul 6 23:13:12 Tower kernel: usb 1-1.1: device not accepting address 28, error -71
Jul 6 23:13:12 Tower kernel: usb 1-1-port1: unable to enumerate USB device

"

=> what is the meaning of 'device descriptor read error & device not accepting address..." ?

any advise please ?



Link to comment

Hi,



I'm sorry I tried to look for an answer but no luck, I want to use my old hdd as a scrap drive, it formatted ok, I can mount it but there is no way to rename, I don't have "+" icon or all red-X to delete partition described on the front page at all. I'm I doing something wrong? It's not there when the drive is unmounted/mounted/array started/not started. It works but has a very long name I would rather change.







Thanks

Edited by ChapeL79
Link to comment
8 hours ago, ChapeL79 said:

I'm sorry I tried to look for an answer but no luck, I want to use my old hdd as a scrap drive, it formatted ok, I can mount it but there is no way to rename, I don't have "+" icon or all red-X to delete partition described on the front page at all.

Unmount the drive first.

Link to comment
23 hours ago, ChapeL79 said:

Hi,



I'm sorry I tried to look for an answer but no luck, I want to use my old hdd as a scrap drive, it formatted ok, I can mount it but there is no way to rename, I don't have "+" icon or all red-X to delete partition described on the front page at all. I'm I doing something wrong? It's not there when the drive is unmounted/mounted/array started/not started. It works but has a very long name I would rather change.







Thanks

Post your diagnostics.

Link to comment
  • 2 weeks later...

The unassigned devices plugin keeps crashing (disappearing) on my unraid machine. A reboot fixes the issue however this is obviously annoying to keep doing. It seems to be linked to heavy disk activity on the disk (ie sabNZB etc) but could just be a coincidence.



Attached are my diagnostics, I'd be very grateful if someone could take a look and offer any insight.





tower-diagnostics-20180722-0914 (1).zip

Link to comment
2 hours ago, cybrey said:

The unassigned devices plugin keeps crashing (disappearing) on my unraid machine. A reboot fixes the issue however this is obviously annoying to keep doing. It seems to be linked to heavy disk activity on the disk (ie sabNZB etc) but could just be a coincidence.



Attached are my diagnostics, I'd be very grateful if someone could take a look and offer any insight.





tower-diagnostics-20180722-0914 (1).zip

You need to work through your log and solve the problems showing up:

Jul 15 17:20:00 Tower root: Fix Common Problems Version 2018.06.21
Jul 15 17:20:02 Tower root: Fix Common Problems: Error: Docker application plex has volumes being passed that are mounted by Unassigned Devices, but they are not mounted with the slave option ** Ignored
Jul 15 17:26:10 Tower kernel: ata7.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jul 15 17:26:10 Tower kernel: ata7.00: failed command: SMART
Jul 15 17:26:10 Tower kernel: ata7.00: cmd b0/d0:01:00:4f:c2/00:00:00:00:00/00 tag 15 pio 512 in
Jul 15 17:26:10 Tower kernel:         res 40/00:ff:00:00:00/00:00:00:00:00/40 Emask 0x4 (timeout)
Jul 15 17:26:10 Tower kernel: ata7.00: status: { DRDY }
Jul 15 17:26:10 Tower kernel: ata7: hard resetting link
Jul 15 17:26:10 Tower kernel: ata7: SATA link up 3.0 Gbps (SStatus 123 SControl 300)
Jul 15 17:26:10 Tower kernel: ata7.00: configured for UDMA/133
Jul 15 17:26:10 Tower kernel: ata7: EH complete
Jul 15 17:31:02 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 17:42:04 Tower kernel: ata10.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jul 15 17:42:04 Tower kernel: ata10.00: failed command: SMART
Jul 15 17:42:04 Tower kernel: ata10.00: cmd b0/d1:01:01:4f:c2/00:00:00:00:00/00 tag 24 pio 512 in
Jul 15 17:42:04 Tower kernel:         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x4 (timeout)
Jul 15 17:42:04 Tower kernel: ata10.00: status: { DRDY }
Jul 15 17:42:04 Tower kernel: ata10: hard resetting link
Jul 15 17:42:05 Tower kernel: ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jul 15 17:42:05 Tower kernel: ata10.00: configured for UDMA/133
Jul 15 17:42:05 Tower kernel: ata10: EH complete
Jul 15 17:43:06 Tower kernel: ata10.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jul 15 17:43:06 Tower kernel: ata10.00: failed command: IDENTIFY DEVICE
Jul 15 17:43:06 Tower kernel: ata10.00: cmd ec/00:01:00:00:00/00:00:00:00:00/00 tag 11 pio 512 in
Jul 15 17:43:06 Tower kernel:         res 40/00:00:00:00:00/00:00:00:00:00/00 Emask 0x4 (timeout)
Jul 15 17:43:06 Tower kernel: ata10.00: status: { DRDY }
Jul 15 17:43:06 Tower kernel: ata10: hard resetting link
Jul 15 17:43:06 Tower kernel: ata10: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jul 15 17:43:06 Tower kernel: ata10.00: configured for UDMA/133
Jul 15 17:43:06 Tower kernel: ata10: EH complete
Jul 15 17:46:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 17:51:43 Tower emhttpd: shcmd (192): /usr/sbin/hdparm -y /dev/sdb
Jul 15 20:20:02 Tower kernel: ata8.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jul 15 20:20:02 Tower kernel: ata8.00: failed command: IDENTIFY DEVICE
Jul 15 20:20:02 Tower kernel: ata8.00: cmd ec/00:01:00:00:00/00:00:00:00:00/00 tag 11 pio 512 in
Jul 15 20:20:02 Tower kernel:         res 40/00:00:00:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Jul 15 20:20:02 Tower kernel: ata8.00: status: { DRDY }
Jul 15 20:20:02 Tower kernel: ata8: hard resetting link
Jul 15 20:20:03 Tower kernel: ata8: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jul 15 20:20:03 Tower kernel: ata8.00: configured for UDMA/100
Jul 15 20:20:03 Tower kernel: ata8: EH complete
Jul 15 20:21:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 20:21:04 Tower kernel: ata8.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x6 frozen
Jul 15 20:21:04 Tower kernel: ata8.00: failed command: IDENTIFY DEVICE
Jul 15 20:21:04 Tower kernel: ata8.00: cmd ec/00:01:00:00:00/00:00:00:00:00/00 tag 2 pio 512 in
Jul 15 20:21:04 Tower kernel:         res 40/00:01:01:4f:c2/00:00:00:00:00/00 Emask 0x4 (timeout)
Jul 15 20:21:04 Tower kernel: ata8.00: status: { DRDY }
Jul 15 20:21:04 Tower kernel: ata8: hard resetting link
Jul 15 20:21:04 Tower kernel: ata8: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Jul 15 20:21:04 Tower kernel: ata8.00: configured for UDMA/100
Jul 15 20:21:04 Tower kernel: ata8: EH complete
Jul 15 21:23:11 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 21:39:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 21:54:11 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 22:10:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 22:26:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 22:42:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 22:58:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 15 23:14:01 Tower crond[1589]: ignoring /var/spool/cron/crontabs/root- (non-existent user)
Jul 22 04:25:58 Tower kernel: sdh: detected capacity change from 320072933376 to 0
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208492, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208493, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208494, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208495, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208496, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208497, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208498, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208499, lost async page write
Jul 22 04:25:58 Tower kernel: Buffer I/O error on dev sdh1, logical block 64208500, lost async page write
Jul 22 04:25:58 Tower kernel: sd 7:0:0:0: [sdh] tag#3 UNKNOWN(0x2003) Result: hostbyte=0x04 driverbyte=0x00
Jul 22 04:25:58 Tower kernel: sd 7:0:0:0: [sdh] tag#3 CDB: opcode=0x35 35 00 00 00 00 00 00 00 00 00
Jul 22 04:25:58 Tower kernel: print_req_error: I/O error, dev sdh, sector 65744
Jul 22 04:25:58 Tower kernel: REISERFS abort (device sdh1): Journal write error in flush_commit_list
Jul 22 04:25:58 Tower kernel: REISERFS warning (device sdh1): journal-837 _update_journal_header_block: IO error during journal replay
Jul 22 04:25:58 Tower kernel: print_req_error: I/O error, dev loop2, sector 25480
Jul 22 04:25:58 Tower kernel: BTRFS error (device loop2): bdev /dev/loop2 errs: wr 0, rd 1, flush 0, corrupt 0, gen 0

It goes on and on.  I would start by solving the disk issues.

  • Upvote 1
Link to comment
22 minutes ago, cybrey said:

Many thanks for the response ... other than the last block they're not associated to the unassigned devices plugin. Is it worth starting a new thread as I've no idea where to begin with these errors?

They don't have to be associated with the UD plugin to cause issues.  Yes, start a new thread and get help sorting it all out.

  • Like 1
Link to comment

I broke it....!

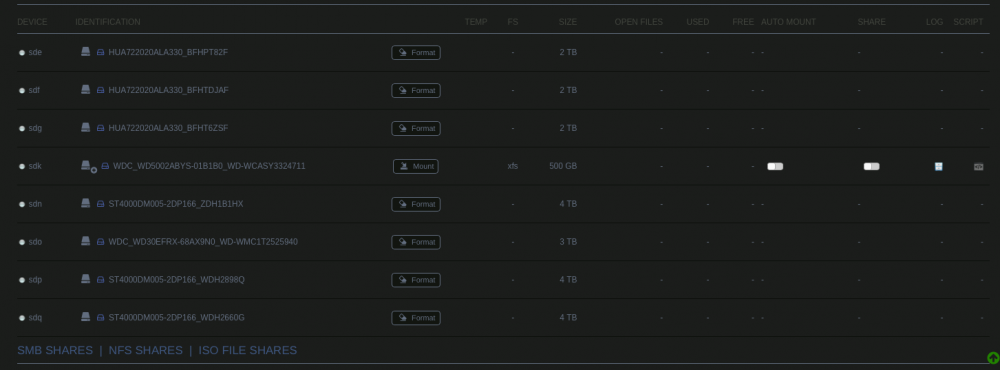

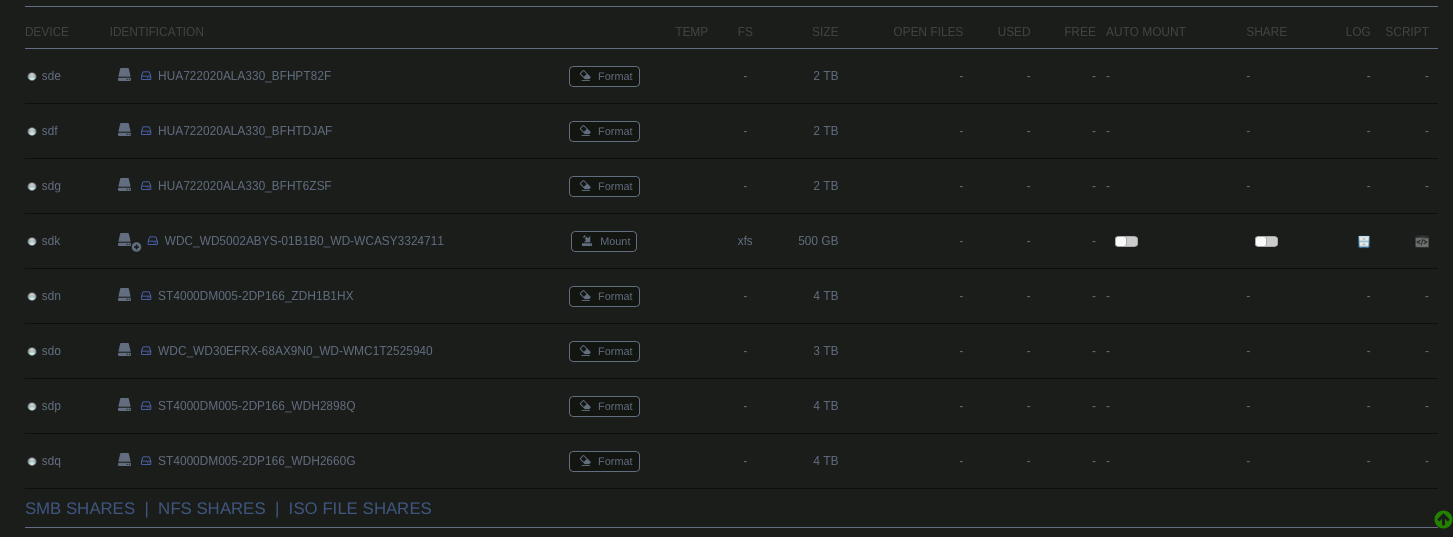

many of the drives are passed through to a vm which is then using them in a JBOD pool. After a reboot I got this:





1647333640_ScreenShot2018-07-23at6_32_41PM.thumb.png.f272daf56f49a76d9f79a3c36a027a57.png

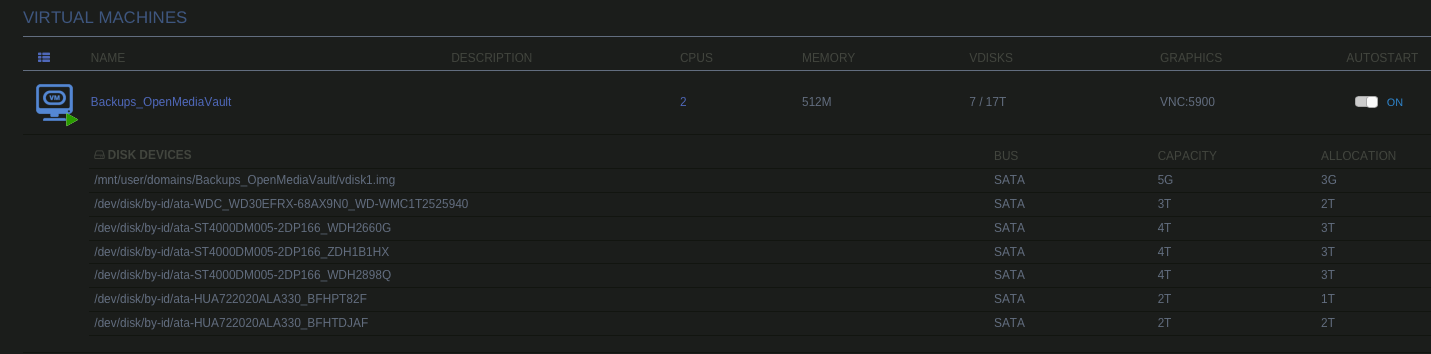

Now, that looks like nothing is mounted or formatted, but if you look at the vm:





1791361472_ScreenShot2018-07-23at6_32_57PM.thumb.png.1dd68a51f94c4b5f58dc7a8b311d6efd.png



And the vm is operating normally.







I had to reboot because I was creating the cluster (which unassigned also connects to via smb so I can have a backup location as 1 big disk) and when the server connection went off line to the vm. Unassigned devices started throwing errors in the log about the remote server being offline and everything on the main server hung. After waiting 10 minutes, I attempted to shut down via GUI, 5 minutes later I pressed the power button on the server. Five minutes after that I had to hard reset.





When I initially setup the jbod pool as a test with 2 disks, it reported the 2 drives as being part of a linux array or something. When I added the other 4, that's when it freaked out.

Link to comment
  • trurl pinned this topic

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
