ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 21 hours ago, Presjar said: ASUS TUF GAMING B560M-PLUS (Intel) Please post your Diagnostics. Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 4 hours ago, Bcy said: is any plugin good for check my config ? any suggest? Please post your Diagnostics. What happens when you downgrade to 6.10.3 again? Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 (edited) 4 hours ago, ich777 said: Please post your Diagnostics. What happens when you downgrade to 6.10.3 again? Hello Sir, I try to downgrade to 6.10.3, and it work perfect. but i try again upgrade to 6.11.1 or 6.11.0 nothing to change by setting. only uninstall nerdpack and install nerd tools . no luck ....... no working . post my diagnostics, thank your help . Edited November 2, 2022 by Bcy Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 1 minute ago, Bcy said: only uninstall nerdpack and install nerd tools . no luck ....... no working . May I ask why you need Nerd Tools? Perl is now part from Unraid and doesn't need to be installed. BTW Perl was only needed if you clicked on Detect in the plugin, it was safe on older versions to uninstall it afterwards. 19 hours ago, Bcy said: it87.force_id=0x8689 Please remove that part, it shouldn't be necessary if you are using: it87.ignore_resource_conflict=1 What does happen when you issue: modprobe it87 ignore_resource_conflict=1 from a Unraid terminal? Can you post the output from: lsmod after you issued the command from above? Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 7 minutes ago, ich777 said: May I ask why you need Nerd Tools? Perl is now part from Unraid and doesn't need to be installed. BTW Perl was only needed if you clicked on Detect in the plugin, it was safe on older versions to uninstall it afterwards. Cause I need vim package... 8 minutes ago, ich777 said: Please remove that part, it shouldn't be necessary if you are using: it87.ignore_resource_conflict=1 yes. i try only use "it87.ignore_resource_conflict=1" to boot. still no work. 9 minutes ago, ich777 said: What does happen when you issue: modprobe it87 ignore_resource_conflict=1 no show anything. 10 minutes ago, ich777 said: Can you post the output from: lsmod after you issued the command from above? after type "modprobe it87 ignore_resource_conflict=1" in terminal lsmod follow below Module Size Used by it87 61440 0 hwmon_vid 16384 1 it87 wireguard 73728 0 curve25519_x86_64 32768 1 wireguard libcurve25519_generic 49152 2 curve25519_x86_64,wireguard libchacha20poly1305 16384 1 wireguard chacha_x86_64 28672 1 libchacha20poly1305 poly1305_x86_64 28672 1 libchacha20poly1305 ip6_udp_tunnel 16384 1 wireguard udp_tunnel 20480 1 wireguard libchacha 16384 1 chacha_x86_64 ccp 32768 0 xt_CHECKSUM 16384 1 ipt_REJECT 16384 2 nf_reject_ipv4 16384 1 ipt_REJECT ip6table_mangle 16384 1 ip6table_nat 16384 1 xt_nat 16384 14 xt_tcpudp 16384 52 iptable_mangle 16384 1 vhost_net 28672 0 tun 53248 1 vhost_net vhost 40960 1 vhost_net vhost_iotlb 16384 1 vhost tap 24576 1 vhost_net veth 32768 0 xt_conntrack 16384 2 xt_MASQUERADE 16384 19 nf_conntrack_netlink 49152 0 nfnetlink 16384 2 nf_conntrack_netlink xfrm_user 36864 1 xfrm_algo 16384 1 xfrm_user xt_addrtype 16384 2 iptable_nat 16384 2 nf_nat 49152 4 ip6table_nat,xt_nat,iptable_nat,xt_MASQUERADE nf_conntrack 139264 5 xt_conntrack,nf_nat,xt_nat,nf_conntrack_netlink,xt_MASQUERADE nf_defrag_ipv6 16384 1 nf_conntrack nf_defrag_ipv4 16384 1 nf_conntrack br_netfilter 32768 0 xfs 1654784 5 md_mod 53248 5 efivarfs 16384 1 ip6table_filter 16384 1 ip6_tables 28672 3 ip6table_filter,ip6table_nat,ip6table_mangle iptable_filter 16384 2 ip_tables 28672 3 iptable_filter,iptable_nat,iptable_mangle x_tables 45056 15 ip6table_filter,xt_conntrack,iptable_filter,ip6table_nat,xt_tcpudp,xt_addrtype,xt_CHECKSUM,xt_nat,ip6_tables,ipt_REJECT,ip_tables,iptable_nat,ip6table_mangle,xt_MASQUERADE,iptable_mangle bridge 266240 1 br_netfilter stp 16384 1 bridge llc 16384 2 bridge,stp ipv6 536576 164 bridge,br_netfilter,wireguard,ip6table_mangle igc 114688 0 r8125 143360 0 i915 2441216 0 gigabyte_wmi 20480 0 wmi_bmof 16384 0 intel_wmi_thunderbolt 16384 0 iosf_mbi 16384 1 i915 drm_buddy 16384 1 i915 i2c_algo_bit 16384 1 i915 ttm 73728 1 i915 drm_display_helper 135168 1 i915 drm_kms_helper 159744 2 drm_display_helper,i915 i2c_i801 24576 0 x86_pkg_temp_thermal 16384 0 intel_powerclamp 16384 0 coretemp 16384 0 kvm_intel 258048 0 kvm 954368 1 kvm_intel crct10dif_pclmul 16384 1 crc32_pclmul 16384 0 crc32c_intel 24576 4 ghash_clmulni_intel 16384 0 aesni_intel 380928 0 crypto_simd 16384 1 aesni_intel cryptd 24576 2 crypto_simd,ghash_clmulni_intel intel_cstate 20480 0 intel_uncore 200704 0 i2c_smbus 16384 1 i2c_i801 drm 479232 6 drm_kms_helper,drm_display_helper,drm_buddy,i915,ttm joydev 24576 0 input_leds 16384 0 led_class 16384 1 input_leds ahci 45056 6 nvme 49152 2 intel_gtt 20480 1 i915 libahci 40960 1 ahci agpgart 40960 2 intel_gtt,ttm nvme_core 106496 3 nvme i2c_core 86016 7 drm_kms_helper,i2c_algo_bit,drm_display_helper,i2c_smbus,i2c_i801,i915,drm syscopyarea 16384 1 drm_kms_helper sysfillrect 16384 1 drm_kms_helper sysimgblt 16384 1 drm_kms_helper fb_sys_fops 16384 1 drm_kms_helper wmi 28672 3 intel_wmi_thunderbolt,gigabyte_wmi,wmi_bmof thermal 20480 0 fan 16384 0 tpm_crb 16384 0 tpm_tis 16384 0 video 53248 1 i915 tpm_tis_core 20480 1 tpm_tis tpm 73728 3 tpm_tis,tpm_crb,tpm_tis_core backlight 20480 4 video,drm_display_helper,i915,drm acpi_tad 16384 0 acpi_pad 24576 0 button 20480 0 unix 53248 345 Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 Just now, Bcy said: no show anything. This is fine since it loaded the driver correctly and you can see it now also in the output from lsmod. Does it now show up in your Dashboard if you click detect again? Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 12 minutes ago, ich777 said: Can you post the output from: lsmod after you issued the command from above? sir. when I type "modprobe it87 ignore_resource_conflict=1" in terminal my sensor is back ....... it work!! so how what I need to do ? Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 1 minute ago, ich777 said: This is fine since it loaded the driver correctly and you can see it now also in the output from lsmod. Does it now show up in your Dashboard if you click detect again? now it work. but what i need to do ? when I next boot on and no need do anything make sensor work ? and my syslog show below Nov 2 16:45:39 Tower kernel: it87: it87 driver version v1.0-80-g19bc9a4 Nov 2 16:45:39 Tower kernel: it87: Found IT8689E chip at 0xa40, revision 1 Nov 2 16:45:39 Tower kernel: it87: Beeping is supported Nov 2 16:45:39 Tower kernel: ACPI Warning: SystemIO range 0x0000000000000A45-0x0000000000000A46 conflicts with OpRegion 0x0000000000000A45-0x0000000000000A46 (\GSA1.SIO1) (20220331/utaddress-204) Nov 2 16:45:39 Tower kernel: ACPI: OSL: Resource conflict; ACPI support missing from driver? Is thin normal? need notice? Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 Just now, Bcy said: Is thin normal? need notice? Please remove this from your syslinux.config: it87.force_id=0x8689 and try to reboot your server and see if it is working afterwards. Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 2 minutes ago, ich777 said: Please remove this from your syslinux.config: it87.force_id=0x8689 and try to reboot your server and see if it is working afterwards. my image is correct ? Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 Just now, Bcy said: my image is correct ? Yes. Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 6 minutes ago, ich777 said: Yes. Hello Sir. after reboot. sensor no work .... but when i type againg "modprobe it87 ignore_resource_conflict=1" in terminal. sensor back again .... what happened? Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 12 minutes ago, ich777 said: Yes. is need make a config file to "/boot/config/modprobe.d/it87.conf" Quote modprobe it87 ignore_resource_conflict=1 Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 5 minutes ago, Bcy said: what happened? I don't know... Please add the line: modprobe it87 ignore_resource_conflict=1 to your go file so that it looks something like this: #!/bin/bash # Enable unsupported IT87 modprobe it87 ignore_resource_conflict=1 # Start the Management Utility /usr/local/sbin/emhttp & You then can also remove: it87.ignore_resource_conflict=1 from your syslinux.config Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 1 minute ago, Bcy said: is need make a config file to "/boot/config/modprobe.d/it87.conf" Quote modprobe it87 ignore_resource_conflict=1 If you do it like that you have to create the file: /boot/config/modprobe.d/it87.conf with the contents: options it87 ignore_resource_conflict=1 Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 Just now, ich777 said: If you do it like that you have to create the file: /boot/config/modprobe.d/it87.conf with the contents: options it87 ignore_resource_conflict=1 make a config to /boot/config/modprobe.d/ and write go file? which better ? Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 8 minutes ago, Bcy said: which better ? What works best for you. Maybe go with your route with the modprobe.d folder and see if this works for you. Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 @Bcy please update the plugin to version 2022.11.02 and remove all custom options from your syslinux.config, go file and also from the modprobe.d folder since I've added a check if the modules is already enabled, if not it will enable it now automatically. Please reboot after you've disabled all modifications to syslinux.config, go file and also from the modprobe.d folder and updated the plugin Let me know if the module was loaded successful after the reboot. Quote Link to comment
Bcy Posted November 2, 2022 Share Posted November 2, 2022 2 minutes ago, ich777 said: @Bcy請將插件更新到版本 2022.11.02 並從您的 syslinux.config、go 文件以及 modprobe.d 文件夾中刪除所有自定義選項，因為我添加了檢查模塊是否已啟用，如果沒有，它將啟用它現在自動。 Hello Sir. Before I update the plugin. I try using your method. only write go file. and reboot it work perfect. now I update the plugin 2022.11.02 version. remove all custom option. and finally it work good ~~ I really thank your help. Best regards 1 Quote Link to comment
Presjar Posted November 2, 2022 Share Posted November 2, 2022 4 hours ago, ich777 said: Please post your Diagnostics. Thanks for taking a look when you get time. unraid1-diagnostics-20221102-2108.zip Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 1 minute ago, Presjar said: Thanks for taking a look when you get time. Can you also do the things that I've mentioned here: Quote Link to comment
Presjar Posted November 2, 2022 Share Posted November 2, 2022 55 minutes ago, ich777 said: Can you also do the things that I've mentioned here Export from ssh Last login: Wed Nov 2 21:10:38 2022 from 192.168.2.95 Linux 5.19.9-Unraid. root@UNRAID1:~# modprobe it87 modprobe: ERROR: could not insert 'it87': No such device root@UNRAID1:~# ignore_resource_conflict=1 root@UNRAID1:~# modprobe it87 modprobe: ERROR: could not insert 'it87': No such device root@UNRAID1:~# lsmod Module Size Used by tun 53248 2 tcp_diag 16384 0 udp_diag 16384 0 inet_diag 20480 2 tcp_diag,udp_diag xt_nat 16384 65 xt_tcpudp 16384 99 veth 32768 0 xt_conntrack 16384 4 xt_MASQUERADE 16384 21 nf_conntrack_netlink 49152 0 nfnetlink 16384 2 nf_conntrack_netlink xfrm_user 36864 1 xfrm_algo 16384 1 xfrm_user xt_addrtype 16384 2 iptable_nat 16384 13 nf_nat 49152 3 xt_nat,iptable_nat,xt_MASQUERADE nf_conntrack 139264 5 xt_conntrack,nf_nat,xt_nat,nf_conntrack_netlink,xt_MASQUERADE nf_defrag_ipv6 16384 1 nf_conntrack nf_defrag_ipv4 16384 1 nf_conntrack br_netfilter 32768 0 bridge 262144 1 br_netfilter xfs 1654784 5 nfsd 507904 3 auth_rpcgss 135168 1 nfsd oid_registry 16384 1 auth_rpcgss lockd 102400 1 nfsd grace 16384 2 nfsd,lockd sunrpc 569344 13 nfsd,auth_rpcgss,lockd md_mod 53248 3 nct6775 24576 0 nct6775_core 65536 1 nct6775 hwmon_vid 16384 1 nct6775 efivarfs 16384 1 ip6table_filter 16384 1 ip6_tables 28672 1 ip6table_filter iptable_filter 16384 1 ip_tables 28672 2 iptable_filter,iptable_nat x_tables 45056 10 ip6table_filter,xt_conntrack,iptable_filter,xt_tcpudp,xt_addrtype,xt_nat,ip6_tables,ip_tables,iptable_nat,xt_MASQUERADE af_packet 49152 2 8021q 32768 0 garp 16384 1 8021q mrp 16384 1 8021q stp 16384 2 bridge,garp llc 16384 3 bridge,stp,garp ipv6 532480 271 bridge,br_netfilter,udp_diag igb 192512 0 r8169 81920 0 realtek 24576 1 i915 2441216 1 iosf_mbi 16384 1 i915 drm_buddy 16384 1 i915 ttm 73728 1 i915 drm_display_helper 135168 1 i915 drm_kms_helper 159744 2 drm_display_helper,i915 x86_pkg_temp_thermal 16384 0 i2c_i801 24576 0 intel_powerclamp 16384 0 wmi_bmof 16384 0 coretemp 16384 0 kvm_intel 266240 0 kvm 958464 1 kvm_intel crct10dif_pclmul 16384 1 crc32_pclmul 16384 0 crc32c_intel 24576 0 ghash_clmulni_intel 16384 0 aesni_intel 380928 0 crypto_simd 16384 1 aesni_intel cryptd 24576 2 crypto_simd,ghash_clmulni_intel intel_cstate 20480 0 intel_uncore 200704 0 i2c_smbus 16384 1 i2c_i801 drm 475136 6 drm_kms_helper,drm_display_helper,drm_buddy,i915,ttm nvme 49152 1 ahci 45056 4 intel_gtt 24576 1 i915 i2c_algo_bit 16384 2 igb,i915 agpgart 40960 2 intel_gtt,ttm libahci 40960 1 ahci nvme_core 106496 2 nvme i2c_core 86016 8 drm_kms_helper,i2c_algo_bit,igb,drm_display_helper,i2c_smbus,i2c_i801,i915,drm syscopyarea 16384 1 drm_kms_helper sysfillrect 16384 1 drm_kms_helper sysimgblt 16384 1 drm_kms_helper fb_sys_fops 16384 1 drm_kms_helper thermal 20480 0 wmi 28672 2 nct6775,wmi_bmof fan 16384 0 tpm_crb 16384 0 tpm_tis 16384 0 tpm_tis_core 20480 1 tpm_tis video 53248 1 i915 tpm 73728 3 tpm_tis,tpm_crb,tpm_tis_core backlight 20480 4 video,drm_display_helper,i915,drm acpi_pad 24576 0 acpi_tad 16384 0 button 20480 0 unix 53248 497 root@UNRAID1:~# Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 6 minutes ago, Presjar said: Export from ssh Please read the comment carefully it mentions to do this in on line and not as two separate commands: modprobe it87 ignore_resource_conflict=1 Please post the output again after issuing the command and also the output from: lsmod EDIT: Please forget that, you have a NCT chip on your Motherboard, so this driver won't help. You can however pass: acpi_enforce_resources=lax to your syslinux.config, but please be aware that this command can damage your hardware in very rare cases and I'm not a big fan from it. Should look like this: Please reboot afterwards and see if it changes anything. Quote Link to comment

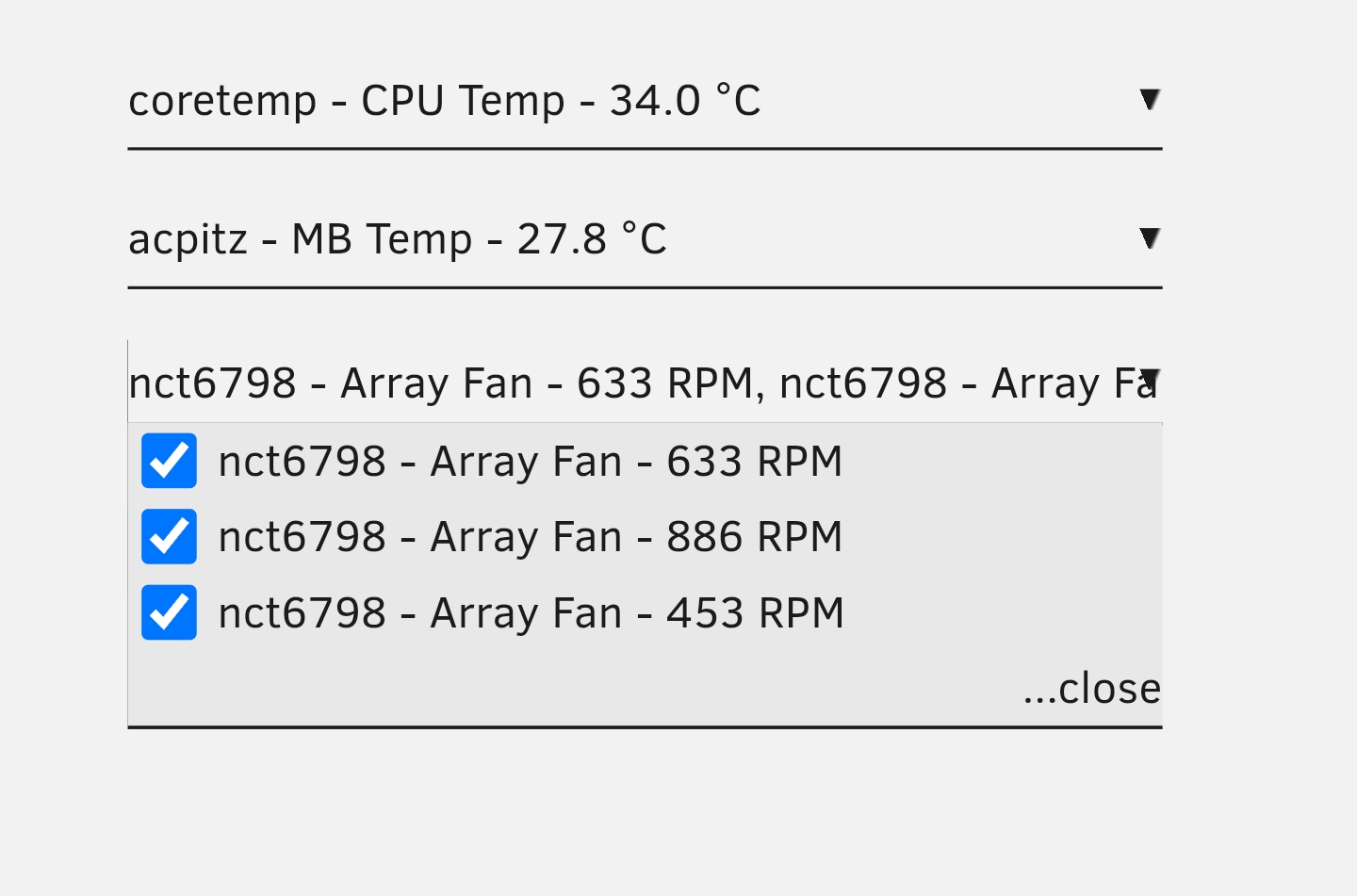

Presjar Posted November 2, 2022 Share Posted November 2, 2022 8 hours ago, ich777 said: You can however pass: acpi_enforce_resources=lax That has allowed me to see NTC6798 Fan arrays. Do you know why 'lax' is required to be set to view this device? Now we know it is a 6798, can this is achieved a different way with less hardware risk? Quote Link to comment
ich777 Posted November 2, 2022 Author Share Posted November 2, 2022 32 minutes ago, Presjar said: Now we know it is a 6798, can this is achieved a different way with less hardware risk? Sadly enough no. Quote Link to comment
