Unraid 4 ethX ports binding and unifi switch link aggregation

[DivideBy0]

I have a 16 port unifi switch. I did set the Unraid and the switch correctly and when I do a iperf3 test I only get 1Gb which is normal. The box I am running the test from only have a 1G interface so I don;t expect to see more than 1G   How do I test if the link bond is done properly?

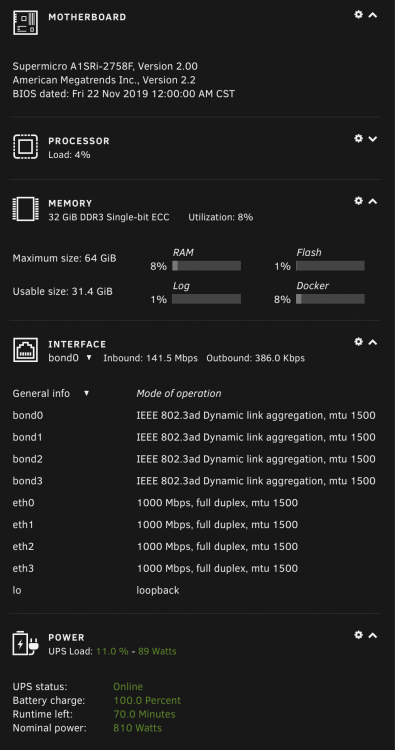

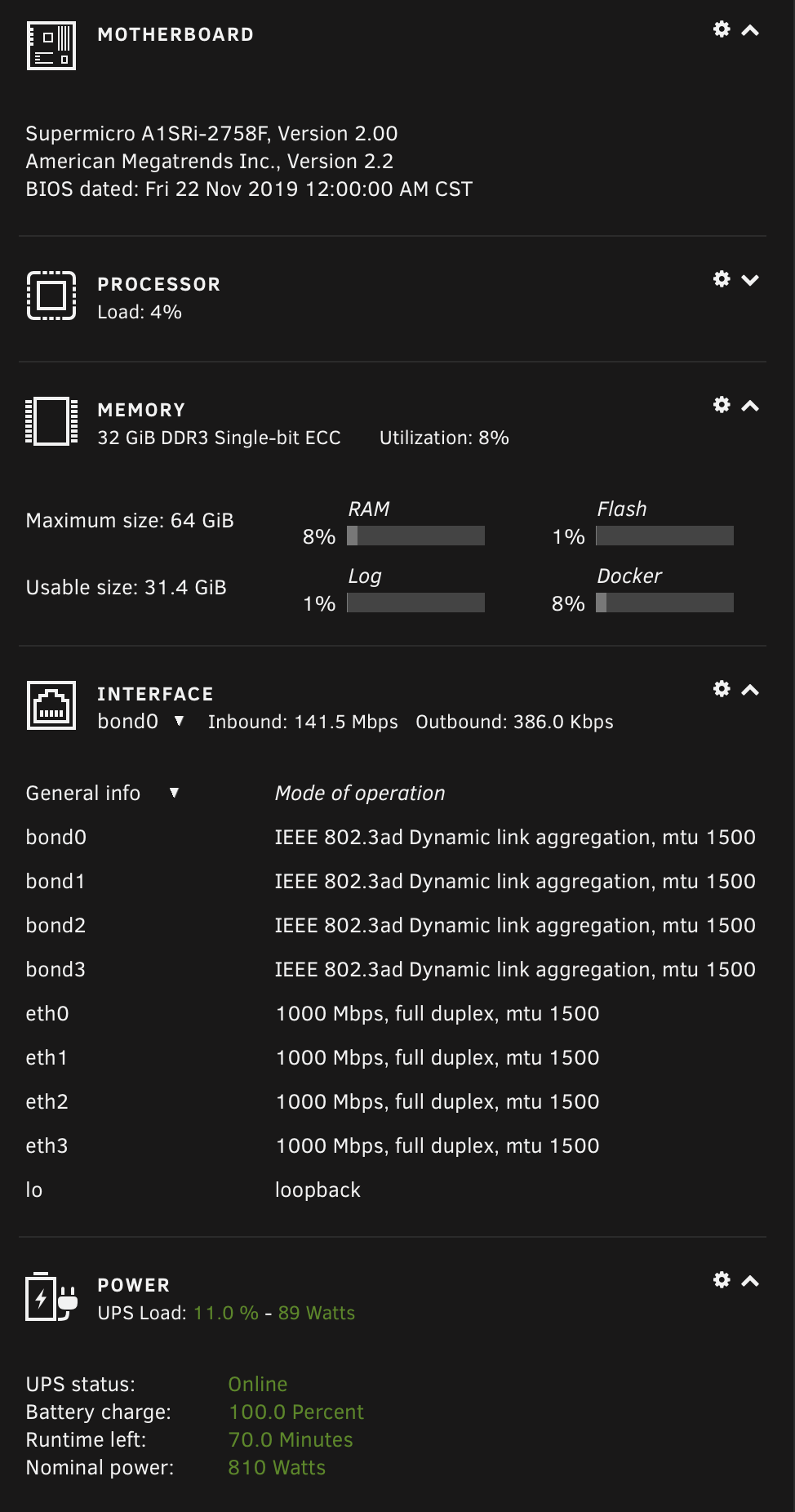

Here is what I see in my unraid box.   Does it look right?  How can I test it and ensure it works properly?





eXiled:~ root# iperf3 -c 192.168.0.12

Connecting to host 192.168.0.12, port 5201

[ 4] local 192.168.0.2 port 50351 connected to 192.168.0.12 port 5201

[ ID] Interval Transfer Bandwidth

[ 4] 0.00-1.00 sec 114 MBytes 956 Mbits/sec

[ 4] 1.00-2.00 sec 112 MBytes 940 Mbits/sec

[ 4] 2.00-3.00 sec 112 MBytes 940 Mbits/sec

[ 4] 3.00-4.00 sec 112 MBytes 940 Mbits/sec

[ 4] 4.00-5.00 sec 112 MBytes 940 Mbits/sec

[ 4] 5.00-6.00 sec 112 MBytes 940 Mbits/sec

[ 4] 6.00-7.00 sec 112 MBytes 940 Mbits/sec

[ 4] 7.00-8.00 sec 112 MBytes 940 Mbits/sec

[ 4] 8.00-9.00 sec 112 MBytes 940 Mbits/sec

[ 4] 9.00-10.00 sec 112 MBytes 940 Mbits/sec

- - - - - - - - - - - - - - - - - - - - - - - - -

[ ID] Interval Transfer Bandwidth

[ 4] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec sender

[ 4] 0.00-10.00 sec 1.09 GBytes 940 Mbits/sec receiver
