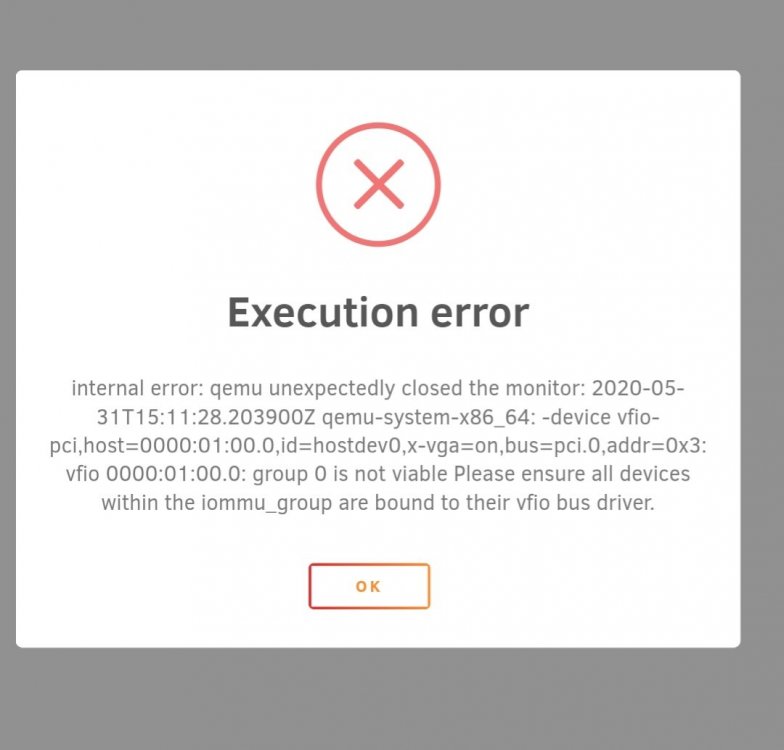

Execution erroe /I am willing to pay for someone to help me


Recommended Posts

Posted

 new to unraid

 I have submitted problem with GPU


 I always get this missing

My GPU rx570 Gigabyte

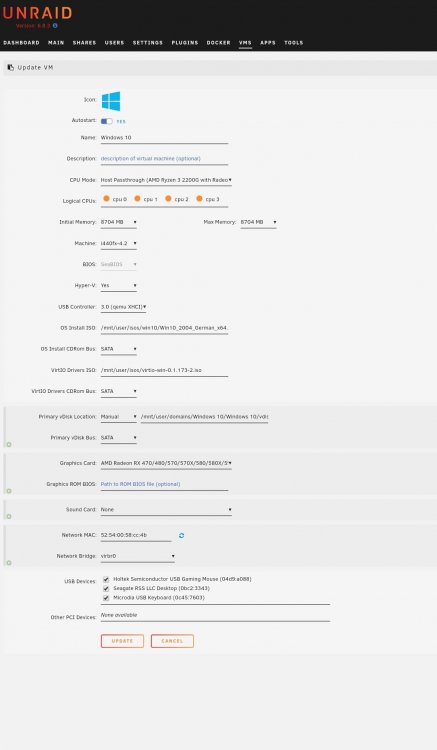

 And my XML

___________________________________

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Windows 10</name>
  <uuid>c607d42b-a01a-c11a-0520-6d0dcac5d7db</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>8912896</memory>
  <currentMemory unit='KiB'>8912896</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-4.2'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='4' threads='1'/>
    <cache mode='passthrough'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/win10/Win10_2004_German_x64.iso'/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.173-2.iso'/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Windows 10/Windows 10/vdisk1.img'/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='sata' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='qemu-xhci' ports='15'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:58:cc:4b'/>
      <source bridge='virbr0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='4'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <hostdev mode='subsystem' type='pci' managed='yes' xvga='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x04d9'/>
        <product id='0xa088'/>
      </source>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x0bc2'/>
        <product id='0x3343'/>
      </source>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x0c45'/>
        <product id='0x7603'/>
      </source>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
</domain>
______________________________





Posted

Two things you can try



1. You have not passed the sound portion of your GPU through. You really do need to select the GPOU sound device, even if you're not going to use it.

2 You need to post your IOMMU groupings to help diagnosis. (Tools -> System Devices)

Posted
33 minutes ago, meep said:

Two things you can try



1. You have not passed the sound portion of your GPU through. You really do need to select the GPOU sound device, even if you're not going to use it.

2 You need to post your IOMMU groupings to help diagnosis. (Tools -> System Devices)

I activated sound but I always get errors


I found this in (Tools -> System Devices)



PCI Devices and IOMMU Groups

IOMMU group 0:[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge

[1022:15d3] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 PCIe GPP Bridge [6:0]

[1022:15d3] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 PCIe GPP Bridge [6:0]

[1002:67df] 01:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere [Radeon RX 470/480/570/570X/580/580X/590] (rev ef)

[1002:aaf0] 01:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Ellesmere HDMI Audio [Radeon RX 470/480 / 570/580/590]

[1022:43bc] 02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43bc (rev 02)

[1022:43b8] 02:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b8 (rev 02)

[1022:43b3] 02:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b3 (rev 02)

[1022:43b4] 03:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)

[1022:43b4] 03:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)

[1022:43b4] 03:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)

[1022:43b4] 03:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)

[10ec:8168] 07:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 0c)

IOMMU group 1:[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-1fh) PCIe Dummy Host Bridge

[1022:15db] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Internal PCIe GPP Bridge 0 to Bus A

[1022:15dc] 00:08.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Internal PCIe GPP Bridge 0 to Bus B

[1022:145a] 08:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Zeppelin/Raven/Raven2 PCIe Dummy Function (rev c8)

[1022:15df] 08:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) Platform Security Processor

[1022:15e0] 08:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Raven USB 3.1

[1022:15e1] 08:00.4 USB controller: Advanced Micro Devices, Inc. [AMD] Raven USB 3.1

[1022:15e3] 08:00.6 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 10h-1fh) HD Audio Controller

[1022:7901] 09:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 61)

IOMMU group 2:[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61)

[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)

IOMMU group 3:[1022:15e8] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 0

[1022:15e9] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 1

[1022:15ea] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 2

[1022:15eb] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 3

[1022:15ec] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 4

[1022:15ed] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 5

[1022:15ee] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 6

[1022:15ef] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Raven/Raven2 Device 24: Function 7



CPU Thread Pairings

Single:cpu 0

Single:cpu 1

Single:cpu 2

Single:cpu 3



USB Devices

Bus 001 Device 001:ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 001 Device 002:ID 0c45:7603 Microdia USB Keyboard

Bus 001 Device 003:ID 04d9:a088 Holtek Semiconductor, Inc. USB Gaming Mouse

Bus 002 Device 001:ID 1d6b:0003 Linux Foundation 3.0 root hub

Bus 003 Device 001:ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 004 Device 001:ID 1d6b:0003 Linux Foundation 3.0 root hub

Bus 004 Device 002:ID 0781:5591 SanDisk Corp. Ultra Flair

Bus 005 Device 001:ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 006 Device 001:ID 1d6b:0003 Linux Foundation 3.0 root hub

Posted

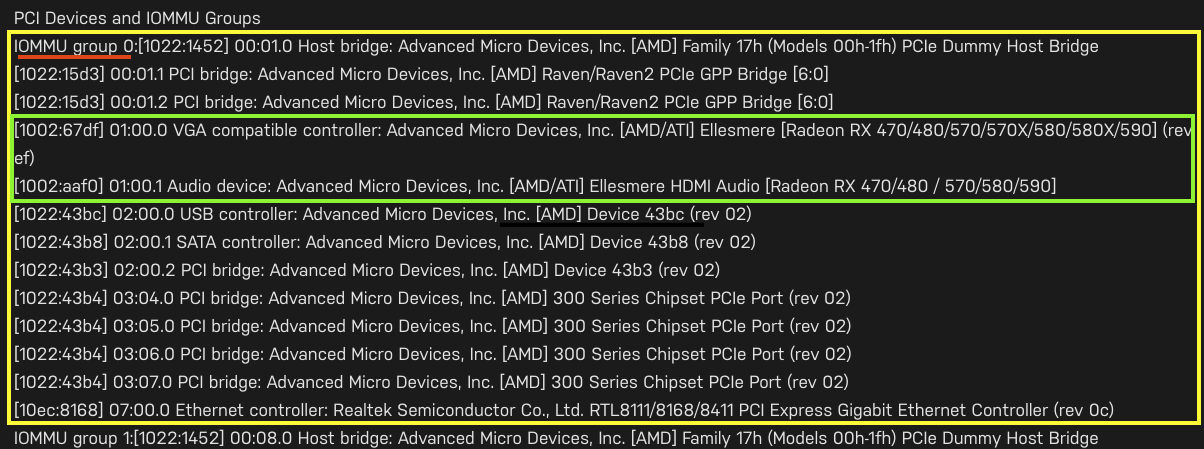

So here's your problem. Your GPU (video and audio) are stacked inside IOMMU group 0 with a bunch of other devices.





Your passthrough devices are in the green box, but, as you can see, they are in the same group (yellow box) as lots of others.



You need to switch on IOMMU in the Bios and play with the  ACS override options (Settings -> VM Manager)

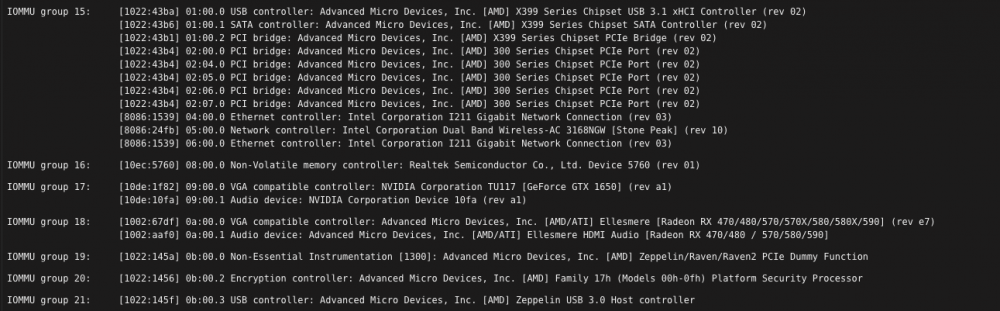

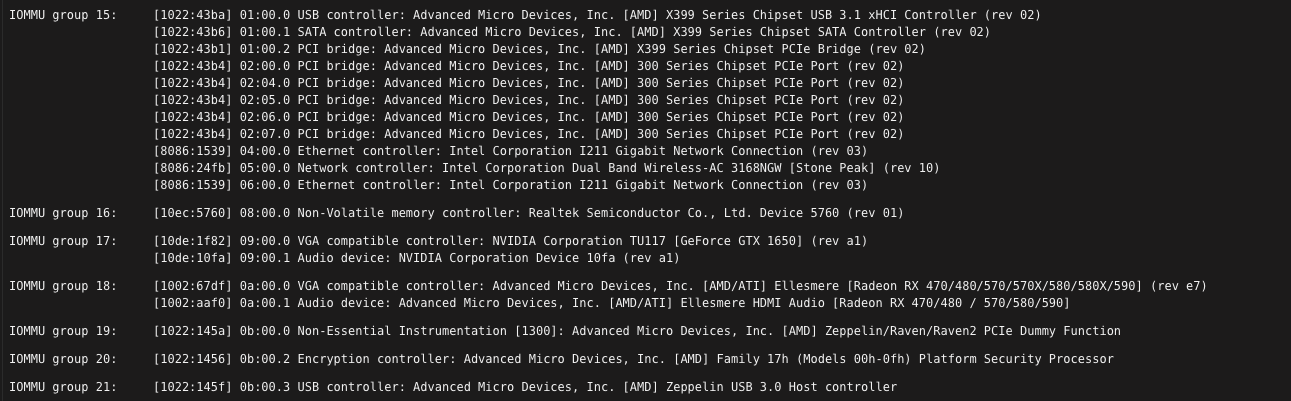

Any PCI/PCIe device you want to pass through to a VM MUST be isolated in its own IOMMU group. Here's an example from my own systems devices;



1649166402_Screenshot2020-05-31at19_21_04.thumb.png.c44afb4dd86fa37fa5ef102beb030a70.png



You can see that my Nvidia and AMD GPUs have the video and audio devices correctly paired inside discrete IOMMU groups (17 & 18). This is the kind of listing you need before you can start passing through anything to VMs.



Have you watched any of the SpaceInvaderOne videos on YouTube which go through all of this in very fine detail?
