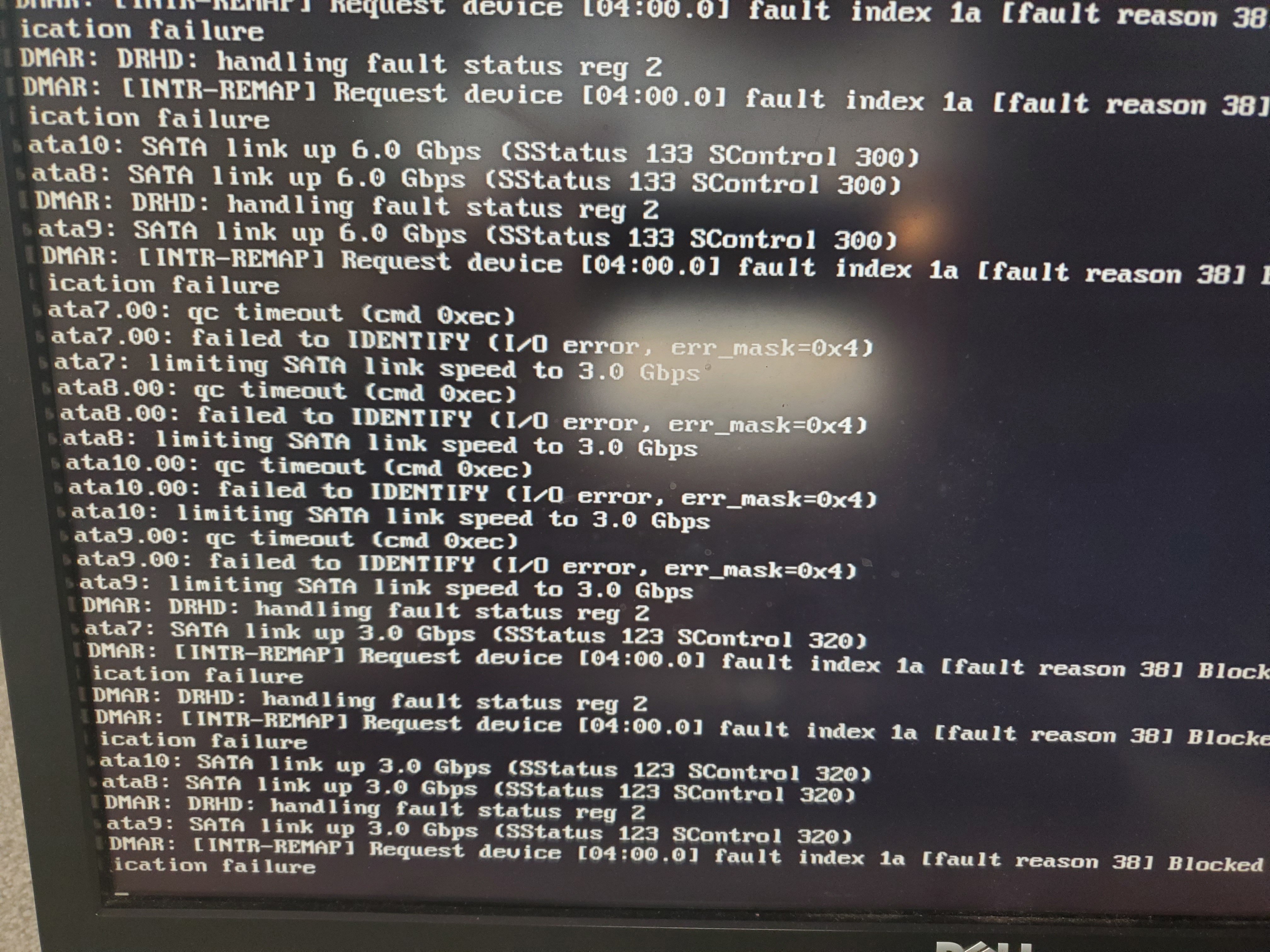

nimaim Posted June 3, 2020 Posted June 3, 2020 (edited) I think this has more to do with hardware incompatibility than unraid, but here it goes: I have an Intel DQ77MK mobo (Q77 chipset, basically server grade Z77) with 10 drives (ultimately it'll become 12 once I add another SSD for cache pool, and an extra parity drive). Long story short, with a GPU (1660 Ti) installed for PLEX, the only other ports I had available for a SATA expander were a PCIe x4 or x1. That basically ruled out any usable LSI SAS cards which are mostly x8 for their 8 port variants so I went with this Syba card instead: https://www.sybausa.com/index.php?route=product/product&product_id=1006 model SI-PEX40137. BIOS recognizes all my drives just fine as well as Windows 10 with VT-D on, but as soon as I boot Unraid or Mint, the kernel freaks with the errors shown in the dmesg output. I took a screenshot and can go back and post the full kernel buffer later; it's initializing my parity at the moment, and I'm a bit worried re-enabling it would screw up my array. Once booted with it on, only half the drives end up being shown. As soon as I turn VT-D off in the BIOS, no more errors and the kernel boots much faster. I guess I don't absolutely need VT-D, but it's one of the reasons I bought this board. Any thoughts? Clearly, it does not like the card but Windows seems to do just fine with it (it does have proper Marvell drivers though). Thanks. Edited June 3, 2020 by nimaim Quote
JorgeB Posted June 3, 2020 Posted June 3, 2020 It's a known issue with Marvell controllers, this works sometimes. Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 Thanks! I'll try those suggestions. Sorry, I completely missed the old topic. Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 EDIT: No go for me .. doesn't looks like the kernel likes the card at all, which sucks because Windows handles it just fine. Time to find another solution for the 8 data drives since I feel I will definitely need GPU passthrough (VT-D enabled) for a Plex container. Is it even worth continuing the initialization of the parity drive since all the drive assignments will change with a new card, or should I just let it finish? Also, any suggestions for an x1 or x4 card that will reliably work with 8 drives in unraid? Again, all LSI SAS 8 port cards are x8 so that's out of the question. Quote
JorgeB Posted June 3, 2020 Posted June 3, 2020 AFAIK there are no good x4 8port controller options. Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 (edited) 24 minutes ago, johnnie.black said: AFAIK there are no good x4 8port controller options. Yea I've looked all over ... this seems to be accurate. There is one very roundabout way to do it with SAS cards though, which is to pair a LSI 9211-4i variant card (the only x4 SAS card out) with a SAS expander powered externally with a riser card (PITA but may be my only solution at this point without tearing apart my current set up). Figured it was worth sharing: .. Edited June 3, 2020 by nimaim Quote
Michael_P Posted June 3, 2020 Posted June 3, 2020 The RES2SV240 can be powered with a 4 pin molex connector Quote
JorgeB Posted June 3, 2020 Posted June 3, 2020 4 minutes ago, nimaim said: There is one very roundabout way to do it with SAS cards though, which is to pair a LSI 9211-4i variant card (the only x4 SAS card out) with a SAS expander Yes, that's a possibility, I have a couple of those, and at one time had one of those connected to 32 disks with an expander. Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 (edited) 25 minutes ago, Michael_P said: The RES2SV240 can be powered with a 4 pin molex connector Interesting... that is definitely a cleaner solution. Have you used this? Any idea if that will work with a 9211 4i? Is the PCI-E port on it just used for power or do you need another spare PCI-E port on ur mobo for this? I assume molex is the alternate way to power this (or is it in addition to?) Edited June 3, 2020 by nimaim Quote
Michael_P Posted June 3, 2020 Posted June 3, 2020 I have one in my system, it's either or - can be powered by PCIE or Molex - mine runs happily on the molex. Should work with the 9211, it's a single or dual link expander 1 Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 Thanks @Michael_P. Never even heard of this card so appreciate your recommendation. Got one on the way. I'll have to find some nifty way of mounting this thing in my Node 804. Definitely a cleaner solution than the PCI-E riser/extender option. What a PITA just to get a bunch of drives working. Quote

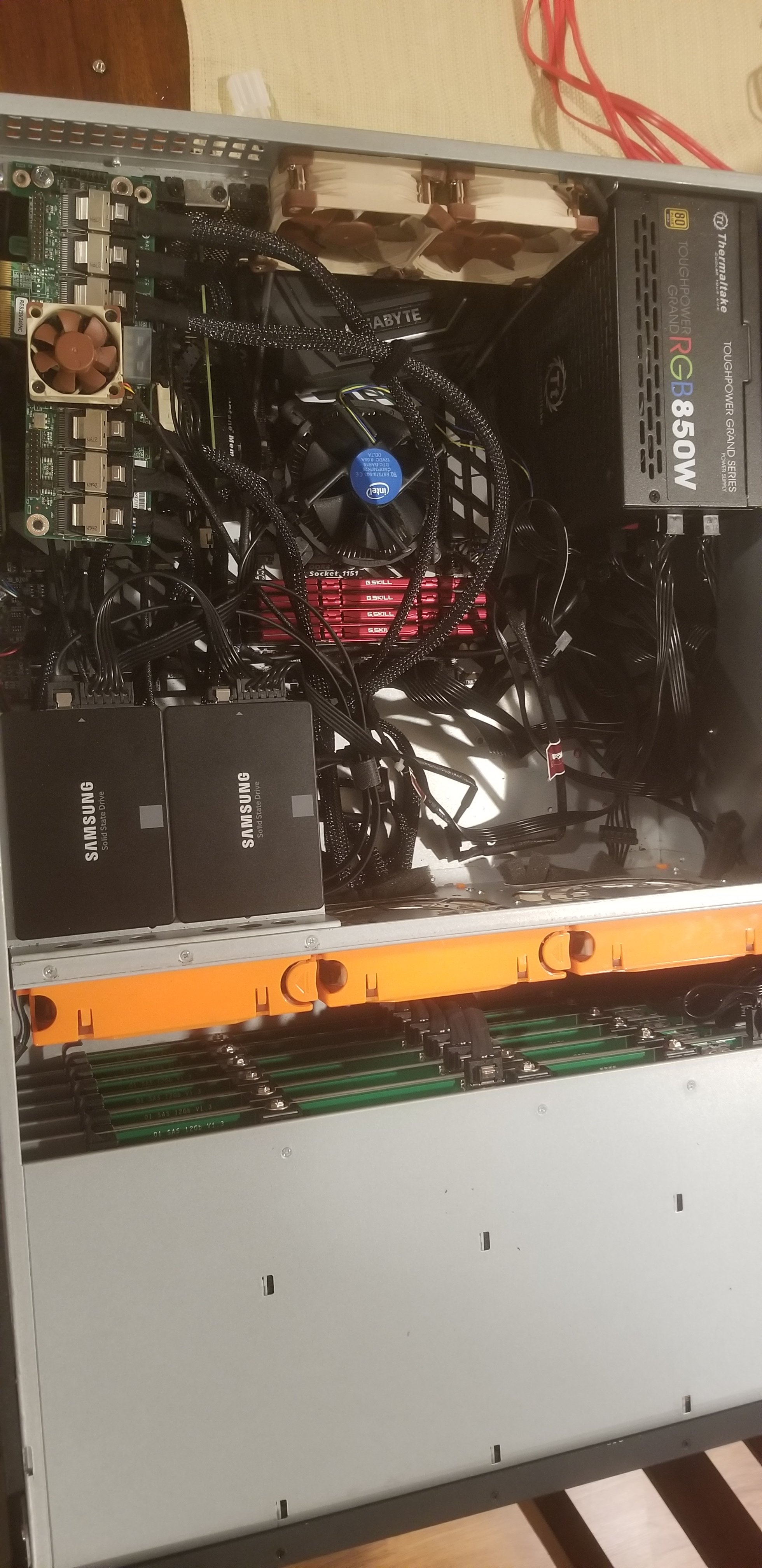

Michael_P Posted June 3, 2020 Posted June 3, 2020 3 minutes ago, nimaim said: @Michael_P. Never even heard of this card so appreciate your recommendation. Got one on the way. I'll have to find some nifty way of mounting this thing in my Node 804. I mounted mine on top of the PCI slots Quote

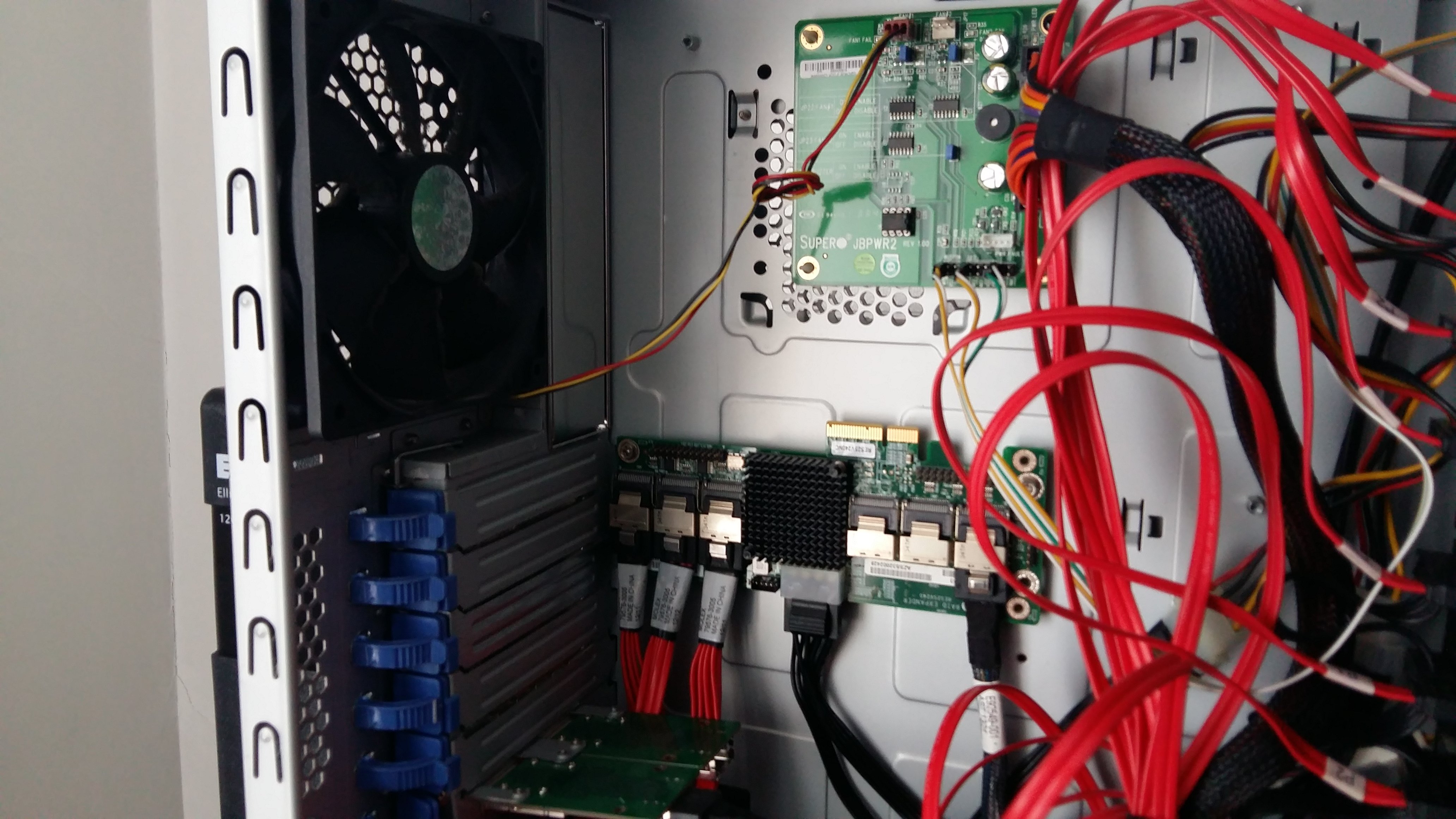

JorgeB Posted June 3, 2020 Posted June 3, 2020 You jus need to fix it somewhere on the chassis, I was using one on a JBOD recently: Quote
nimaim Posted June 3, 2020 Author Posted June 3, 2020 (edited) @Michael_P Great minds think alike, that was exactly my idea. Pretty sure I will never use the PCI slot. I'm a 3d printer hobbyist so going to design a PCI bracketed "tray" that I can screw in and zip tie this board around. @johnnie.black if only i had that much room in my chassis, lol. It's a miracle any small consumer case (microATX at that) fits like 12 drives as it is. The Node 804 is dual chamber so maybe can mount that card on the HDD cage side, but it's pushing it. Edited June 3, 2020 by nimaim Quote
nimaim Posted June 5, 2020 Author Posted June 5, 2020 On 6/3/2020 at 2:17 PM, Michael_P said: I mounted mine on top of the PCI slots What size Noctua fan do you have mounted on the chip? Quote
Michael_P Posted June 5, 2020 Posted June 5, 2020 40x40x10 - have one on each of the HBAs, too 1 Quote
nimaim Posted June 6, 2020 Author Posted June 6, 2020 @johnnie.black Side question on the same topic, while I'm waiting for my expander to come in, can I still set up my disks with this Syba card and VT-D disabled? Or not recommended as the SAS card will reassign these drives? It'd be nice to have everything ready to go once it comes in since parity drive initialization takes a full day. Quote
JorgeB Posted June 6, 2020 Posted June 6, 2020 4 minutes ago, nimaim said: can I still set up my disks with this Syba card and VT-D disabled? It should be mostly fine with VT-d disable, but they are also known for sometimes dropping disks without a reason, though they work more or less reliable for some, I would say it should be low risk to use for a little while. Quote
nimaim Posted June 6, 2020 Author Posted June 6, 2020 ^ Thanks, I'll give it a shot! The card / drives seemed stable enough when I had VT-D disabled. Quote
nimaim Posted June 22, 2020 Author Posted June 22, 2020 (edited) Wow I got screwed on two cards on Ebay and finally got a RES2SV240 that works. First seller sent the completely wrong card, second one I went with a cheaper IBM SAS expander I was going to power off a riser card and that ended up being a fake. Did a test run with Molex power on this third one and works well, other than it getting insanely hot in just 15-20 minutes of starting the parity sync. @Michael_P I'm guessing for the fan, you took the heatsink off, put a thermal pad and then the fan? Edited June 22, 2020 by nimaim Quote
Michael_P Posted June 23, 2020 Posted June 23, 2020 Yeah, that's the problem with Ebay, Amazon too sometimes. I had good luck with my HBAs on Ebay, but got my expander from Newegg 14 hours ago, nimaim said: @Michael_P I'm guessing for the fan, you took the heatsink off, put a thermal pad and then the fan? I just slapped the fan on top. Wasn't terribly concerned with heat, just figured couldn't hurt to have a bit of air on it. If I see a heat sink, I have a compulsion to slap a fan on it. Quote
nimaim Posted June 25, 2020 Author Posted June 25, 2020 Thanks! Looks like the H110 (9211-4i) + RES2SV240 SAS expander is a good solution to get ~20 disks working off a single PCie x4 port. Limited bandwidth of course but more than enough for mechanical drives. Highly recommend this over the Marvell garbage. Quote
