[Support]: Intel iGPU Utilization Stats into InfluxDB for use with Grafana - intel-gpu-telegfraf

TheBrian · June 4, 2020

Hi all,

I figured I would share the container I put together, maybe someone else will find it useful.

The goal: See the utilization of the Intel iGPU in my Grafana dashboard.

The how: Create a container running a tiny script to manipulate the output of intel_gpu_top and have Telegraf send it to a InfluxDB instance.

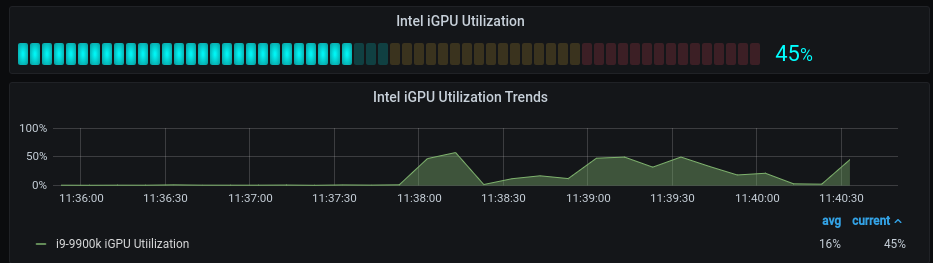

The result:

Docker template repo to add to your Unraid repo list: https://github.com/brianmiller/docker-templates (the container is called 'intel-gpu-telegraf')

Docker Hub repo: https://hub.docker.com/r/theoriginalbrian/intel-gpu-telegraf

Docker GitHub: https://github.com/brianmiller/docker-intel-gpu-telegraf

Currently, the container looks for the "Video/0" engine within the iGPU. If there's a desire to pull this into the Unraid template UI and make it editable, let me know. It shouldn't be difficult too do.

-Brian

Edited June 5, 2020 by TheBrian
add screenshot

Freender · June 20, 2020

Thanks Brian! This is exactly what I was looking for.

I have added a couple of screenshots in case somebody like me is strangling to make it work with grafana:

TheBrian · June 29, 2020

Very cool! It's great seeing someone else can use it.

Thanks for the Grafana adds. If you don't mind, I may add some of these details to the main post and Docker page.

You discovered I'm using the "exec" function of Telegraf.

-Brian

tronyx · November 17, 2020

This is awesome! Thanks so much for putting it together. I don't suppose you'd be willing to share your dashboard for this for easy replication of the above panels?

Edited November 17, 2020 by tronyx
It's too early for my brain to work.

CS01-HS · November 23, 2020

I may be an edge case but in beta35 this (very handy) docker fills up my syslog with the following error until the system's overloaded.

Nov 23 10:00:10 NAS kernel: bad: scheduling from the idle thread!
Nov 23 10:00:10 NAS kernel: CPU: 0 PID: 0 Comm: swapper/0 Not tainted 5.8.18-Unraid #1
Nov 23 10:00:10 NAS kernel: Hardware name: To Be Filled By O.E.M. To Be Filled By O.E.M./J5005-ITX, BIOS P1.40 08/06/2018
Nov 23 10:00:10 NAS kernel: Call Trace:
Nov 23 10:00:10 NAS kernel: dump_stack+0x6b/0x83
Nov 23 10:00:10 NAS kernel: dequeue_task_idle+0x21/0x2a
Nov 23 10:00:10 NAS kernel: __schedule+0x135/0x49e
Nov 23 10:00:10 NAS kernel: ? __mod_timer+0x215/0x23c
Nov 23 10:00:10 NAS kernel: schedule+0x77/0xa0
Nov 23 10:00:10 NAS kernel: schedule_timeout+0xa7/0xe0
Nov 23 10:00:10 NAS kernel: ? __next_timer_interrupt+0xaf/0xaf
Nov 23 10:00:10 NAS kernel: msleep+0x13/0x19
Nov 23 10:00:10 NAS kernel: pci_raw_set_power_state+0x185/0x257
Nov 23 10:00:10 NAS kernel: pci_restore_standard_config+0x35/0x3b
Nov 23 10:00:10 NAS kernel: pci_pm_runtime_resume+0x29/0x7b
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: __rpm_callback+0x6b/0xcf
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: rpm_callback+0x50/0x66
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: rpm_resume+0x2e2/0x3d6
Nov 23 10:00:10 NAS kernel: ? __schedule+0x47d/0x49e
Nov 23 10:00:10 NAS kernel: __pm_runtime_resume+0x55/0x71
Nov 23 10:00:10 NAS kernel: __intel_runtime_pm_get+0x15/0x4a [i915]
Nov 23 10:00:10 NAS kernel: i915_pmu_enable+0x53/0x147 [i915]
Nov 23 10:00:10 NAS kernel: i915_pmu_event_add+0xf/0x20 [i915]
Nov 23 10:00:10 NAS kernel: event_sched_in+0xd3/0x18f
Nov 23 10:00:10 NAS kernel: merge_sched_in+0xb4/0x1de
Nov 23 10:00:10 NAS kernel: visit_groups_merge.constprop.0+0x174/0x3ad
Nov 23 10:00:10 NAS kernel: ctx_sched_in+0x11e/0x13e
Nov 23 10:00:10 NAS kernel: perf_event_sched_in+0x49/0x6c
Nov 23 10:00:10 NAS kernel: ctx_resched+0x6d/0x7c
Nov 23 10:00:10 NAS kernel: __perf_install_in_context+0x117/0x14b
Nov 23 10:00:10 NAS kernel: remote_function+0x19/0x43
Nov 23 10:00:10 NAS kernel: flush_smp_call_function_queue+0x103/0x1a4
Nov 23 10:00:10 NAS kernel: flush_smp_call_function_from_idle+0x2f/0x3a
Nov 23 10:00:10 NAS kernel: do_idle+0x20f/0x236
Nov 23 10:00:10 NAS kernel: cpu_startup_entry+0x18/0x1a
Nov 23 10:00:10 NAS kernel: start_kernel+0x4af/0x4d1
Nov 23 10:00:10 NAS kernel: secondary_startup_64+0xa4/0xb0

Lunz_ · December 1, 2020

That was exactly the plugin I was looking for many thanks !

Just a note to maybe add an env for influx_username (for Auth) as my existing DB required influx_password AND username.

I modified directly the telegraf.conf but would be a great addition for other users.

Thanks Again !

TheBrian · December 4, 2020

On 11/17/2020 at 4:06 AM, tronyx said:

This is awesome! Thanks so much for putting it together. I don't suppose you'd be willing to share your dashboard for this for easy replication of the above panels?

Certainly! I'll see if I can update the GitHub with the dashboards I use. I'll link them here when I get them uploaded.

TheBrian · December 4, 2020

On 12/1/2020 at 12:46 PM, Lunz_ said:

That was exactly the plugin I was looking for many thanks !

Just a note to maybe add an env for influx_username (for Auth) as my existing DB required influx_password AND username.

I modified directly the telegraf.conf but would be a great addition for other users.

Thanks Again !

This should be easy enough. I'll take a look.

TheBrian · December 4, 2020

On 11/23/2020 at 8:38 AM, CS01-HS said:

I may be an edge case but in beta35 this (very handy) docker fills up my syslog with the following error until the system's overloaded.


Nov 23 10:00:10 NAS kernel: bad: scheduling from the idle thread!
Nov 23 10:00:10 NAS kernel: CPU: 0 PID: 0 Comm: swapper/0 Not tainted 5.8.18-Unraid #1
Nov 23 10:00:10 NAS kernel: Hardware name: To Be Filled By O.E.M. To Be Filled By O.E.M./J5005-ITX, BIOS P1.40 08/06/2018
Nov 23 10:00:10 NAS kernel: Call Trace:
Nov 23 10:00:10 NAS kernel: dump_stack+0x6b/0x83
Nov 23 10:00:10 NAS kernel: dequeue_task_idle+0x21/0x2a
Nov 23 10:00:10 NAS kernel: __schedule+0x135/0x49e
Nov 23 10:00:10 NAS kernel: ? __mod_timer+0x215/0x23c
Nov 23 10:00:10 NAS kernel: schedule+0x77/0xa0
Nov 23 10:00:10 NAS kernel: schedule_timeout+0xa7/0xe0
Nov 23 10:00:10 NAS kernel: ? __next_timer_interrupt+0xaf/0xaf
Nov 23 10:00:10 NAS kernel: msleep+0x13/0x19
Nov 23 10:00:10 NAS kernel: pci_raw_set_power_state+0x185/0x257
Nov 23 10:00:10 NAS kernel: pci_restore_standard_config+0x35/0x3b
Nov 23 10:00:10 NAS kernel: pci_pm_runtime_resume+0x29/0x7b
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: __rpm_callback+0x6b/0xcf
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: rpm_callback+0x50/0x66
Nov 23 10:00:10 NAS kernel: ? pci_pm_default_resume+0x1e/0x1e
Nov 23 10:00:10 NAS kernel: rpm_resume+0x2e2/0x3d6
Nov 23 10:00:10 NAS kernel: ? __schedule+0x47d/0x49e
Nov 23 10:00:10 NAS kernel: __pm_runtime_resume+0x55/0x71
Nov 23 10:00:10 NAS kernel: __intel_runtime_pm_get+0x15/0x4a [i915]
Nov 23 10:00:10 NAS kernel: i915_pmu_enable+0x53/0x147 [i915]
Nov 23 10:00:10 NAS kernel: i915_pmu_event_add+0xf/0x20 [i915]
Nov 23 10:00:10 NAS kernel: event_sched_in+0xd3/0x18f
Nov 23 10:00:10 NAS kernel: merge_sched_in+0xb4/0x1de
Nov 23 10:00:10 NAS kernel: visit_groups_merge.constprop.0+0x174/0x3ad
Nov 23 10:00:10 NAS kernel: ctx_sched_in+0x11e/0x13e
Nov 23 10:00:10 NAS kernel: perf_event_sched_in+0x49/0x6c
Nov 23 10:00:10 NAS kernel: ctx_resched+0x6d/0x7c
Nov 23 10:00:10 NAS kernel: __perf_install_in_context+0x117/0x14b
Nov 23 10:00:10 NAS kernel: remote_function+0x19/0x43
Nov 23 10:00:10 NAS kernel: flush_smp_call_function_queue+0x103/0x1a4
Nov 23 10:00:10 NAS kernel: flush_smp_call_function_from_idle+0x2f/0x3a
Nov 23 10:00:10 NAS kernel: do_idle+0x20f/0x236
Nov 23 10:00:10 NAS kernel: cpu_startup_entry+0x18/0x1a
Nov 23 10:00:10 NAS kernel: start_kernel+0x4af/0x4d1
Nov 23 10:00:10 NAS kernel: secondary_startup_64+0xa4/0xb0

I'm glad it's useful. I haven't seen these errors before. Did they start after you installed the intel-gpu-telegraf container or after the upgrade of unraid?

CS01-HS · December 4, 2020

12 minutes ago, TheBrian said:

I'm glad it's useful. I haven't seen these errors before. Did they start after you installed the intel-gpu-telegraf container or after the upgrade of unraid?

I upgraded to beta35 then installed intel-gpu-telegraf for the first time. I'll try again and report back

CS01-HS · December 6, 2020

I managed to cause the same error (and freeze my server) playing around with intel_gpu_top in the intel-gpu-tools container so my problem's at a lower level, your container's fine.

CS01-HS · January 8, 2021

On 12/6/2020 at 8:47 AM, CS01-HS said:

I managed to cause the same error (and freeze my server) playing around with intel_gpu_top in the intel-gpu-tools container so my problem's at a lower level, your container's fine.

After several freezes (which caused unclean shutdowns) in Handbrake using the hardware encoder and also with monitoring, and random corrupted encodes, I got my machine stable with the following changes:

Added intel_iommu=on,igfx_off to syslinux config (this may be optional)
Added a dummy HDMI plug to my headless server (j5005)

It's been stable now for several days despite continuous hardware encoding in Handbrake with no corruption.

tinni88 · February 8, 2021

Hey

This is exactly what I've been looking for but for some reason I'm unable to get it working I'm clearly being thick (been a long few weeks) I've installed the docker but for some reason im getting "[agent] Error writing to outputs.influxdb: could not write any address" any help would be much appreciated

Cheers Tinni

Freender · February 25, 2021

Seems like we should be ready to implement InfluxDB 2.0 support to this container:

jdiacobbo · September 19, 2021

Just got this set up and I believe its working correctly but I would love to see how others have configured Grafana to display the data.

CS01-HS · November 21, 2021

First thanks for this container, very handy.

One suggestion:

I was running batch conversions in HandBrake and couldn't figure out why my iGPU wasn't fully utilized:

It turns out it was but it was maxing out 3D render load (95%) and the reporting script (get_intel_gpu_status.sh) grabs video load (9%):

So I tweaked the script to grab whatever's highest:

#!/bin/bash

#This is so messy...

#Beat intel_gpu_top into submission
JSON=$(/usr/bin/timeout -k 3 3 /usr/bin/intel_gpu_top -J)
VIDEO_UTIL=$(echo "$JSON"|grep "busy"|sort|tail -1|cut -d ":" -f2|cut -d "," -f1|cut -d " " -f2)

#Spit out something telegraf can work with
echo "[{\"time\": `date +%s`, \"intel_gpu_util\": "$VIDEO_UTIL"}]"

#Exit cleanly
exit 0

I overwrite the container's version with the following Post Argument, where utils is a new mapped path to the folder containing my tweaked version:

&& docker exec intel-gpu-telegraf sh -c '/usr/bin/cp -f /utils/get_intel_gpu_status.sh /opt/intel-gpu-telegraf/; chmod a+x /opt/intel-gpu-telegraf/get_intel_gpu_status.sh'

(Full path to cp is necessary because cp is aliased to cp -i)

Now the display reflects full utilization:

mishmash- · January 1, 2022

getting a strange error when trying this container:

2022-01-01T14:21:20Z E! [inputs.exec] Error in plugin: invalid character '}' looking for beginning of value

To try and trace it I decided to map both the telegraf.conf and shell file separately into unraid's folders, this way I can modify both accordingly. Unfortunately I can't work out the cause of the error. All the {} brackets seem to be correctly paired, there are no strays.

Any idea on this one? The conf and shell file are in @TheBrian's github above...

radiolex · April 11, 2022

Hello,

Perhaps I'm doing something wrong, but I can't seem to get it to connect.

I notice that in the Docker tabs, the intel-gpu-telegraf doesn't have any IP address. This is setup as a host network. Is this normal?

Shu · August 24, 2023

On 1/1/2022 at 8:27 AM, mishmash- said:
getting a strange error when trying this container:
2022-01-01T14:21:20Z E! [inputs.exec] Error in plugin: invalid character '}' looking for beginning of value
To try and trace it I decided to map both the telegraf.conf and shell file separately into unraid's folders, this way I can modify both accordingly. Unfortunately I can't work out the cause of the error. All the {} brackets seem to be correctly paired, there are no strays.

Any idea on this one? The conf and shell file are in @TheBrian's github above...

Facing the exact same issue - did you ever find a fix?

mishmash- · September 12, 2023

On 8/24/2023 at 4:45 PM, Shu said:

Facing the exact same issue - did you ever find a fix?

I never managed to trace the issue. I ended up modifying the container slightly to implement in proxmox - I now virtualise unraid and give the iGPU to a plex container in proxmox.

The iGPU is monitored from inside the proxmox plex container. You can see the files here - maybe some mods on your side will help your implementation:

https://sorrento-lab.github.io/9_1_PlexLXC.html

madbuda · July 29

On 8/24/2023 at 10:45 AM, Shu said:

Facing the exact same issue - did you ever find a fix?

Ran into the same issue, looks like the container is 4 years old and does not have a kernel capable or supporting newer gen intel GPU.

I found this fork that works, change the repository to "ghcr.io/freender/docker-intel-gpu-telegraf:master"

github repo https://github.com/freender/docker-intel-gpu-telegraf

Jaycedk · August 2

@madbuda Thank you for posting this fix 👍
