gacpac Posted June 20, 2020 Posted June 20, 2020 (edited) Hi, Today I was doing a test using iperf and noticed how the upload speed from the server doesn't reach 1gb as opposed to the download. Is this happening to anyone else? I set my server as the iperf server for this test. Also tried the speedtest docker and same results. Accepted connection from 172.16.1.66, port 59770 [ 5] local 172.16.1.137 port 5201 connected to 172.16.1.66 port 59771 [ ID] Interval Transfer Bandwidth [ 5] 0.00-1.00 sec 106 MBytes 891 Mbits/sec [ 5] 1.00-2.00 sec 111 MBytes 930 Mbits/sec [ 5] 2.00-3.00 sec 111 MBytes 934 Mbits/sec [ 5] 3.00-4.00 sec 112 MBytes 938 Mbits/sec [ 5] 4.00-5.00 sec 112 MBytes 938 Mbits/sec [ 5] 5.00-6.00 sec 112 MBytes 941 Mbits/sec [ 5] 6.00-7.00 sec 111 MBytes 935 Mbits/sec [ 5] 7.00-8.00 sec 112 MBytes 940 Mbits/sec [ 5] 8.00-9.00 sec 112 MBytes 942 Mbits/sec [ 5] 9.00-10.00 sec 111 MBytes 935 Mbits/sec [ 5] 10.00-10.04 sec 4.61 MBytes 938 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth [ 5] 0.00-10.04 sec 0.00 Bytes 0.00 bits/sec sender [ 5] 0.00-10.04 sec 1.09 GBytes 932 Mbits/sec receiver ----------------------------------------------------------- Server listening on 5201 ----------------------------------------------------------- Accepted connection from 172.16.1.66, port 59775 [ 5] local 172.16.1.137 port 5201 connected to 172.16.1.66 port 59776 [ ID] Interval Transfer Bandwidth Retr Cwnd [ 5] 0.00-1.00 sec 81.1 MBytes 680 Mbits/sec 0 248 KBytes [ 5] 1.00-2.00 sec 69.5 MBytes 583 Mbits/sec 0 248 KBytes [ 5] 2.00-3.00 sec 83.0 MBytes 696 Mbits/sec 0 248 KBytes [ 5] 3.00-4.00 sec 82.4 MBytes 691 Mbits/sec 0 248 KBytes [ 5] 4.00-5.00 sec 82.2 MBytes 689 Mbits/sec 0 248 KBytes [ 5] 5.00-6.00 sec 80.7 MBytes 677 Mbits/sec 0 245 KBytes [ 5] 6.00-7.00 sec 82.0 MBytes 688 Mbits/sec 0 248 KBytes [ 5] 7.00-8.00 sec 82.0 MBytes 688 Mbits/sec 0 245 KBytes [ 5] 8.00-9.00 sec 78.5 MBytes 658 Mbits/sec 0 245 KBytes [ 5] 9.00-10.00 sec 79.8 MBytes 669 Mbits/sec 0 248 KBytes [ 5] 10.00-10.04 sec 2.57 MBytes 566 Mbits/sec 0 248 KBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth Retr [ 5] 0.00-10.04 sec 804 MBytes 672 Mbits/sec 0 sender [ 5] 0.00-10.04 sec 0.00 Bytes 0.00 bits/sec receiver Update---- Check for the tips and tweaks and disable Nic Offloading tower-diagnostics-20200619-2052.zip Edited June 29, 2020 by gacpac Quote
gacpac Posted June 21, 2020 Author Posted June 21, 2020 Someone help?I'm using the built in nic of the mobo. I have a HM-110 mitx/ac from asrockAnd it's using IntelIntel[emoji2400] Ethernet Connection I219-VI'm assuming maybe I need some driver update?Sent from my Pixel 2 XL using Tapatalk Quote
JorgeB Posted June 21, 2020 Posted June 21, 2020 3 hours ago, gacpac said: I'm assuming maybe I need some driver update? Driver should be fine, try testing with another computer, cable, switch, etc Quote
gacpac Posted June 21, 2020 Author Posted June 21, 2020 Yup I did. Iperf from pfsense to me computer.Iperf from pfsense to the serverIperf from my computer to the serverThe server being is the one with the issueSent from my Pixel 2 XL using Tapatalk Quote
JorgeB Posted June 29, 2020 Posted June 29, 2020 Only someone with the same NIC can confirm if it's normal or not, but I would think not, more likely it's something with your LAN, you could also test with a different NIC, also it's not clear form the previous reply if you tested with different cable, switch, etc. Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 I did check with a different cable. Cat 6 certified monoprice 5ft. Also using a TPlink 5 port switch and everything goes to the Pfsense. It's only the server having the issue, all the other devices are good. I'll try using a bootable ubuntu to take the server aside and get back to the forum if it helps. Quote
JorgeB Posted June 29, 2020 Posted June 29, 2020 14 minutes ago, gacpac said: and everything goes to the Pfsense. And if you bypass the Pfesens? Test server to desktop directly. Quote

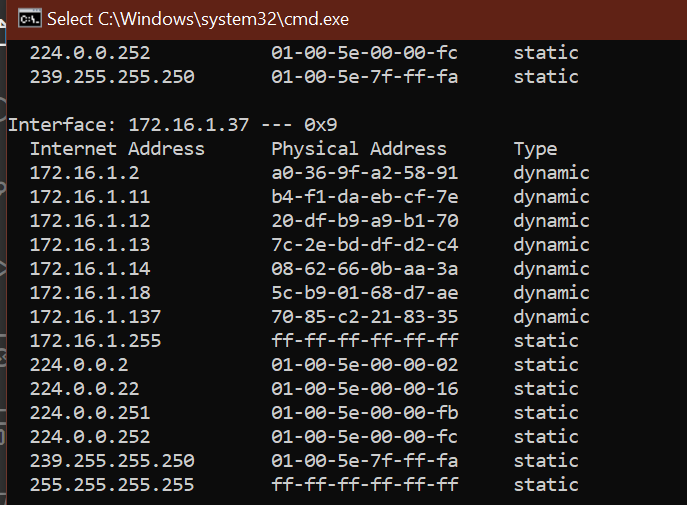

gacpac Posted June 29, 2020 Author Posted June 29, 2020 1 minute ago, johnnie.black said: And if you bypass the Pfesens? Test server to desktop directly. Well, from the networking standing. I'm not traversing any vlans from the unraid to my computer. Everything is on Vlan 1 default. Which, means it's already doing that. I'm in the same arp table Quote
JorgeB Posted June 29, 2020 Posted June 29, 2020 That's not why I asked, it's just a way to rule out other things, but you do what you want. Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 13 minutes ago, johnnie.black said: That's not why I asked, it's just a way to rule out other things, but you do what you want. Relax, look I just did it to probe your idea. I can send from my computer 172.16.1.138, directly connected using 1Gb. The replies from the server 172.16.1.137 come at 600Mb C:\iPerf>iperf3.exe -c 172.16.1.137 Connecting to host 172.16.1.137, port 5201 [ 4] local 172.16.1.138 port 64589 connected to 172.16.1.137 port 5201 [ ID] Interval Transfer Bandwidth [ 4] 0.00-1.00 sec 111 MBytes 928 Mbits/sec [ 4] 1.00-2.00 sec 110 MBytes 920 Mbits/sec [ 4] 2.00-3.00 sec 110 MBytes 927 Mbits/sec [ 4] 3.00-4.00 sec 111 MBytes 930 Mbits/sec [ 4] 4.00-5.00 sec 111 MBytes 927 Mbits/sec [ 4] 5.00-6.00 sec 110 MBytes 926 Mbits/sec [ 4] 6.00-7.00 sec 110 MBytes 924 Mbits/sec [ 4] 7.00-8.00 sec 110 MBytes 926 Mbits/sec [ 4] 8.00-9.00 sec 111 MBytes 931 Mbits/sec [ 4] 9.00-10.00 sec 111 MBytes 931 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth [ 4] 0.00-10.00 sec 1.08 GBytes 927 Mbits/sec sender [ 4] 0.00-10.00 sec 1.08 GBytes 927 Mbits/sec receiver iperf Done. C:\iPerf>iperf3.exe -c 172.16.1.137 -R Connecting to host 172.16.1.137, port 5201 Reverse mode, remote host 172.16.1.137 is sending [ 4] local 172.16.1.138 port 64594 connected to 172.16.1.137 port 5201 [ ID] Interval Transfer Bandwidth [ 4] 0.00-1.00 sec 73.0 MBytes 612 Mbits/sec [ 4] 1.00-2.00 sec 73.8 MBytes 619 Mbits/sec [ 4] 2.00-3.00 sec 72.0 MBytes 604 Mbits/sec [ 4] 3.00-4.00 sec 73.4 MBytes 616 Mbits/sec [ 4] 4.00-5.00 sec 74.5 MBytes 624 Mbits/sec [ 4] 5.00-6.00 sec 76.7 MBytes 644 Mbits/sec [ 4] 6.00-7.00 sec 77.0 MBytes 646 Mbits/sec [ 4] 7.00-8.00 sec 76.2 MBytes 639 Mbits/sec [ 4] 8.00-9.00 sec 76.6 MBytes 642 Mbits/sec [ 4] 9.00-10.00 sec 80.1 MBytes 673 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth Retr [ 4] 0.00-10.00 sec 755 MBytes 633 Mbits/sec 0 sender [ 4] 0.00-10.00 sec 753 MBytes 632 Mbits/sec receiver Quote
bonienl Posted June 29, 2020 Posted June 29, 2020 Try different TCP window sizes (-w option), e.g. iperf3 -c 172.16.1.137 -w 5m -R The bigger the window the less acknowledgements are required. It might be your Windows machine not answering fast enough. Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 2 minutes ago, bonienl said: Try different TCP window sizes (-w option), e.g. iperf3 -c 172.16.1.137 -w 5m -R The bigger the window the less acknowledgements are required. It might be your Windows machine not answering fast enough. Thanks for the input. Just did that, but the result. I also did the test between the pfsense (I'm running an CPU G4400T with 4gb of ddr4 if you might ask) and the same result. I'm starting to think that it has to do with the lan drivers or maybe the mobo itself. I'm using an Asrock H110M-ITX/ac with a built in Giga PHY Intel® I219V Quote
bonienl Posted June 29, 2020 Posted June 29, 2020 (edited) To see if it is bandwidth constraint or not, run the iperf command with parallel streams (-P parameter), e.g. iperf3 -c 172.16.1.137 -P 2 -R Edited June 29, 2020 by bonienl Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 7 minutes ago, bonienl said: To see if it is bandwidth constraint or not, run the iperf command with parallel streams (-P parameter), e.g. iperf3 -c 172.16.1.137 -P 2 -R Man you are teaching me stuff here. Awesome! I ran the test and this is what I got, it looks similar speed that I've been getting. Also compared to the pfsense running iperf to my desktop and goods speeds there. C:\iPerf>iperf3.exe -c 172.16.1.137 -P 2 -R Connecting to host 172.16.1.137, port 5201 Reverse mode, remote host 172.16.1.137 is sending [ 4] local 172.16.1.138 port 49945 connected to 172.16.1.137 port 5201 [ 6] local 172.16.1.138 port 49946 connected to 172.16.1.137 port 5201 [ ID] Interval Transfer Bandwidth [ 4] 0.00-1.00 sec 37.4 MBytes 314 Mbits/sec [ 6] 0.00-1.00 sec 46.1 MBytes 386 Mbits/sec [SUM] 0.00-1.00 sec 83.5 MBytes 700 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 1.00-2.00 sec 33.1 MBytes 277 Mbits/sec [ 6] 1.00-2.00 sec 43.6 MBytes 366 Mbits/sec [SUM] 1.00-2.00 sec 76.7 MBytes 643 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 2.00-3.00 sec 34.5 MBytes 290 Mbits/sec [ 6] 2.00-3.00 sec 47.7 MBytes 400 Mbits/sec [SUM] 2.00-3.00 sec 82.3 MBytes 690 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 3.00-4.00 sec 35.2 MBytes 295 Mbits/sec [ 6] 3.00-4.00 sec 46.5 MBytes 390 Mbits/sec [SUM] 3.00-4.00 sec 81.7 MBytes 685 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 4.00-5.00 sec 38.6 MBytes 324 Mbits/sec [ 6] 4.00-5.00 sec 43.7 MBytes 367 Mbits/sec [SUM] 4.00-5.00 sec 82.4 MBytes 691 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 5.00-6.00 sec 34.2 MBytes 287 Mbits/sec [ 6] 5.00-6.00 sec 48.5 MBytes 407 Mbits/sec [SUM] 5.00-6.00 sec 82.7 MBytes 694 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 6.00-7.00 sec 31.8 MBytes 266 Mbits/sec [ 6] 6.00-7.00 sec 50.4 MBytes 423 Mbits/sec [SUM] 6.00-7.00 sec 82.2 MBytes 689 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 7.00-8.00 sec 35.6 MBytes 298 Mbits/sec [ 6] 7.00-8.00 sec 43.8 MBytes 368 Mbits/sec [SUM] 7.00-8.00 sec 79.4 MBytes 666 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 8.00-9.00 sec 36.7 MBytes 308 Mbits/sec [ 6] 8.00-9.00 sec 46.3 MBytes 388 Mbits/sec [SUM] 8.00-9.00 sec 83.0 MBytes 696 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ 4] 9.00-10.00 sec 35.6 MBytes 299 Mbits/sec [ 6] 9.00-10.00 sec 41.6 MBytes 350 Mbits/sec [SUM] 9.00-10.00 sec 77.3 MBytes 649 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bandwidth Retr [ 4] 0.00-10.00 sec 354 MBytes 297 Mbits/sec 0 sender [ 4] 0.00-10.00 sec 353 MBytes 296 Mbits/sec receiver [ 6] 0.00-10.00 sec 460 MBytes 386 Mbits/sec 0 sender [ 6] 0.00-10.00 sec 459 MBytes 385 Mbits/sec receiver [SUM] 0.00-10.00 sec 815 MBytes 684 Mbits/sec 0 sender [SUM] 0.00-10.00 sec 811 MBytes 681 Mbits/sec receiver iperf Done. Quote
bonienl Posted June 29, 2020 Posted June 29, 2020 These results indicate there is a bandwidth constraint on your server. First thing I would try is a different NIC (intel based is preferred). Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 that's great a nic that I don't have right now. Before I get to purchasing a new nic card in this mini-itx board. Where else should I be looking? I mean, I'm also going to boot a windows drive or ubuntu maybe to do a speedtest from there. I don't want to go down a rabbit hole. Quote
bonienl Posted June 29, 2020 Posted June 29, 2020 You can try the "Tips and Tweaks" plugin, which allows to make some low level changes for the ethernet interface, nothing guaranteed though! Quote
gacpac Posted June 29, 2020 Author Posted June 29, 2020 Do you know if this problem could be caused by a plugin? I mean my server is always running pretty idle. Quote

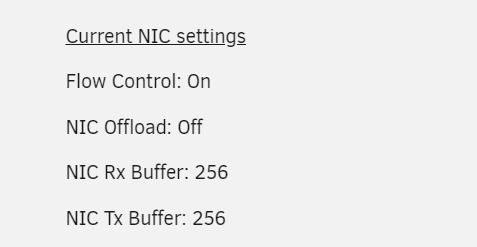

gacpac Posted June 29, 2020 Author Posted June 29, 2020 (edited) Omg! thanks!!! Tips and tweaks solved the problem. I disabled the Nic Offloading, looks like it was the culprit 48 minutes ago, bonienl said: You can try the "Tips and Tweaks" plugin, which allows to make some low level changes for the ethernet interface, nothing guaranteed though! Edited June 29, 2020 by gacpac Quote
