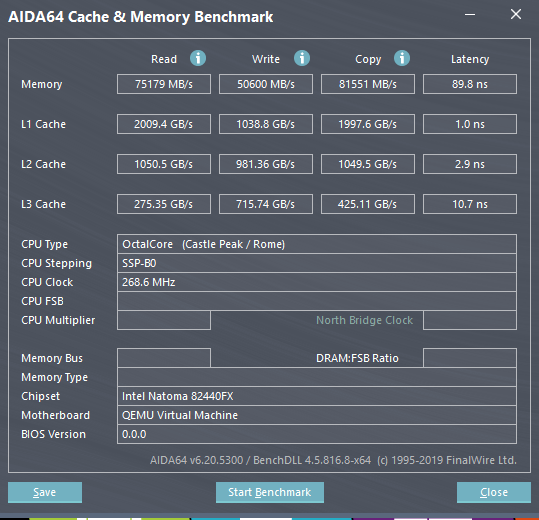

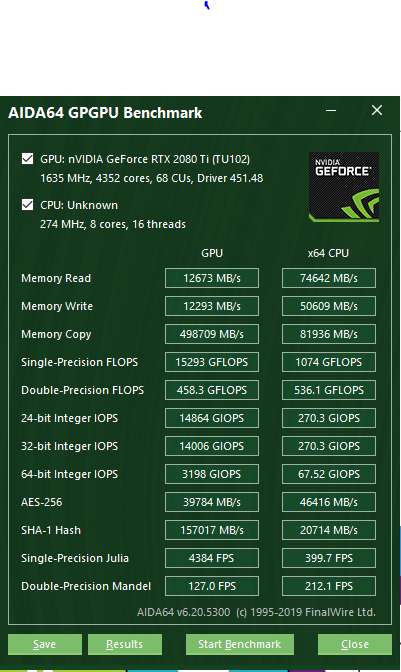

Valiran Posted June 27, 2020 Posted June 27, 2020 Hello all! I'm finished my gaming VM, and I feel it lacks of power, but I don't understand from where... Here is my TimeSpy => http://www.3dmark.com/spy/12703136 Here is my FireStrike => http://www.3dmark.com/fs/22973584 Aida64 pinned. My tower is: Threadripper 3960x watercooled Aorus Master 4*16GB ram (2 kit of DDR4 G.Skill Trident Z Neo 32 Go (2 x 16 Go), 3200 MHz, CAS 16) VM + benchmark tool installed on nvme ssd samsung sm961 I connect throught Moonlight. Does somebody could tell me where I can improve things, or maybe is that normal? Quote
Valiran Posted June 27, 2020 Author Posted June 27, 2020 (edited) Sorry I forgot my XML, anbd I don't find how to edit my post.... My Graphic card is an EVGA 2080ti XC Gaming. <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>ValiGaming</name> <uuid>bda33f63-eba0-ec7e-5438-f3659b6a4783</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>16777216</memory> <currentMemory unit='KiB'>16777216</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>16</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1'/> <vcpupin vcpu='1' cpuset='25'/> <vcpupin vcpu='2' cpuset='2'/> <vcpupin vcpu='3' cpuset='26'/> <vcpupin vcpu='4' cpuset='3'/> <vcpupin vcpu='5' cpuset='27'/> <vcpupin vcpu='6' cpuset='4'/> <vcpupin vcpu='7' cpuset='28'/> <vcpupin vcpu='8' cpuset='5'/> <vcpupin vcpu='9' cpuset='29'/> <vcpupin vcpu='10' cpuset='6'/> <vcpupin vcpu='11' cpuset='30'/> <vcpupin vcpu='12' cpuset='7'/> <vcpupin vcpu='13' cpuset='31'/> <vcpupin vcpu='14' cpuset='8'/> <vcpupin vcpu='15' cpuset='32'/> <emulatorpin cpuset='44'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-4.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/bda33f63-eba0-ec7e-5438-f3659b6a4783_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vpindex state='on'/> <synic state='on'/> <stimer state='on'/> <reset state='on'/> <vendor_id state='on' value='1234567890ab'/> <frequencies state='on'/> </hyperv> <kvm> <hidden state='on'/> </kvm> <vmport state='off'/> <ioapic driver='kvm'/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='8' threads='2'/> <cache mode='passthrough'/> <feature policy='require' name='topoext'/> </cpu> <clock offset='localtime'> <timer name='rtc' present='no' tickpolicy='catchup'/> <timer name='pit' present='no' tickpolicy='delay'/> <timer name='hpet' present='no'/> <timer name='hypervclock' present='yes'/> <timer name='tsc' present='yes' mode='native'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/ValiGaming/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </disk> <controller type='pci' index='0' model='pci-root'/> <controller type='pci' index='1' model='pci-bridge'> <model name='pci-bridge'/> <target chassisNr='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='usb' index='0' model='qemu-xhci' ports='15'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:2a:29:8e'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x21' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/BIOS/EVGA.RTX2080Ti.11264.181024.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x21' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x21' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x21' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x3'/> </hostdev> <memballoon model='none'/> </devices> </domain> Edited June 27, 2020 by Valiran Quote

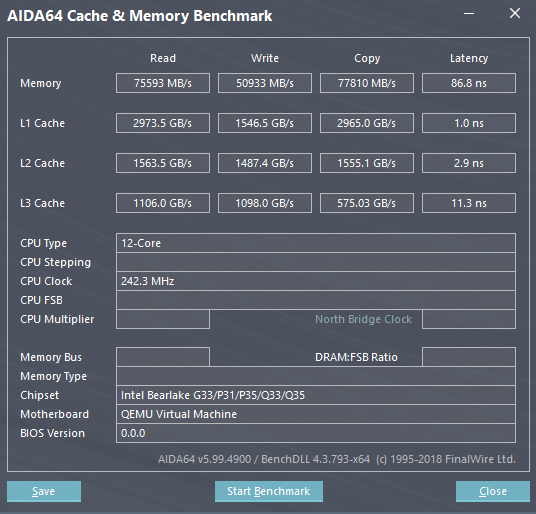

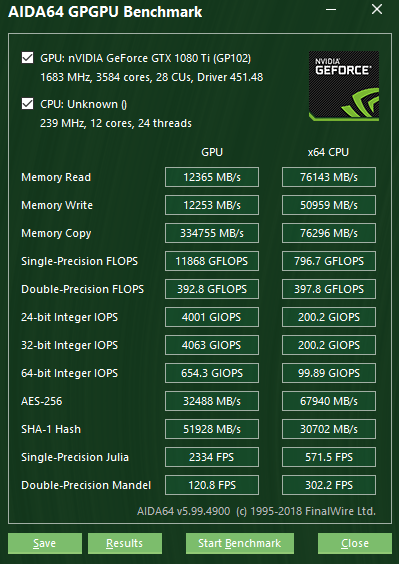

bastl Posted June 29, 2020 Posted June 29, 2020 @Valiran Do you have any performance issues? There are a couple things you can play around with. Set the core count without counting in the HT of the VM to a multiple of 6 (6, 12, 18, 24) so it uses a full chiplet. In your case, you have selected 8 cores. That means you're using a full die + 2 cores from another one where maybe other processes from docker or other VMs are running on. The 3960x has 4 chiplets each with 6 cores. Isolating the cores you wanna use can also help in this case. You might see some better memory performance. Windows power settings to "high performance" can also help a bit. Have you tried the Q35 machine type? Maybe a thing to look at it and test with this if the performance for your specific need is better. To use Q35 you have to setup a new VM, keep that in mind. I did a quick test for comparisson on a 12core/24thread Q35 VM (16GB, 1080ti, NVME) and the numbers looking close to yours. I'm not having any issues with my VM. 1 Quote
angel Posted September 8, 2020 Posted September 8, 2020 On 6/29/2020 at 11:51 AM, bastl said: @Valiran Do you have any performance issues? There are a couple things you can play around with. Set the core count without counting in the HT of the VM to a multiple of 6 (6, 12, 18, 24) so it uses a full chiplet. In your case, you have selected 8 cores. That means you're using a full die + 2 cores from another one where maybe other processes from docker or other VMs are running on. The 3960x has 4 chiplets each with 6 cores. Isolating the cores you wanna use can also help in this case. You might see some better memory performance. Windows power settings to "high performance" can also help a bit. Have you tried the Q35 machine type? Maybe a thing to look at it and test with this if the performance for your specific need is better. To use Q35 you have to setup a new VM, keep that in mind. I did a quick test for comparisson on a 12core/24thread Q35 VM (16GB, 1080ti, NVME) and the numbers looking close to yours. I'm not having any issues with my VM. mmm thanks xDD , i was playing LoL from 120 fps to 60 drops all time whit a 1650 super , i read your comment changue to q35 (5.0) and now im playing whit 500 fps xDDDDD 1 Quote
