Ive just replaced my hardware (cpu,mobo,ram) and cannot access my system via webUI



Ive attached a monitor and keyboard to my system and can access bios just fine,

Unraid boots to the splashscreen where i can make a choice.

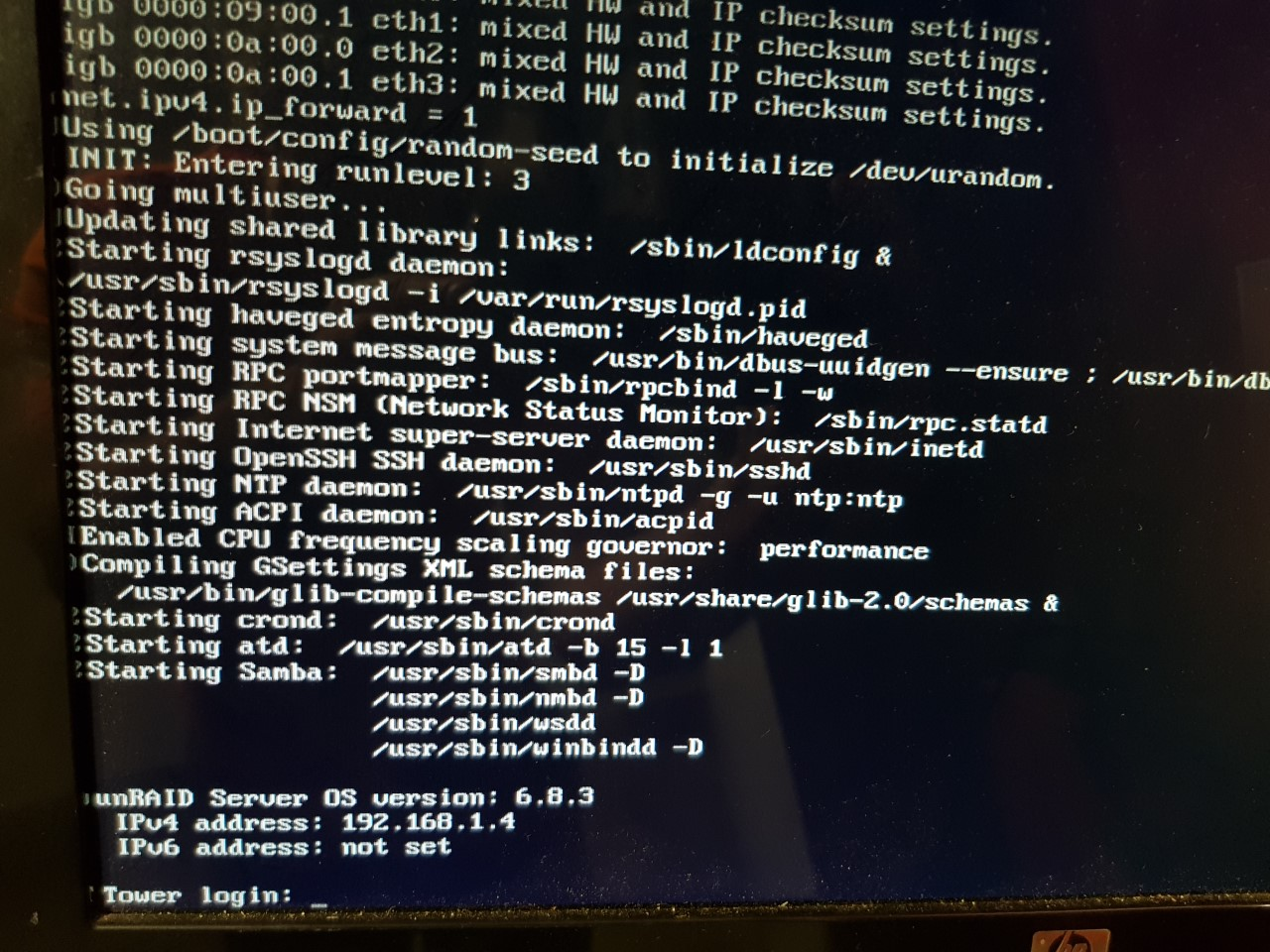

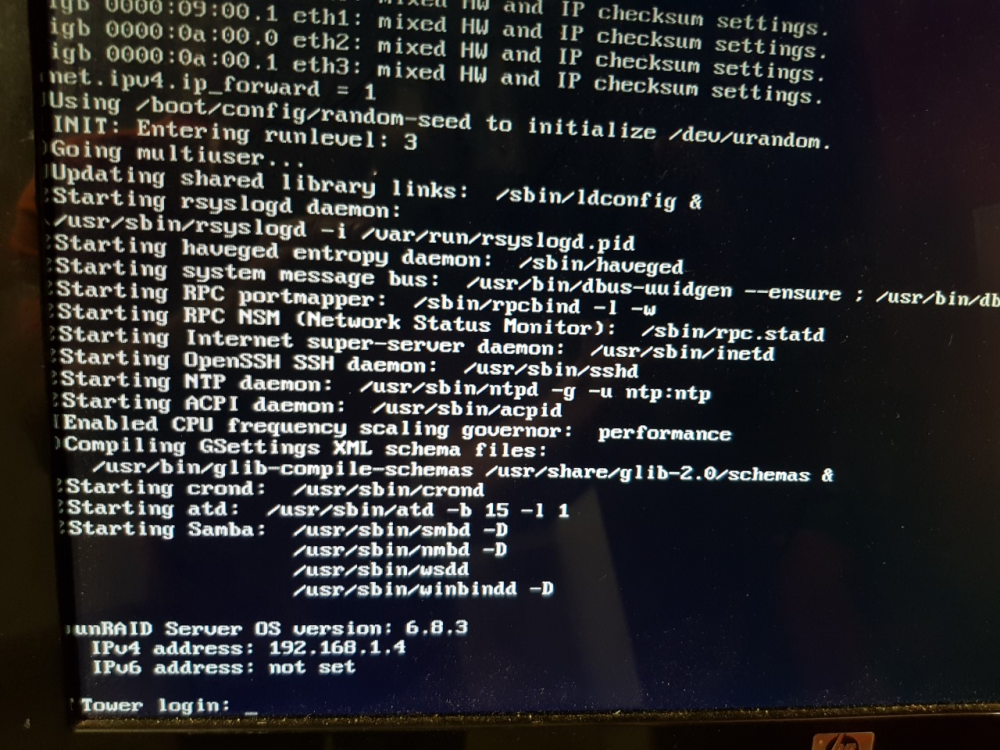

Unraid OS - Takes me to the following:

I can login at this cmd line

But i cant access the server via IP on another machine



Unraid OS with GUI - Takes me to a blank screen with a white - in the top right hand corner. And still no access via another machine



Lost on what to try next?

Edited July 1, 20206 yr by bdydrp
SOLVED

It could be that it's using a different NIC or the order changed, you can boot with GUI mode and change witch NIC it eth0

If i select boot with GUI, all i get is blank screen with a dash in the top left corner!



Can u put the unraid USB in a PC and change any settings manually??

Edited June 29, 20206 yr by bdydrp

Delete/rename network.cfg and network-rules.cfg both in the config folder, then boot again, you still might need to change the cable to a different NIC depending on witch one gets assigned by default as eth0.

Thanks

Will give this a go!

Ive removed both files

Also removed the 4 port intel card so that its forced to use the onboard NIC



When unraid loads, i get to login

The lines

IPv4 - Not set

IPv6 - Not set



Should both network.cfg and network-rules.cfg files get re-created upon boot?

And an IP should be assigned via DHCP?



Also, selecting Unraid with WebUI, only loads to blank screen still!





Edited June 29, 20206 yr by bdydrp

2 minutes ago, bdydrp said:

Should both network.cfg and network-rules.cfg files get re-created upon boot?

With a single NIC only network.cfg would be re-created, if it isn't it points to a problem with the flash drive, i.e., it's not booting correctly.



3 minutes ago, bdydrp said:

And an IP should be assigned via DHCP?

Yes.



Backup current flash, re-create it using the USB tool then restore the config folder.



Thanks





28 minutes ago, johnnie.black said:

With a single NIC only network.cfg would be re-created, if it isn't it points to a problem with the flash drive, i.e., it's not booting correctly.

I'll double check, but i dont think a new network.cfg file was created

Ill backup USB anyway, and if all else fails, will recreate usb drive and restore config

Cheers

Edited June 29, 20206 yr by bdydrp

Have run the usb creator tool, and copied my existing config folder.



Now it doesnt want to boot at all, it just goes straight to bios



Will have another look tomorrow afternoon

Make sure you enabled UEFI boot when creating the flash, or just rename "EFI-" to "EFI"

5 minutes ago, johnnie.black said:

Make sure you enabled UEFI boot when creating the flash, or just rename "EFI-" to "EFI"

Ahhhhhhhh

I remeber renaming that folder previously (on another thread i read)



Ill look at tomorrow

Quick test before work,

It now boots fine after renaming folder.



But now at login screen, IPv4 is not set.

Something is causing it to not get an IP from my DHCP.



Possibly an issue with my onboard NIC??

1 minute ago, bdydrp said:

Possibly an issue with my onboard NIC??

Possibly, is network.cfg being created? If not see if you can get the diags from the console by typing "diagnostics"

3 hours ago, johnnie.black said:

Possibly, is network.cfg being created? If not see if you can get the diags from the console by typing "diagnostics"

Yes, network.cfg is created and I can see its set to dhcp.

I'll get the diagnostics and post them when I'm home.



Diagnostics attached!



tower-diagnostics-20200630-2302.zip

NIC isn't loading a driver, try the latest beta.

1 hour ago, johnnie.black said:

NIC isn't loading a driver, try the latest beta.

I'll give that a go.

Cheers

Latest beta worked.

Driver loaded and IP received from DHCP



Main page loaded but some disk were not assigned..

So will double check sata cables.



Would it be safe to assume other disks remained on correct slot?

You already had a missing disk on the previous diags, check connections.

All good now

Thanks for your help



Beta version solved the issues
