[Support] dyonr - owncloud-client

[Dyon]

Welcome to the third Docker Container that I've ever created. owncloud-client. A Docker to synchronize with other ownCloud like environments, a project forked from the GitHub user toughIQ and altered to my wishes, with Unraid in mind.

I couldn't find something that did this, thus I made it myself.



Overview:

This Docker runs an owncloudcmd instance that connects to an ownCloud-like environment and authorises using netrc

The reason I created this is because I wanted to sync Trans IP's STACK to my Unraid server. That product is based on Nextcloud/ownCloud. This Docker should therefore work with any of those environments. This Docker can also be used to sync with a Nextcloud server that a friend hosts for example.



Base: Debian 10

Automated Build: No

Application: https://github.com/owncloud/client

Docker Hub: https://hub.docker.com/r/dyonr/owncloud-client/

GitHub: https://github.com/DyonR/docker-owncloud-client

Edited July 27, 2020 by Nord

[vvzvlad]

My nextcloud server is running at https://nd.nl.tab.digital/ and has the following WebDAV address: remote.php/dav/files/[email protected]/

So I set "OC_WEBDAV" to "remote.php/dav/files/nextc[email protected]/" and I get the following errors in the logs:

03-28 19:08:11:406 [ info sync.discovery ]: STARTING "" OCC::ProcessDirectoryJob::NormalQuery "" OCC::ProcessDirectoryJob::NormalQuery
03-28 19:08:11:407 [ info sync.accessmanager ]: 6 "PROPFIND" "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/" has X-Request-ID "af56746b-456d-40ef-a2e5-37c7404e5949"
03-28 19:08:11:407 [ info sync.networkjob ]: OCC::LsColJob created for "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/" + "/" "OCC::DiscoverySingleDirectoryJob"
03-28 19:08:12:064 [ warning sync.networkjob ]: QNetworkReply::ContentOperationNotPermittedError "Server replied \"405 Method Not Allowed\" to \"PROPFIND https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\"" QVariant(int, 405)

03-28 19:08:12:065 [ info sync.networkjob.lscol ]: LSCOL of QUrl("https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/") FINISHED WITH STATUS "ContentOperationNotPermittedError Server replied \"405 Method Not Allowed\" to \"PROPFIND https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\""
03-28 19:08:12:065 [ warning sync.discovery ]: LSCOL job error "Error transferring https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/ - server replied: Method Not Allowed" 405 QNetworkReply::ContentOperationNotPermittedError



They clearly have the wrong address "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\"



Also, a strange error:

"03-28 19:08:11:130 [ info sync.networkjob ]: Redirecting "GET" QUrl("https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/ocs/v1.php/cloud/user?format=json") QUrl("https://nd.nl.tab.digital/apps/dashboard/")"







P.S. Using the description "ownCloud Server URL, with, if necessary, with port" for the OC_SERVER field is wrong, because the field requires the server address (nd.nl.tab.digital), not its URL (https://nd.nl.tab.digital/), as stated in the description.

Edited March 28, 2021 by vvzvlad

[Dyon]

3 minutes ago, vvzvlad said:

My nextcloud server is running at https://nd.nl.tab.digital/ and has the following WebDAV address: remote.php/dav/files/[email protected]/

So I set "OC_WEBDAV" to "remote.php/dav/files/nextclo[email protected]/" and I get the following errors in the logs:

03-28 19:08:11:406 [ info sync.discovery ]: STARTING "" OCC::ProcessDirectoryJob::NormalQuery "" OCC::ProcessDirectoryJob::NormalQuery
03-28 19:08:11:407 [ info sync.accessmanager ]: 6 "PROPFIND" "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/" has X-Request-ID "af56746b-456d-40ef-a2e5-37c7404e5949"
03-28 19:08:11:407 [ info sync.networkjob ]: OCC::LsColJob created for "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/" + "/" "OCC::DiscoverySingleDirectoryJob"
03-28 19:08:12:064 [ warning sync.networkjob ]: QNetworkReply::ContentOperationNotPermittedError "Server replied \"405 Method Not Allowed\" to \"PROPFIND https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\"" QVariant(int, 405)

03-28 19:08:12:065 [ info sync.networkjob.lscol ]: LSCOL of QUrl("https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/") FINISHED WITH STATUS "ContentOperationNotPermittedError Server replied \"405 Method Not Allowed\" to \"PROPFIND https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\""
03-28 19:08:12:065 [ warning sync.discovery ]: LSCOL job error "Error transferring https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/ - server replied: Method Not Allowed" 405 QNetworkReply::ContentOperationNotPermittedError



They clearly have the wrong address "https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/remote.php/webdav/\"



Also, a strange error:

"03-28 19:08:11:130 [ info sync.networkjob ]: Redirecting "GET" QUrl("https://nd.nl.tab.digital/owncloud/remote.php/dav/files/[email protected]/ocs/v1.php/cloud/user?format=json") QUrl("https://nd.nl.tab.digital/apps/dashboard/")"







P.S. Using the description "ownCloud Server URL, with, if necessary, with port" for the OC_SERVER field is wrong, because the field requires the server address (nd.nl.tab.digital), not its URL (https://nd.nl.tab.digital/), as stated in the description.



I see they offer a free 8GB account, I'll create one and look into it how to configure it.

You are right about the OC_SERVER section in the README, I'll update that later.

If I figured it out, I'll mention you in a new reply.

[Dyon]

@vvzvlad

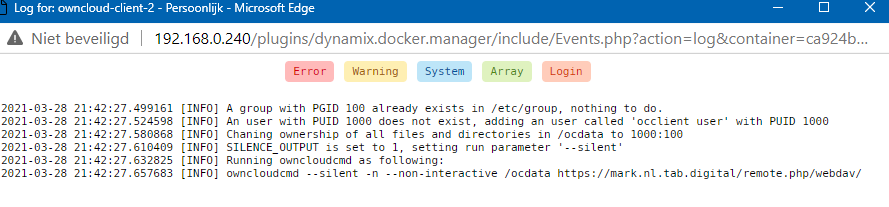

This works for me



OC_USER: USERNAME or EMAIL
OC_PASS: PASSWORD
OC_SERVER: mark.nl.tab.digital (ADDRESS MIGHT BE DIFFERENT FOR YOU, CHECK YOUR URL WHEN ACCESSING THE WEB INTERFACE)
OC_URLPATH: /
OC_FILEPATH: /
RUN_UID: Your Unraid User ID
RUN_GID: Your Unraid User's Group ID
TRUST_SELFSIGN: 0
- Advanced settings -
OC_WEBDAV: rempte.php/webdav
OC_PROTO: https
SYNC_HIDDEN: 0
SILENCE_OUTPUT: 1
RUN_INTERVAL: 30



Edited March 28, 2021 by Dyon

[vvzvlad]

Yes, it was OC_URLPATH, it was set to "/owncloud/", when set to "/" it worked.

[Sparkiee]

I just installed the Owncloud-client.

When i use it to sync 1 directory, it works fine.

I used the OC_Filepath with /TTD

2022-04-11 15:09:02.796140 [INFO] A group with PGID 100 already exists in /etc/group, nothing to do.
2022-04-11 15:09:02.837049 [INFO] An user with PUID 99 does not exist, adding an user called 'occlient user' with PUID 99
2022-04-11 15:09:03.548882 [INFO] Chaning ownership of all files and directories in /ocdata to 99:100
2022-04-11 15:09:03.588270 [INFO] SILENCE_OUTPUT is set to 1, setting run parameter '--silent'
2022-04-11 15:09:03.622686 [INFO] Running owncloudcmd as following:
2022-04-11 15:09:03.653833 [INFO] owncloudcmd --silent -n --non-interactive /ocdata https://rvoncken.stackstorage.com/remote.php/webdav/





But if I want to sync all the directories and use it with "/" it won't work



ErrorWarningSystemArrayLogin

2022-04-11 15:09:52.701808 [INFO] A group with PGID 100 already exists in /etc/group, nothing to do.
2022-04-11 15:09:52.757745 [INFO] An user with PUID 99 does not exist, adding an user called 'occlient user' with PUID 99
2022-04-11 15:09:53.659672 [INFO] Chaning ownership of all files and directories in /ocdata to 99:100
2022-04-11 15:09:53.697707 [INFO] SILENCE_OUTPUT is set to 1, setting run parameter '--silent'
2022-04-11 15:09:53.731473 [INFO] Running owncloudcmd as following:
2022-04-11 15:09:53.763963 [INFO] owncloudcmd --silent -n --non-interactive /ocdata https://rvoncken.stackstorage.com/owncloud/remote.php/webdav/


Any sugestions?



[Dyon]

32 minutes ago, Sparkiee said:

I just installed the Owncloud-client.

When i use it to sync 1 directory, it works fine.

I used the OC_Filepath with /TTD

2022-04-11 15:09:02.796140 [INFO] A group with PGID 100 already exists in /etc/group, nothing to do.
2022-04-11 15:09:02.837049 [INFO] An user with PUID 99 does not exist, adding an user called 'occlient user' with PUID 99
2022-04-11 15:09:03.548882 [INFO] Chaning ownership of all files and directories in /ocdata to 99:100
2022-04-11 15:09:03.588270 [INFO] SILENCE_OUTPUT is set to 1, setting run parameter '--silent'
2022-04-11 15:09:03.622686 [INFO] Running owncloudcmd as following:
2022-04-11 15:09:03.653833 [INFO] owncloudcmd --silent -n --non-interactive /ocdata https://rvoncken.stackstorage.com/remote.php/webdav/





But if I want to sync all the directories and use it with "/" it won't work



ErrorWarningSystemArrayLogin

2022-04-11 15:09:52.701808 [INFO] A group with PGID 100 already exists in /etc/group, nothing to do.
2022-04-11 15:09:52.757745 [INFO] An user with PUID 99 does not exist, adding an user called 'occlient user' with PUID 99
2022-04-11 15:09:53.659672 [INFO] Chaning ownership of all files and directories in /ocdata to 99:100
2022-04-11 15:09:53.697707 [INFO] SILENCE_OUTPUT is set to 1, setting run parameter '--silent'
2022-04-11 15:09:53.731473 [INFO] Running owncloudcmd as following:
2022-04-11 15:09:53.763963 [INFO] owncloudcmd --silent -n --non-interactive /ocdata https://rvoncken.stackstorage.com/owncloud/remote.php/webdav/


Any sugestions?





Your OC_WEBDAV path is incorrect for TransIP Stack, in Unraid edit the owncloud-client docker, and expand the advanced settings at the bottom and set OC_WEBDAV to this (without quotes): "remote.php/webdav"

Edit: Nevermind, yours is set correctly.

Change the:

OC_URLPATH: /owncloud/

to:

OC_URLPATH: /

Edited April 11, 2022 by Dyon

[Sparkiee]

6 minutes ago, Dyon said:



Your OC_WEBDAV path is incorrect for TransIP Stack, in Unraid edit the owncloud-client docker, and expand the advanced settings at the bottom and set OC_WEBDAV to this (without quotes): "remote.php/webdav"

Edit: Nevermind, yours is set correctly.

Change the:

OC_URLPATH: /owncloud/

to:

OC_URLPATH: /

Just did this.

The log :

2022-04-11 15:46:35.313420 [INFO] A group with PGID 100 already exists in /etc/group, nothing to do.
2022-04-11 15:46:35.354755 [INFO] An user with PUID 99 does not exist, adding an user called 'occlient user' with PUID 99
2022-04-11 15:46:36.107088 [INFO] Chaning ownership of all files and directories in /ocdata to 99:100
2022-04-11 15:46:36.145682 [INFO] SILENCE_OUTPUT is set to 1, setting run parameter '--silent'
2022-04-11 15:46:36.179586 [INFO] Running owncloudcmd as following:
2022-04-11 15:46:36.210958 [INFO] owncloudcmd --silent -n --non-interactive /ocdata https://rvoncken.stackstorage.com/remote.php/webdav/



But nothing happens. Nothing is downloaded to my server and the data in teh target directory stays the same.





[Dyon]

I don't see anything wrong with the other environment variables that you have set. Mine are exactly the same (I also use STACK)

Since using "/TTD" works for you, I don't think it's a OC_PASS problem, so I assume you are already using the WebDav App Token from STACK.

I suspect there might be a problem with the database that OwnCloud stores for synchronisation, since you switched from "/TTD" to "/" it might have gotten confused.



What I would do it:

Stop the container. As long as the container is stopped, there is no risk in removing the folder.

Remove the folder /mnt/user/data/Ralf/Stack/ from your Unraid.

Start the container again, the folder should get created automatically.



Edit:

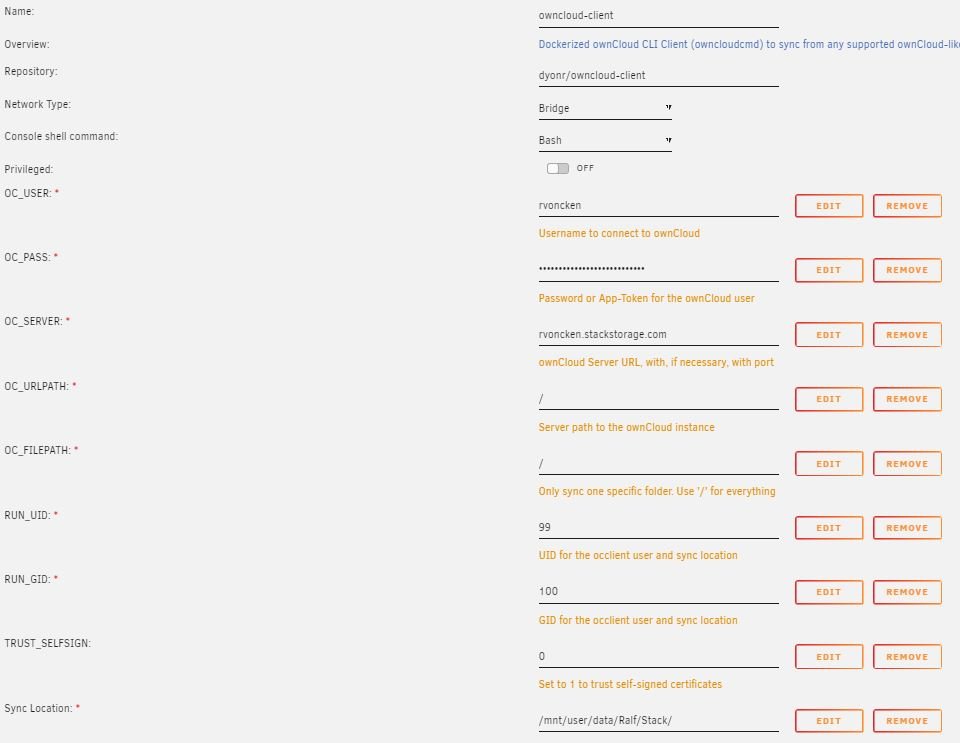

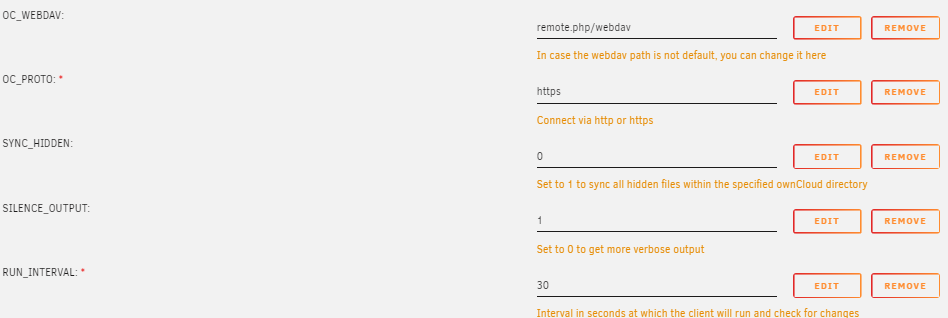

These are my environment variables:

OC_USER    username
OC_PASS    webdav_app_token
OC_SERVER    my_ulr_for_stack.stackstorage.com
OC_URLPATH    /
OC_FILEPATH    /
RUN_UID    1000
RUN_GID    100
TRUST_SELFSIGN    0
Sync Location    /mnt/user/STACK/dyonr/
OC_WEBDAV    remote.php/webdav
OC_PROTO    https
SYNC_HIDDEN    0
SILENCE_OUTPUT    1
RUN_INTERVAL    30



Edited April 11, 2022 by Dyon

[Sparkiee]

I don't know what happend.

But yesterday the sync didn't work. After leaving it for the night, this morning all files were synced. And it works both ways. Only if i upload a file from my pc to Stack, it doesnt show up in my folder on Unraid. Maybe I have to be a bit more patient.......

[Dyon]

2 hours ago, Sparkiee said:

I don't know what happend.

But yesterday the sync didn't work. After leaving it for the night, this morning all files were synced. And it works both ways. Only if i upload a file from my pc to Stack, it doesnt show up in my folder on Unraid. Maybe I have to be a bit more patient.......



As far as I know (for my own experience), owncloud works sequential. So it will download all files first, when that is finished it will start the upload.

So, you are saying if you upload a file via the STACK PC Client, it doesn't show up in the Unraid folder? Does it appear on the STACK website?

Because I can't imagine it wouldn't sync that file

[Sparkiee]

Exactly.

Files from my stack are in sync with the folders on my unraid server.

If I place something in a map on my Unraid server it will sync with the remote stack.

I connected my Stack to a network share on my work pc. If i copy a file from my work pc to my Stack, the files will show up on my stack (logged in on stack to check this) but will not be synced to my Unraid server. Pretty strange.





[Dyon]

1 hour ago, Sparkiee said:

Exactly.

Files from my stack are in sync with the folders on my unraid server.

If I place something in a map on my Unraid server it will sync with the remote stack.

I connected my Stack to a network share on my work pc. If i copy a file from my work pc to my Stack, the files will show up on my stack (logged in on stack to check this) but will not be synced to my Unraid server. Pretty strange.







That is really strange. As a test, I mounted my STACK in Windows, added a file, and a few moments later it did appear in the STACK folder on my Unraid. So it works for me...



There are two things you can do.

1: Check the logs.

Set the SILENCE_OUTPUT of the container temporary to "0". This will spam the container log, and not everything would be readable because of that.

At the bottom of the spam, error should/could show up.

(I haven't implemented something to output the log somewhere, might do that soon though, since it won't be a lot of effort)



2: Start Fresh. There could be an underlying problem that isn't easily visibele. Yes, you would need to redownload/resync everything with Unraid again.

Stop the container. As long as the container is stopped, there is no risk in removing the folder.

Remove the folder /mnt/user/data/Ralf/Stack/ from your Unraid.

Start the container again, the folder should get created automatically.

Edited April 12, 2022 by Dyon

[Sparkiee]

I'll try bothe of the solutions. Can take a day or so. I'll keep you posted.

[Sparkiee]

Shame on me.

The log tells me the disk is almost full and downloading files would exceed the "needed" free diskspace.

I forgot this test setup had less free disk space in comparison to my server. So i'll change the setting to sync only 1 folder just for testing it.



[Dyon]

5 minutes ago, Sparkiee said:

Shame on me.

The log tells me the disk is almost full and downloading files would exceed the "needed" free diskspace.

I forgot this test setup had less free disk space in comparison to my server. So i'll change the setting to sync only 1 folder just for testing it.





Well, that explains a lot! Glad you found the issue. If you ever run into problems again, let me know!
