[SOLVED] Missing Shares

[lug66]

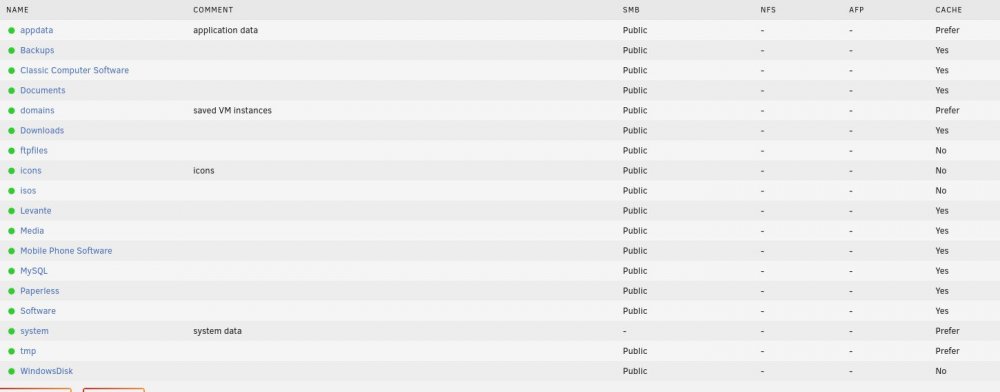

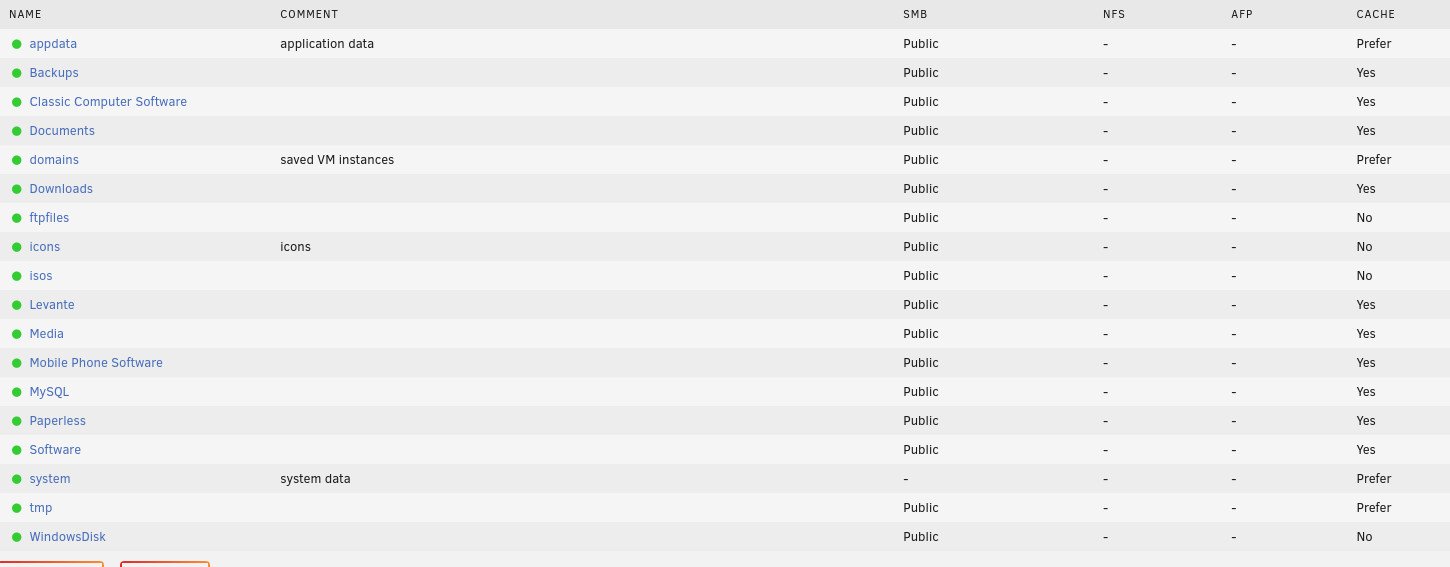

For the past few days I've noticed that some of my shares disappear from the shares tab and cannot be accessed. The shares appear once I reboot but disappear again after a few hours. I've tried stopping and restarting the array but that just results in all the shares disappearing. I've read a few posts here and none of the circumstances seem to apply to my case i.e. mover does not have logs enabled. The first screen shot shows all shares after a reboot:

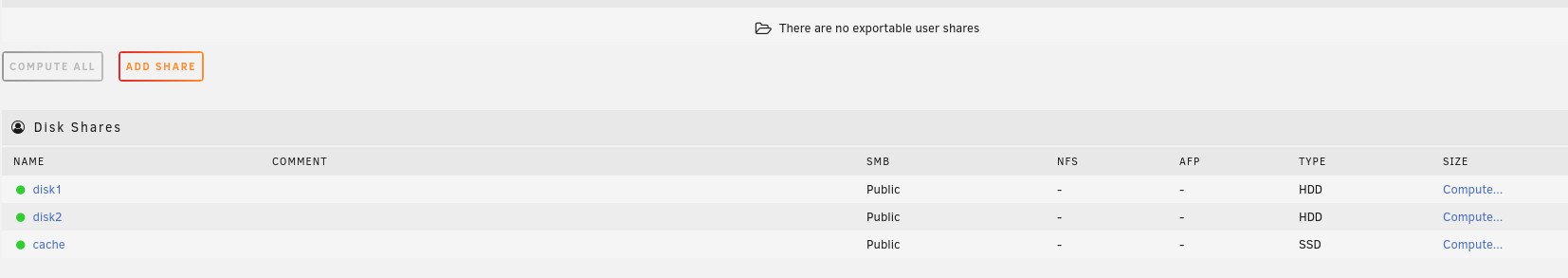

After restarting array:

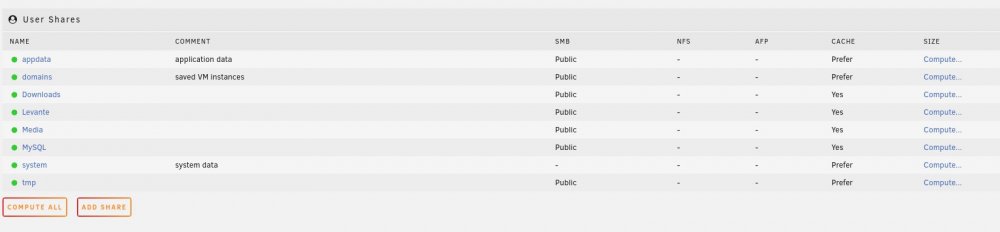

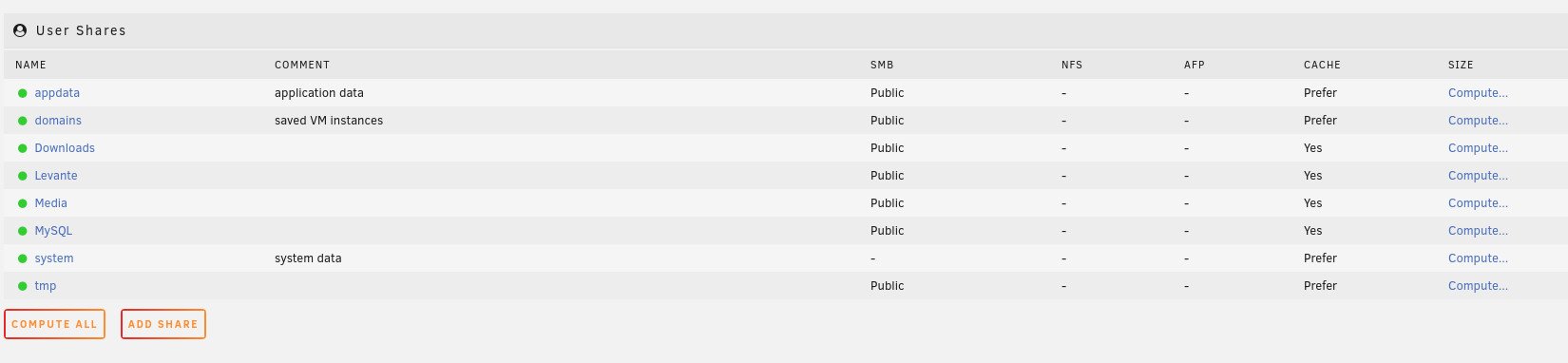

Missing Shares:



I've also attached two diagnostics - one when shares were missing and one after rebooting. Appreciate any help you can provide.

After Rebbot-diagnostics-20200729-0954.zip Missing Shares-diagnostics-20200729-0949.zip

[lug66]

Update: I manually started the Move function and the shares disappeared. I got the following from the log file:



Jul 29 14:14:10 Deep-Thought kernel: do_filp_open+0x4c/0xa9
Jul 29 14:14:10 Deep-Thought kernel: ? _copy_to_user+0x27/0x2a
Jul 29 14:14:10 Deep-Thought kernel: do_sys_open+0x135/0x1d9
Jul 29 14:14:10 Deep-Thought kernel: do_syscall_64+0x57/0xf2
Jul 29 14:14:10 Deep-Thought kernel: entry_SYSCALL_64_after_hwframe+0x44/0xa9
Jul 29 14:14:10 Deep-Thought kernel: RIP: 0033:0x152255946cf4
Jul 29 14:14:10 Deep-Thought kernel: Code: 84 00 00 00 00 00 44 89 54 24 0c e8 e6 f4 ff ff 44 8b 54 24 0c 44 89 e2 48 89 ee 41 89 c0 bf 9c ff ff ff b8 01 01 00 00 0f 05 <48> 3d 00 f0 ff ff 77 32 44 89 c7 89 44 24 0c e8 18 f5 ff ff 8b 44
Jul 29 14:14:10 Deep-Thought kernel: RSP: 002b:0000152237879880 EFLAGS: 00000297 ORIG_RAX: 0000000000000101
Jul 29 14:14:10 Deep-Thought kernel: RAX: ffffffffffffffda RBX: 000015222c011000 RCX: 0000152255946cf4
Jul 29 14:14:10 Deep-Thought kernel: RDX: 00000000000000c1 RSI: 000015222c009970 RDI: 00000000ffffff9c
Jul 29 14:14:10 Deep-Thought kernel: RBP: 000015222c009970 R08: 0000000000000001 R09: 000015222c009970
Jul 29 14:14:10 Deep-Thought kernel: R10: 00000000000081a4 R11: 0000000000000297 R12: 00000000000000c1
Jul 29 14:14:10 Deep-Thought kernel: R13: 0000000000000010 R14: 0000000000002008 R15: 0000000000459720
Jul 29 14:14:10 Deep-Thought kernel: XFS (md1): Internal error xfs_trans_cancel at line 1041 of file fs/xfs/xfs_trans.c. Caller xfs_create+0x33b/0x3d2 [xfs]
Jul 29 14:14:10 Deep-Thought kernel: CPU: 6 PID: 19813 Comm: shfs Tainted: P O 4.19.107-Unraid #1
Jul 29 14:14:10 Deep-Thought kernel: Hardware name: To Be Filled By O.E.M. To Be Filled By O.E.M./B450 Pro4, BIOS P4.10 03/05/2020
Jul 29 14:14:10 Deep-Thought kernel: Call Trace:
Jul 29 14:14:10 Deep-Thought kernel: dump_stack+0x67/0x83
Jul 29 14:14:10 Deep-Thought kernel: xfs_trans_cancel+0x55/0xd1 [xfs]
Jul 29 14:14:10 Deep-Thought kernel: xfs_create+0x33b/0x3d2 [xfs]
Jul 29 14:14:10 Deep-Thought kernel: xfs_generic_create+0xc9/0x29f [xfs]
Jul 29 14:14:10 Deep-Thought kernel: ? capable_wrt_inode_uidgid+0x3a/0x44
Jul 29 14:14:10 Deep-Thought kernel: path_openat+0x6a4/0xc8f
Jul 29 14:14:10 Deep-Thought kernel: do_filp_open+0x4c/0xa9
Jul 29 14:14:10 Deep-Thought kernel: ? _copy_to_user+0x27/0x2a
Jul 29 14:14:10 Deep-Thought kernel: do_sys_open+0x135/0x1d9
Jul 29 14:14:10 Deep-Thought kernel: do_syscall_64+0x57/0xf2
Jul 29 14:14:10 Deep-Thought kernel: entry_SYSCALL_64_after_hwframe+0x44/0xa9
Jul 29 14:14:10 Deep-Thought kernel: RIP: 0033:0x152255946cf4
Jul 29 14:14:10 Deep-Thought kernel: Code: 84 00 00 00 00 00 44 89 54 24 0c e8 e6 f4 ff ff 44 8b 54 24 0c 44 89 e2 48 89 ee 41 89 c0 bf 9c ff ff ff b8 01 01 00 00 0f 05 <48> 3d 00 f0 ff ff 77 32 44 89 c7 89 44 24 0c e8 18 f5 ff ff 8b 44
Jul 29 14:14:10 Deep-Thought kernel: RSP: 002b:0000152237879880 EFLAGS: 00000297 ORIG_RAX: 0000000000000101
Jul 29 14:14:10 Deep-Thought kernel: RAX: ffffffffffffffda RBX: 000015222c011000 RCX: 0000152255946cf4
Jul 29 14:14:10 Deep-Thought kernel: RDX: 00000000000000c1 RSI: 000015222c009970 RDI: 00000000ffffff9c
Jul 29 14:14:10 Deep-Thought kernel: RBP: 000015222c009970 R08: 0000000000000001 R09: 000015222c009970
Jul 29 14:14:10 Deep-Thought kernel: R10: 00000000000081a4 R11: 0000000000000297 R12: 00000000000000c1
Jul 29 14:14:10 Deep-Thought kernel: R13: 0000000000000010 R14: 0000000000002008 R15: 0000000000459720
Jul 29 14:14:10 Deep-Thought kernel: XFS (md1): xfs_do_force_shutdown(0x8) called from line 1042 of file fs/xfs/xfs_trans.c. Return address = 00000000947af4fa
Jul 29 14:14:10 Deep-Thought kernel: XFS (md1): Corruption of in-memory data detected. Shutting down filesystem
Jul 29 14:14:10 Deep-Thought kernel: XFS (md1): Please umount the filesystem and rectify the problem(s)



How do I unmount filesystem to repair?

[lug66]

So Spaceinvader One came to the rescue







I restarted the Move function and the shares have not disappeared!!!



I suppose this can be useful to someone else in future.
