Vitor Ventura

Parity drive upgrade

9 posts in this topic Last Reply

Recommended Posts

Posted (edited)

Hello friends,

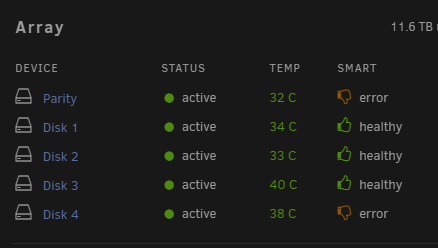

I'm a happy Unraid user, but i have 2 hdds with problems.


Parity, disk 1 and 2 is 4tb, and disk 3 and 4 3tb.



I want replace parity with 8tb.



How can i proceed?



Stop array, remove parity hdd, start array, stop array, assign new 8Tb (precleaned) and start array?



I see this procedure ( https://wiki.unraid.net/The_parity_swap_procedure ), but i don't want parity hdd in array!



Disk 4 replaced is after parity drive!



Thanks for help.

Edited by Vitor Ventura

Share this post


Link to post

Not all SMART errors are equally problematic, and many don't even correlate with the drive failing. What exactly are the errors?



Tools, diagnostics, attach the zip file to your next post in this thread if you want someone to look the situation over for you.

Share this post


Link to post

CRC errors are not disk errors, they are connection problems. According to your syslog you may also be having connection problems with cache.



Check all connections, SATA and power, both ends, including splitters.



CRC errors won't reset, but you can acknowledge them on the Dashboard by clicking on the warning, and it will not warn again unless they increase.



Also, your appdata has files on the array.

Share this post


Link to post
9 minutes ago, trurl said:

CRC errors are not disk errors, they are connection problems. According to your syslog you may also be having connection problems with cache.



Check all connections, SATA and power, both ends, including splitters.



CRC errors won't reset, but you can acknowledge them on the Dashboard by clicking on the warning, and it will not warn again unless they increase.



Also, your appdata has files on the array.

Thanks for the reply.



I know crc errors its connections, but they appear after energy goes down few times.

I can RMA both HDD without problems, and replace them.



Appdata i have configured Prefer, should swap to Only in cache?

Share this post


Link to post
13 minutes ago, Vitor Ventura said:

I know crc errors its connections, but they appear after energy goes down few times.

I can RMA both HDD without problems, and replace them.



Appdata i have configured Prefer, should swap to Only in cache?

Replacing disks won't help. Get an UPS.



Leave as Prefer. Disable Dockers in Settings then run Mover

Share this post


Link to post
Posted (edited)
7 minutes ago, trurl said:

Replacing disks won't help. Get an UPS.



Leave as Prefer. Disable Dockers in Settings then run Mover

I'll move unraid server to another location and will buy an UPS.

Will run mover asap.



And my first question, how to proceed to swap parity hdd?

Stop array, remove parity hdd, start array, stop array, assign new 8Tb (precleaned) and start array?

Edited by Vitor Ventura

Share this post


Link to post

Just assign the new disk to the parity slot and start the array to build parity

Share this post


Link to post
4 minutes ago, trurl said:

Just assign the new disk to the parity slot and start the array to build parity

Thanks for all help!

Share this post


Link to post
