(Help) Problem - Unmountable : No File System

[Zaki Alias]

Hi,

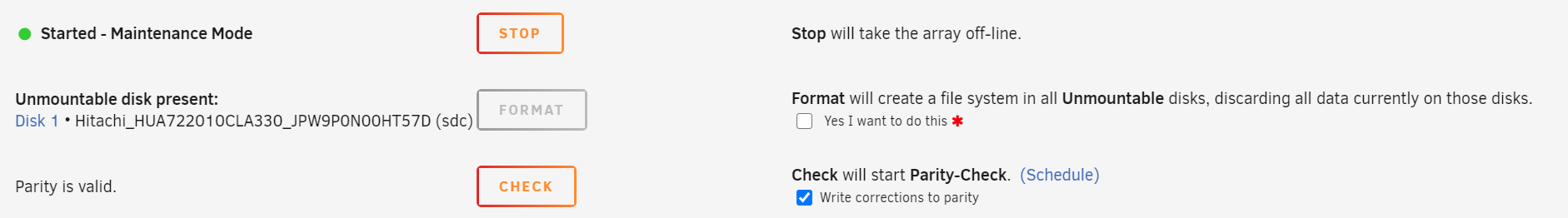

My array suddenly showing unmountable disk : no file system. I have no experience in dealing with this, Appreciate any help. i did search some thread but i scare if i did anything it will corrupt my data.



And some of the files is missing when this happen. Help me... there are some important files there.





attached is the diagnostic zip file for reference.



knl-nas-diagnostics-20200826-0412.zip

[trurl]

https://wiki.unraid.net/Check_Disk_Filesystems#Checking_and_fixing_drives_in_the_webGui

[trurl]

Be sure to capture the output so you can post it.

[Zaki Alias]

11 minutes ago, trurl said:

https://wiki.unraid.net/Check_Disk_Filesystems#Checking_and_fixing_drives_in_the_webGui

Thanks for the link!



i did -nv check of the drive, attached is the result. but im not sure what the problem since i dont really understand the result.



can you help me should i proceed with the -L or -d or -P



appreciate your help!



-nv check result.docx

[trurl]

Please attach plain text files, not Word documents. We shouldn't have to install software in order to help you,

[trurl]

11 hours ago, Zaki Alias said:

there are some important files there

Do you have backups? You must always keep another copy of anything important and irreplaceable.



[Zaki Alias]

14 hours ago, trurl said:

Please attach plain text files, not Word documents. We shouldn't have to install software in order to help you,

My bad, here is the txt files.



-nv check result.txt



14 hours ago, trurl said:

Do you have backups? You must always keep another copy of anything important and irreplaceable.



unfortunately i dont have the backup... i was counting on parity to rebuild the data... but now the parity is invalid (red X).





[JorgeB]

Disk1 is failing:

197 Current_Pending_Sector  -O---K   100   100   000    -    99



And without parity you can't replace it, best bet is to use ddrescue to clone it then run xfs_repair if still needed.
