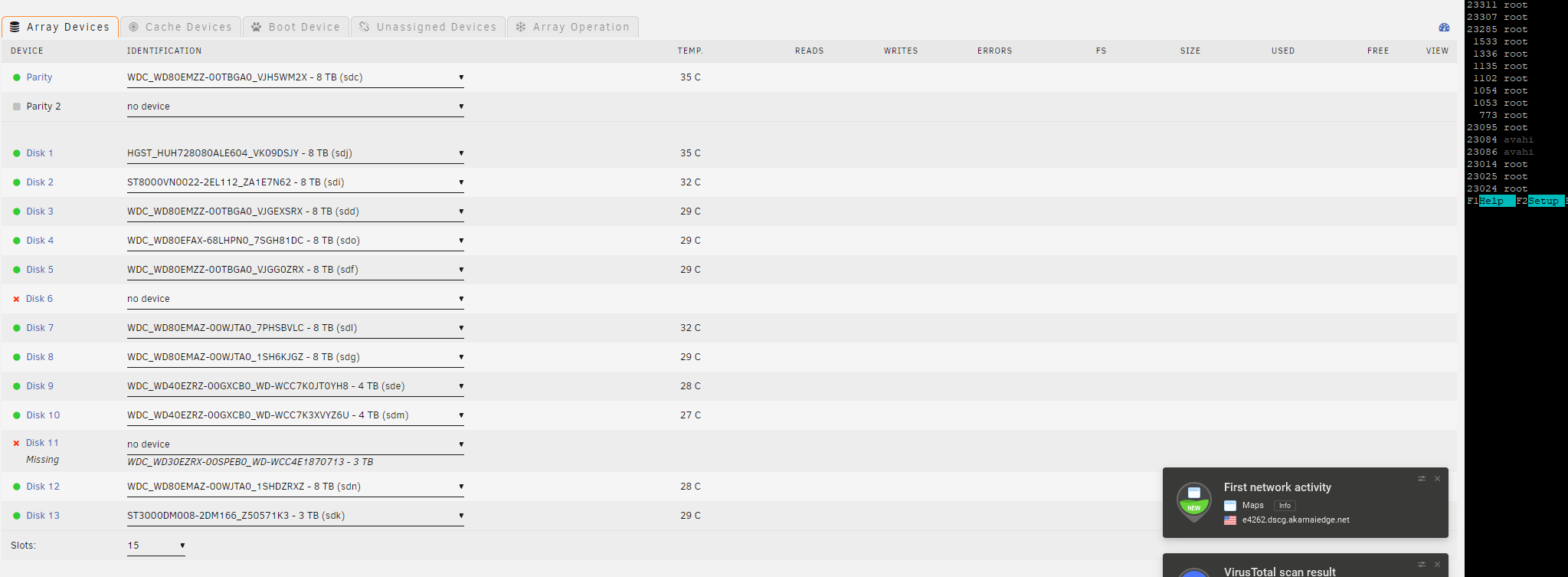

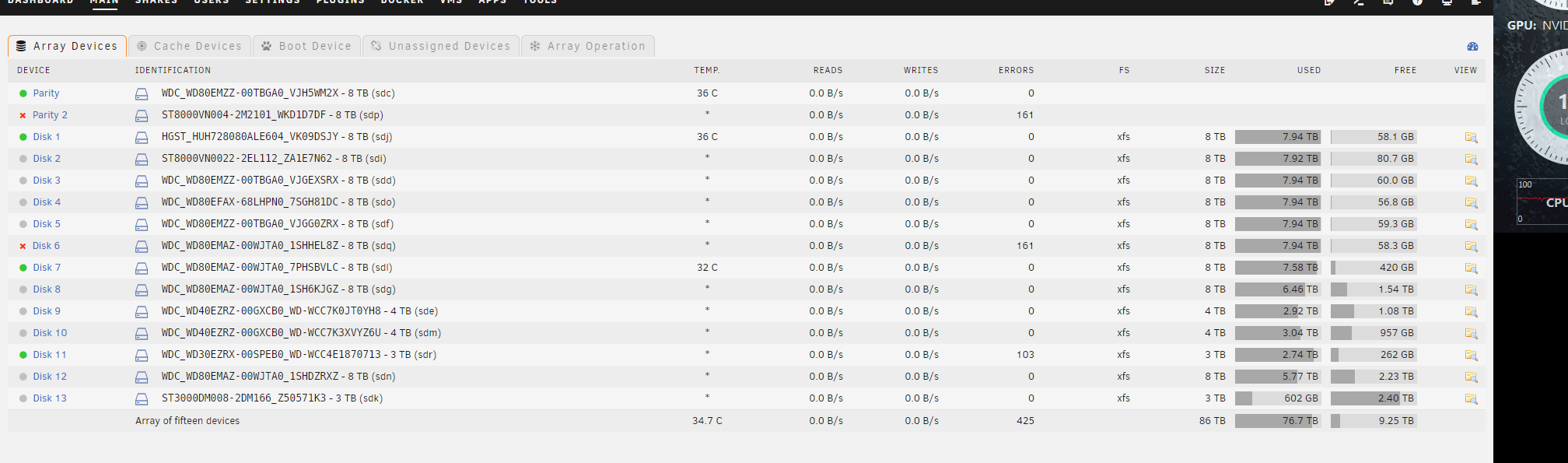

So i logged into my server to find that 2-3 of my drives decided to disable themselfs. I rechecked connections and rebooted. Did a short smart test on all 3 drives and everything is ok, However how do i re-enable those drives?







icarus-diagnostics-20200907-1600.zip

NVM i followed johnnies post that said to unassign, start, stop reassign

FYI looks like a problem with the Marvell controller, it dropped all disks there connected, not so unusual and one of the reasons we don't recommend Marvell controllers with Unraid.

TY Johnnie! Your always super helpful!

happened again on rebuild. Same drives, same controller. Time to nuke the marvell controller.

Installed new cards, got 1 HDD disabled.. bad card or loose cable? (new cards are the https://www.amazon.com/gp/product/B07M942LN9/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1 ) chip is ASM1061





icarus-diagnostics-20201102-2100.zip

Edited November 2, 20205 yr by pyrater
added photo

Note: the hdd that is now complaining was not plugged into the new drives, though i did swap some cables around when i installed the new cards due to length of the cables...

Nov 2 21:31:10 Icarus kernel: scsi_io_completion_action: 25 callbacks suppressed
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#22 UNKNOWN(0x2003) Result: hostbyte=0x04 driverbyte=0x00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#22 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 e5 00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#24 UNKNOWN(0x2003) Result: hostbyte=0x04 driverbyte=0x00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#24 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 98 00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#22 UNKNOWN(0x2003) Result: hostbyte=0x04 driverbyte=0x00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#22 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 e5 00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#24 UNKNOWN(0x2003) Result: hostbyte=0x04 driverbyte=0x00
Nov 2 21:31:10 Icarus kernel: sd 7:0:0:0: [sdo] tag#24 CDB: opcode=0x85 85 06 20 00 00 00 00 00 00 00 00 00 00 40 98 00
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:10 Icarus kernel: program smartctl is using a deprecated SCSI ioctl, please convert it to SG_IO
Nov 2 21:31:38 Icarus ntpd[1759]: kernel reports TIME_ERROR: 0x41: Clock Unsynchronized

Edited November 2, 20205 yr by pyrater

swapped out Cable and connected to new Controller.



Nov 2 21:59:20 Icarus kernel: ata8.00: exception Emask 0x10 SAct 0x0 SErr 0x400000 action 0x6 frozen
Nov 2 21:59:20 Icarus kernel: ata8.00: irq_stat 0x08000000, interface fatal error
Nov 2 21:59:20 Icarus kernel: ata8: SError: { Handshk }
Nov 2 21:59:20 Icarus kernel: ata8.00: failed command: WRITE DMA EXT
Nov 2 21:59:20 Icarus kernel: ata8.00: cmd 35/00:28:40:38:08/00:02:00:00:00/e0 tag 0 dma 282624 out
Nov 2 21:59:20 Icarus kernel: res 50/00:00:3f:38:08/00:00:00:00:00/40 Emask 0x10 (ATA bus error)
Nov 2 21:59:20 Icarus kernel: ata8.00: status: { DRDY }
Nov 2 21:59:20 Icarus kernel: ata8: hard resetting link
Nov 2 21:59:30 Icarus kernel: ata8: softreset failed (1st FIS failed)
Nov 2 21:59:30 Icarus kernel: ata8: hard resetting link
Nov 2 21:59:40 Icarus kernel: ata8: softreset failed (1st FIS failed)
Nov 2 21:59:40 Icarus kernel: ata8: hard resetting link



Starting to think the drive died somehow???

Looks more like a connection issue, but if the problem remains after swapping cables and controller it could be the disk, worth trying swapping them again.

i swapped the cables and its following the controller. I used a different cable and port on the same controller card.

Then try swapping cables with a disk using a different controller.

I am putting the old card back in which requires me to remove my p2200   But at this point i must rebuild 2 disks before i start losing data sooo
