Ultimate UNRAID Dashboard (UUD)


Recommended Posts

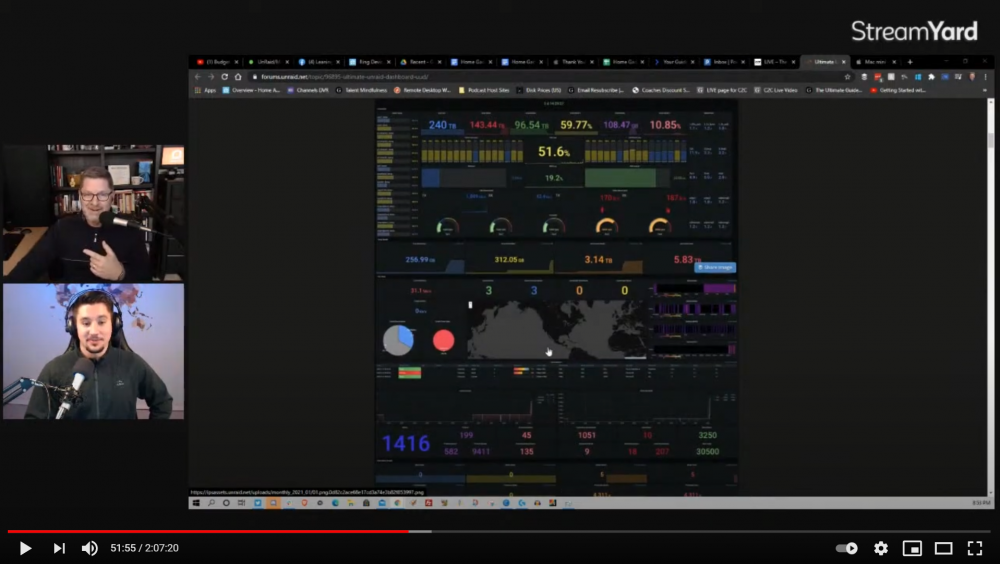

I just wanted to thank The Average Guy Network for discussing the UUD and their kind words on their latest live podcast (Home Gadget Geeks 476). You can watch that segment starting at 50:55 through 53:18 right below.










Here is their website: https://theaverageguy.tv/





Looks like I might be joining the show right after I finish and release UUD 1.6, in the first week in February!



If that happens, maybe we can get the UUD community to submit questions for the live stream and I can talk in more detail about anything you guys want to know.



Edited by falconexe
  • Like 1
Link to comment
5 minutes ago, GilbN said:

use command

SELECT DISTINCT "ID_SERIAL" FROM (SELECT * FROM "diskio" WHERE time >= now() - 10s)



@GilbN

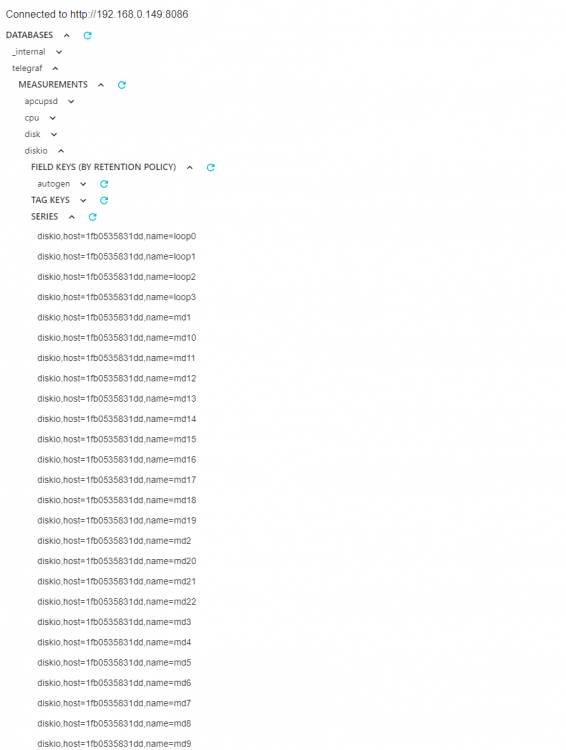

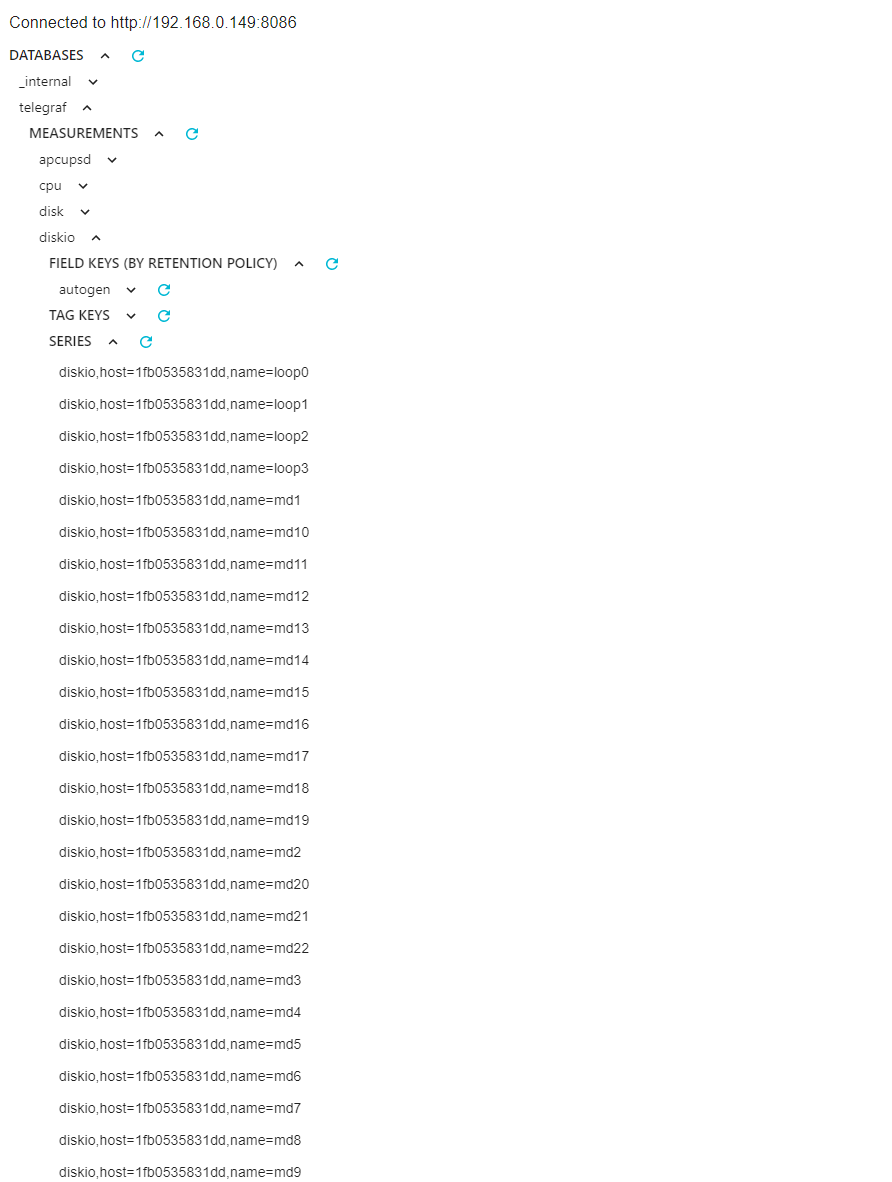

Would rather not expose my db to the internet but if i need to i can to use your link above. I did run the command via console and got the result below which makes me assume its not pulling serial data but that wouldnt explain why the drives arent visible in the top bar of the dashboard (i assume):






Edited by hermy65
Link to comment
28 minutes ago, hermy65 said:



@GilbN



Would rather not expose my db to the internet but if i need to i can to use your link above. I did run the command via console and got the result below which makes me assume its not pulling serial data but that wouldnt explain why the drives arent visible in the top bar of the dashboard (i assume):






As I said, it works locally. Through the browser as your computer is on your LAN. So through the browser on the computer it has access.

Edited by GilbN
Link to comment
24 minutes ago, hermy65 said:



@GilbN



Would rather not expose my db to the internet but if i need to i can to use your link above. I did run the command via console and got the result below which makes me assume its not pulling serial data but that wouldnt explain why the drives arent visible in the top bar of the dashboard (i assume):






Try SELECT DISTINCT "ID_SERIAL" FROM (SELECT * FROM "diskio" WHERE time >= now() - 1d)

If that doesnt work, try SHOW TAG VALUES FROM "diskio" WITH KEY = "ID_SERIAL"

If that doesn't work, your telegraf config is wrong.

Edited by GilbN
Link to comment
1 hour ago, GilbN said:

Try SELECT DISTINCT "ID_SERIAL" FROM (SELECT * FROM "diskio" WHERE time >= now() - 1d)

If that doesnt work, try SHOW TAG VALUES FROM "diskio" WITH KEY = "ID_SERIAL"

If that doesn't work, your telegraf config is wrong.

Interesting, never saw mention of it working locally. I ran all the commands you gave but never got a result from any of them. Here is what my telegraf config looks like in the [[inputs.diskio]] section



# Read metrics about disk IO by device
[[inputs.diskio]]
  ## By default, telegraf will gather stats for all devices including
  ## disk partitions.
  ## Setting devices will restrict the stats to the specified devices.
  # devices = ["sda", "sdb"]
  ## Uncomment the following line if you need disk serial numbers.
  # skip_serial_number = false
  #
  ## On systems which support it, device metadata can be added in the form of
  ## tags.
  ## Currently only Linux is supported via udev properties. You can view
  ## available properties for a device by running:
  ## 'udevadm info -q property -n /dev/sda'
 device_tags = ["ID_SERIAL"]
  #
  ## Using the same metadata source as device_tags, you can also customize the
  ## name of the device via templates.
  ## The 'name_templates' parameter is a list of templates to try and apply to
  ## the device. The template may contain variables in the form of '$PROPERTY' or
  ## '${PROPERTY}'. The first template which does not contain any variables not
  ## present for the device is used as the device name tag.
  ## The typical use case is for LVM volumes, to get the VG/LV name instead of
  ## the near-meaningless DM-0 name.
  # name_templates = ["$ID_FS_LABEL","$DM_VG_NAME/$DM_LV_NAME"]



Link to comment
Just now, hermy65 said:

Interesting, never saw mention of it working locally. I ran all the commands you gave but never got a result from any of them. Here is what my telegraf config looks like in the [[inputs.diskio]] section




# Read metrics about disk IO by device
[[inputs.diskio]]
  ## By default, telegraf will gather stats for all devices including
  ## disk partitions.
  ## Setting devices will restrict the stats to the specified devices.
  # devices = ["sda", "sdb"]
  ## Uncomment the following line if you need disk serial numbers.
  # skip_serial_number = false
  #
  ## On systems which support it, device metadata can be added in the form of
  ## tags.
  ## Currently only Linux is supported via udev properties. You can view
  ## available properties for a device by running:
  ## 'udevadm info -q property -n /dev/sda'
 device_tags = ["ID_SERIAL"]
  #
  ## Using the same metadata source as device_tags, you can also customize the
  ## name of the device via templates.
  ## The 'name_templates' parameter is a list of templates to try and apply to
  ## the device. The template may contain variables in the form of '$PROPERTY' or
  ## '${PROPERTY}'. The first template which does not contain any variables not
  ## present for the device is used as the device name tag.
  ## The typical use case is for LVM volumes, to get the VG/LV name instead of
  ## the near-meaningless DM-0 name.
  # name_templates = ["$ID_FS_LABEL","$DM_VG_NAME/$DM_LV_NAME"]

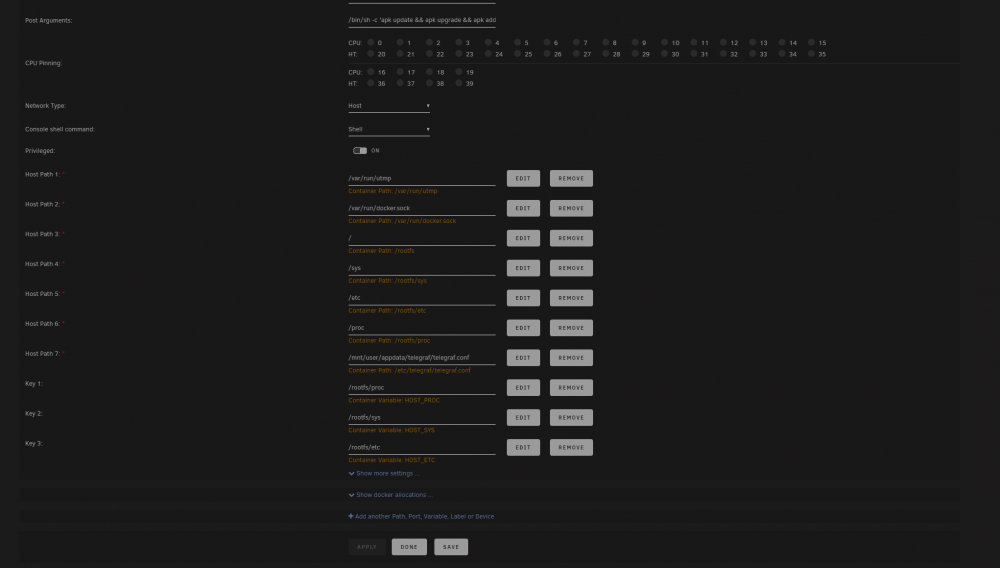

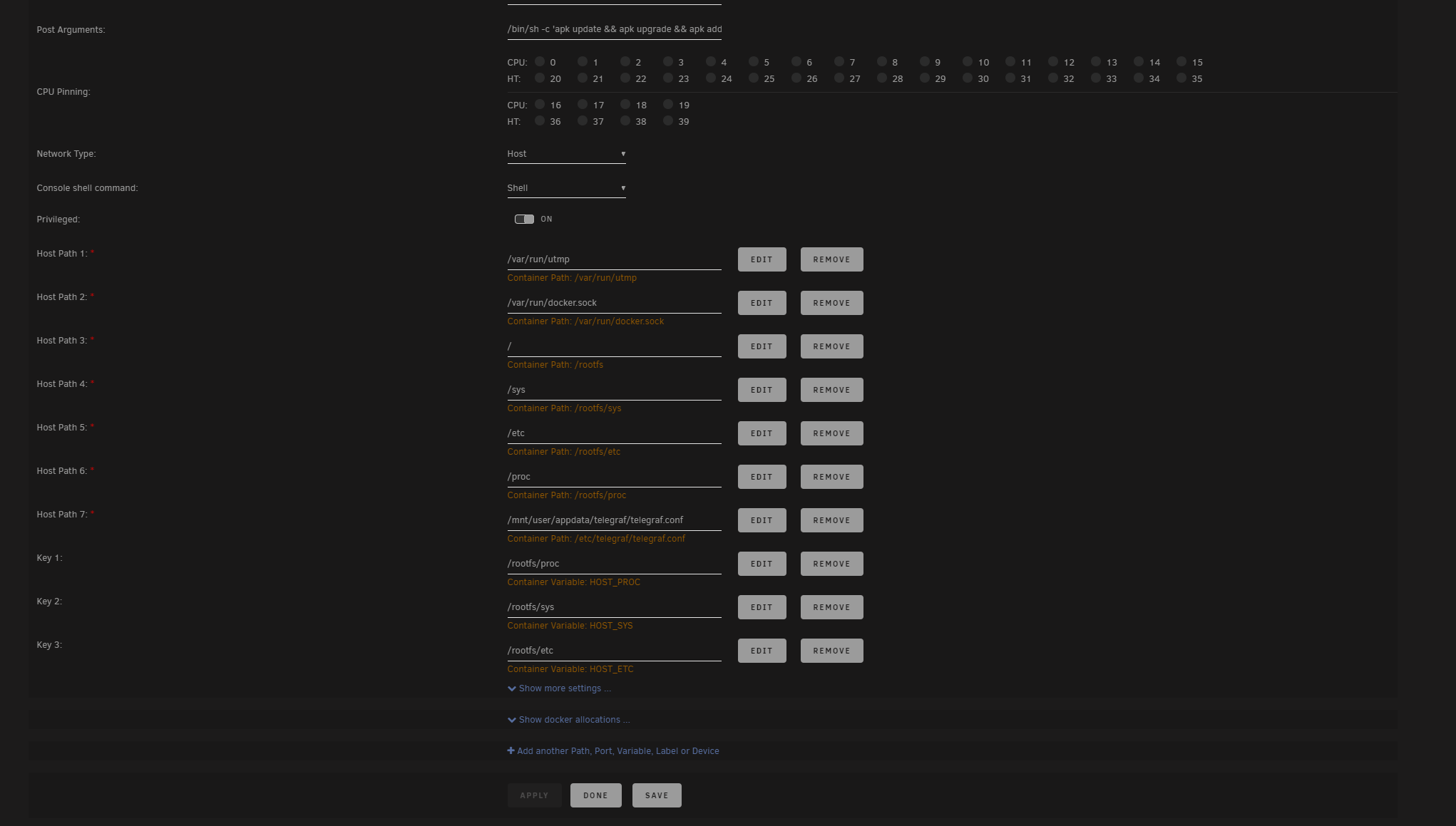

What do you have in the post arguments for telegraf?

Link to comment

I'm sure I've simply screwed something up in the config file - can't seem to figure it out:



E! [telegraf] Error running agent: Error loading config file /etc/telegraf/telegraf.conf: plugin inputs.cpu: line 2324: configuration specified the fields [\"attributes\"], but they weren't used\n



There is no "attributes" field there - I put one in with no difference - help?

Link to comment
1 hour ago, Lucky Jay said:

I'm sure I've simply screwed something up in the config file - can't seem to figure it out:



E! [telegraf] Error running agent: Error loading config file /etc/telegraf/telegraf.conf: plugin inputs.cpu: line 2324: configuration specified the fields [\"attributes\"], but they weren't used\n



There is no "attributes" field there - I put one in with no difference - help?




See page 21 for mine. Try that.





Link to comment
