Ultimate UNRAID Dashboard (UUD)


1047 posts in this topic Last Reply

Recommended Posts

Posted (edited)

And what the heck, I will be the 1,000th reply to my own thread ha ha.



Thanks for everyone's interest and support for the UUD!



Edited by falconexe
Link to post
  • Replies 1k
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Donate:      Ultimate UNRAID Dashboard (UUD)   Current Release: Version 1.6 (Added UNRAID API)       UUD NEWS: 2021-05-26: The UUD Forum Topic Reac

DEVELOPER UPDATE:   😂 But for real guys, I'm going to be stepping away from the UUD for the foreseeable future. I have a lot going on in my personal life (divorce among other stuff) and I ju

Something really cool happened. I woke up this morning and my profile had this green wording on it.       I just officially became the newest UNRAID "Community Developer". I

Posted Images

Hello and thanks for the work on this.



I'm new to unRaid and I've been learning quite a lot recently. I'm interested in running this solution and found on one of your posts that the "Grafana-Unraid-Stack" would run with your UUD and it does run nicely, but I'd like to update it to your latest 1.6 version, instead of the deprecated 1.3 that comes with the "Grafana-Unraid-Stack" container.



I've been trying to find the information on how to proceed with that update to that container, but couldn't find it anywhere.



Would it be possible to point a Noob in the needed direction to update the Grafana-Unraid-Stack for the UUD 1.6 and future versions?



Thank you very much.

Link to post
On 6/1/2021 at 12:55 AM, Digaumspider said:

Hello and thanks for the work on this.



I'm new to unRaid and I've been learning quite a lot recently. I'm interested in running this solution and found on one of your posts that the "Grafana-Unraid-Stack" would run with your UUD and it does run nicely, but I'd like to update it to your latest 1.6 version, instead of the deprecated 1.3 that comes with the "Grafana-Unraid-Stack" container.



I've been trying to find the information on how to proceed with that update to that container, but couldn't find it anywhere.



Would it be possible to point a Noob in the needed direction to update the Grafana-Unraid-Stack for the UUD 1.6 and future versions?



Thank you very much.



Yes, of course. Just download the UUD 1.6 JSON file from post #1, and then import it to Grafana manually. The new dashboard will appear and you can modify as needed. This has been detailed in this forum topic a few times. Please keep in mind that you will have many new dependencies and plugins that will be required when migrating from 1.3 to 1.6. Good luck!

Link to post
15 hours ago, falconexe said:



Yes, of course. Just download the UUD 1.6 JSON file from post #1, and then import it to Grafana manually. The new dashboard will appear and you can modify as needed. This has been detailed in this forum topic a few times. Please keep in mind that you will have many new dependencies and plugins that will be required when migrating from 1.3 to 1.6. Good luck!

Thank you! That worked! I'll just do a digging now trying to figure out which new dependencies and plugins I'll have to download and install, since I'm really starting from scratch and I'm learning from the very beginning.



Thanks again for your work on this.

Link to post

This dash is really great!  I have spent most of the night trying to get it working smoothly and I am left with a few hiccups that a lot of others are having as well.  This pertains to these pesky images for VM and docker containers!!!



The workarounds that have been mentioned are not working for me.

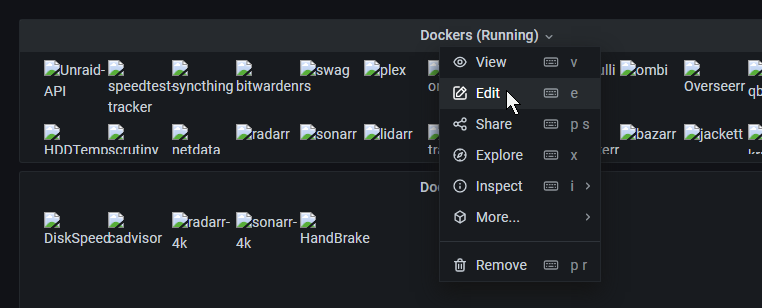

I go into the editor for `Dockers (Running)` for example:

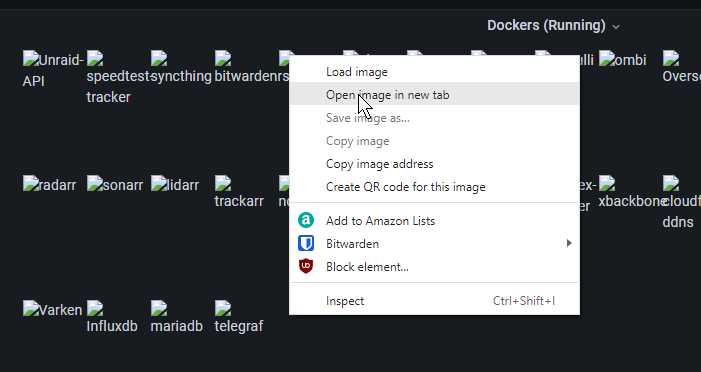

I then right-click and select open in new tab for Chrome:

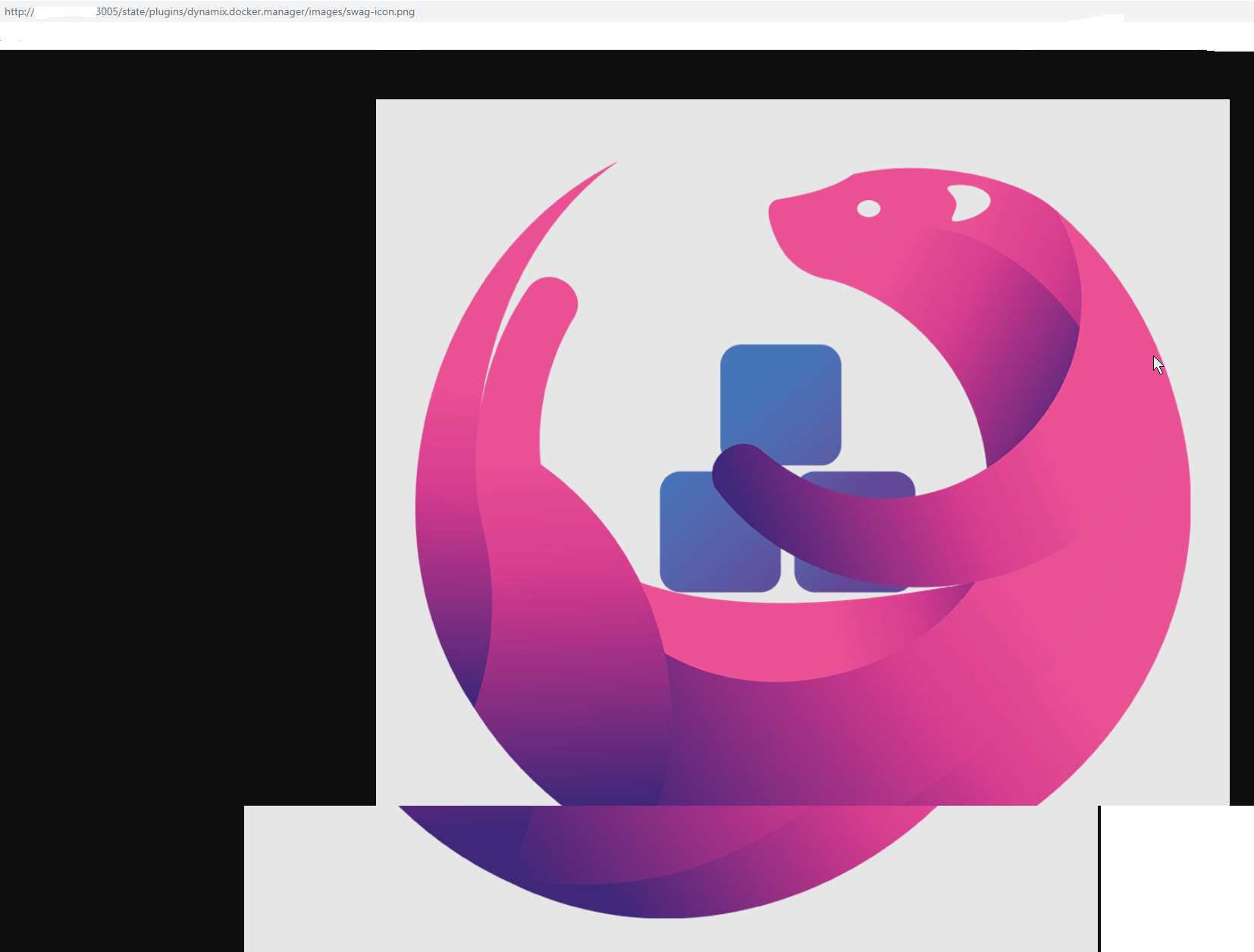

And it doesnt go to any login page, it shows the icon!3.thumb.png.6b7a4c3381007ab239198d73aef50db2.png



So if this is the case, why wont it show in the panel?  Any help would be definitely appreciated.  I am having the same issue with VMs.







Link to post
On 6/12/2021 at 7:46 AM, danktankk said:

This dash is really great!  I have spent most of the night trying to get it working smoothly and I am left with a few hiccups that a lot of others are having as well.  This pertains to these pesky images for VM and docker containers!!!



The workarounds that have been mentioned are not working for me.



I go into the editor for `Dockers (Running)` for example:




I then right-click and select open in new tab for Chrome:






And it doesnt go to any login page, it shows the icon!3.thumb.png.6b7a4c3381007ab239198d73aef50db2.png



So if this is the case, why wont it show in the panel?  Any help would be definitely appreciated.  I am having the same issue with VMs.







Same issue here.

Link to post
5 hours ago, Mr_Jay84 said:

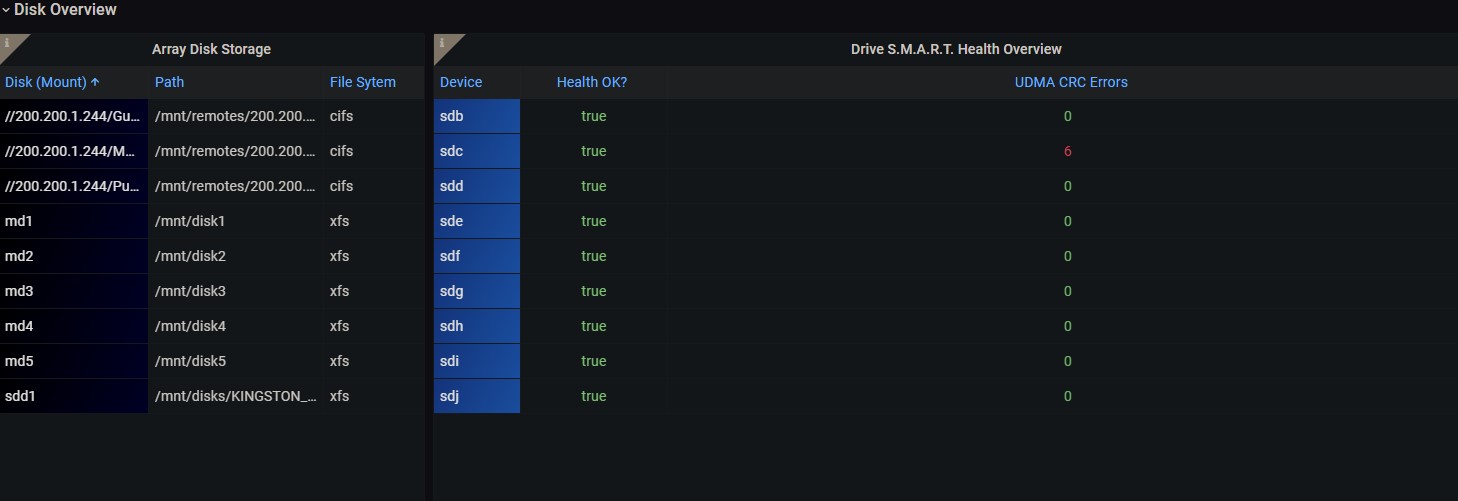

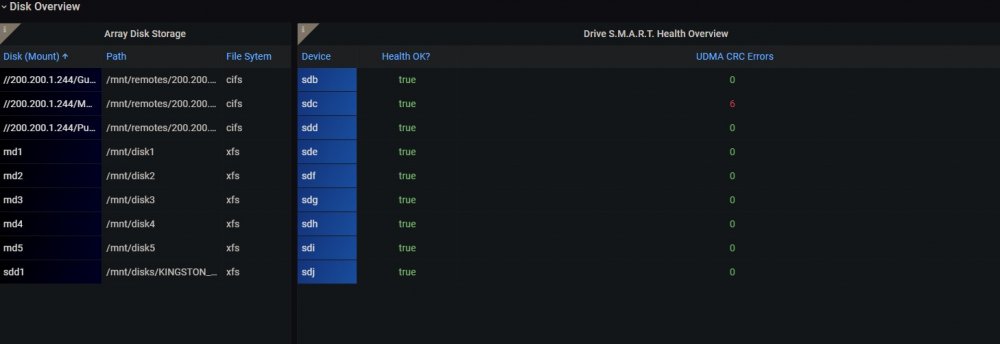

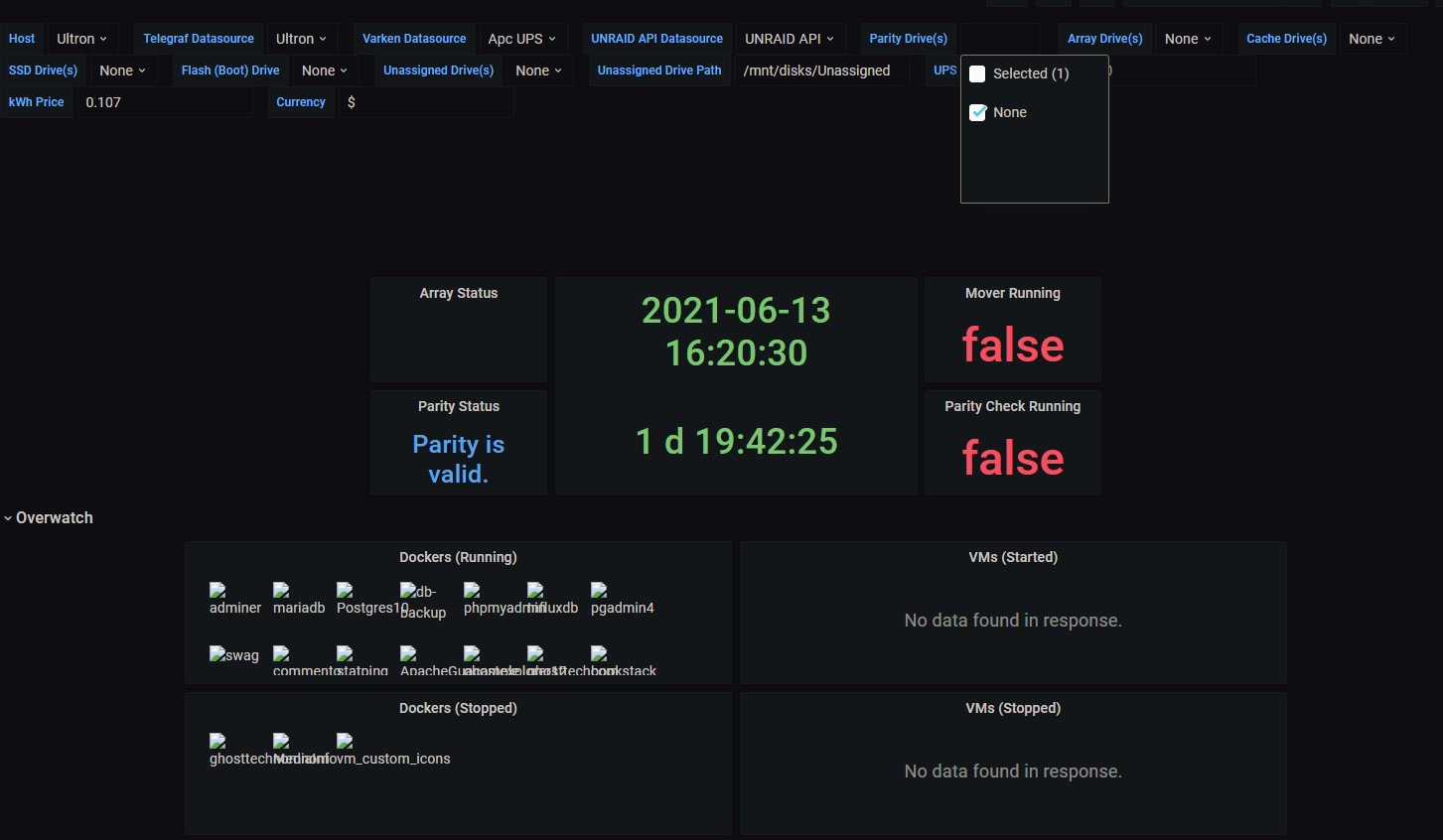

I also have the issue of none of the HD's showing under Parity, Array, Cache, SSD, Unassigned Drives. The do show under the Disk Overview windows though.

I had this issue too. It was my fault I misconfigured my telegraf.conf. Under the [[inputs.diskio]] section make sure this following line is there and/or uncommented.

device_tags = ["ID_SERIAL"]

I mistakenly commented it out in my conf file and it was a real PITA to figure it out.

Hope that helps.

Link to post
On 6/13/2021 at 10:10 PM, skaterpunk0187 said:

I had this issue too. It was my fault I misconfigured my telegraf.conf. Under the [[inputs.diskio]] section make sure this following line is there and/or uncommented.

device_tags = ["ID_SERIAL"]

I mistakenly commented it out in my conf file and it was a real PITA to figure it out.

Hope that helps.

That solved it! Thank you kindly!

Link to post

I have just noticed my docker panels not displaying giving me this error........



Panel plugin not found: dalvany-image-panel



Im not sure where to look to fix this, any suggestions would be greatful


Link to post
4 hours ago, magicman32 said:

I have just noticed my docker panels not displaying giving me this error........



Panel plugin not found: dalvany-image-panel



Im not sure where to look to fix this, any suggestions would be greatful


Open the console for the Grafana Docker and run the command

grafana-cli plugins install dalvany-image-panel

You might have to restart the docker after running the command

Link to post

Awesome dashboard.  THANK YOU!

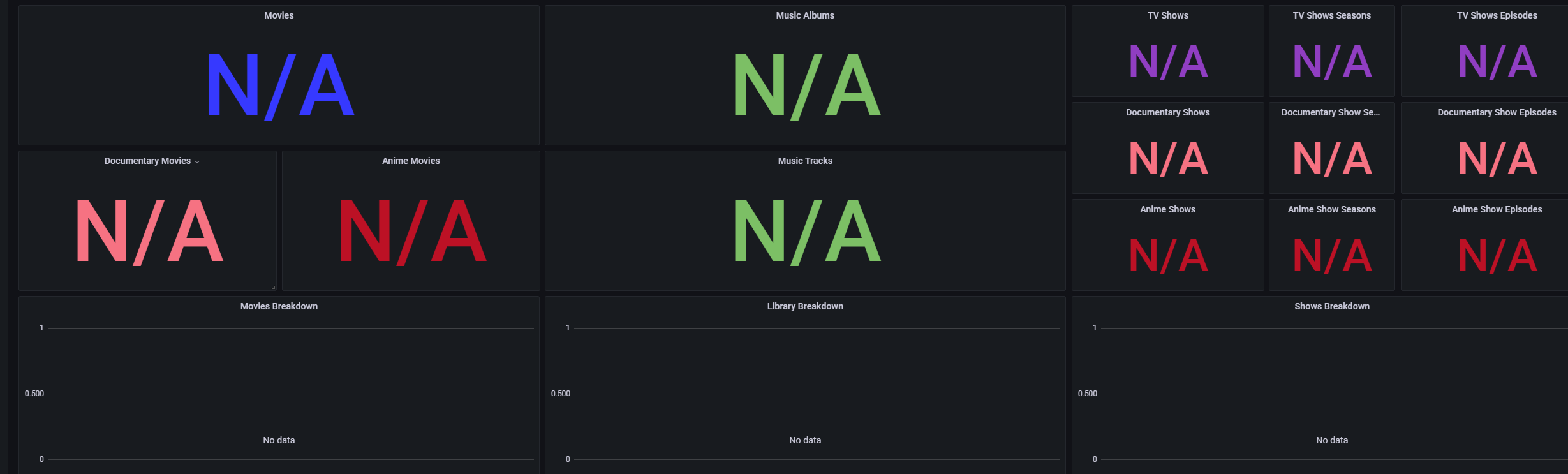

I have everything customized to my server, however struggling with the Plex libraries via Varken.  I'm pulling other data from Varken DB, but these I cannot find the correct query for the life of me.




I have other Varken data populating completely fine...




Example:  my Movies database is called Movies... Not sure why this isn't picking up?  :/


Suggestions on troubleshooting?



Link to post
19 hours ago, noties said:

Awesome dashboard.  THANK YOU!

I have everything customized to my server, however struggling with the Plex libraries via Varken.  I'm pulling other data from Varken DB, but these I cannot find the correct query for the life of me.




I have other Varken data populating completely fine...




Example:  my Movies database is called Movies... Not sure why this isn't picking up?  :/


Suggestions on troubleshooting?

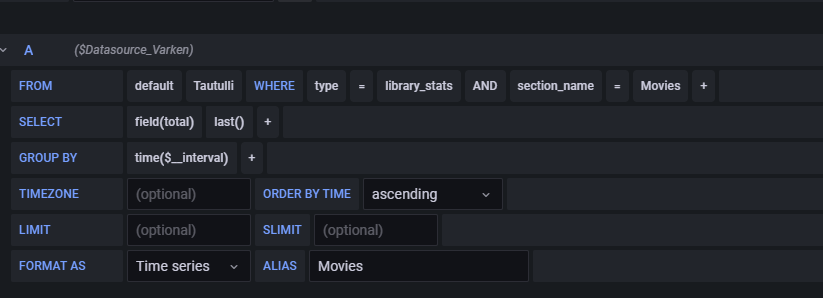

Movies at the end of the FROM line, is a library in Plex.  If you left click on it, you should get a list of libraries it found in Plex / Tautulli that you can select from.

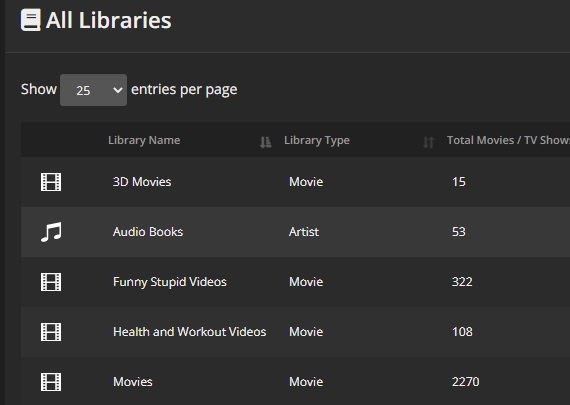

Your "movies" library in Plex must have a different name.  Verify in Tautulli what it is seeing in Plex, under Libraries





You will need to reselect the Documentary Movies and Anime Movies panels the same way.



Actually, each panel in your top picture will need the same thing done.



You will probably want to change the panel title also in each one to reflect what it actually is.





Screenshot 2021-06-23 163333.jpg

Link to post
2 hours ago, hogfixer said:

Movies at the end of the FROM line, is a library in Plex.  If you left click on it, you should get a list of libraries it found in Plex / Tautulli that you can select from.



Your "movies" library in Plex must have a different name.  Verify in Tautulli what it is seeing in Plex, under Libraries





You will need to reselect the Documentary Movies and Anime Movies panels the same way.



Actually, each panel in your top picture will need the same thing done.



You will probably want to change the panel title also in each one to reflect what it actually is.

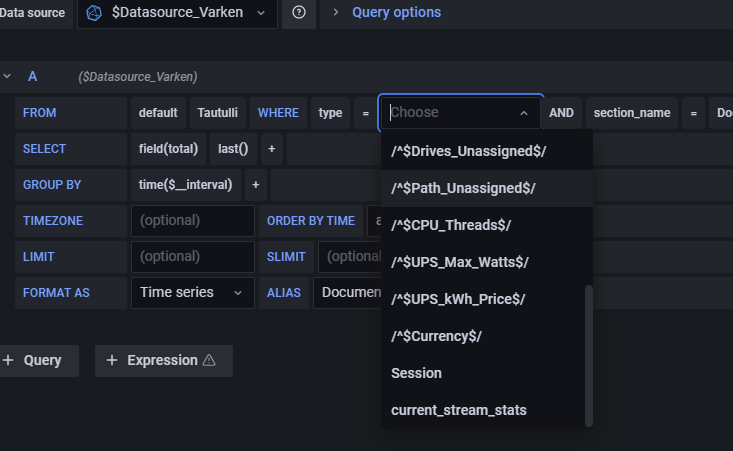

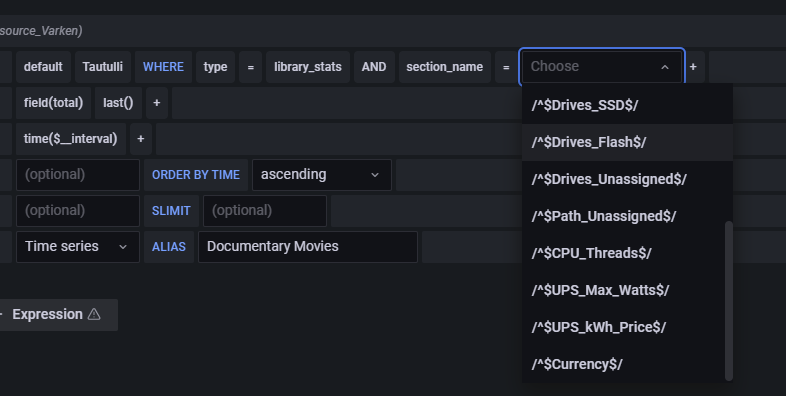

Yeah, I've done that with other tiles in the dashboard, but this one is not giving me any choices so I'm wondering if I have something misconfigured on the Varken, Grafana, or Tautulli side of things.




In fact, I don't see library_stats as an available choice.  I'm wondering if that's the cause, though I'm not sure where I need to enable that or if it's possible.  I don't see anything to enable in Tautulli and I can see all of my libraries there.





Relevant varken.ini for tautulli

[tautulli-1]
url = 10.3.3.110:8181
fallback_ip = x.x.x.x
apikey = xxxxxxxxxx
ssl = false
verify_ssl = false
get_activity = true
get_activity_run_seconds = 30
get_stats = true
get_stats_run_seconds = 3600



Link to post
31 minutes ago, noties said:



Yeah, I've done that with other tiles in the dashboard, but this one is not giving me any choices so I'm wondering if I have something misconfigured on the Varken, Grafana, or Tautulli side of things.




In fact, I don't see library_stats as an available choice.  I'm wondering if that's the cause, though I'm not sure where I need to enable that or if it's possible.  I don't see anything to enable in Tautulli and I can see all of my libraries there.





Relevant varken.ini for tautulli


[tautulli-1]
url = 10.3.3.110:8181
fallback_ip = x.x.x.x
apikey = xxxxxxxxxx
ssl = false
verify_ssl = false
get_activity = true
get_activity_run_seconds = 30
get_stats = true
get_stats_run_seconds = 3600




Is your API key masked on purpose for privacy or is it actually missing?

Link to post
5 minutes ago, falconexe said:


Is your API key masked on purpose for privacy or is it actually missing?

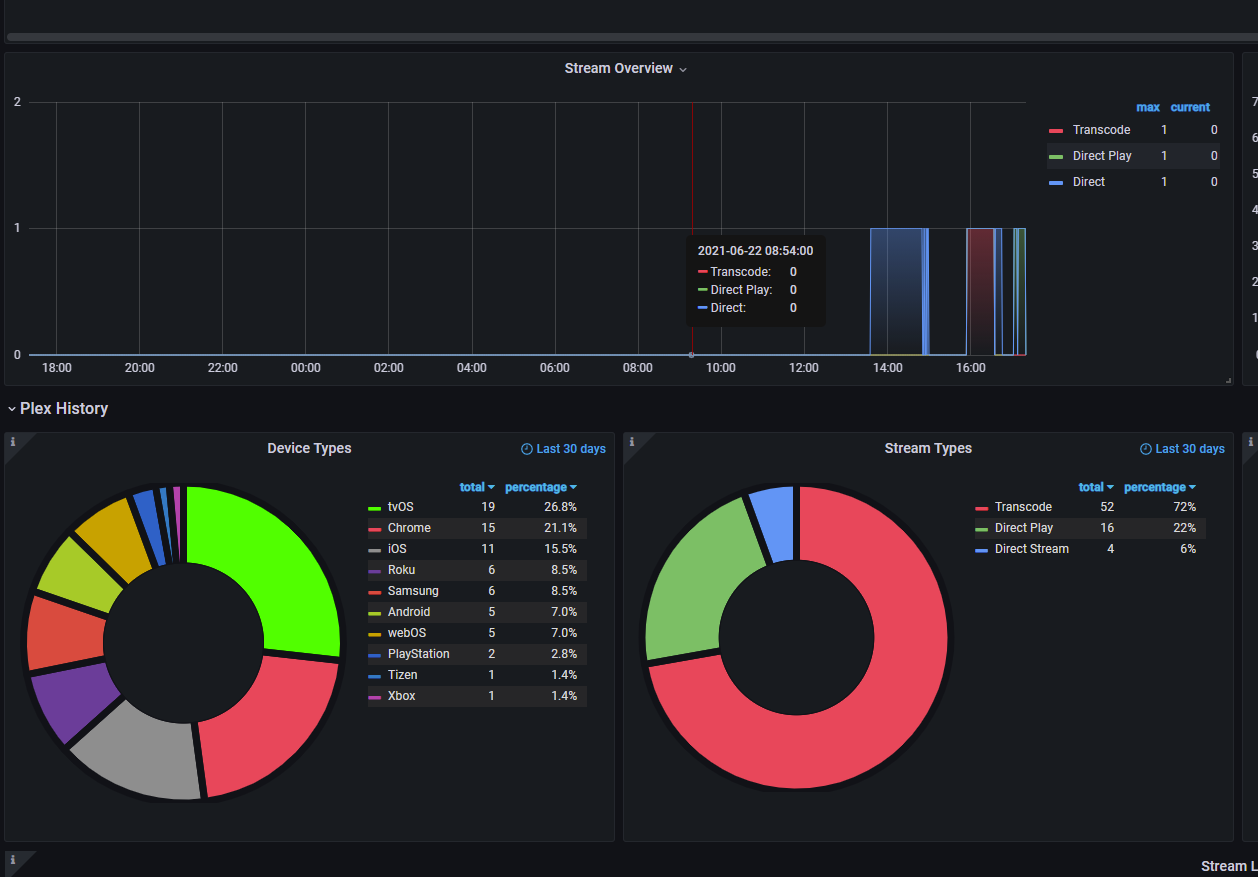

Masked for privacy.   It does seem to be working for other tiles in the dashboard like Stream Overview, Stream Bandwidth, Media Types, Media Qualities, etc.  The library tiles are the only thing having an issue.  :/

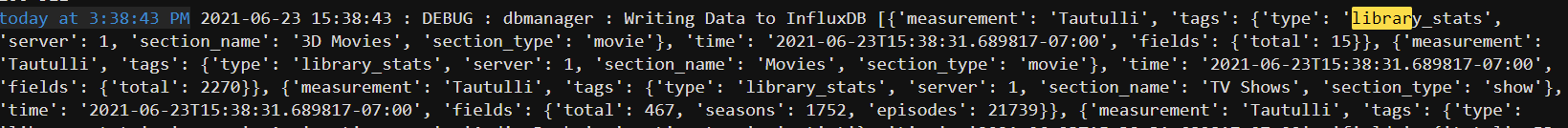

I do see library_stats data getting written to Influx in my Varken logs:




Edited by noties
additional data
Link to post
5 minutes ago, noties said:

Masked for privacy.   It does seem to be working for other tiles in the dashboard like Stream Overview, Stream Bandwidth, Media Types, Media Qualities, etc.  The library tiles are the only thing having an issue.  :/



I do see library_stats data getting written to Influx in my Varken logs:





Yeah I figured, just wanted to be sure. Try removing each element in the query until you are at the base, then try to build it again from that. Sometimes Grafana gets messed up in the JSON and does not display elements as it should. Sometimes the select statement can act as a filter for the items in the from statement (possibly a Grafana bug). You can also just try making a new panel from scratch and see if these elements show up.

Link to post
1 minute ago, falconexe said:


Yeah I figured, just wanted to be sure. Try removing each element in the query until you are at the base, then try to build it again from that. Sometimes Grafana gets messed up in the JSON and does not display elements as it should. Sometimes the select statement can act as a filter for the items in the from statement (possibly a Grafana bug). You can also just try making a new panel from scratch and see if these elements show up.

Good idea.  I've been spending time reading about and learning Grafana before asking for help.  Just couldn't figure this one out easily.  I'm going try doing a clean panel and seeing if that will work.  I'll report back.

Link to post
37 minutes ago, stFfn said:

does anyone have a good tutorial on how to impliment data from the fritzbox router into this dashboard?

or is it not even possible?




I’m the developer. As long as you can get the data into an InfluxDB (or alternate) data source, Grafana will it will handle it dynamically, and therefore you could add it into your UUD dash. You need some middleware or an API (like how we use Telegraph and Varkin now) to send the data from your app into a valid datasource. It could even be a SQL database. It just needs to be one of the approved Grafana data sources, and it should slice and dice.



Link to post
1 minute ago, falconexe said:




I’m the developer. As long as you can get the data into an InfluxDB (or alternate) data source, Grafana will it will handle it dynamically, and therefore you could add it into your UUD dash. You need some middleware or an API (like how we use Telegraph and Varkin now) to send the data from your app into a valid datasource. It could even be a SQL database. It just needs to be one of the approved Grafana data sources, and it should slice and dice.



well this was kinda my question. does anyone know a way to do all of that? how to get on that data and how to impliment it into this dashboard :D

Link to post
3 hours ago, stFfn said:

well this was kinda my question. does anyone know a way to do all of that? how to get on that data and how to impliment it into this dashboard :D


Nope. Good luck.

Link to post
On 6/23/2021 at 4:41 PM, falconexe said:


Yeah I figured, just wanted to be sure. Try removing each element in the query until you are at the base, then try to build it again from that. Sometimes Grafana gets messed up in the JSON and does not display elements as it should. Sometimes the select statement can act as a filter for the items in the from statement (possibly a Grafana bug). You can also just try making a new panel from scratch and see if these elements show up.



So I finally figured this out.  I had the InfluxDB container on my UnRAID bridge network and the Varken container on my custom docker network (br1).  For whatever reason, Varken (or InfluxDB) would not successfully write the library_stats tag key to the DB.  The moment I moved my InfluxDB to my docker network, library_stats started writing.   Unfortunately, this forced me to move everything in my Grafana stack to my docker network -- including telegraf.  Everything appears to be working except for VM/docker icons which I think I can do without and may remove those panels.  I think this pertains to the docker network not being able to communicate with the UnRAID IP.



I did need to make one change to my telegraf.conf that pertained to the APCUPSD.  I changed the servers statement to point to my UnRAID IP instead of 127.0.0.1.



# # Monitor APC UPSes connected to apcupsd
[[inputs.apcupsd]]
#   # A list of running apcupsd server to connect to.
#   # If not provided will default to tcp://127.0.0.1:3551
servers = ["tcp://10.1.1.99:3551"]



Link to post
3 hours ago, noties said:



So I finally figured this out.  I had the InfluxDB container on my UnRAID bridge network and the Varken container on my custom docker network (br1).  For whatever reason, Varken (or InfluxDB) would not successfully write the library_stats tag key to the DB.  The moment I moved my InfluxDB to my docker network, library_stats started writing.   Unfortunately, this forced me to move everything in my Grafana stack to my docker network -- including telegraf.  Everything appears to be working except for VM/docker icons which I think I can do without and may remove those panels.  I think this pertains to the docker network not being able to communicate with the UnRAID IP.



I did need to make one change to my telegraf.conf that pertained to the APCUPSD.  I changed the servers statement to point to my UnRAID IP instead of 127.0.0.1.




# # Monitor APC UPSes connected to apcupsd
[[inputs.apcupsd]]
#   # A list of running apcupsd server to connect to.
#   # If not provided will default to tcp://127.0.0.1:3551
servers = ["tcp://10.1.1.99:3551"]






Glad you figured everything out! This will surely help a lot of people that run custom network/bridge configs. Thanks for sharing.

Link to post
