trx40 - 3960x setup questions

luca2
in Hardware

Featured Replies

Hi,

I would appreciate if you owners of a similar setup can tell me you experiences with unraid so far.

I am interested in the following:

1) best iommu grouping out of the box for pass through...pls recommend which motherboard would you buy now

2) any problems still with linux kernel lower than 5, I am thinking of still sticking to latest unraid stable version

3) motherboard that accepts pciexpress bifurcation (not only for raid but also for running 2xgpus@x8_4.0), so that I can put 2 cards in 1 slot

4) any other issues I must be aware of (cpu-core tuning, ....)

I considering making a move to invest in such a platform to run 3 vm's with fully dedicated gpu's + 1/2 more to run via VNC. Also some dockers. And also running some nvme raid to be used as disk pool for the vm's.

X570 offers only limited pciexpress lanes I cannot use it for this setup. I doubt x670 will soon come out and even then will add more lines.

Since it is a big investment for me I would like to make sure in a certain degree that it will work before I pull the trigger.

Hope to hear your thoughts.

Rgds





Sent from my NX569J using Tapatalk





  • Quote
    • 9 months later...

    So how did you end up ? I'm thinking of migrating from intel to 3960X any specific issues I should look for ?

  • Quote
    • 7 months later...

    I have AMD Ryzen 3960x , the settings is a bit tricky,

    3960x To topology all cores 24x2=48 threads:



    # Unraid 6.10.0-rc2

    # Windows 11 3960x topology :

    <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='1' dies='24' cores='1' threads='2'/>  # threads = dies X 2 = 48
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>



    # macOS 3960x topology:

    <cpu mode='host-passthrough' check='none' migratable='on'>
    <topology sockets='24' dies='1' cores='1' threads='2'/>  # threads = sockets X 2 = 48
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>



    # Machine type tricky, last thing I expected to make pain boot failed:

    <type arch='x86_64' machine='pc-q35-4.2'>hvm</type> macOS tested ok

<type arch='x86_64' machine='pc-q35-6.1'>hvm</type> macOS tested failed, Windows 11 ok



    # GPU RX 6900 XT:

    # Windows ok HDMI audio ok, macOS ok HDMI audio failed, 'bus' can't be changed.

    # All GPU instences must be passthough and must be added to xml otherwise = failed

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x2'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x3'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/>
    </hostdev>



    ..................................



    # macOS args:

    <qemu:commandline>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=YOUR OSK HERE'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>



    Edited by ddk-input

  • Quote
    8 hours ago, ddk-input said:
    <type arch='x86_64' machine='pc-q35-6.1'>hvm</type> macOS tested failed

    This can be solved by adding this to custom qemu args:

        <qemu:commandline>
      <qemu:arg value='-global'/>
      <qemu:arg value='ICH9-LPC.acpi-pci-hotplug-with-bridge-support=off'/>
    </qemu:commandline>

    Mac os fails without this on machine type >=6.0 because in these versions acpi tables change and mac os doesn't like them.



    8 hours ago, ddk-input said:

    # GPU RX 6900 XT:

    # macOS ok HDMI audio failed

    I have a 6900 xt too (sapphire nitro+ se), hdmi audio works, but not dp audio:

    https://github.com/acidanthera/bugtracker/issues/1924



    Quote

        <hostdev mode='subsystem' type='pci' managed='yes'>
          <driver name='vfio'/>
          <source>
            <address domain='0x0000' bus='0x4f' slot='0x00' function='0x0'/>
          </source>
          <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
        </hostdev>
        <hostdev mode='subsystem' type='pci' managed='yes'>
          <driver name='vfio'/>
          <source>
            <address domain='0x0000' bus='0x4f' slot='0x00' function='0x1'/>
          </source>
          <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
        </hostdev>
        <hostdev mode='subsystem' type='pci' managed='yes'>
          <driver name='vfio'/>
          <source>
            <address domain='0x0000' bus='0x4f' slot='0x00' function='0x2'/>
          </source>
          <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
        </hostdev>
        <hostdev mode='subsystem' type='pci' managed='yes'>
          <driver name='vfio'/>
          <source>
            <address domain='0x0000' bus='0x4f' slot='0x00' function='0x3'/>
          </source>
          <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0'/>
        </hostdev>



    Multifunction is wrong, change to this:

        <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x2'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x2'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x3'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x3'/>
    </hostdev>



    and I think your hdmi audio will start to work if you have lilu/weg/applealc

  • Quote
    • Like 1
    9 hours ago, ghost82 said:

    This can be solved by adding this to custom qemu args:

        <qemu:commandline>
      <qemu:arg value='-global'/>
      <qemu:arg value='ICH9-LPC.acpi-pci-hotplug-with-bridge-support=off'/>
    </qemu:commandline>

    Mac os fails without this on machine type >=6.0 because in these versions acpi tables change and mac os doesn't like them.



    I have a 6900 xt too (sapphire nitro+ se), hdmi audio works, but not dp audio:

    https://github.com/acidanthera/bugtracker/issues/1924





    Multifunction is wrong, change to this:

        <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x2'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x2'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x4f' slot='0x00' function='0x3'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x3'/>
    </hostdev>



    and I think your hdmi audio will start to work if you have lilu/weg/applealc

    Yes it works like charm

    pc-q35-6.1  ok

    Multifunction ok

    DisplayPort Audio works even on Monterey .

    Thanks very much

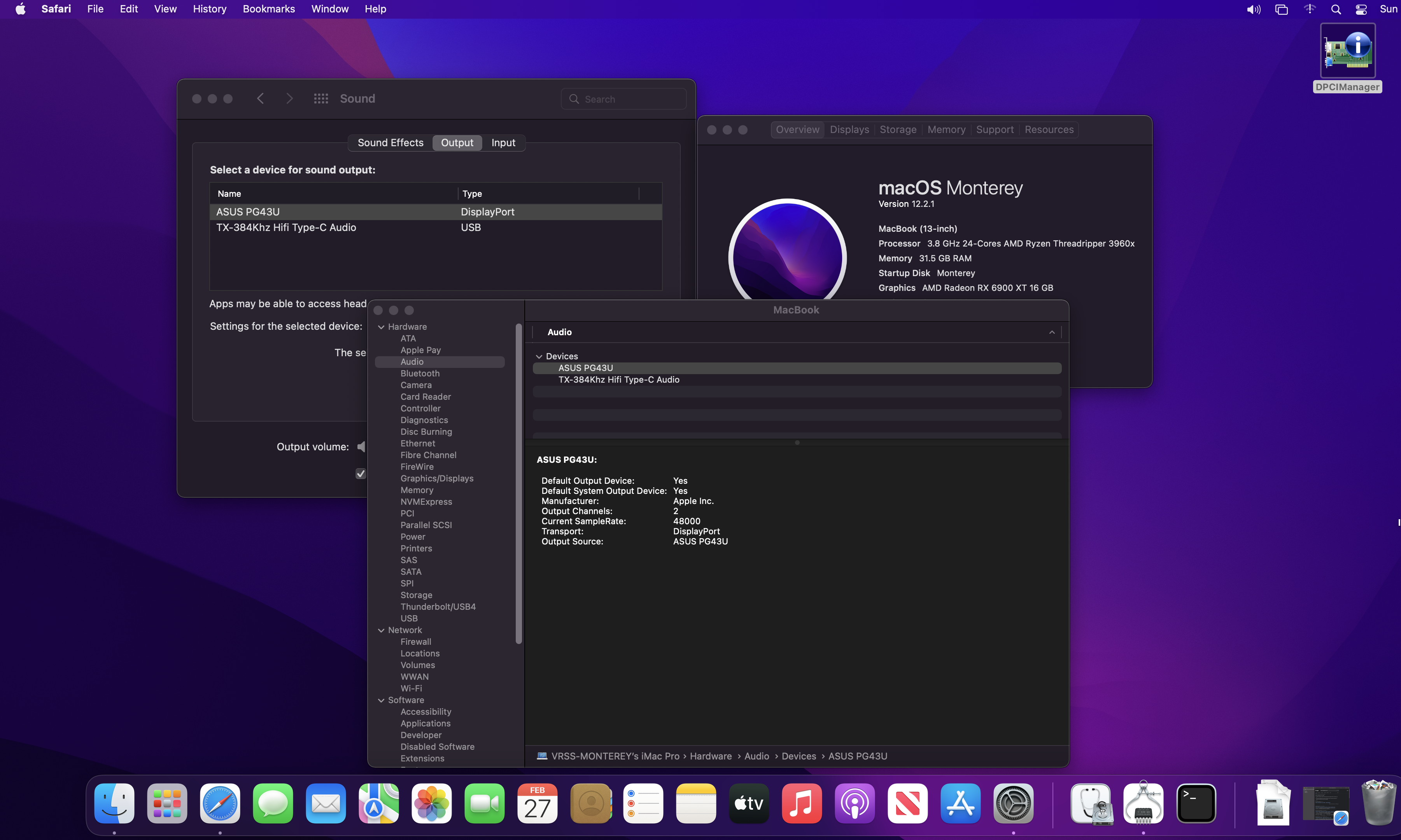

    Screen Shot 2022-02-27 at 7.10.11 PM.png

  • Quote
    9 minutes ago, ddk-input said:

    DisplayPort Audio works even on Monterey

    Still not sure why dp audio doesn't work for the sapphire nitro+ se version, even forcing the reference card vbios doesn't work (not a big issue since I'm using onboard hdef audio).

    This is not a problem for reference cards, that you seems to have.

  • Quote
    37 minutes ago, ghost82 said:

    Still not sure why dp audio doesn't work for the sapphire nitro+ se version, even forcing the reference card vbios doesn't work (not a big issue since I'm using onboard hdef audio).

    This is not a problem for reference cards, that you seems to have.

    I think it should work also on your sapphire nitro+

    Try use USB3 (qemu XHCI) instead of USB2

    and try my EFI attached it not the same as Macinabox

    I don't use vbios at all.

    EFI.zip

    Edited by ddk-input

  • Quote
    • Like 1

    That card doesn't use any usb, it has 1 hdmi + 3 dp, no usb-c port.

    Anyway thanks for your efi, I'll give it a look tomorrow.

    However I'm quite confident the issue is with the bootloader, or with the monitor, or with the card, even if in windows vm everything is fine.

  • Quote
