October 29, 20205 yr I know many people do not suggest to use USB3.0 to SATA adapters, but I tested the following without problems: Working out of the Box All Adapters with the ASM1151E bridge chip should work. Inateck USB 3.0 to SATA Adaptor ASMedia ASM1151E 19 € incl Power Supply https://www.amazon.de/gp/product/B00N4JLNXM/ CSL / Aplic USB 3.0 Type-A TO SATA III Converter / Adapter ASMedia ASM1151E 18 € incl Power Supply https://www.amazon.de/gp/product/B01K22TZ3I/ Need Firmware-Update Manual: https://wiki.odroid.com/odroid-xu4/software/jms578_fw_update (Works only on ARM CPUs like Raspberry PI) Without Update: Unraid is not able to check their idle state (never sleep), ID is random like "JMicron_Tech_123456" No-Name USB 3.0 to SATA III Adapter Converter JMicron JMS578 ~$7 or ~$11 incl Power Supply https://www.aliexpress.com/item/33046274978.html https://www.aliexpress.com/item/4000145298116.html https://www.aliexpress.com/item/4000001204302.html https://www.aliexpress.com/item/4000019992623.html Not recommended FANTEC QB-35US3-6G 4-Bay Enclosure / DAS 05e3:0610 Genesys Logic, Inc. 4-port hub ~ 100 € https://www.fantec.de/en/products/storage-devices/external-hard-drives/35-inch-external-hard-drives/produkt/details/artikel/1695_fantec_qb_35us3_6g/ https://forums.unraid.net/topic/98041-array-fehler-nach-festplatteneinbau-in-usb-gehäuse/?tab=comments#comment-904958 Accessories Molex to DC 5.5x2.1mm (for the No-Name adapters): https://www.aliexpress.com/item/32966745986.html https://www.aliexpress.com/item/32969997364.html Performance It's the same as with SATA (Disk3 and Disk6 are connected through USB), but power consumption raises by ~1.5W per USB drive: Edited October 29, 20205 yr by mgutt
November 8, 20205 yr this will works? https://www.amazon.com/ORICO-External-Docking-Duplicator-Function/dp/B07MQCDVJ2/ref=sr_1_1_sspa?dchild=1&keywords=orico+5+bay&qid=1604833876&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyWFJXVVpLRDlSUTRUJmVuY3J5cHRlZElkPUEwMzY1MDIzMlExSElGUjZFRTRNSiZlbmNyeXB0ZWRBZElkPUEwMjAzOTU3MUpFOURDVDZSQldETiZ3aWRnZXROYW1lPXNwX2F0ZiZhY3Rpb249Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

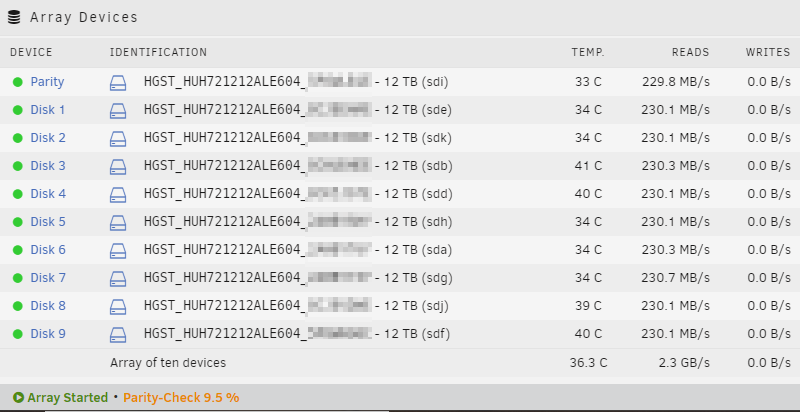

November 8, 20205 yr Author I don't know if any working multi-bay solution exists. But multi-bay is not recommended at all as sharing one serial port (USB is serial) is bad for parallel access (like parity writes or parity check). It would be the same than connecting 5 HDDs to one SATA port (but with additional USB overhead). I guess a parity check would run with <30 MB/s.

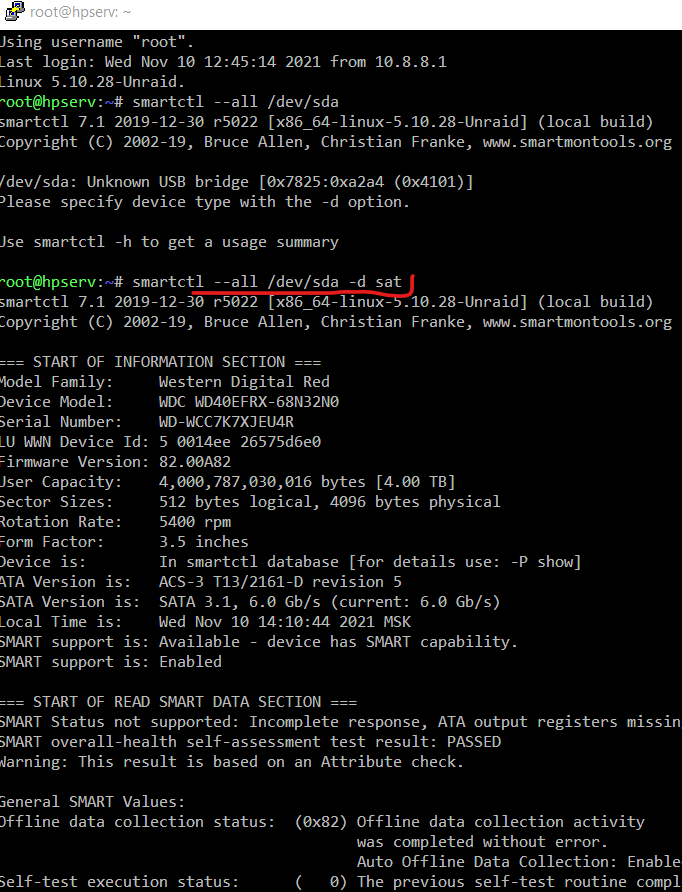

November 10, 20214 yr I have one with JMS578 on a board. Works perfect. But i can not see SMART. i found something about JMS578 - it is needed to use smartctl with -d sat parameter. But how to insert this in Unraid webUI ? Edited November 10, 20214 yr by Nuke
November 10, 20214 yr Author 5 hours ago, Nuke said: i found something about JMS578 - it is needed to use smartctl with -d sat parameter. You should post this as a bug report.
