October 30, 20205 yr I use zip mode to make a good boot U disk. For the newly purchased motherboard, the network cable is connected to the integrated network card of the motherboard. After entering the system, no IPv4 address is assigned, indicating not set. When I connect to the attached pic network card, I can allocate IPv4 normally I suspect it is the problem of network card driver. How should I solve it Edited November 1, 20205 yr by FameKing
October 30, 20205 yr Community Expert Tell us more about your hardware. Do you have a link to the motherboard and network card?
October 30, 20205 yr Author 9 minutes ago, trurl said: Tell us more about your hardware. Do you have a link to the motherboard and network card? B460M AORUS ELITE (rev. 1.0) https://www.gigabyte.com/Motherboard/B460M-AORUS-ELITE-rev-10/support#support-dl-driver Chipset Intel® B460 Express Chipset LAN Intel® GbE LAN chip (1000 Mbit/100 Mbit) Edited October 30, 20205 yr by FameKing
October 30, 20205 yr Community Expert I think the driver for that motherboard network adapter is already included in Unraid. 15 minutes ago, FameKing said: When I connect to the attached pic network card, I can allocate IPv4 normally If you can access Unraid webUI using the network card, Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread.
October 30, 20205 yr Author 1 hour ago, trurl said: 我认为该主板网络适配器的驱动程序已包含在Unraid中。 如果您可以使用网卡访问Unraid webUI， 转到工具-诊断，然后将完整的诊断ZIP文件附加到该线程的NEXT帖子中。 After I plug the network cable into the PCI-E network card, I start the unraid. The IP address it assigned to me is not my LAN segment, which makes me unable to manage through the web. How should I manually set up the network segment now? Edited October 30, 20205 yr by FameKing
October 30, 20205 yr Author 1 hour ago, trurl said: I think the driver for that motherboard network adapter is already included in Unraid. If you can access Unraid webUI using the network card, Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. here，sir，thanks，The integrated network card on the motherboard can be identified, but I don't know why, if it is used as a web management network port, it will not be assigned an IPv4 address tower-diagnostics-20201030-1146.zip Edited October 30, 20205 yr by FameKing
October 30, 20205 yr Author 2 hours ago, trurl said: I think the driver for that motherboard network adapter is already included in Unraid. If you can access Unraid webUI using the network card, Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. Did you see my reply? Sir, please reply me when you see it. Thank you
October 30, 20205 yr Author 3 hours ago, trurl said: I think the driver for that motherboard network adapter is already included in Unraid. If you can access Unraid webUI using the network card, Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. pls，help me 。sir
October 30, 20205 yr Author 4 hours ago, trurl said: I think the driver for that motherboard network adapter is already included in Unraid. If you can access Unraid webUI using the network card, Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. This is the diagnostic file I obtained directly through diagnostics when the network cable is plugged into the integrated network card of the motherboard，I compared two files. When using the motherboard integrated network card, there is no file named network rules in the system tower-diagnostics-20201029-2326.zip Edited October 30, 20205 yr by FameKing
October 30, 20205 yr Community Expert There's no driver for the onboard NIC in v6.8.x, you can use v6.9-beta.
October 30, 20205 yr Author 35 minutes ago, JorgeB said: There's no driver for the onboard NIC in v6.8.x, you can use v6.9-beta. Excuse me, where to download, online production tools do not recognize my flash U disk, I can only download the zip file directly
October 30, 20205 yr Community Expert https://s3.amazonaws.com/dnld.lime-technology.com/next/unRAIDServer-6.9.0-beta30-x86_64.zip
October 30, 20205 yr Author 15 minutes ago, JorgeB said: https://s3.amazonaws.com/dnld.lime-technology.com/next/unRAIDServer-6.9.0-beta30-x86_64.zip Thank you. I have been able to use the on-board network card.
October 30, 20205 yr Author 19 minutes ago, JorgeB said: https://s3.amazonaws.com/dnld.lime-technology.com/next/unRAIDServer-6.9.0-beta30-x86_64.zip 6.9 Version support Chinese?

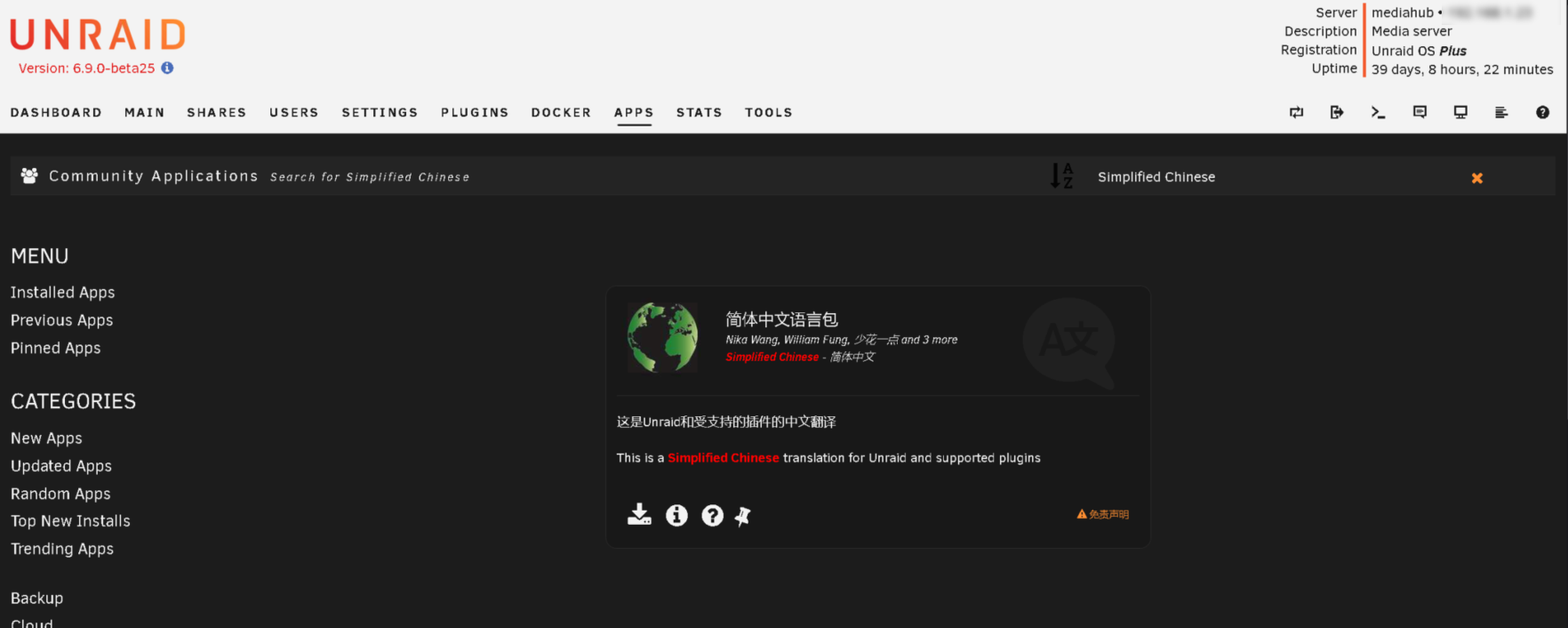

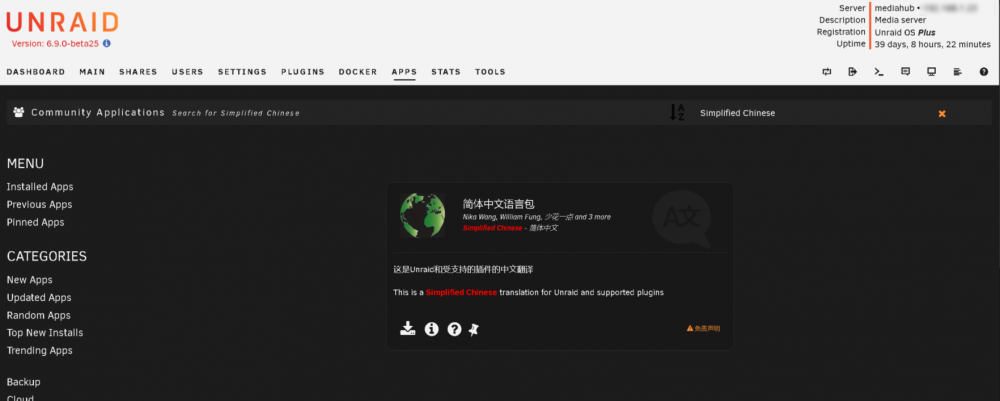

October 30, 20205 yr 1 hour ago, FameKing said: 6.9 Version support Chinese? You would need to install the Community Applications plugin : Then go to Apps and install the Chinese language pack.

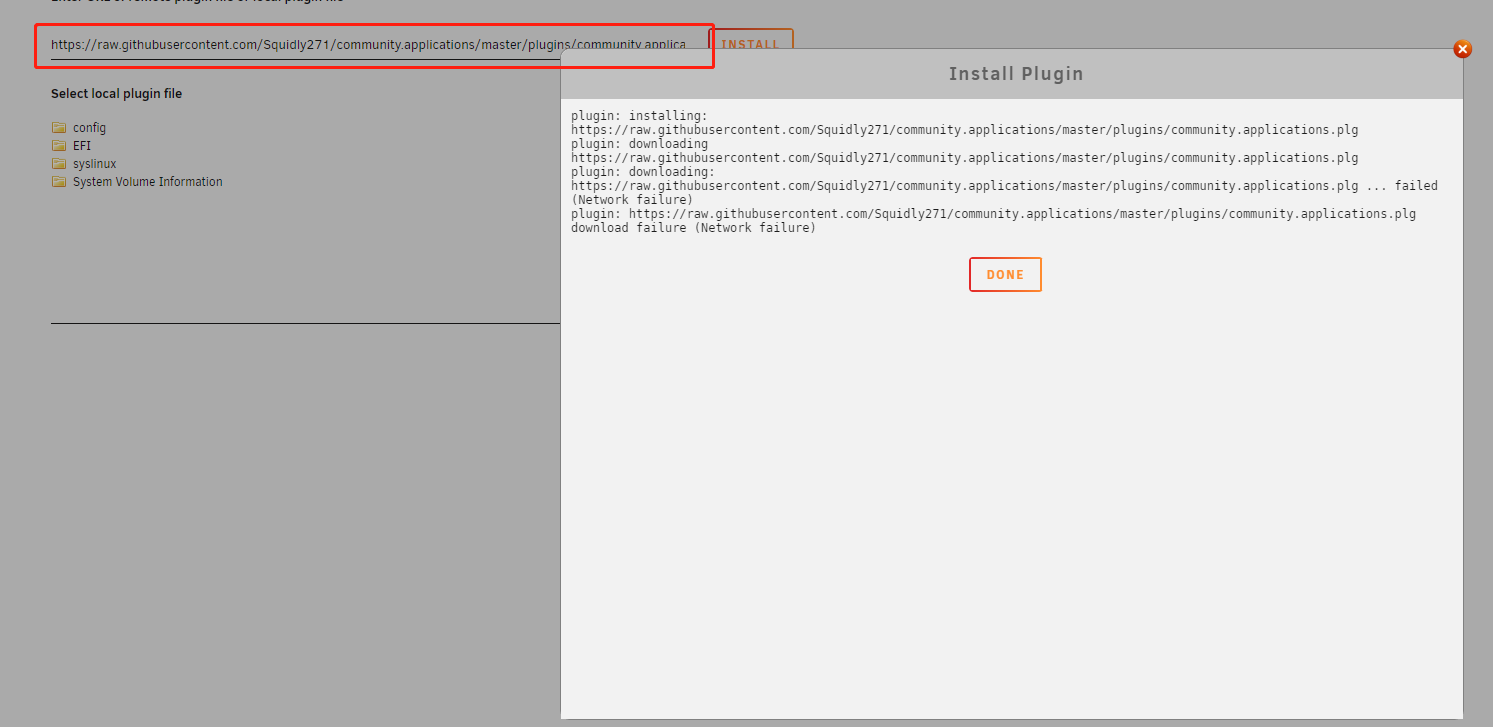

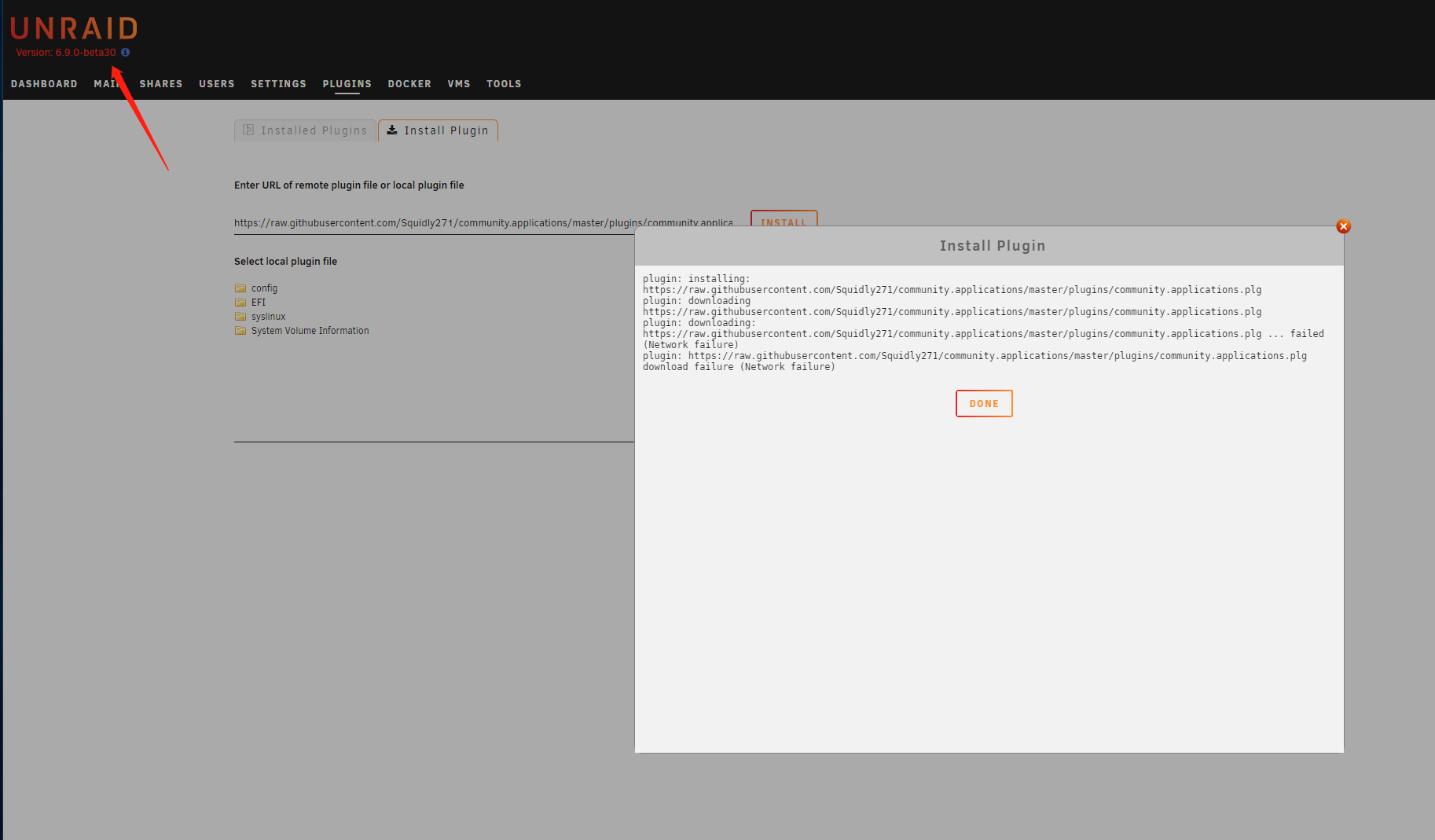

October 30, 20205 yr Author 1 hour ago, ChatNoir said: You would need to install the Community Applications plugin : Then go to Apps and install the Chinese language pack. plugin: installing: https://raw.githubusercontent.com/Squidly271/community.applications/master/plugins/community.applications.plg plugin: downloading https://raw.githubusercontent.com/Squidly271/community.applications/master/plugins/community.applications.plg plugin: downloading: https://raw.githubusercontent.com/Squidly271/community.applications/master/plugins/community.applications.plg ... failed (Network failure) plugin: https://raw.githubusercontent.com/Squidly271/community.applications/master/plugins/community.applications.plg download failure (Network failure) It doesn't look like it can be downloaded Edited October 30, 20205 yr by FameKing
October 30, 20205 yr Author 1 hour ago, ChatNoir said: You would need to install the Community Applications plugin : Then go to Apps and install the Chinese language pack. https://gitee.com/BlueBuger/community.applications/raw/master/plugins/community.applications.plg I have downloaded and installed the app market through this link

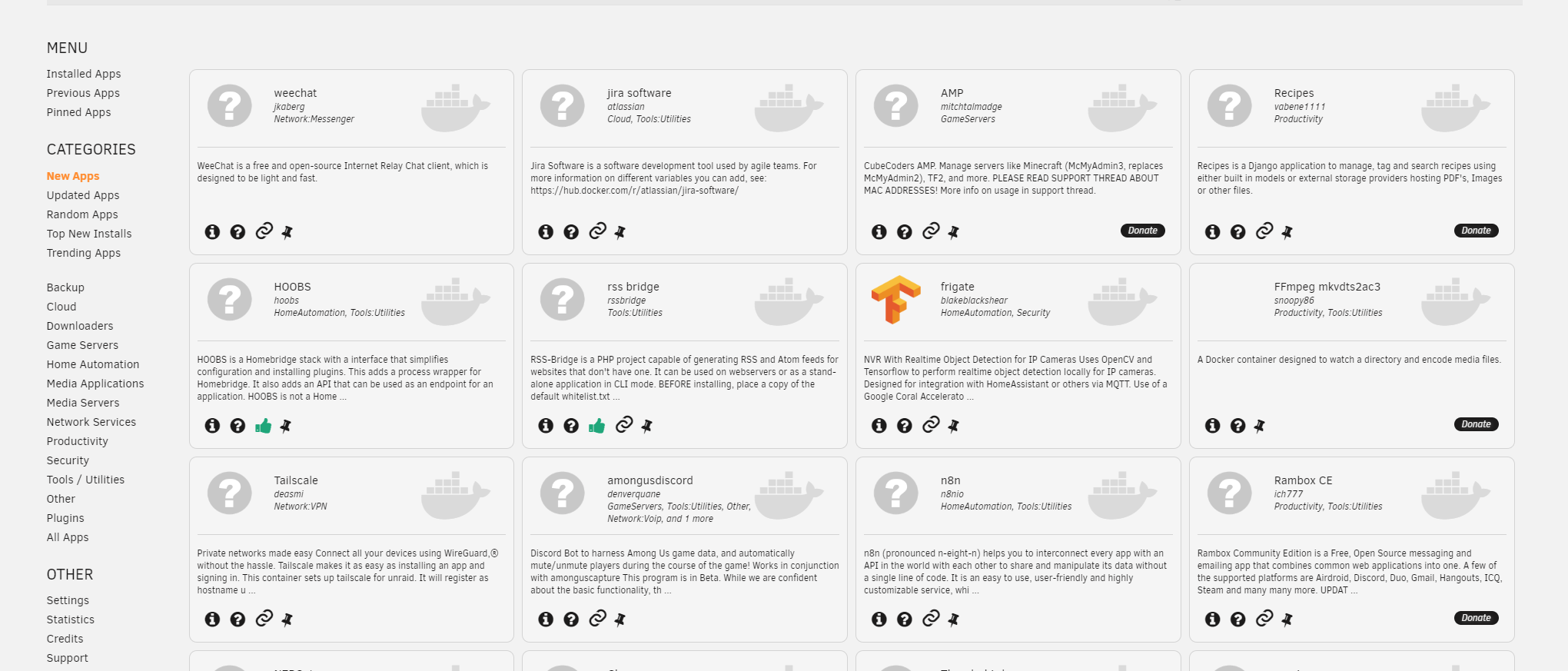

October 30, 20205 yr Author 1 hour ago, ChatNoir said: You would need to install the Community Applications plugin : Then go to Apps and install the Chinese language pack. But I can't load the icon, and I can't find the related plug-in by searching Chinese
October 30, 20205 yr Community Expert See if this helps: https://unraid.net/blog/unraid-6-9-multi-language-support
October 30, 20205 yr Community Expert 29 minutes ago, FameKing said: But I can't load the icon, and I can't find the related plug-in by searching Chinese Are you running the 6.9.0 beta? Multi-language support (and thus Chinese support) is new in the 6.9.0 release and not available in the 6.8.3 release.

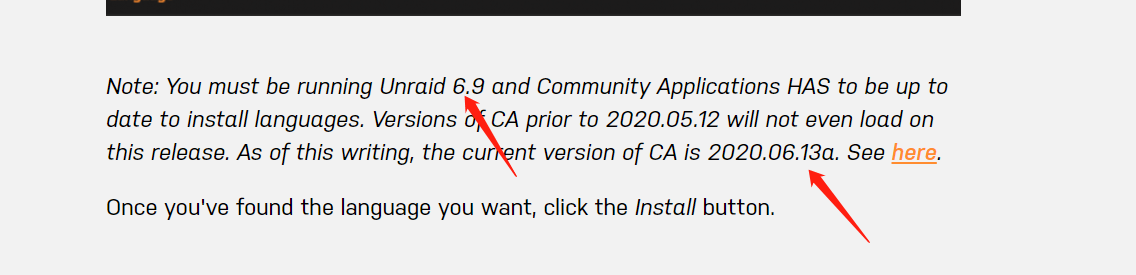

October 30, 20205 yr Author 29 minutes ago, JorgeB said: See if this helps: https://unraid.net/blog/unraid-6-9-multi-language-support This requires that the CA version number is 2020.06.13 or above, but I can't download the latest version through the address you sent to me. I don't know what's wrong with the networkThis prompt appears when I try to download it from the website you gave me I found the address to download and install 2020206, and can not be updated
October 30, 20205 yr Author 9 minutes ago, itimpi said: 您是否正在运行6.9.0 Beta？多语言支持（以及中文支持）在6.9.0版本中是新增功能，而在6.8.3版本中不可用。 yes，itis 6.9.0-beta30.but i can install CA，It may be because the network in China is restricted and VPN is needed. Can raid use VPN directly?
