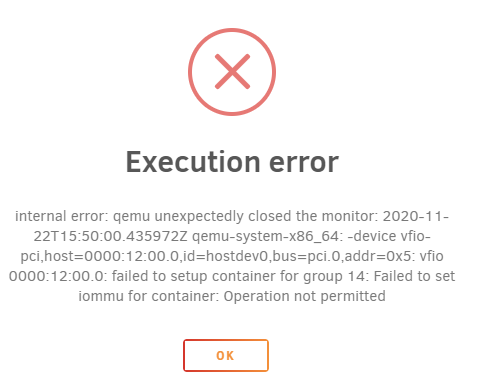

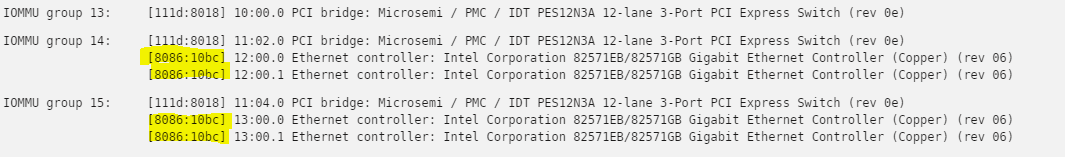

November 22, 20205 yr Hi Guys, I want to pass through my external 4 port Intel NIC card. I followed the video of Spaceinvader, but when I want to run the created VM a receive the following error. My IOMU group looks fine no other devices accept pci bridge as following the video should be no problem. But I also test it to enable de PCIe ACS override with the same result. I am spending to much time to this error and have no idee how to fix it. So hopefully someone can help me out with this. Thx!

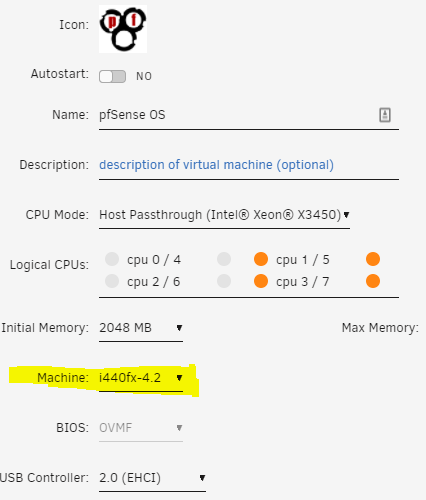

November 22, 20205 yr Author I think I fix the starting issue of my pfsense vm. This is what I did to resolve this after 2 days troubleshooting 1. set the vfio-pci.ids=8086:10bc (I do not have to enable the overwrite because my intel card is in it's own group) 2. Under the VM manager, set VFIO allow unsafe interrupts: YES 3. In the pfSense VM set the machine to i440fx-4.2 otherwise I do not see my NIC interfaces
November 23, 20205 yr 10 hours ago, TJOPTJOP said: In the pfSense VM set the machine to i440fx-4.2 otherwise I do not see my NIC interfaces Thank you @TJOPTJOP.I also be doing the same soon. Waiting for the available slot for the 4 port ethernet card.
