Prevent UnRaid GUI from being accessible from the second physical LAN

[RusmanCool]

Mobo: Asrock Rack x470d4u

OS: UnRaid 6.9.0-rc2



Requirement:

The mobo has two physical LANs. I'd like to access UnRaid GUI over one LAN physical port. And I'd like to have a single Docker Container to run off the second LAN over port 443. Unraid GUI should not be listening on the second LAN.



Problem:

Unraid GUI is listening on both LANs and thus I cannot assign/map host port 443 to to a docker container:

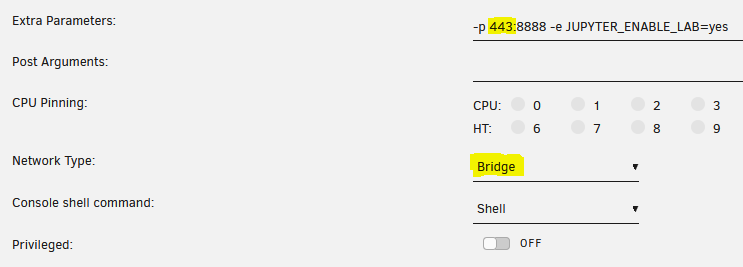

Template configs



Note: Due to this issue, I am still able to access UnRaid GUI from both static IPs on those two physical LANs.



What I have done:

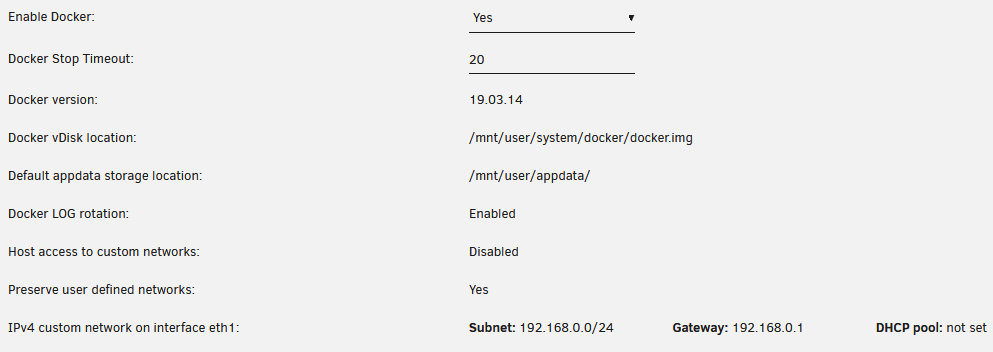

Set Docker setting to use eth1 only:



I have configured eth0 with Static IP = 192.168.0.8 and eth1 with Static IP = 192.168.0.9. I did not bond nor bridge them. See pic:

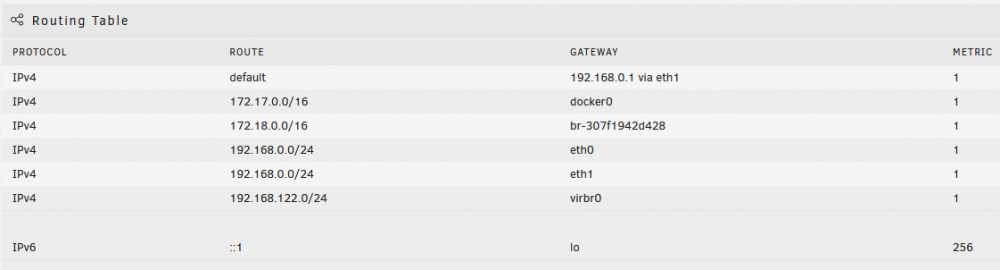

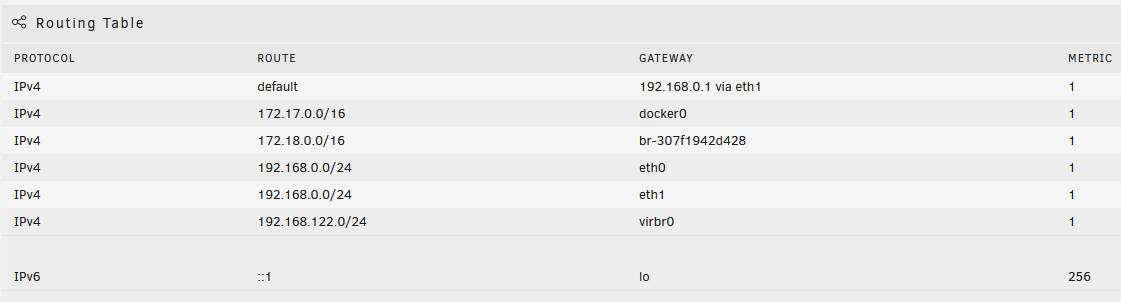

My Routing Table(I have not made any changes to it directly):





Edited February 21, 2021 by RusmanCool
typo
