Hey guys,



I was able to successfully pass GPU cards to a Linux VM, however it seems that the card which are the same model. I tried passing the 3090 card and it works fine.



root@Rick:~# lspci
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD9x0/RX980 Host Bridge (rev 02)
00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD/ATI] RD890S/RD990 I/O Memory Management Unit (IOMMU)
00:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GFX port 0)
00:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 0)
00:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 1)
00:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 2)
00:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 3)
00:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 4)
00:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP Port 5)
00:0b.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD990 PCI to PCI bridge (PCI Express GFX2 port 0)
00:0c.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD990 PCI to PCI bridge (PCI Express GFX2 port 1)
00:0d.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] RD890/RD9x0/RX980 PCI to PCI bridge (PCI Express GPP2 Port 0)
00:11.0 SATA controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 SATA Controller [AHCI mode] (rev 40)
00:12.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:12.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:13.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:13.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 SMBus Controller (rev 42)
00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 LPC host controller (rev 40)
00:14.4 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] SBx00 PCI to PCI Bridge (rev 40)
00:14.5 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI2 Controller
00:16.0 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB OHCI0 Controller
00:16.2 USB controller: Advanced Micro Devices, Inc. [AMD/ATI] SB7x0/SB8x0/SB9x0 USB EHCI Controller
00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 0
00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 1
00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 2
00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 3
00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 4
00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 15h Processor Function 5
01:00.0 VGA compatible controller: NVIDIA Corporation GA102 [GeForce RTX 3080] (rev a1)
01:00.1 Audio device: NVIDIA Corporation Device 1aef (rev a1)
02:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 01)
03:00.0 Ethernet controller: Intel Corporation 82583V Gigabit Network Connection
04:00.0 USB controller: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller
05:00.0 USB controller: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller
06:00.0 USB controller: ASMedia Technology Inc. ASM1042 SuperSpeed USB Host Controller
07:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 01)
08:00.0 VGA compatible controller: NVIDIA Corporation GA102 [GeForce RTX 3090] (rev a1)
08:00.1 Audio device: NVIDIA Corporation Device 1aef (rev a1)
09:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX 1070] (rev a1)
09:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1)
0a:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX 1070] (rev a1)
0a:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1)
root@Rick:~# lspci -nns 09:00.0
09:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP104 [GeForce GTX 1070] [10de:1b81] (rev a1)
root@Rick:~# lspci -nns 0a:00.0
0a:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP104 [GeForce GTX 1070] [10de:1b81] (rev a1)
root@Rick:~#

However I now noticed that the VM sees 2 audio controllers, but only 1 video:

root@bee:~# lspci  | grep nvidia -i
04:00.0 VGA compatible controller: NVIDIA GP104 [GeForce GTX 1070] (rev a1)
05:00.0 VGA compatible controller: NVIDIA GA102 [GeForce RTX 3090] (rev a1)
07:00.0 Audio device: NVIDIA GP104 High Definition Audio Controller (rev a1)
08:00.0 Audio device: NVIDIA GP104 High Definition Audio Controller (rev a1)
09:00.0 Audio device: NVIDIA GA102 High Definition Audio Controller (rev a1)
root@bee:~#



Note: I used vfio-pci.ids for these 3 devices, otherwise Unraid would hang whenever I started the VM.

Unraid Version: 6.9.0-rc2



EDIT: I swapped the order, and it seems I now the VM only sees the audio from 3090 (GA102)

04:00.0 VGA compatible controller: NVIDIA GP104 [GeForce GTX 1070] (rev a1)
05:00.0 VGA compatible controller: NVIDIA GP104 [GeForce GTX 1070] (rev a1)
06:00.0 Ethernet controller: Realtek Semiconductor RTL-8100/8101L/8139 PCI Fast Ethernet Adapter (rev 20)
07:00.0 Audio device: NVIDIA GA102 High Definition Audio Controller (rev a1)
08:00.0 Audio device: NVIDIA GP104 High Definition Audio Controller (rev a1)
09:00.0 Audio device: NVIDIA GP104 High Definition Audio Controller (rev a1)

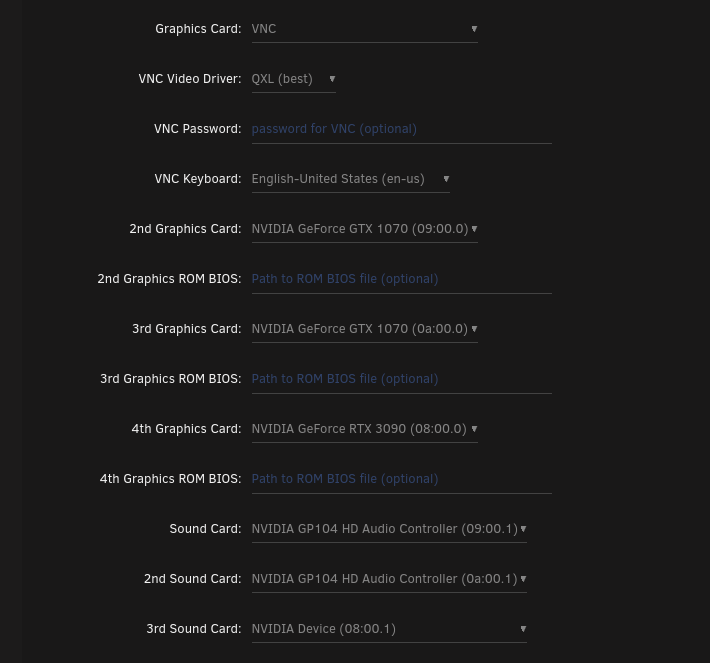

I even tried adding VNC as the primary video card, but no success:



Any idea why this would happen?

Edited February 27, 20215 yr by Mihai
added clarification

For anyone who has the same issue in the future: I managed to fix the issue by switching to SeaBIOS from OVMF. I had to recreate the VM.
