preclear consistently failing on a samsung f4 drive

Featured Replies

so i've successfully precleared 3 western digital drives (2 EARS, 1 EADS) and had no hiccups whatsoever.

then i get to preclearing a samsung f4 drive (firmware updated) but consistently get the following error:

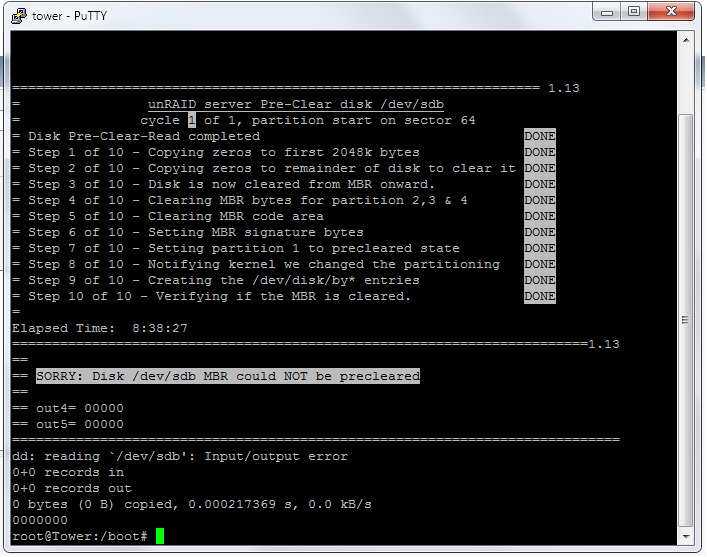

================================================================== 1.13

=                unRAID server Pre-Clear disk /dev/sdb

=              cycle 1 of 1, partition start on sector 64

= Disk Pre-Clear-Read completed                                DONE

= Step 1 of 10 - Copying zeros to first 2048k bytes            DONE

= Step 2 of 10 - Copying zeros to remainder of disk to clear it DONE

= Step 3 of 10 - Disk is now cleared from MBR onward.          DONE

= Step 4 of 10 - Clearing MBR bytes for partition 2,3 & 4      DONE

= Step 5 of 10 - Clearing MBR code area                        DONE

= Step 6 of 10 - Setting MBR signature bytes                    DONE

= Step 7 of 10 - Setting partition 1 to precleared state        DONE

= Step 8 of 10 - Notifying kernel we changed the partitioning  DONE

= Step 9 of 10 - Creating the /dev/disk/by* entries            DONE

= Step 10 of 10 - Verifying if the MBR is cleared.              DONE

=

Elapsed Time:  8:38:27

========================================================================1.13

==

== SORRY: Disk /dev/sdb MBR could NOT be precleared

==

== out4= 00000

== out5= 00000

============================================================================

dd: reading `/dev/sdb': Input/output error

0+0 records in

0+0 records out

0 bytes (0 B) copied, 0.000217369 s, 0.0 kB/s

0000000

root@Tower:/boot#



i've ran the preclear script on this drive 3 times now, on different sata ports and ensuring i use the -A switch.

it's pretty obvious the problem is an i/o error (they're all over the place on the syslog), but what could be the cause of this?

has anyone ran across this problem? any help would be appreciated.


  • Author

i would attach a syslog but it is GIGS big  :-\

i would attach a syslog but it is GIGS big  :-\

They compress really well.  Zip it and see how big it is.
  • Author

i decided to run a clear on the drive using hdtune.

i was able to create a problem i'm sure happened with unraid.

the disk would get "stuck" and start reallocating sectors.

ran seatools, drive was bad. oh well, rma here i come!

i decided to run a clear on the drive using hdtune.

i was able to create a problem i'm sure happened with unraid.

the disk would get "stuck" and start reallocating sectors.

ran seatools, drive was bad. oh well, rma here i come!

Glad you found the drive was defective BEFORE loading all your data on it.
