My situation is that I now both run ESXi and normal UnRaid.



1: When using normal USB boot of UnRaid



Server will not go in sleep mode, ant that what I understand is the extra disk I use for ESXi datastore, they show up in Main page, below my flash drive, And I assume these will be included when the script is looking for spin down disk, and therefor will the sever never go in sleep mode.

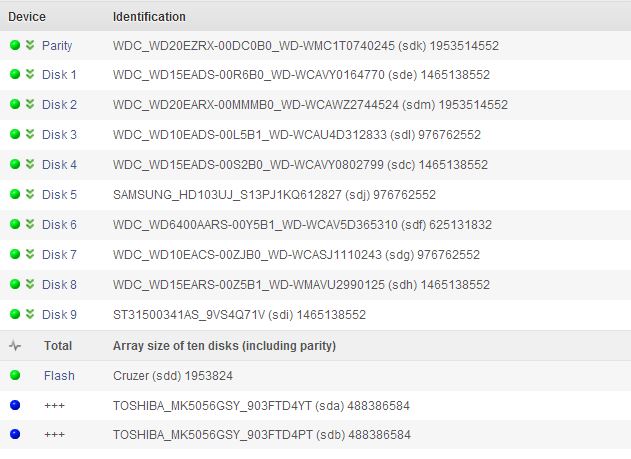

2: booting ESXi, i have the unraid WMDK disk show up as an extra drive, and I assume that is the same case as above.





So, is it possible to exclude these disk that are outside the array for the S3 script?



//Peter

This is the script, but I don't run simplefeature , I run run this script standalone,





Maybe Joe L have any suggestion, since he have a lot of knowledge ;-) but there are probably more people who can help..







#!/bin/bash

####################################################################################
# s3_sleep
# A utility to set conditional S3 sleep mode
# This script has been adapted from the original S3 script available on the Limetech
# forum. It accepts parameter options to overwrite the default settings.
# Copied some parts from "cache_dirs" to get a similar background behaviour.
#
# Version 1.0.0   Initial version
# Version 1.1.0   Corrections in HDD, TCP and IP monitoring and other adjustments
# Version 1.1.1   Added -t <time> option to set network/device inactivity interval
# Version 1.1.2   Added -e <eth> option to set ethernet interface to monitor
# Version 1.1.3   Added -w option to set wol options prior to sleep
#                 Added -S option to sleep now
# Version 1.1.4   Added -b option to execute shell script before sleep
#                 Added -p option to execute shell script after wake-up
#
# Version 1.2.0   Added program logging upon start
# Version 2.0.0   Added action "sleep" or "shutdown"
# Version 2.1.0   Added improvements for TCP and session monitoring, debugging option
#                 Added -c option to exclude cache drive from array monitoring
#                 Added -L option to allow remote session monitoring (SSH)
#                 Added -l option to allow local session monitoring (TTY)
#                 Added -N option to set idle threshold for TCP monitoring
#                 Added -D option to allow debugging (troubleshooting)
#                 Based on suggestions made by 'Bagpuss'
#
# Bergware International
####################################################################################
version=2.1.0
program_name=`basename $0`

usage() {
echo
echo "Usage: $program_name [-VacnRFSlLq] [-N idle] [-i ip] [-d day] [-h hour] [-m time] [-t time] [-e eth] [-w wol] [-b name] [-p name] [-C case] [-D 0-4]"
echo " -V      = print program version and exit"
echo " -a      = wait for array inactivity"
echo " -c      = exclude cache drive from array monitoring"
echo " -n      = wait for network inactivity"
echo " -N idle = set TCP idle threshold"
echo " -R      = do DHCP renewal after wake-up"
echo " -F      = force gigabit speed after wake-up"
echo " -S      = sleep NOW"
echo " -i ip   = IP address to ping (may be repeated as many times as desired)"
echo " -L      = check remotely logged in users (SSH)"
echo " -l      = check locally logged in users"
echo " -d day  = Excluded day (may be repeated as many times as desired)"
echo " -h hour = Excluded hour (may be repeated as many times as desired)"
echo " -m time = extra delay after array inactivity"
echo " -t time = interval of network / device inactivity"
echo " -e eth  = select interface to monitor"
echo " -w wol  = set WOL options before sleep"
echo " -b name = execute shell script 'name' before sleep"
echo " -p name = execute shell script 'name' after wake-up"
echo " -C case = execute case sleep (1) or shutdown (2)"
echo " -D 0-4  = set debug reporting (0-4)"
echo " -q      = terminate running background instance of s3_sleep"
}

# default settings
debug="0"
eth="eth0"
case="1"
action="sleep"
cache="-"
idle="0"
period="15"

# before going to sleep
intrnlTimeoutTicks=30  # ticks after HDD spindown before checking for external activity
extrnlTimeoutTicks=3   # interval of external activity checking; only after spindown+internal countdown

# control of internal conditions
checkHDD="no"   # check if all HDDs are parked before counting down towards sleep
stopDay=""      # only countdown towards sleep outside these days
                # example: <stopDay="0 6"> (skip Sunday and Saturday)
stopHour=""     # only countdown towards sleep outside these hours
                # example: <stopHour="07 08 19 20">
                # always countdown: <stopDay=""> and <stopHour="">

# control of external conditions
checkTCP="no"   # check for TCP activity
checkSSH="no"   # check for remote login sessions (telnet or SSH)
checkTTY="no"   # check for local login sessions (if "no" allows console debugging)
pingIP=""       # do not sleep if <$pingsIPs> are pingable
                # example: <pingIP="192.168.1.4 192.168.1.5">
                # no ping-check: <pingIP="">

# before sleep
wolCmd=""       # set wol options before sleep
preRun=""       # no additional commands to run

# after waking up
dhcpRenew="no"  # <no> for servers w/static IP address
forceGb="no"    # might not be needed; probably always safe
postRun=""      # no additional commands to run

# program control
quit_flag="no"  # signal program exit
sleepNow="no"   # force sleep now

# options to overwrite defaults
while getopts "acnN:i:d:h:m:t:e:C:w:RFqVSLlb:p:D:" opt; do
  case $opt in
  a ) checkHDD="yes" ;;
  c ) cache="" ;;
  n ) checkTCP="yes" ;;
  N ) idle=$OPTARG ;;
  i ) pingIP="$pingIP $OPTARG" ;;
  d ) stopDay="$stopDay $OPTARG" ;;
  h ) stopHour="$stopHour $OPTARG" ;;
  m ) intrnlTimeoutTicks=$OPTARG ;;
  t ) extrnlTimeoutTicks=$OPTARG ;;
  e ) eth=$OPTARG ;;
  C ) case=$OPTARG ;;
  w ) wolCmd="$wolCmd $OPTARG" ;;
  R ) dhcpRenew="yes" ;;
  F ) forceGb="yes" ;;
  S ) sleepNow="yes" ;;
  L ) checkSSH="yes" ;;
  l ) checkTTY="yes" ;;
  b ) preRun=$OPTARG ;;
  p ) postRun=$OPTARG ;;
  D ) debug=$OPTARG ;;
  q ) quit_flag="yes" ;;
  \?) usage >&2 ; exit ;;
  V ) echo $program_name version: $version ; exit ;;
  esac
done

# Reset action as required
if [ "$case" != "1" ]; then action="shutdown"; fi

# Get device ID of flash drive
flash=/dev/$(ls -l /dev/disk/by-label | awk -F/ '/UNRAID/ {print $3}' | cut -c1-3)

# Get device ID of cache (if present)
if [ -z "$cache" ]; then
  cache=$(awk '/\/mnt\/cache/ {print $1}' /proc/mounts | cut -c1-
  [ -z "$cache" ] && cache="-"
fi

echo "==============================================
command-args=$*
action mode=$action
check array=$checkHDD
exclude cache=$cache
check network=$checkTCP
check device=$pingIP
check SSH=$checkSSH
check TTY=$checkTTY
version=$version
----------------------------------------------" | logger -t$program_name

# implementation stuff
ticklengthSecs=60  # probe hardware + count down every minute, aka a tick

# Debug logging options for troubleshooting (use -D option)
# debug=0 - no logging (default)
# debug=1 - log to syslog and s3_sleep.log
# debug=2 - log to syslog
# debug=3 - log to s3_sleep.log
# debug=4 - log to console

# Use this feature only in case of sleep not working
# It is intended to help in troubleshooting
log() {
if [ "$debug" -ne 0 ]; then
  if [ "$debug" -eq 1 ]; then
    logger "$program_name: $1"
    echo "`date`: $1" >>/boot/logs/$program_name.log
  fi
  if [ "$debug" -eq 2 ]; then
    logger "$program_name: $1"
  fi
  if [ "$debug" -eq 3 ]; then
    echo "`date`: $1" >>/boot/logs/$program_name.log
  fi
  if [ "$debug" -eq 4 ]; then
    echo "`date`: $1"
  fi
fi
}

HDD_activity() {
# preset no hard disk checking
  result=0
  if [ "$checkHDD" == "yes" ]; then
    result=$(for d in $(ls /dev/[hs]d? | egrep -v "($flash|$cache)"); do hdparm -C $d | grep active ; done | wc -l)
  fi
  echo $result
}

TCP_activity() {
# preset no TCP checking
  result=0
  if [ "$checkTCP" == "yes" ]; then
    result=$(bwm-ng -o csv -c $period -A $period -d 0 -t 1000 -T avg -I $eth | grep $eth | cut -d';' -f5 | tail -1 | cut -d. -f1)
  fi
  echo $result
}

IP_activity() {
# preset no IP checking
  result=0
# ping each of the destinations to determine if online
  if [ "$pingIP" != "" ]; then
    for ip in $pingIP; do
      # ping single destination; if it answers, it is online
      result=$(ping -q -c 2 $ip | grep received | cut -d' ' -f4)
      if [ $result -ne 0 ]; then
        # if one is online, we do not need to ping
        # any others, break out of the "for" loop.
        break
      fi
    done
  fi
  echo $result
}

TTY_activity() {
# preset no tty checking
  result=0
  if [ "$checkTTY" == "yes" ]; then
    result=$(ps -o command,tty | grep '^\-bash' | grep 'tty' | wc -l)
  fi
  echo $result
}

SSH_activity() {
# preset no ssh/telnet checking
  result=0
  if [ "$checkSSH" == "yes" ]; then
    result=$(lsof -i -n -P | grep 'ESTABLISHED' | egrep '(:22-|:23-)' | wc -l)
  fi
  echo $result
}

pre_sleep_activity() {
# Set WOL MagicPacket options
  if [ "$wolCmd" != "" ]; then
    log "Send WOL commands: $wolCmd"
    ethtool -s $eth wol $wolCmd
  fi
# Additional commands to run
  if [ -x "$preRun" ]; then
    log "Execute custom commands before sleep"
    $preRun
  fi
  echo DONE >/dev/null
}

post_sleep_activity() {
# Force NIC to use gigabit networking
  if [ "$forceGb" == "yes" ]; then
    log "Set NIC to forced gigabit speed"
    ethtool -s $eth speed 1000
    sleep 2
  fi
# Force a DHCP renewal (do not use for static-ip boxes)
  if [ "$dhcpRenew" == "yes" ]; then
    log "Perform DHCP renewal"
    /sbin/dhcpcd -n
    sleep 5
  fi
# Additional commands to run
  if [ -x "$postRun" ]; then
    log "Execute custom commands after wake-up"
    $postRun
  fi
  echo DONE >/dev/null
}

go_to_sleep() {
# Do pre-sleep activities
  pre_sleep_activity
# Go to sleep
  log "Enter sleep state now"
  echo -n mem >/sys/power/state
# Do post-sleep activities
  log "Wake-up now"
  post_sleep_activity
  echo DONE >/dev/null
}

put_system_down() {
  log "Shutdown system now"
# Perform a 'clean' powerdown
  [ -x /sbin/powerdown ] && /sbin/powerdown
  [ -x /usr/sbin/powerdown ] && /usr/sbin/powerdown
  [ -x /usr/local/sbin/powerdown ] && /usr/local/sbin/powerdown
}

# Immediate sleep or shutdown
if [ "$sleepNow" == "yes" ]; then
  if [ "$case" == "2" ]; then
    put_system_down
  else
    go_to_sleep
  fi
  exit 0
fi

lockfile="/var/lock/s3_sleep.LCK"
if [ -f "${lockfile}" ]; then
# The file exists so read the PID to see if it is still running
  lock_pid=$(head -n 1 "${lockfile}")
  if [ -z "$(ps -p "${lock_pid}" | grep ${lock_pid})" ]; then
    if [ "$quit_flag" == "no" ]; then
      # The process is not running
      # Echo current PID into lock file
      echo $$ >"${lockfile}"
    else
      echo "$program_name ${lock_pid} is not currently running "
      rm "${lockfile}"
      exit 0
    fi
  else
    if [ "$quit_flag" == "yes" ]; then
      echo killing $program_name process "$lock_pid"
      echo killing $program_name process "$lock_pid" | logger -t$program_name
      kill "$lock_pid"
      rm "${lockfile}"
      exit 0
    else
      echo "$program_name is already running [${lock_pid}]"
      exit 2
    fi
  fi
else
  if [ "$quit_flag" == "yes" ]; then
    echo "$program_name not currently running "
    exit 0
  else
    echo $$ >"${lockfile}"
  fi
fi

# main
intrnlCountdown=$intrnlTimeoutTicks
extrnlCountdown=0
while [ -f "$lockfile" ]; do
  # do not countdown during specific days and hours
  days=$(echo $stopDay | grep "$(date +%w)" | wc -l)
  hours=$(echo $stopHour | grep "$(date +%H)" | wc -l)
  if [ $days -eq 0 -a $hours -eq 0 ]; then
    # count number of HDDs that are not parked
    if [ $(HDD_activity) -eq 0 ]; then
      log "All HDDs are spun down"
      # start extra delay period
      if [ $intrnlCountdown -gt 0 ]; then
        intrnlCountdown=$[$intrnlCountdown-1]
        log "Extra delay period running: $intrnlCountdown"
      fi
    else
      # reset countdown, following HDD activity
      log "Disk activity detected. Reset all counters"
      intrnlCountdown=$intrnlTimeoutTicks
      extrnlCountdown=0
    fi
    if [ $intrnlCountdown -le 0 ]; then
      # check for communication activity
      if [ $extrnlCountdown -le 0 ]; then
        log "Check TCP/SSH/TTY/IP activity"
        if [ $(TCP_activity) -le $idle -a $(SSH_activity) -eq 0 -a $(TTY_activity) -eq 0 -a $(IP_activity) -eq 0 ]; then
          log "Communication state is idle"
          if [ "$case" == "2" ]; then
            put_system_down
          else
            go_to_sleep
          fi
          # reset countdown, following wake-up activity
          log "Wake-up event. Reset all counters"
          intrnlCountdown=$intrnlTimeoutTicks
          extrnlCountdown=$extrnlTimeoutTicks
        else
          # Restart polling interval period
          log "Communication activity detected. Restart polling interval"
          extrnlCountdown=$extrnlTimeoutTicks
        fi
      else
        # wait for next monitoring action
        extrnlCountdown=$[$extrnlCountdown-1]
        log "Communication polling interval running: $extrnlCountdown"
      fi
    fi
  else
    log "Not sleeping. Excluded day or hour detected"
  fi
  # Wait a minute... tick
  sleep $ticklengthSecs
done &

# while loop was put into background, now disown it
# so it will continue to run when you log off
# to get it to stop, type: rm /var/lock/s3_sleep.LCK
background_pid=$!
echo $background_pid >"${lockfile}"
echo "$program_name process ID $background_pid started, To terminate it, type: $program_name -q" >&2
echo "$program_name process ID $background_pid started, To terminate it, type: $program_name -q" | logger -t$program_name
disown %%

Manually spin down my sda & sdb, the script let my server go into sleep mode.



And these 2 disk is my datastore disk for my ESXi server, now I'm, running Unraid "normal" way, booting from USB



Can these disk be excluded when booting unraid? so the sleep script works ? or maybe the script can be updated with a parameter to only look for the drives in my array



//Peter
