I'm having problems to passthrough my Intel i7-4770 integrated graphics device to Windows 10 VM.



Processor: Intel Core i7-4770

Processor Graphics: Intel HD Graphics 4600

Motherboard: ASUS Z87-DELUXE (Bios v.2103)

Memory: 16 GB

PCI 1 - EVGA  GTX 1070

PCI 2 - ASUS GTX 650 (non UEFI Bios)



BIOS

- Intel VT-x: Enabled

- Intel VT-d: Enabled

- SATA: AHCI

- Primary Display: iGPU

- iGPU Memory: Auto

- Render Standby: Disabled

- iGPU Multi-Monitor: Enabled



unRAID 6.3.3

- PCIe ACS Override: Yes

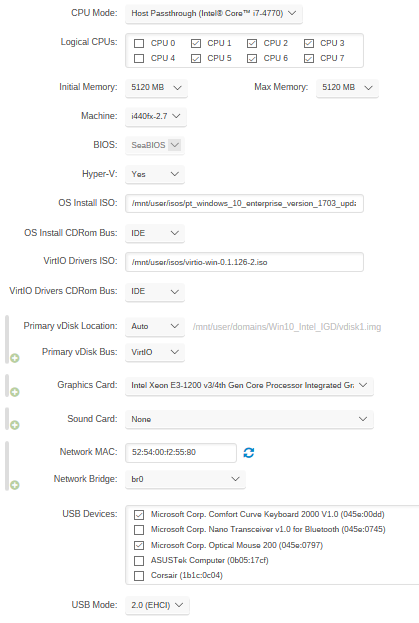

VM Template: Windows 10
- i440FX

- SeaBIOS

- Graphics Card: (00:02:00) Intel...



https://forums.lime-technology.com/topic/50806-igd-device-assignment-to-vms/#comment-500618



Results:

- Black Screen

- VM Freezes (no boot, no access)

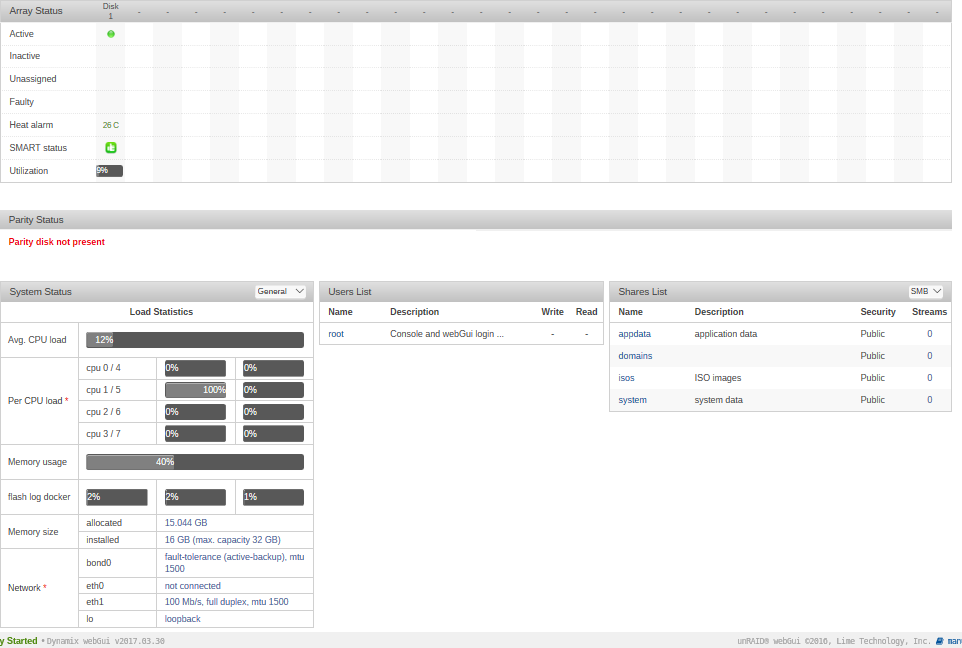

- one Processor locks in 100%



I've tried several different configurations but I got the same results...

Black Screen and the VM freezes before loading anything...



I was successful passing through the GTX1070 and the GTX650 to VMs...

But the Intel iGPU, when selected, freezes the VM...



Does anyone have an step-by-step recommendation to enable iGPU Passthrough...



(I'll try to attach the unRAID log/info as soon as possible)

Edited May 4, 20179 yr by VSan

Model: Custom

M/B: ASUSTeK COMPUTER INC. - Z87-DELUXE

CPU: Intel® Core™ i7-4770 CPU @ 3.40GHz

HVM: Enabled

IOMMU: Enabled

Cache: 256 kB, 1024 kB, 8192 kB

Memory: 16 GB (max. installable capacity 32 GB)

Network: bond0: fault-tolerance (active-backup), mtu 1500
 eth0: not connected
 eth1: 100 Mb/s, full duplex, mtu 1500

Kernel: Linux 4.9.19-unRAID x86_64

OpenSSL: 1.0.2k

Uptime:

IOMMU group 0
	[8086:0c00] 00:00.0 Host bridge: Intel Corporation 4th Gen Core Processor DRAM Controller (rev 06)
IOMMU group 1
	[8086:0c01] 00:01.0 PCI bridge: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor PCI Express x16 Controller (rev 06)
IOMMU group 2
	[8086:0c05] 00:01.1 PCI bridge: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor PCI Express x8 Controller (rev 06)
IOMMU group 3
	[8086:0412] 00:02.0 VGA compatible controller: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor Integrated Graphics Controller (rev 06)
IOMMU group 4
	[8086:0c0c] 00:03.0 Audio device: Intel Corporation Xeon E3-1200 v3/4th Gen Core Processor HD Audio Controller (rev 06)
IOMMU group 5
	[8086:8c31] 00:14.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB xHCI (rev 04)
IOMMU group 6
	[8086:8c3a] 00:16.0 Communication controller: Intel Corporation 8 Series/C220 Series Chipset Family MEI Controller #1 (rev 04)
IOMMU group 7
	[8086:153b] 00:19.0 Ethernet controller: Intel Corporation Ethernet Connection I217-V (rev 04)
IOMMU group 8
	[8086:8c2d] 00:1a.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #2 (rev 04)
IOMMU group 9
	[8086:8c20] 00:1b.0 Audio device: Intel Corporation 8 Series/C220 Series Chipset High Definition Audio Controller (rev 04)
IOMMU group 10
	[8086:8c10] 00:1c.0 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #1 (rev d4)
IOMMU group 11
	[8086:8c12] 00:1c.1 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #2 (rev d4)
IOMMU group 12
	[8086:8c16] 00:1c.3 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 (rev d4)
IOMMU group 13
	[8086:8c26] 00:1d.0 USB controller: Intel Corporation 8 Series/C220 Series Chipset Family USB EHCI #1 (rev 04)
IOMMU group 14
	[8086:8c44] 00:1f.0 ISA bridge: Intel Corporation Z87 Express LPC Controller (rev 04)
	[8086:8c22] 00:1f.3 SMBus: Intel Corporation 8 Series/C220 Series Chipset Family SMBus Controller (rev 04)
IOMMU group 15
	[10de:1b81] 01:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX 1070] (rev a1)
	[10de:10f0] 01:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1)
IOMMU group 16
	[10de:0fc6] 02:00.0 VGA compatible controller: NVIDIA Corporation GK107 [GeForce GTX 650] (rev a1)
	[10de:0e1b] 02:00.1 Audio device: NVIDIA Corporation GK107 HDMI Audio Controller (rev a1)
IOMMU group 17
	[1b21:0612] 04:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 01)
IOMMU group 18
	[10b5:8608] 05:00.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 19
	[10b5:8608] 06:01.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 20
	[10b5:8608] 06:04.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 21
	[10b5:8608] 06:05.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 22
	[10b5:8608] 06:06.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 23
	[10b5:8608] 06:07.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 24
	[10b5:8608] 06:08.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 25
	[10b5:8608] 06:09.0 PCI bridge: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch (rev ba)
IOMMU group 26
	[10ec:8168] 09:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller (rev 11)
IOMMU group 27
	[14e4:43b1] 0b:00.0 Network controller: Broadcom Limited BCM4352 802.11ac Wireless Network Adapter (rev 03)
IOMMU group 28
	[1b21:0612] 0d:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 01)

CPU Thread Pairings

This displays a list of CPU thread pairings.

cpu 0 <===> cpu 4
cpu 1 <===> cpu 5
cpu 2 <===> cpu 6
cpu 3 <===> cpu 7

USB Devices

This displays the output of the lsusb command. The numeric identifiers are used to configure PCI pass-through.

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002: ID 8087:8008 Intel Corp.
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 002: ID 8087:8000 Intel Corp.
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 002: ID 174c:2074 ASMedia Technology Inc. ASM1074 High-Speed hub
Bus 003 Device 003: ID 0b05:17cf ASUSTek Computer, Inc.
Bus 003 Device 004: ID 045e:00dd Microsoft Corp. Comfort Curve Keyboard 2000 V1.0
Bus 003 Device 005: ID 0781:556b SanDisk Corp.
Bus 003 Device 006: ID 1b1c:0c04 Corsair
Bus 003 Device 007: ID 045e:0745 Microsoft Corp. Nano Transceiver v1.0 for Bluetooth
Bus 003 Device 008: ID 045e:0797 Microsoft Corp. Optical Mouse 200
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 004 Device 002: ID 174c:3074 ASMedia Technology Inc. ASM1074 SuperSpeed hub

SCSI Devices

This displays the output of the lsscsi command. The numeric identifiers are used to configure PCI pass-through.

Note that linux groups ATA, SATA and SAS devices with true SCSI devices.

[0:0:0:0]    disk    SanDisk  Cruzer Edge      1.26  /dev/sda   8.00GB
[1:0:0:0]    cd/dvd  HL-DT-ST BD-RE  WH14NS40  1.01  /dev/sr0        -
[3:0:0:0]    disk    ATA      ST31000528AS     CC49  /dev/sdb   1.00TB

Edited May 4, 20179 yr by VSan

<domain type='kvm'>
  <name>Win10_Intel_IGD</name>
  <uuid>56b160e3-4187-72bd-5a6a-3ce089398c4e</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>5242880</memory>
  <currentMemory unit='KiB'>5242880</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>6</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='1'/>
    <vcpupin vcpu='1' cpuset='2'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='5'/>
    <vcpupin vcpu='4' cpuset='6'/>
    <vcpupin vcpu='5' cpuset='7'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.7'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='3' threads='2'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Win10_Intel_IGD/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/pt_windows_10_enterprise_version_1703_updated_march_2017_x64_dvd_10196082.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.126-2.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:f2:55:80'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target port='0'/>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x045e'/>
        <product id='0x00dd'/>
      </source>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x045e'/>
        <product id='0x0797'/>
      </source>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
</domain>


May 4 00:06:41 Tower dnsmasq[3071]: compile time options: IPv6 GNU-getopt no-DBus i18n IDN DHCP DHCPv6 no-Lua TFTP no-conntrack ipset auth no-DNSSEC loop-detect inotify
May 4 00:06:41 Tower dnsmasq-dhcp[3071]: DHCP, IP range 192.168.122.2 -- 192.168.122.254, lease time 1h
May 4 00:06:41 Tower dnsmasq-dhcp[3071]: DHCP, sockets bound exclusively to interface virbr0
May 4 00:06:41 Tower dnsmasq[3071]: reading /etc/resolv.conf
May 4 00:06:41 Tower dnsmasq[3071]: using nameserver 192.168.0.1#53
May 4 00:06:41 Tower dnsmasq[3071]: using nameserver 192.168.1.1#53
May 4 00:06:41 Tower dnsmasq[3071]: read /etc/hosts - 2 addresses
May 4 00:06:41 Tower dnsmasq[3071]: read /var/lib/libvirt/dnsmasq/default.addnhosts - 0 addresses
May 4 00:06:41 Tower dnsmasq-dhcp[3071]: read /var/lib/libvirt/dnsmasq/default.hostsfile
May 4 00:06:41 Tower kernel: virbr0: port 1(virbr0-nic) entered disabled state
May 4 00:07:39 Tower kernel: vgaarb: device changed decodes: PCI:0000:00:02.0,olddecodes=io+mem,decodes=io+mem:owns=io+mem
May 4 00:07:39 Tower kernel: br0: port 2(vnet0) entered blocking state
May 4 00:07:39 Tower kernel: br0: port 2(vnet0) entered disabled state
May 4 00:07:39 Tower kernel: device vnet0 entered promiscuous mode
May 4 00:07:39 Tower kernel: br0: port 2(vnet0) entered blocking state
May 4 00:07:39 Tower kernel: br0: port 2(vnet0) entered forwarding state
May 4 00:07:39 Tower acpid: input device has been disconnected, fd 6
May 4 00:07:39 Tower acpid: input device has been disconnected, fd 7
May 4 00:07:40 Tower kernel: usb 3-5: reset low-speed USB device number 4 using xhci_hcd
May 4 00:07:40 Tower kernel: usb 3-14: reset low-speed USB device number 8 using xhci_hcd
May 4 00:07:41 Tower kernel: usb 3-5: reset low-speed USB device number 4 using xhci_hcd
May 4 00:07:41 Tower kernel: usb 3-14: reset low-speed USB device number 8 using xhci_hcd
May 4 00:07:42 Tower kernel: kvm: zapping shadow pages for mmio generation wraparound
May 4 00:08:01 Tower kernel: vgaarb: device changed decodes: PCI:0000:00:02.0,olddecodes=io+mem,decodes=io+mem:owns=io+mem
May 4 00:16:15 Tower kernel: br0: port 2(vnet0) entered disabled state
May 4 00:16:15 Tower kernel: device vnet0 left promiscuous mode
May 4 00:16:15 Tower kernel: br0: port 2(vnet0) entered disabled state
May 4 00:16:15 Tower kernel: input: USB Optical Mouse as /devices/pci0000:00/0000:00:14.0/usb3/3-14/3-14:1.0/0003:045E:0797.0008/input/input12
May 4 00:16:15 Tower kernel: hid-generic 0003:045E:0797.0008: input,hidraw0: USB HID v1.11 Mouse [USB Optical Mouse] on usb-0000:00:14.0-14/input0
May 4 00:16:15 Tower kernel: input: Microsoft Comfort Curve Keyboard 2000 as /devices/pci0000:00/0000:00:14.0/usb3/3-5/3-5:1.0/0003:045E:00DD.0009/input/input13
May 4 00:16:15 Tower kernel: hid-generic 0003:045E:00DD.0009: input,hidraw1: USB HID v1.11 Keyboard [Microsoft Comfort Curve Keyboard 2000] on usb-0000:00:14.0-5/input0
May 4 00:16:15 Tower kernel: input: Microsoft Comfort Curve Keyboard 2000 as /devices/pci0000:00/0000:00:14.0/usb3/3-5/3-5:1.1/0003:045E:00DD.000A/input/input14
May 4 00:16:15 Tower kernel: hid-generic 0003:045E:00DD.000A: input,hidraw6: USB HID v1.11 Device [Microsoft Comfort Curve Keyboard 2000] on usb-0000:00:14.0-5/input1
May 4 00:16:15 Tower kernel: vgaarb: device changed decodes: PCI:0000:00:02.0,olddecodes=io+mem,decodes=io+mem:owns=io+mem

2017-05-04 03:07:39.084+0000: starting up libvirt version: 2.4.0, qemu version: 2.7.1, hostname: Tower
LC_ALL=C PATH=/bin:/sbin:/usr/bin:/usr/sbin HOME=/ QEMU_AUDIO_DRV=none /usr/local/sbin/qemu -name guest=Win10_Intel_IGD,debug-threads=on -S -object secret,id=masterKey0,format=raw,file=/var/lib/libvirt/qemu/domain-1-Win10_Intel_IGD/master-key.aes -machine pc-i440fx-2.7,accel=kvm,usb=off,dump-guest-core=off,mem-merge=off -cpu host,hv_time,hv_relaxed,hv_vapic,hv_spinlocks=0x1fff,hv_vendor_id=none -m 5120 -realtime mlock=off -smp 6,sockets=1,cores=3,threads=2 -uuid 56b160e3-4187-72bd-5a6a-3ce089398c4e -display none -no-user-config -nodefaults -chardev socket,id=charmonitor,path=/var/lib/libvirt/qemu/domain-1-Win10_Intel_IGD/monitor.sock,server,nowait -mon chardev=charmonitor,id=monitor,mode=control -rtc base=localtime -no-hpet -no-shutdown -boot strict=on -device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 -device ich9_Intel_IGD/org.qemu.guest_agent.0,server,nowait -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 -device vfio-pci,host=00:02.0,id=hostdev0,bus=pci.0,addr=0x2 -device usb-host,hostbus=3,hostaddr=4,id=hostdev1,bus=usb.0,port=1 -device usb-host,hostbus=3,hostaddr=8,id=hostdev2,bus=usb.0,port=2 -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 -msg timestamp=on
Domain id=1 is tainted: high-privileges
Domain id=1 is tainted: host-cpu
char device redirected to /dev/pts/0 (label charserial0)
2017-05-04T03:16:15.349721Z qemu-system-x86_64: terminating on signal 15 from pid 2916
2017-05-04 03:16:15.950+0000: shutting down, reason=destroyed

tower-diagnostics-20170428-2120.zip

tower-diagnostics-20170504-0037.zip

tower-syslog-20170504-0034.zip
