OVA to Raw Conversion

Cwis3man
in VM Engine (KVM)

Featured Replies

I think this is more of a linux question then anything, but worth a shot.



I have an OVA file that I'd like to convert to RAW and boot via unraid. The conversion went fine, but when booting the VM I get the following error:

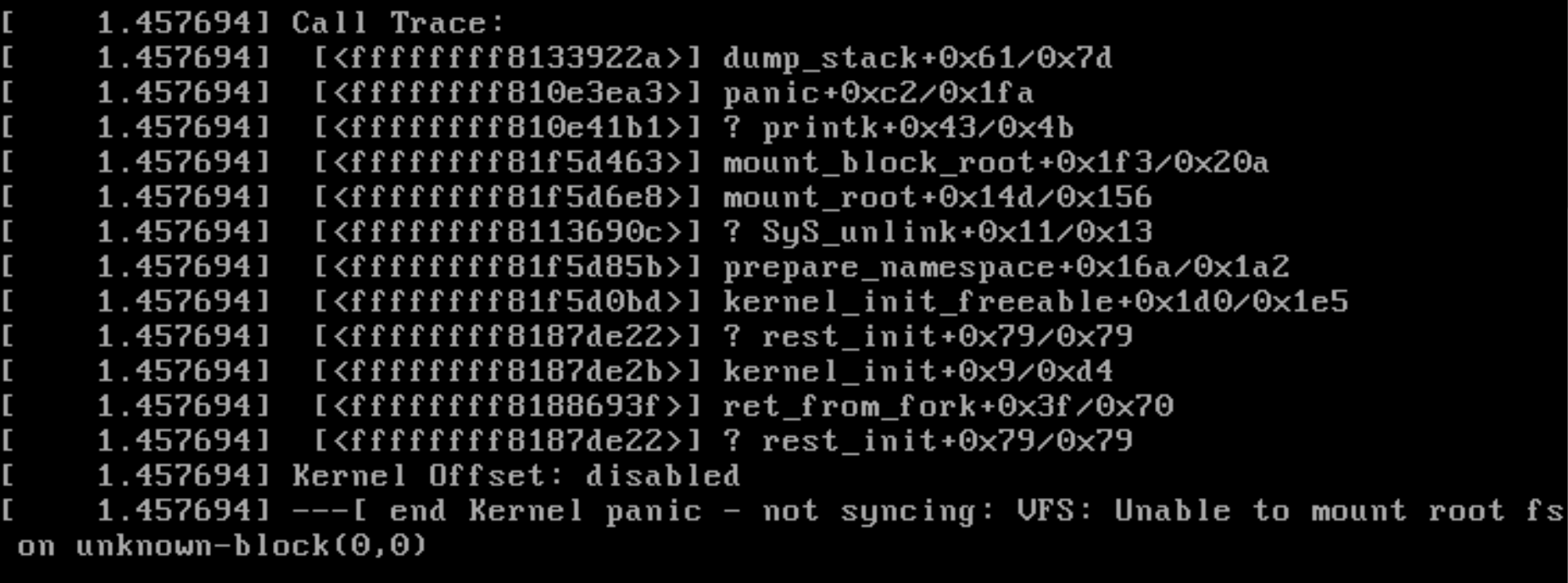

Edit - I get the error when booting from RAW or VMDK.






Here's a copy of my XML



<domain type='kvm' id='26'>
  <name>vRanger</name>
  <uuid>be4ae8ca-72ed-92fb-99cd-a56a795d0c9b</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Linux" icon="default.png" os="linux"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='5'/>
    <vcpupin vcpu='2' cpuset='6'/>
    <vcpupin vcpu='3' cpuset='7'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-1.4'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='4' threads='1'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/VMs/vRanger.raw'/>
      <backingStore/>
      <target dev='hdc' bus='ide'/>
      <boot order='1'/>
      <alias name='ide0-1-0'/>
      <address type='drive' controller='0' bus='1' target='0' unit='0'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='ide' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:2c:3d:bc'/>
      <source bridge='br0'/>
      <target dev='vnet2'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/3'/>
      <target port='0'/>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/3'>
      <source path='/dev/pts/3'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-26-vRanger/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <graphics type='vnc' port='5902' autoport='yes' websocket='5702' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </memballoon>
  </devices>
  <seclabel type='none' model='none'/>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>



And here is the OVF File-


<?xml version="1.0" encoding="UTF-8"?>
<!--Generated by VMware ESX Server, User: root, UTC time: 2016-05-27T13:34:32.369917Z-->
<Envelope vmw:buildId="build-799733" xmlns="http://schemas.dmtf.org/ovf/envelope/1" xmlns:cim="http://schemas.dmtf.org/wbem/wscim/1/common" xmlns:ovf="http://schemas.dmtf.org/ovf/envelope/1" xmlns:rasd="http://schemas.dmtf.org/wbem/wscim/1/cim-schema/2/CIM_ResourceAllocationSettingData" xmlns:vmw="http://www.vmware.com/schema/ovf" xmlns:vssd="http://schemas.dmtf.org/wbem/wscim/1/cim-schema/2/CIM_VirtualSystemSettingData" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <References>
    <File ovf:href="vRanger-Virtual-Appliance_751-disk1.vmdk" ovf:id="file1" ovf:size="153332224"/>
  </References>
  <DiskSection>
    <Info>Virtual disk information</Info>
    <Disk ovf:capacity="10" ovf:capacityAllocationUnits="byte * 2^30" ovf:diskId="vmdisk1" ovf:fileRef="file1" ovf:format="http://www.vmware.com/interfaces/specifications/vmdk.html#streamOptimized" ovf:populatedSize="539230208"/>
  </DiskSection>
  <NetworkSection>
    <Info>The list of logical networks</Info>
    <Network ovf:name="VM Network">
      <Description>The VM Network network</Description>
    </Network>
  </NetworkSection>
  <VirtualSystem ovf:id="vRanger-Virtual-Appliance_751">
    <Info>A virtual machine</Info>
    <Name>vRanger-Virtual-Appliance_751</Name>
    <ProductSection>
      <Info>VA published by Dell Software Inc.</Info>
      <Product>vRanger Virtual Appliance</Product>
      <Vendor>Dell Software Inc.</Vendor>
      <Version>7.5.1</Version>
      <ProductUrl>http://software.dell.com/products/vranger/</ProductUrl>
      <VendorUrl>http://software.dell.com/</VendorUrl>
    </ProductSection>
    <AnnotationSection>
      <Info>Product description</Info>
      <Annotation>This virtual appliance is intended to be used with vRanger Backup and Replication software.  It facilitates Replication, Backup, Restore, and Linux File Level Restore features.

An instance of this virtual appliance must be deployed to each ESX or ESXi host that is involved in replication.

The default root password is &apos;vzroot1&apos;.</Annotation>
    </AnnotationSection>
    <OperatingSystemSection ovf:id="100" vmw:osType="other26xLinux64Guest">
      <Info>The kind of installed guest operating system</Info>
    </OperatingSystemSection>
    <VirtualHardwareSection>
      <Info>Virtual hardware requirements</Info>
      <System>
        <vssd:ElementName>Virtual Hardware Family</vssd:ElementName>
        <vssd:InstanceID>0</vssd:InstanceID>
        <vssd:VirtualSystemIdentifier>vRanger-Virtual-Appliance_751</vssd:VirtualSystemIdentifier>
        <vssd:VirtualSystemType>vmx-08</vssd:VirtualSystemType>
      </System>
      <Item>
        <rasd:AllocationUnits>hertz * 10^6</rasd:AllocationUnits>
        <rasd:Description>Number of Virtual CPUs</rasd:Description>
        <rasd:ElementName>1 virtual CPU(s)</rasd:ElementName>
        <rasd:InstanceID>1</rasd:InstanceID>
        <rasd:ResourceType>3</rasd:ResourceType>
        <rasd:VirtualQuantity>1</rasd:VirtualQuantity>
      </Item>
      <Item>
        <rasd:AllocationUnits>byte * 2^20</rasd:AllocationUnits>
        <rasd:Description>Memory Size</rasd:Description>
        <rasd:ElementName>1024MB of memory</rasd:ElementName>
        <rasd:InstanceID>2</rasd:InstanceID>
        <rasd:ResourceType>4</rasd:ResourceType>
        <rasd:VirtualQuantity>1024</rasd:VirtualQuantity>
      </Item>
      <Item>
        <rasd:Address>0</rasd:Address>
        <rasd:Description>SCSI Controller</rasd:Description>
        <rasd:ElementName>SCSI Controller 0</rasd:ElementName>
        <rasd:InstanceID>3</rasd:InstanceID>
        <rasd:ResourceSubType>lsilogic</rasd:ResourceSubType>
        <rasd:ResourceType>6</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="slotInfo.pciSlotNumber" vmw:value="16"/>
      </Item>
      <Item>
        <rasd:Address>1</rasd:Address>
        <rasd:Description>IDE Controller</rasd:Description>
        <rasd:ElementName>VirtualIDEController 1</rasd:ElementName>
        <rasd:InstanceID>4</rasd:InstanceID>
        <rasd:ResourceType>5</rasd:ResourceType>
      </Item>
      <Item>
        <rasd:Address>0</rasd:Address>
        <rasd:Description>IDE Controller</rasd:Description>
        <rasd:ElementName>VirtualIDEController 0</rasd:ElementName>
        <rasd:InstanceID>5</rasd:InstanceID>
        <rasd:ResourceType>5</rasd:ResourceType>
      </Item>
      <Item ovf:required="false">
        <rasd:AutomaticAllocation>false</rasd:AutomaticAllocation>
        <rasd:ElementName>VirtualVideoCard</rasd:ElementName>
        <rasd:InstanceID>6</rasd:InstanceID>
        <rasd:ResourceType>24</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="enable3DSupport" vmw:value="false"/>
        <vmw:Config ovf:required="false" vmw:key="enableMPTSupport" vmw:value="false"/>
        <vmw:Config ovf:required="false" vmw:key="use3dRenderer" vmw:value="automatic"/>
        <vmw:Config ovf:required="false" vmw:key="useAutoDetect" vmw:value="false"/>
        <vmw:Config ovf:required="false" vmw:key="videoRamSizeInKB" vmw:value="4096"/>
      </Item>
      <Item ovf:required="false">
        <rasd:AutomaticAllocation>false</rasd:AutomaticAllocation>
        <rasd:ElementName>VirtualVMCIDevice</rasd:ElementName>
        <rasd:InstanceID>7</rasd:InstanceID>
        <rasd:ResourceSubType>vmware.vmci</rasd:ResourceSubType>
        <rasd:ResourceType>1</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="allowUnrestrictedCommunication" vmw:value="false"/>
        <vmw:Config ovf:required="false" vmw:key="slotInfo.pciSlotNumber" vmw:value="32"/>
      </Item>
      <Item>
        <rasd:AddressOnParent>0</rasd:AddressOnParent>
        <rasd:ElementName>Hard Disk 1</rasd:ElementName>
        <rasd:HostResource>ovf:/disk/vmdisk1</rasd:HostResource>
        <rasd:InstanceID>8</rasd:InstanceID>
        <rasd:Parent>3</rasd:Parent>
        <rasd:ResourceType>17</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="backing.writeThrough" vmw:value="false"/>
      </Item>
      <Item ovf:required="false">
        <rasd:AddressOnParent>0</rasd:AddressOnParent>
        <rasd:AutomaticAllocation>false</rasd:AutomaticAllocation>
        <rasd:ElementName>CD-ROM 1</rasd:ElementName>
        <rasd:InstanceID>9</rasd:InstanceID>
        <rasd:Parent>5</rasd:Parent>
        <rasd:ResourceSubType>vmware.cdrom.remoteatapi</rasd:ResourceSubType>
        <rasd:ResourceType>15</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="connectable.allowGuestControl" vmw:value="true"/>
      </Item>
      <Item>
        <rasd:AddressOnParent>7</rasd:AddressOnParent>
        <rasd:AutomaticAllocation>true</rasd:AutomaticAllocation>
        <rasd:Connection>VM Network</rasd:Connection>
        <rasd:Description>VmxNet3 ethernet adapter on &quot;VM Network&quot;</rasd:Description>
        <rasd:ElementName>Ethernet 1</rasd:ElementName>
        <rasd:InstanceID>10</rasd:InstanceID>
        <rasd:ResourceSubType>VmxNet3</rasd:ResourceSubType>
        <rasd:ResourceType>10</rasd:ResourceType>
        <vmw:Config ovf:required="false" vmw:key="connectable.allowGuestControl" vmw:value="true"/>
        <vmw:Config ovf:required="false" vmw:key="slotInfo.pciSlotNumber" vmw:value="160"/>
        <vmw:Config ovf:required="false" vmw:key="wakeOnLanEnabled" vmw:value="true"/>
      </Item>
      <vmw:Config ovf:required="false" vmw:key="cpuHotAddEnabled" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="cpuHotRemoveEnabled" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="firmware" vmw:value="bios"/>
      <vmw:Config ovf:required="false" vmw:key="virtualICH7MPresent" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="virtualSMCPresent" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="memoryHotAddEnabled" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="nestedHVEnabled" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="powerOpInfo.powerOffType" vmw:value="soft"/>
      <vmw:Config ovf:required="false" vmw:key="powerOpInfo.resetType" vmw:value="soft"/>
      <vmw:Config ovf:required="false" vmw:key="powerOpInfo.standbyAction" vmw:value="checkpoint"/>
      <vmw:Config ovf:required="false" vmw:key="powerOpInfo.suspendType" vmw:value="hard"/>
      <vmw:Config ovf:required="false" vmw:key="tools.afterPowerOn" vmw:value="true"/>
      <vmw:Config ovf:required="false" vmw:key="tools.afterResume" vmw:value="true"/>
      <vmw:Config ovf:required="false" vmw:key="tools.beforeGuestShutdown" vmw:value="true"/>
      <vmw:Config ovf:required="false" vmw:key="tools.beforeGuestStandby" vmw:value="true"/>
      <vmw:Config ovf:required="false" vmw:key="tools.syncTimeWithHost" vmw:value="false"/>
      <vmw:Config ovf:required="false" vmw:key="tools.toolsUpgradePolicy" vmw:value="manual"/>
    </VirtualHardwareSection>
  </VirtualSystem>
</Envelope>



Edited by Cwis3man

  • Quote

    • Archived

    This topic is now archived and is closed to further replies.

    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
