Unraid 1 GPU

Akram Mokhtar
in General Support

Featured Replies

Please Help .



i need to make my one of my Vms to show on my Monitor ,and this Server have only Graphic Card : AMD ES1000(01:03.0)



when i choose it instead of VNC , igot this error ,so is there a solution for my problem.

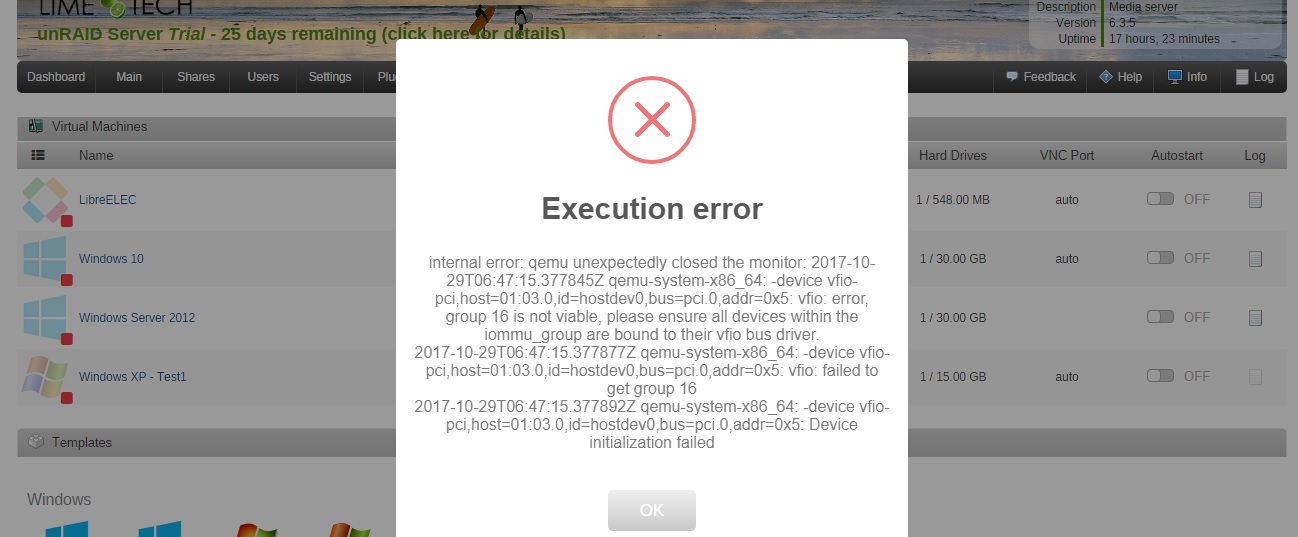

here is the error when i start my VM



internal error: qemu unexpectedly closed the monitor: 2017-10-29T06:47:15.377845Z qemu-system-x86_64: -device vfio-pci,host=01:03.0,id=hostdev0,bus=pci.0,addr=0x5: vfio: error, group 16 is not viable, please ensure all devices within the iommu_group are bound to their vfio bus driver.
2017-10-29T06:47:15.377877Z qemu-system-x86_64: -device vfio-pci,host=01:03.0,id=hostdev0,bus=pci.0,addr=0x5: vfio: failed to get group 16
2017-10-29T06:47:15.377892Z qemu-system-x86_64: -device vfio-pci,host=01:03.0,id=hostdev0,bus=pci.0,addr=0x5: Device initialization failed



here is my XML :



<domain type='kvm'>
  <name>Windows Server 2012</name>
  <uuid>4f72f14b-d5ec-6c80-2dc5-e6f99e89f4de</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows Server 2012" icon="windows.png" os="windows2012"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='2'/>
    <vcpupin vcpu='2' cpuset='4'/>
    <vcpupin vcpu='3' cpuset='6'/>
    <vcpupin vcpu='4' cpuset='8'/>
    <vcpupin vcpu='5' cpuset='10'/>
    <vcpupin vcpu='6' cpuset='12'/>
    <vcpupin vcpu='7' cpuset='14'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.7'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/4f72f14b-d5ec-6c80-2dc5-e6f99e89f4de_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='4' threads='2'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Windows Server 2012/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/SANStorage/en_windows_server_2012_r2_vl_x64_dvd_3319595.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/SANStorage/virtio-win-0.1.126-2.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:b8:ba:f5'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target port='0'/>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x03' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </hostdev>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
</domain>

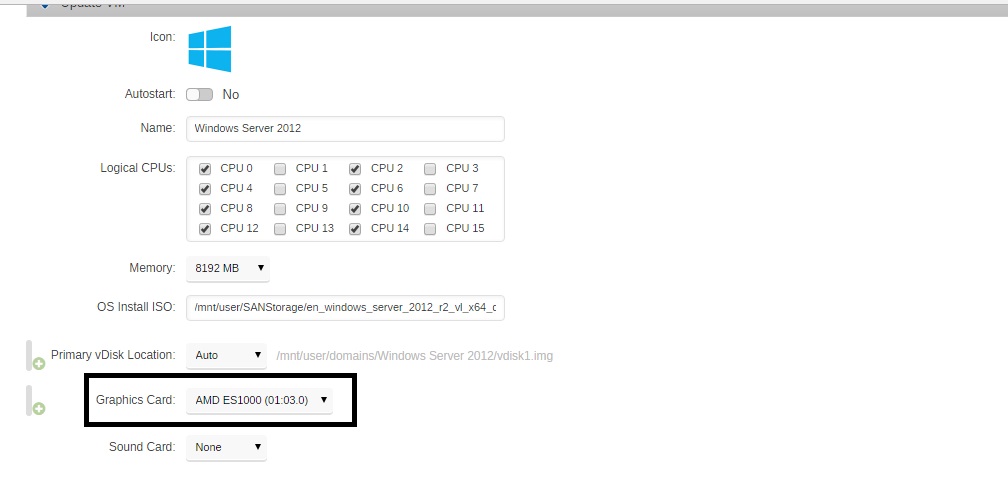

Graphic Card.jpg

Issue Error1.jpg



Add the Devices List :



IOMMU group 0
	[8086:3406] 00:00.0 Host bridge: Intel Corporation 5520 I/O Hub to ESI Port (rev 13)
IOMMU group 1
	[8086:3408] 00:01.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 1 (rev 13)
IOMMU group 2
	[8086:3409] 00:02.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 2 (rev 13)
IOMMU group 3
	[8086:340a] 00:03.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 3 (rev 13)
IOMMU group 4
	[8086:340b] 00:04.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 4 (rev 13)
IOMMU group 5
	[8086:340c] 00:05.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 5 (rev 13)
IOMMU group 6
	[8086:340d] 00:06.0 PCI bridge: Intel Corporation 5520/X58 I/O Hub PCI Express Root Port 6 (rev 13)
IOMMU group 7
	[8086:340e] 00:07.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 7 (rev 13)
IOMMU group 8
	[8086:340f] 00:08.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 8 (rev 13)
IOMMU group 9
	[8086:3410] 00:09.0 PCI bridge: Intel Corporation 7500/5520/5500/X58 I/O Hub PCI Express Root Port 9 (rev 13)
IOMMU group 10
	[8086:3411] 00:0a.0 PCI bridge: Intel Corporation 7500/5520/5500/X58 I/O Hub PCI Express Root Port 10 (rev 13)
IOMMU group 11
	[8086:343a] 00:0d.0 Host bridge: Intel Corporation Device 343a (rev 13)
	[8086:343b] 00:0d.1 Host bridge: Intel Corporation Device 343b (rev 13)
	[8086:343c] 00:0d.2 Host bridge: Intel Corporation Device 343c (rev 13)
	[8086:343d] 00:0d.3 Host bridge: Intel Corporation Device 343d (rev 13)
	[8086:3418] 00:0d.4 Host bridge: Intel Corporation 7500/5520/5500/X58 Physical Layer Port 0 (rev 13)
	[8086:3419] 00:0d.5 Host bridge: Intel Corporation 7500/5520/5500 Physical Layer Port 1 (rev 13)
	[8086:341a] 00:0d.6 Host bridge: Intel Corporation Device 341a (rev 13)
IOMMU group 12
	[8086:341c] 00:0e.0 Host bridge: Intel Corporation Device 341c (rev 13)
	[8086:341d] 00:0e.1 Host bridge: Intel Corporation Device 341d (rev 13)
	[8086:341e] 00:0e.2 Host bridge: Intel Corporation Device 341e (rev 13)
	[8086:341f] 00:0e.3 Host bridge: Intel Corporation Device 341f (rev 13)
	[8086:3439] 00:0e.4 Host bridge: Intel Corporation Device 3439 (rev 13)
IOMMU group 13
	[8086:342e] 00:14.0 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers (rev 13)
	[8086:3422] 00:14.1 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers (rev 13)
	[8086:3423] 00:14.2 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers (rev 13)
IOMMU group 14
	[8086:3a40] 00:1c.0 PCI bridge: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 1
	[8086:3a44] 00:1c.2 PCI bridge: Intel Corporation 82801JI (ICH10 Family) PCI Express Root Port 3
	[14e4:1639] 02:00.0 Ethernet controller: Broadcom Limited NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
	[14e4:1639] 02:00.1 Ethernet controller: Broadcom Limited NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
	[14e4:1639] 03:00.0 Ethernet controller: Broadcom Limited NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
	[14e4:1639] 03:00.1 Ethernet controller: Broadcom Limited NetXtreme II BCM5709 Gigabit Ethernet (rev 20)
IOMMU group 15
	[8086:3a34] 00:1d.0 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1
	[8086:3a35] 00:1d.1 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2
	[8086:3a36] 00:1d.2 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3
	[8086:3a39] 00:1d.3 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #6
	[8086:3a3a] 00:1d.7 USB controller: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1
IOMMU group 16
	[8086:244e] 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 90)
	[1002:515e] 01:03.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] ES1000 (rev 02)
	[0e11:b203] 01:04.0 System peripheral: Compaq Computer Corporation Integrated Lights Out Controller (rev 03)
	[0e11:b204] 01:04.2 System peripheral: Compaq Computer Corporation Integrated Lights Out  Processor (rev 03)
	[103c:3300] 01:04.4 USB controller: Hewlett-Packard Company Integrated Lights-Out Standard Virtual USB Controller
	[103c:3302] 01:04.6 IPMI SMIC interface: Hewlett-Packard Company Integrated Lights-Out Standard KCS Interface
IOMMU group 17
	[8086:3a18] 00:1f.0 ISA bridge: Intel Corporation 82801JIB (ICH10) LPC Interface Controller
IOMMU group 18
	[103c:323a] 04:00.0 RAID bus controller: Hewlett-Packard Company Smart Array G6 controllers (rev 01)
IOMMU group 19
	[8086:105e] 0a:00.0 Ethernet controller: Intel Corporation 82571EB Gigabit Ethernet Controller (rev 06)
IOMMU group 20
	[8086:105e] 0a:00.1 Ethernet controller: Intel Corporation 82571EB Gigabit Ethernet Controller (rev 06)
IOMMU group 21
	[8086:2c40] 3e:00.0 Host bridge: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture Generic Non-Core Registers (rev 05)
	[8086:2c01] 3e:00.1 Host bridge: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture System Address Decoder (rev 05)
IOMMU group 22
	[8086:2c10] 3e:02.0 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Link 0 (rev 05)
	[8086:2c11] 3e:02.1 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Physical 0 (rev 05)
	[8086:2c14] 3e:02.4 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Link 1 (rev 05)
	[8086:2c15] 3e:02.5 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Physical 1 (rev 05)
IOMMU group 23
	[8086:2c18] 3e:03.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller (rev 05)
	[8086:2c19] 3e:03.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Target Address Decoder (rev 05)
	[8086:2c1a] 3e:03.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller RAS Registers (rev 05)
	[8086:2c1c] 3e:03.4 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Test Registers (rev 05)
IOMMU group 24
	[8086:2c20] 3e:04.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Control Registers (rev 05)
	[8086:2c21] 3e:04.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Address Registers (rev 05)
	[8086:2c22] 3e:04.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Rank Registers (rev 05)
	[8086:2c23] 3e:04.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Thermal Control Registers (rev 05)
IOMMU group 25
	[8086:2c28] 3e:05.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Control Registers (rev 05)
	[8086:2c29] 3e:05.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Address Registers (rev 05)
	[8086:2c2a] 3e:05.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Rank Registers (rev 05)
	[8086:2c2b] 3e:05.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Thermal Control Registers (rev 05)
IOMMU group 26
	[8086:2c30] 3e:06.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Control Registers (rev 05)
	[8086:2c31] 3e:06.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Address Registers (rev 05)
	[8086:2c32] 3e:06.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Rank Registers (rev 05)
	[8086:2c33] 3e:06.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Thermal Control Registers (rev 05)
IOMMU group 27
	[8086:2c40] 3f:00.0 Host bridge: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture Generic Non-Core Registers (rev 05)
	[8086:2c01] 3f:00.1 Host bridge: Intel Corporation Xeon 5500/Core i7 QuickPath Architecture System Address Decoder (rev 05)
IOMMU group 28
	[8086:2c10] 3f:02.0 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Link 0 (rev 05)
	[8086:2c11] 3f:02.1 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Physical 0 (rev 05)
	[8086:2c14] 3f:02.4 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Link 1 (rev 05)
	[8086:2c15] 3f:02.5 Host bridge: Intel Corporation Xeon 5500/Core i7 QPI Physical 1 (rev 05)
IOMMU group 29
	[8086:2c18] 3f:03.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller (rev 05)
	[8086:2c19] 3f:03.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Target Address Decoder (rev 05)
	[8086:2c1a] 3f:03.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller RAS Registers (rev 05)
	[8086:2c1c] 3f:03.4 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Test Registers (rev 05)
IOMMU group 30
	[8086:2c20] 3f:04.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Control Registers (rev 05)
	[8086:2c21] 3f:04.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Address Registers (rev 05)
	[8086:2c22] 3f:04.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Rank Registers (rev 05)
	[8086:2c23] 3f:04.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Thermal Control Registers (rev 05)
IOMMU group 31
	[8086:2c28] 3f:05.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Control Registers (rev 05)
	[8086:2c29] 3f:05.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Address Registers (rev 05)
	[8086:2c2a] 3f:05.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Rank Registers (rev 05)
	[8086:2c2b] 3f:05.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Thermal Control Registers (rev 05)
IOMMU group 32
	[8086:2c30] 3f:06.0 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Control Registers (rev 05)
	[8086:2c31] 3f:06.1 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Address Registers (rev 05)
	[8086:2c32] 3f:06.2 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Rank Registers (rev 05)
	[8086:2c33] 3f:06.3 Host bridge: Intel Corporation Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Thermal Control Registers (rev 05)

Edited by Akram Mokhtar
Add the list of Devices

  • Quote

    • Archived

    This topic is now archived and is closed to further replies.

    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
