SpecFroce Posted May 21, 2019 Share Posted May 21, 2019 (edited) Hello to everyone in the Unraid forum! I have dabbled with Unraid before but now i´m quite stuck. I have started configuring a new Unraid array in a 4 U Supermicro-server, but im unable to proceed to a point where i can install one or more Vm´s. I have already enabled all needed BIOS-settings needed. I have tried both kinds of BIOS and different VirtIO drivers. Attached is my configuration file. Please advise me on how to setup a simple VM with GPU passthrough. Many thanks for any assistance! Edit: Two corrupt ISOs, both the VirtIO image and the Windows install image gave me lots of trouble. tower-diagnostics-20190521-2214.zip Edited May 22, 2019 by SpecFroce Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 What error do you get when you try to create a VM? Quote Link to comment

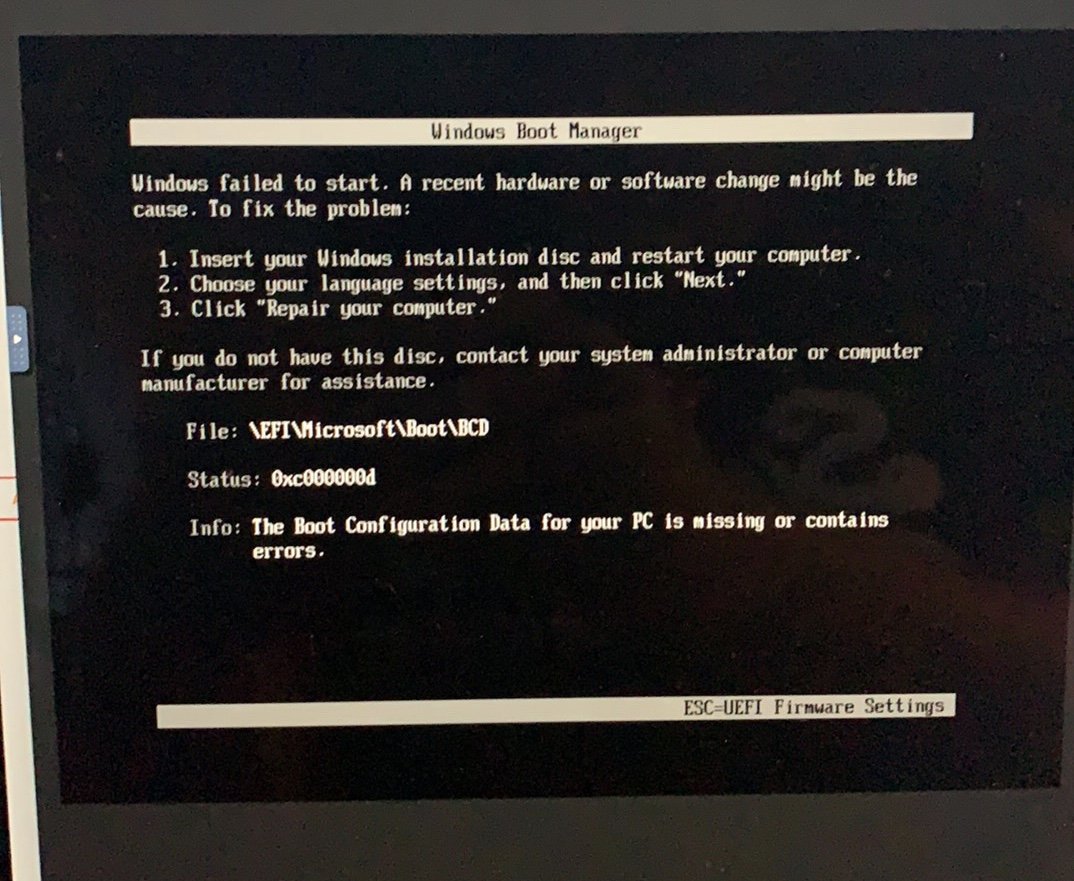

SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 I have one situation where i Get a black Window with a _ symbol blinking followed by the windows boot logo hanging(evidenced by the vm pausing itself), and in instance two I get some kind of UEFI-related error. See attachment. Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 Try creating a fresh VM with nothing passed through to it. Install Windows then go back and pass through your devices. Make sure your install ISO is up-to-date. Quote Link to comment

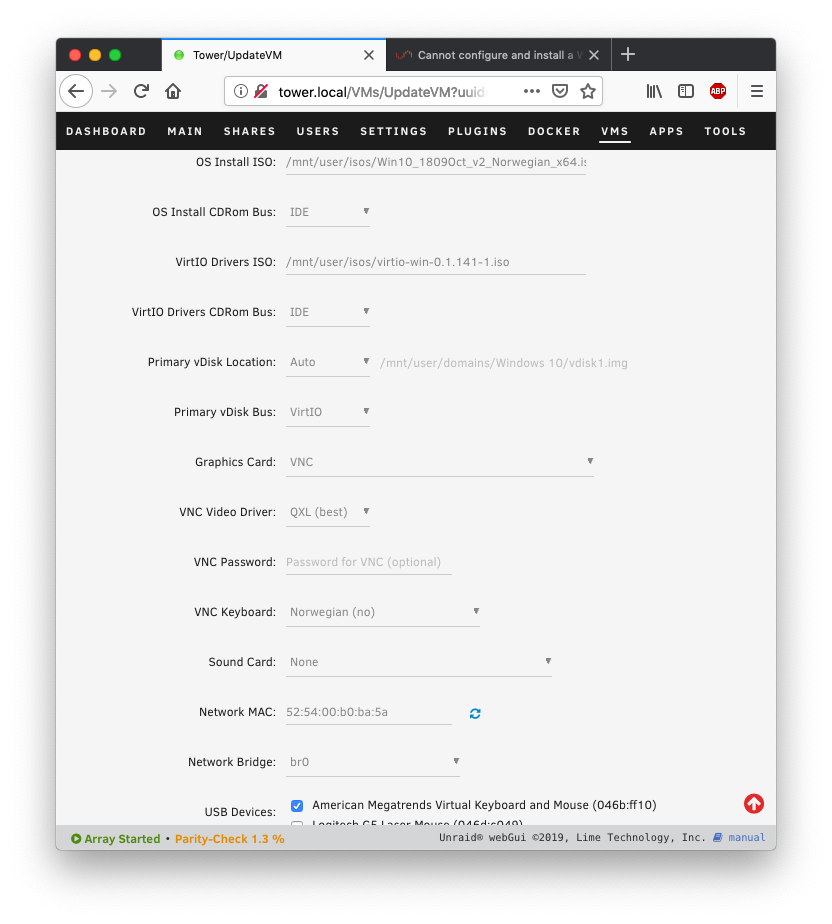

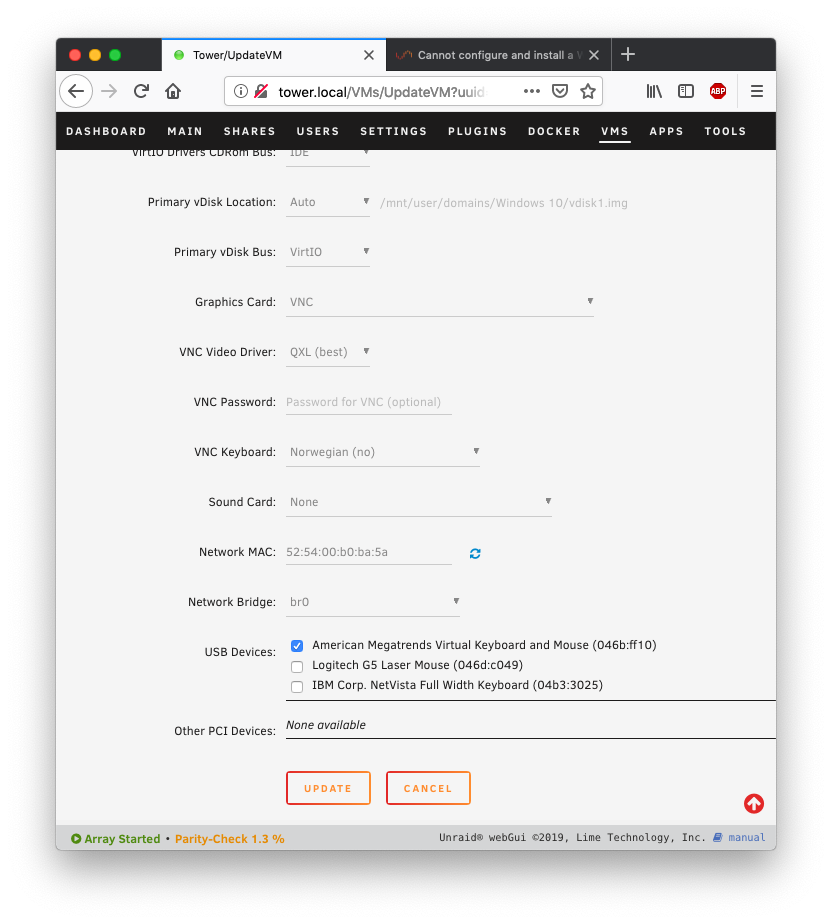

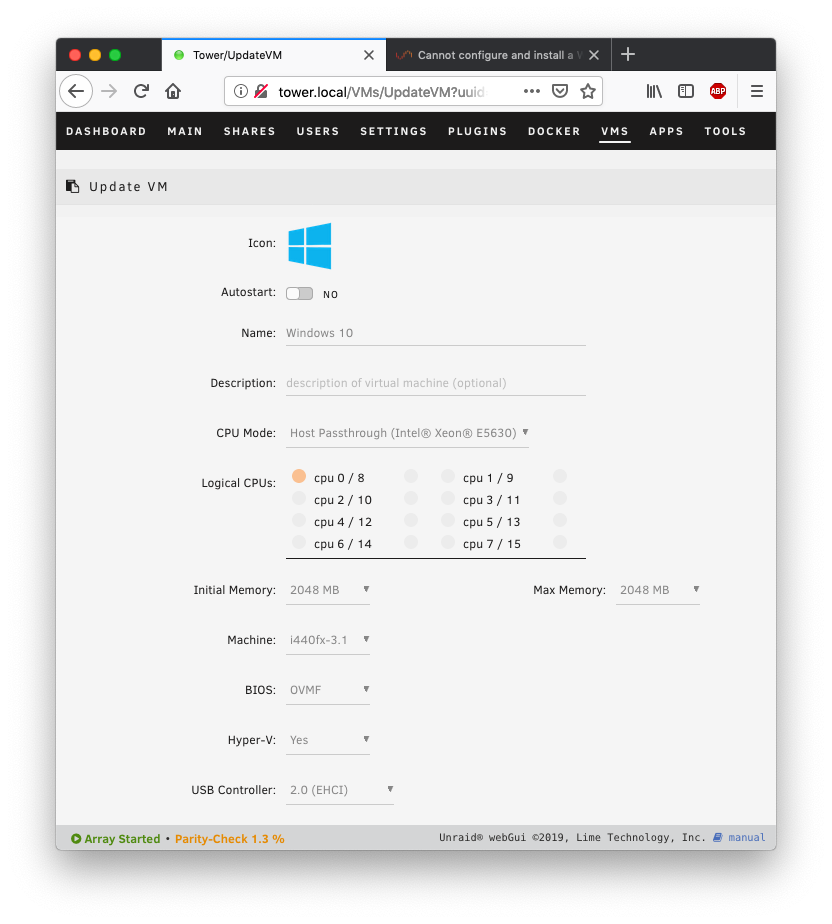

SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 (edited) 17 minutes ago, Ep1cPl4yz said: Try creating a fresh VM with nothing passed through to it. Install Windows then go back and pass through your devices. Make sure your install ISO is up-to-date. First attempt: Edited May 22, 2019 by SpecFroce Quote Link to comment

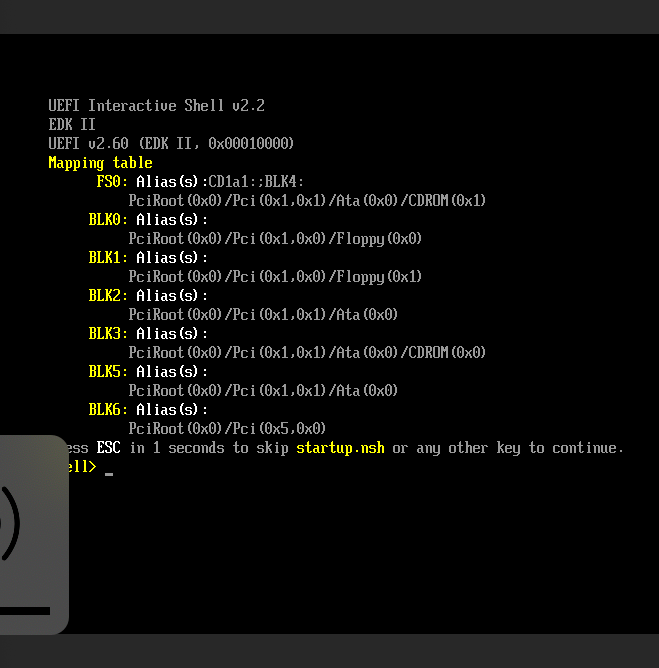

Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 At the UEFI Interactive Shell prompt, type exit and press enter. Quote Link to comment

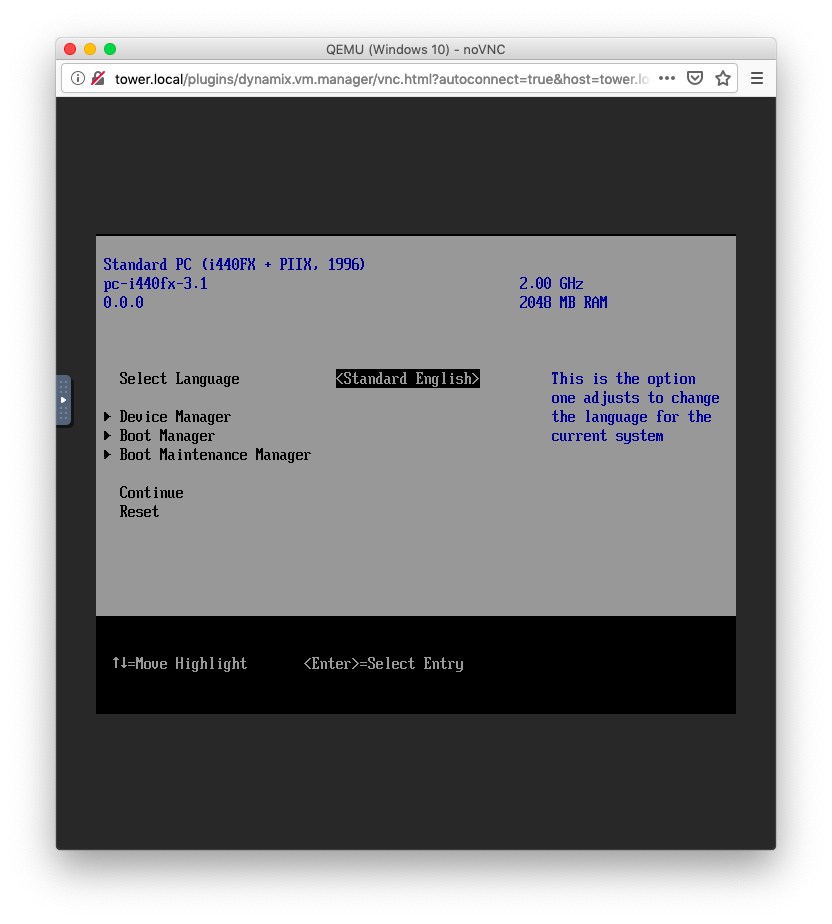

SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 9 minutes ago, Ep1cPl4yz said: At the UEFI Interactive Shell prompt, type exit and press enter. It just throws me into the virtual bios after writing exit and gives the initial windows boot error i posted when i press continue in the bios window. Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 (edited) In that case, your ISO is probably corrupted. Try downloading a new one from Microsoft and try again. (I'll save you a few clicks.) Edited May 22, 2019 by Ep1cPl4yz Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 That would explain a lot even though i tried to download it twice, I´ll try to download the ISO again. Thanks for the speedy reply! Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 7 minutes ago, SpecFroce said: That would explain a lot even though i tried to download it twice, I´ll try to download the ISO again. Thanks for the speedy reply! I would also suggest you reboot after downloading it in case an old one is loaded into RAM or something. 1 Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 Should VFIO allow unsafe interrupts be enabled or disabled? I have about 20 mins of waiting for the ISO to be downloaded.. Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 (edited) 1 44 minutes ago, SpecFroce said: Should VFIO allow unsafe interrupts be enabled or disabled? I do not know a whole lot about what that does, do so at your own risk. I don't think it would impact getting Windows to boot, though. Edited May 22, 2019 by Ep1cPl4yz Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 Update: Revised iso is working but the VirtIO-drivers seems to not be loading. Trying a second time now. Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 (edited) To load the VirtIO drivers, click the Load driver button in the Windows installer and click the option that has "w10" in the name. Edited May 22, 2019 by Ep1cPl4yz Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 I agree. I will try to redownload the drivers. Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 (edited) Update: 2/2 impossible things seems to have happened to me at the same time with the two ISOs here... Windows is installing and i should get some sleep, considering it´s 4 AM. Feel free to PM me and i´ll happily set you up with some beer money, Ep1cPl4yz. You´ve helped me quite a lot! Edited May 22, 2019 by SpecFroce Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 (edited) 10 minutes ago, SpecFroce said: Update: 2/2 impossible things seems to have happened to me at the same time with the two ISOs here... Windows is installing and i should get some sleep, considering it´s 4 AM. Feel free to PM me and i´ll happily set you up with some beer money, Ep1cPl4yz. You´ve helped me quite a lot! That won't be necessary. Happy to help! Edited May 22, 2019 by Ep1cPl4yz 1 Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 Does anyone have a explanation to this message that happens after the install is completed, RDP is enabled and i try to switch the graphics over to my GPU? internal error: qemu unexpectedly closed the monitor: 2019-05-22T02:43:51.950357Z qemu-system-x86_64: -device vfio-pci,host=84:00.1,id=hostdev0,bus=pci.0,addr=0x8: vfio 0000:84:00.1: failed to setup container for group 25: failed to set iommu for container: Operation not permitted Quote Link to comment
Ep1cPl4yz Posted May 22, 2019 Share Posted May 22, 2019 (edited) 1 hour ago, SpecFroce said: Does anyone have a explanation to this message that happens after the install is completed, RDP is enabled and i try to switch the graphics over to my GPU? internal error: qemu unexpectedly closed the monitor: 2019-05-22T02:43:51.950357Z qemu-system-x86_64: -device vfio-pci,host=84:00.1,id=hostdev0,bus=pci.0,addr=0x8: vfio 0000:84:00.1: failed to setup container for group 25: failed to set iommu for container: Operation not permitted According to the diagnostics you attached at the beginning of this thread, the GPU in IOMMU group 25 is on its own in that group. However, that error message suggests otherwise. Try setting the ACS override to "Both" and reboot. Also make sure the VM is shut down. That error message specifically refers to the HDMI audio device associated with that GPU. Make sure the GPU and its audio device are going to the same VM and that it is not being used by another running VM. Edited May 22, 2019 by Ep1cPl4yz Quote Link to comment
SpecFroce Posted May 22, 2019 Author Share Posted May 22, 2019 It seems the override-setting trick worked. Now i´m just trying to expose my shares to the VM. Thanks again! Quote Link to comment
