SilverStone CS380 w/ 6xHDD + 6xSSD


Recommended Posts

Posted (edited)

I had a bunch of HDD's, SSD'ss and RAM sitting around from server project I never built. My immediate use case is a higher end Plex server as my Synology is close to capacity.



I did some research and settled on the following:

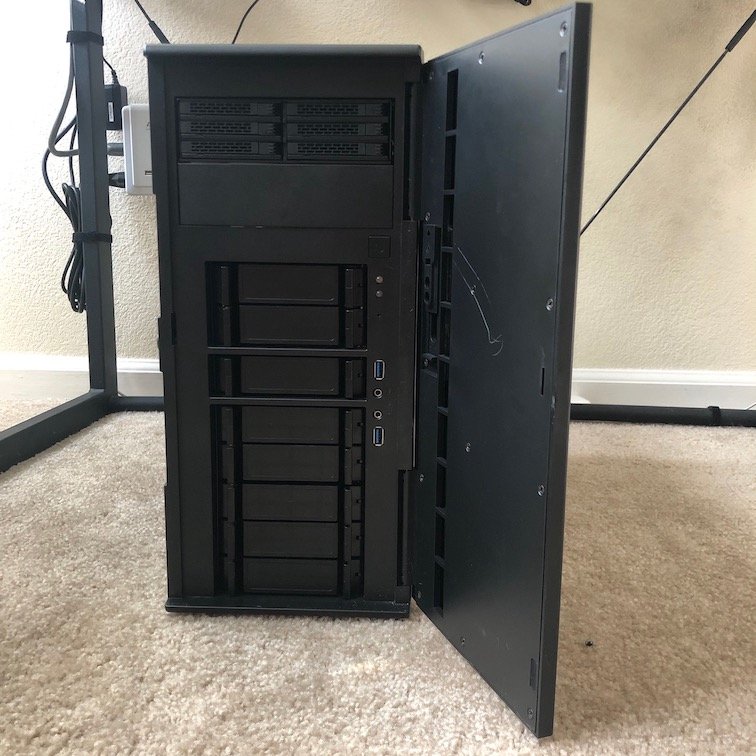

  • SilverStone Technology CS380 NAS Tower
  • Coraisr RM850x
  • Super Micro X8DTL-iF
  • 2 x Xeon E5620
  • LSI 9211-8i
  • 2 x Arctic Freezer 12 CO
  • Icy Dock ExpressCage 6 x 2.5
  • 6 x Sata III Cables
  • 2 x Mini SAS to 4 SATA
  • StarTech 50x10mm
  • AYA 7" 8-Pin to Dual 8-Pin EPS
  • Arctic Alumina Thermal Adhesive
  • Alex Tech 1/2 inch Wire Loom



Existing:



  • 6 x Samsung 8GB 2RX4 PC3L-10600R
  • 8 x Seagate 4TB
  • 6 x Samsung 850 EVO 1TB



Total cost for new parts was ~$650. Equivalent Synology to support drives/ssd + ram upgrade would have been $2k+ and would still have less cores and memory.



Overall I'm pleased with build. Plex streams 4k w/ no issue and only slightly louder than my Synology. I’m also starting to use Unraid as spill over for larger dev VM’s that don’t fit on my laptop.



Notes:



  • Many posts state the Arctic Freezer 12's work on X8DTL boards with supplied adapters which was untrue in my case. The screws are about 1/8" too long so I used a few washers as spacers. Worth noting, I tried four different coolers and theses were by far the best.

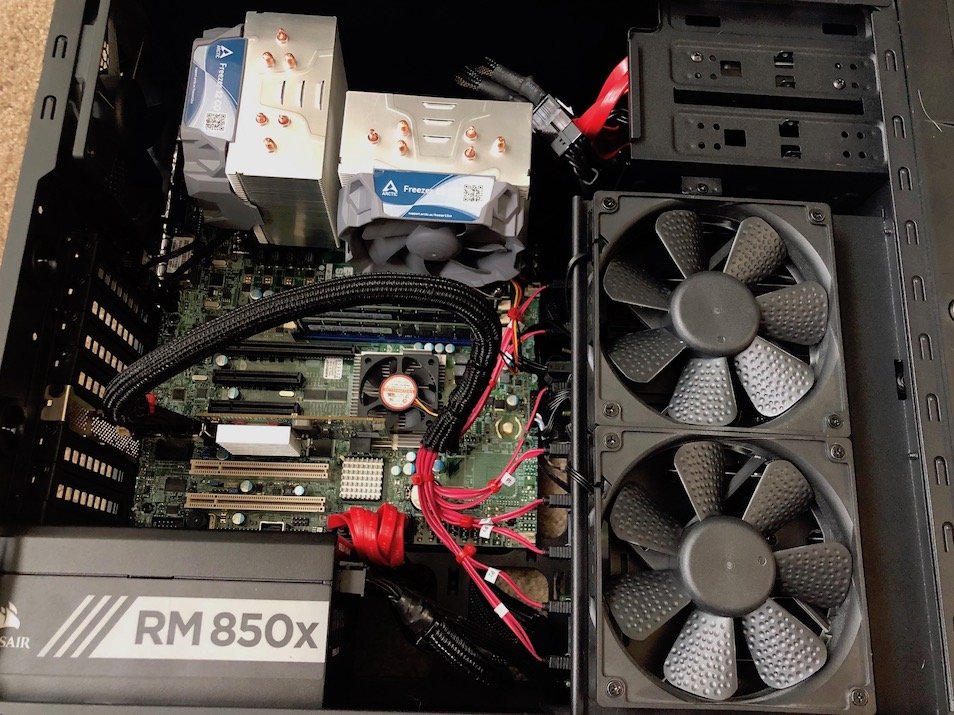

  • Originally I had both cpu cooler/fans facing toward rear but the front CPU ran a few degrees hotter as the fan blew directly into back of rear cpu cooler/fan. I rotated 90 degrees and they now run at same temp.
  • I originally purchased the Mediasonic 6 x 2.5 but it had intermittent issues with ssd's so swapped it for the Icy Dock.
  • I glued the StarTech fan directly to the chipset heatsink with thermal glue. It's more permanent than I'd like but cleanest solution I could find.



Planned additions:



  • I have an old 980 Ti which I hoped to use for transcoding but it is about 20mm too long. I may add a 1060 at some point for GPU pass through to VM’s + transcoding.
  • I have a 3TB FusionIO card I may try to get running for VM's if I don’t add a GPU.







Edited by knobbytires
Posted

very nice set up, the silverstone cs380 seems to be one of the more popular solutions for nas, its available and well priced at least.



I think your 980 ti may not do hw transcoding of hevc content maybe check here:

https://www.reddit.com/r/PleX/comments/906qud/980_ti_vs_gtx_960_for_transcoding/



I remember having to ditch my geforce 970 since even newer $40-50 gpus were performing better with 4K playback.
