SUN Oracle F80 format fail HELP please.

Hello



I have a F40 in my Dell R720 that work perfectly.

Swap it today with a F80 and try to format it but fail after a preclear.



Here are the logs



Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] 5076217297 512-byte logical blocks: (2.60 TB/2.36 TiB)
Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] 8192-byte physical blocks
Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] Write Protect is off
Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] Mode Sense: 7f 00 00 08
Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Sep 9 12:19:16 R720-Unraid kernel: sdb:
Sep 9 12:19:16 R720-Unraid kernel: sd 1:0:0:0: [sdb] Attached SCSI disk
Sep 9 12:20:12 R720-Unraid emhttpd: 2E256-TL2-500B00_SP419502900 (sdb) 512 5076217297
Sep 9 12:20:26 R720-Unraid s3_sleep: excluded disks=sda sdb sdc sdd sde sdm
Sep 9 12:21:27 R720-Unraid unassigned.devices: Device '/dev/sdb' block size: 5076217297
Sep 9 12:21:27 R720-Unraid unassigned.devices: Clearing partition table of disk '/dev/sdb'.
Sep 9 12:21:27 R720-Unraid unassigned.devices: Reloading disk '/dev/sdb' partition table.
Sep 9 12:21:27 R720-Unraid unassigned.devices: Reload partition table result: /dev/sdb: re-reading partition table
Sep 9 12:21:27 R720-Unraid unassigned.devices: Creating Unraid compatible gpt partition on disk '/dev/sdb'.
Sep 9 12:21:28 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#447 UNKNOWN(0x2003) Result: hostbyte=0x0b driverbyte=0x00
Sep 9 12:21:28 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#447 CDB: opcode=0x88 88 00 00 00 00 01 2e 90 ec d0 00 00 00 08 00 00
Sep 9 12:21:28 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 5076217040
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#851 UNKNOWN(0x2003) Result: hostbyte=0x0b driverbyte=0x00
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#851 CDB: opcode=0x8a 8a 00 00 00 00 00 00 00 00 01 00 00 00 21 00 00
Sep 9 12:21:30 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 1
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 1, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 2, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 3, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 4, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 5, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 6, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 7, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 8, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 9, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: Buffer I/O error on dev sdb, logical block 10, lost async page write
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#850 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#850 Sense Key : 0xb [current]
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#850 ASC=0x0 ASCQ=0x0
Sep 9 12:21:30 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#850 CDB: opcode=0x8a 8a 00 00 00 00 01 2e 90 ed b0 00 00 00 21 00 00
Sep 9 12:21:30 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 5076217264
Sep 9 12:21:32 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#861 UNKNOWN(0x2003) Result: hostbyte=0x0b driverbyte=0x00
Sep 9 12:21:32 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#861 CDB: opcode=0x88 88 00 00 00 00 01 2e 90 ec 40 00 00 00 08 00 00
Sep 9 12:21:32 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 5076216896
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#194 UNKNOWN(0x2003) Result: hostbyte=0x0b driverbyte=0x00
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#194 CDB: opcode=0x8a 8a 00 00 00 00 00 00 00 00 00 00 00 00 22 00 00
Sep 9 12:21:34 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 0
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#196 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#196 Sense Key : 0xb [current]
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#196 ASC=0x0 ASCQ=0x0
Sep 9 12:21:34 R720-Unraid kernel: sd 1:0:0:0: [sdb] tag#196 CDB: opcode=0x8a 8a 00 00 00 00 01 2e 90 ed b0 00 00 00 21 00 00
Sep 9 12:21:34 R720-Unraid kernel: print_req_error: I/O error, dev sdb, sector 5076217264
Sep 9 12:21:35 R720-Unraid unassigned.devices: Reloading disk '/dev/sdb' partition table.
Sep 9 12:21:35 R720-Unraid unassigned.devices: Reload partition table result: /dev/sdb: re-reading partition table
Sep 9 12:21:35 R720-Unraid unassigned.devices: Formatting disk '/dev/sdb' with 'btrfs' filesystem.
Sep 9 12:21:35 R720-Unraid unassigned.devices: Format disk '/dev/sdb' with 'btrfs' filesystem failed! Result: ERROR: mount check: cannot open /dev/sdb1: No such file or directory ERROR: cannot check mount status of /dev/sdb1: No such file or directory btrfs-progs v5.4.1 See http://btrfs.wiki.kernel.org for more information.

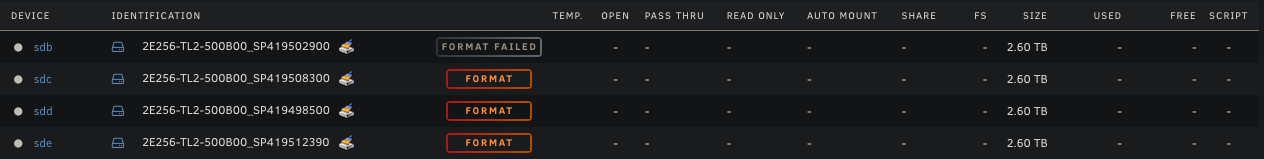

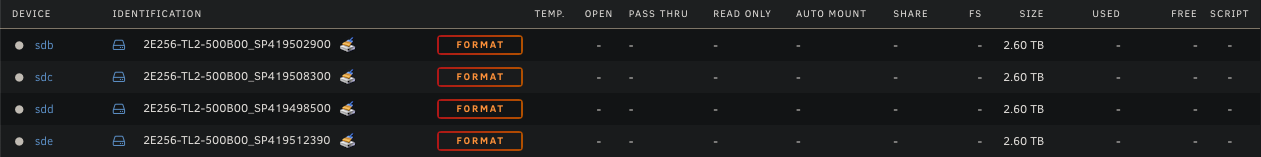

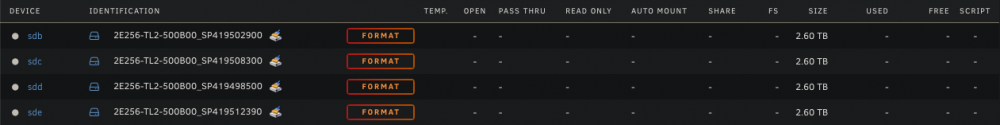

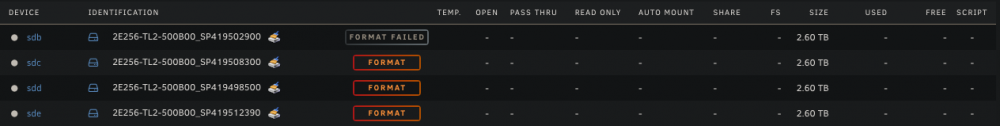

And it shows the wrong disk size too



It is a 800GB size of 4x200GB normaly

Sorry for my bad english spoken.



What can I do please ?





Edited September 9, 20205 yr by RealIPSec
error
