Smart attributes are randomly filtered out for Seagate Nytro XF1230 SSDs. Cannot repro for any other make/model.
Occurs on 6.11 & 6.12.-rc2.

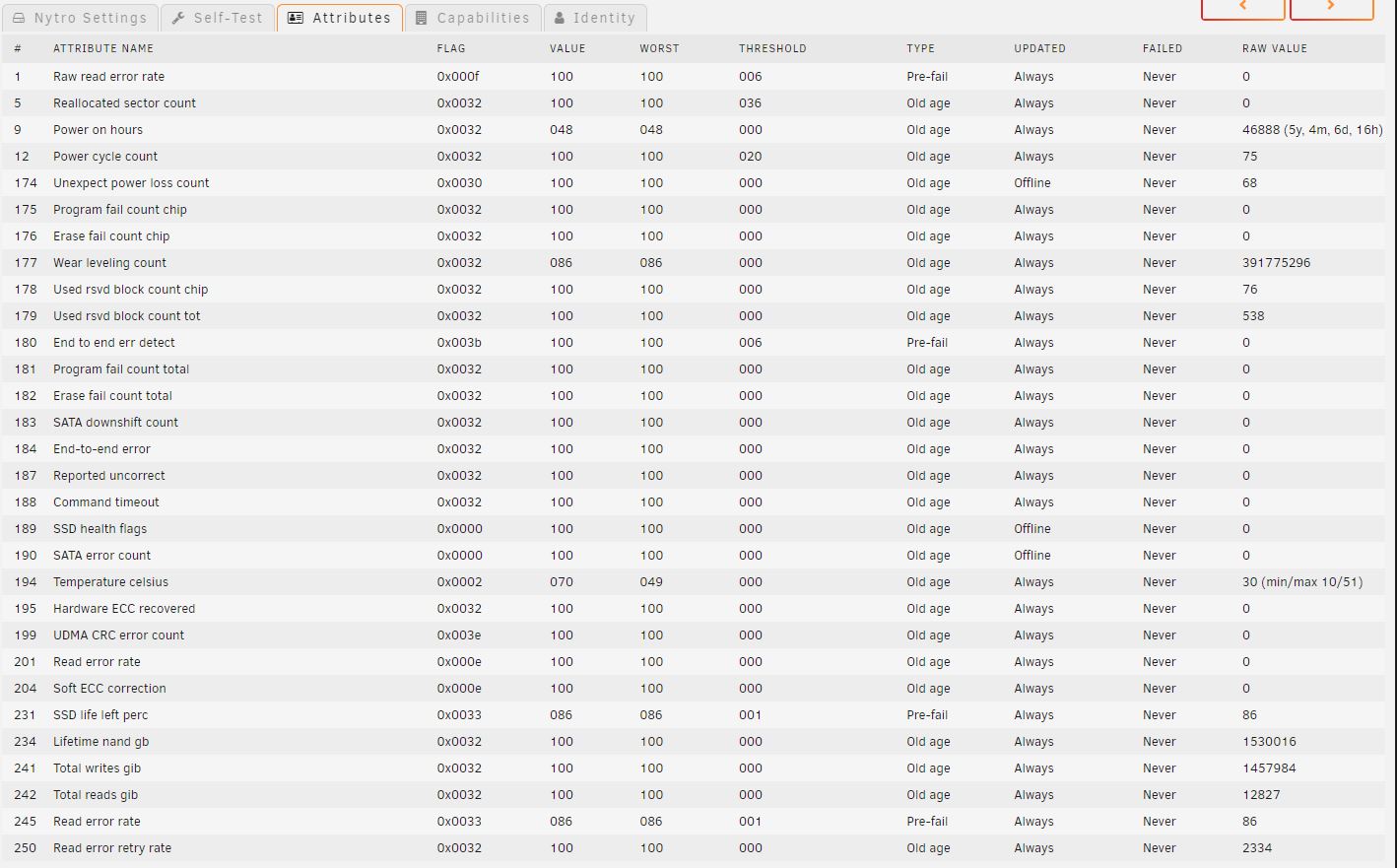

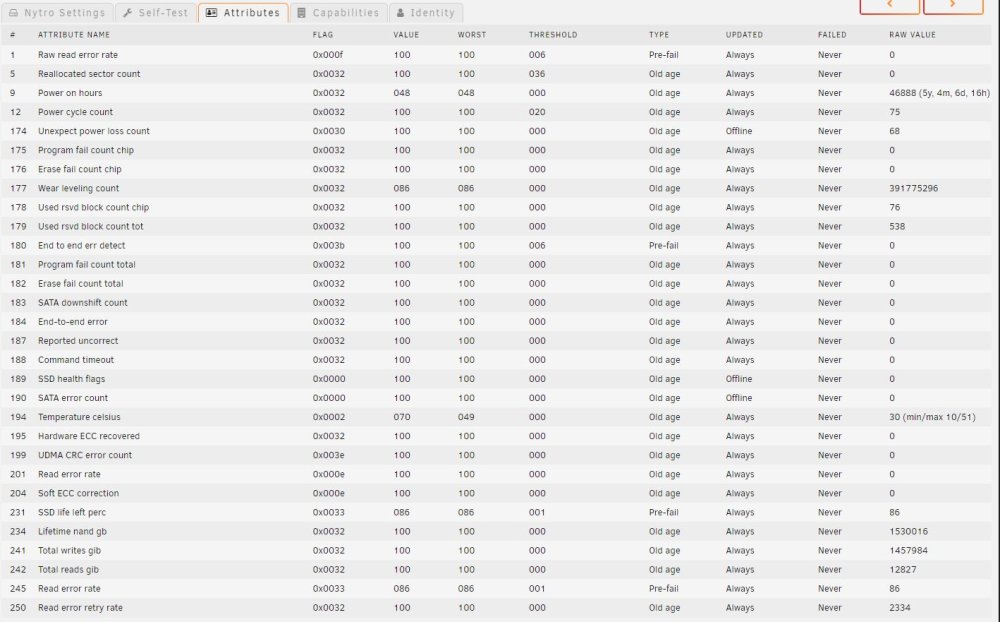

Every time I load the attributes I get a different subset:

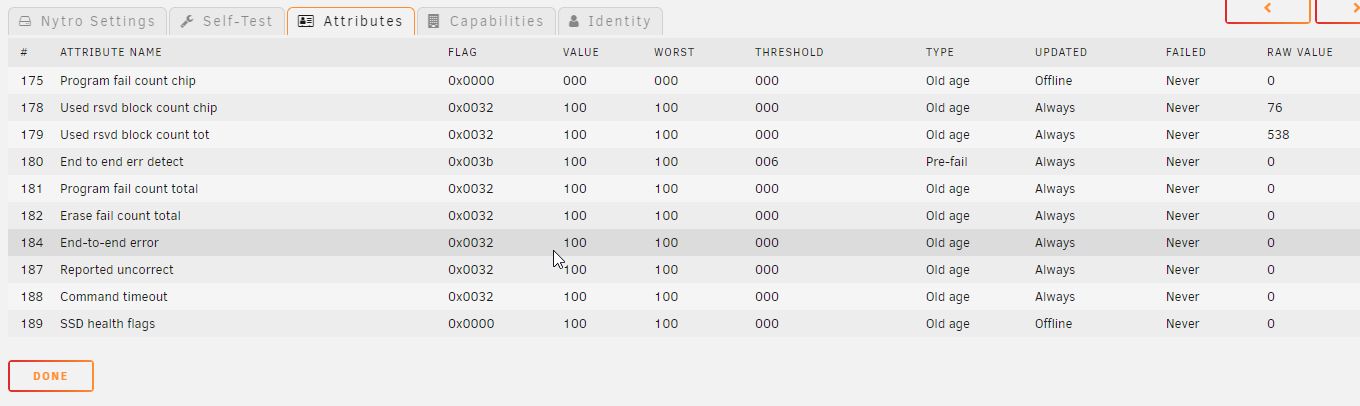

Reload and a different subset every time:
Collecting the smart attributes directly always returns the full set:
root@BENDER:~# smartctl -n standby -A /dev/sdk smartctl 7.3 2022-02-28 r5338 [x86_64-linux-6.1.20-Unraid] (local build) Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org === START OF READ SMART DATA SECTION === SMART Attributes Data Structure revision number: 0 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x000f 100 100 006 Pre-fail Always - 0 5 Reallocated_Sector_Ct 0x0032 100 100 036 Old_age Always - 0 9 Power_On_Hours 0x0032 048 048 000 Old_age Always - 46888 12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 75 174 Unexpect_Power_Loss_Ct 0x0030 100 100 000 Old_age Offline - 68 175 Program_Fail_Count_Chip 0x0032 100 100 000 Old_age Always - 0 176 Erase_Fail_Count_Chip 0x0032 100 100 000 Old_age Always - 0 177 Wear_Leveling_Count 0x0032 086 086 000 Old_age Always - 391775296 178 Used_Rsvd_Blk_Cnt_Chip 0x0032 100 100 000 Old_age Always - 76 179 Used_Rsvd_Blk_Cnt_Tot 0x0032 100 100 000 Old_age Always - 538 180 End_to_End_Err_Detect 0x003b 100 100 006 Pre-fail Always - 0 181 Program_Fail_Cnt_Total 0x0032 100 100 000 Old_age Always - 0 182 Erase_Fail_Count_Total 0x0032 100 100 000 Old_age Always - 0 183 SATA_Downshift_Count 0x0032 100 100 000 Old_age Always - 0 184 End-to-End_Error 0x0032 100 100 000 Old_age Always - 0 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0 188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0 189 SSD_Health_Flags 0x0000 100 100 000 Old_age Offline - 0 190 SATA_Error_Ct 0x0000 100 100 000 Old_age Offline - 0 194 Temperature_Celsius 0x0002 070 049 000 Old_age Always - 30 (Min/Max 10/51) 195 Hardware_ECC_Recovered 0x0032 100 100 000 Old_age Always - 0 199 UDMA_CRC_Error_Count 0x003e 100 100 000 Old_age Always - 0 201 Read_Error_Rate 0x000e 100 100 000 Old_age Always - 0 204 Soft_ECC_Correction 0x000e 100 100 000 Old_age Always - 0 231 SSD_Life_Left_Perc 0x0033 086 086 001 Pre-fail Always - 86 234 Lifetime_Nand_Gb 0x0032 100 100 000 Old_age Always - 1530016 241 Total_Writes_GiB 0x0032 100 100 000 Old_age Always - 1457984 242 Total_Reads_GiB 0x0032 100 100 000 Old_age Always - 12827 245 Read_Error_Rate 0x0033 086 086 001 Pre-fail Always - 86 250 Read_Error_Retry_Rate 0x0032 100 100 000 Old_age Always - 2334
I suspect the bug's in this script which does some fairly complex filtering on the smartctl output:
/usr/local/emhttp/plugins/dynamix/include/SmartInfo.php
Not a huge thing but I'd appreciate it if one of the devs can take a look.
Recommended Comments
There are no comments to display.
